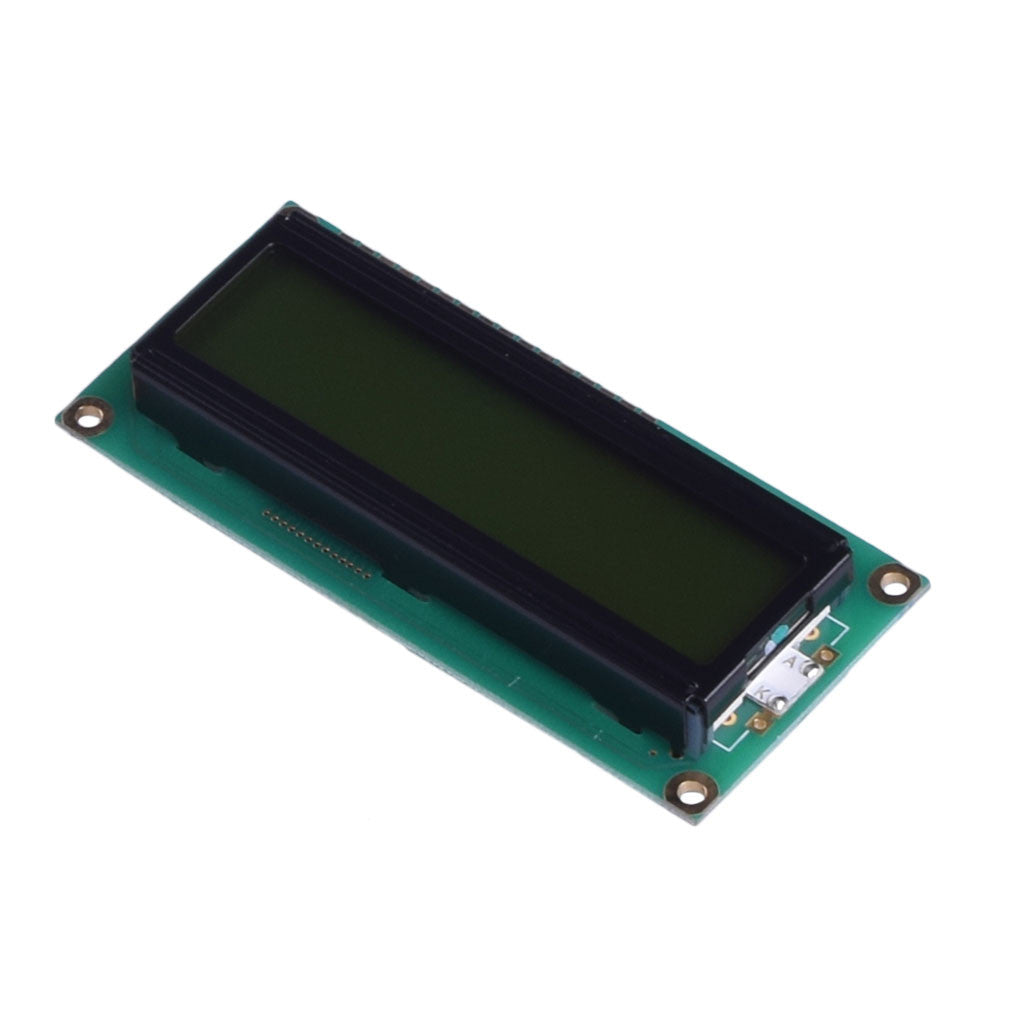

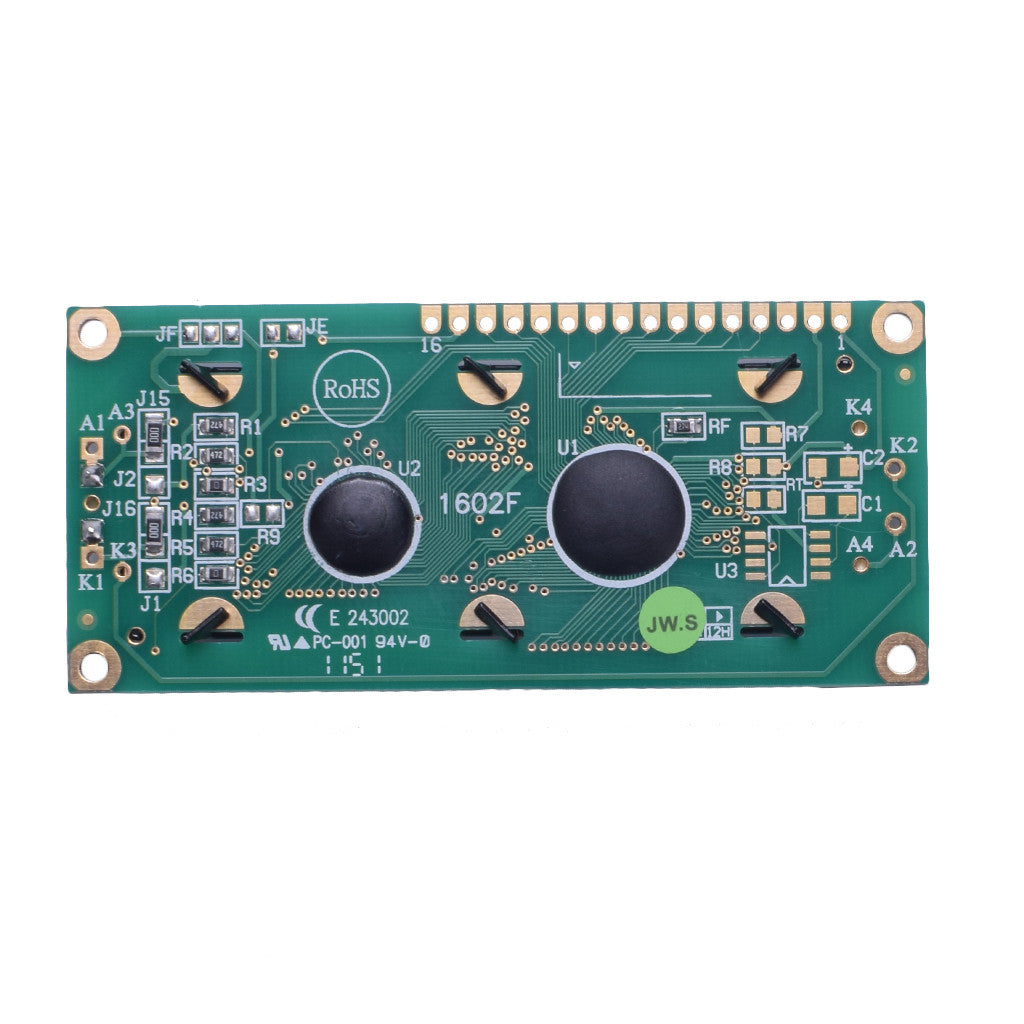

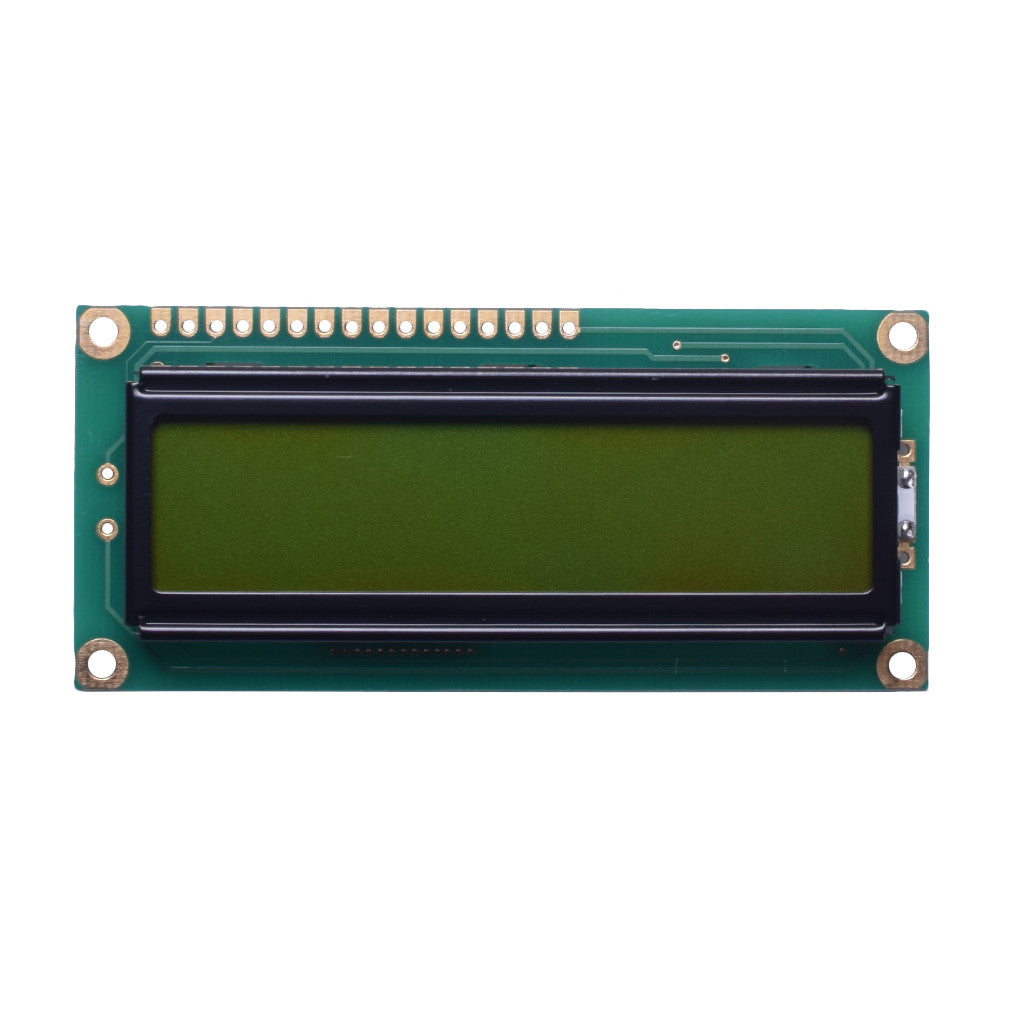

16x2 Character LCD STN Transflective - SPI, I2C
16x2 Character LCD STN Transflective - SPI, I2C
SKU:DM-LCD1602-430
Regular price
$12.90 USD
Regular price
$7.99 USD
Sale price
$12.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $400. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share



Display Specifications
- Display Format : 16 characters x 2 lines
- Display Mode : STN Positive, Yellow Green, Transflective
- View Direction : 6:00
- Module Dimension : 80.0 x 36.0 x 13.2(MAX) mm
- Power Supply : 5.0 V
- Backlight : Yellow Green LED
- Interface : SPI Interface
- Controller IC : DM4301C
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
- Weight : 32.7 g
Dimensions

Resources
- DM-LCD1602-430
- DM-LCD1602-431
- Display Driver IC: DM4301C
