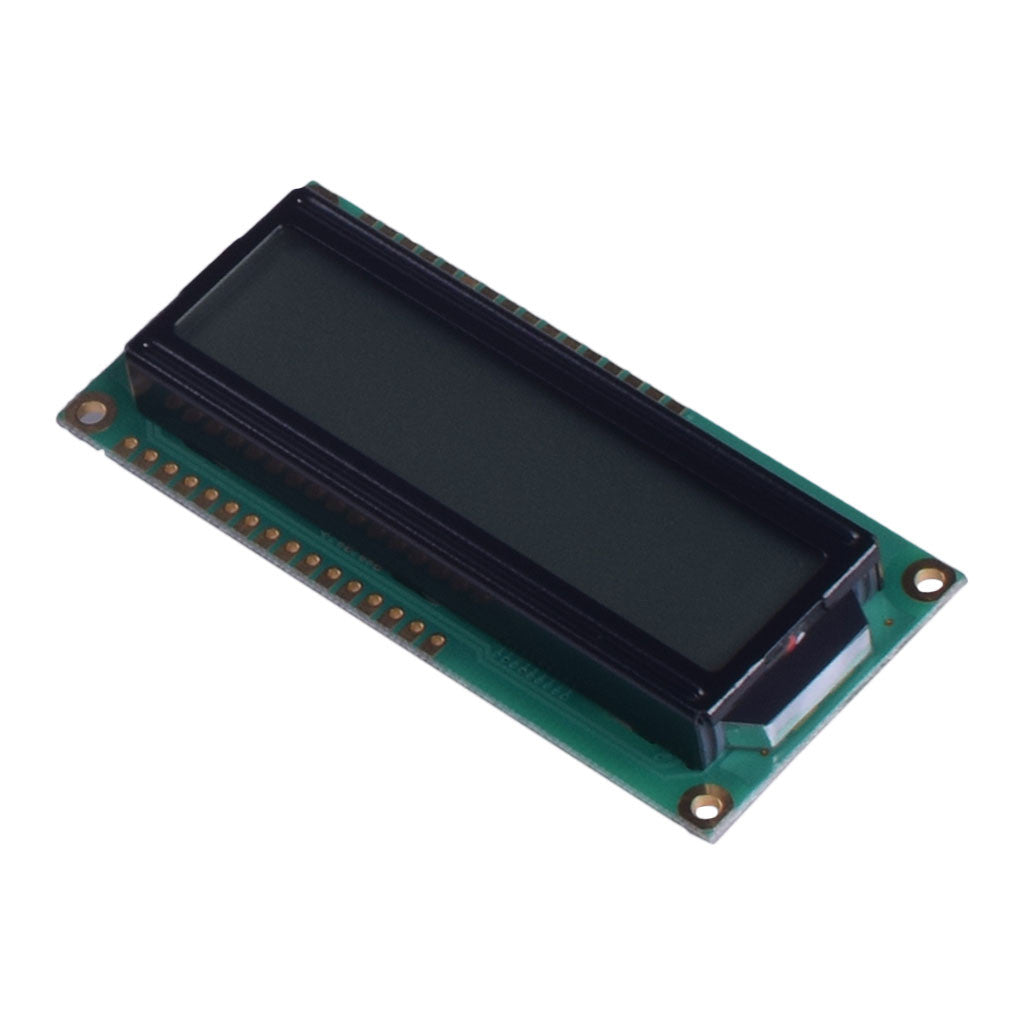

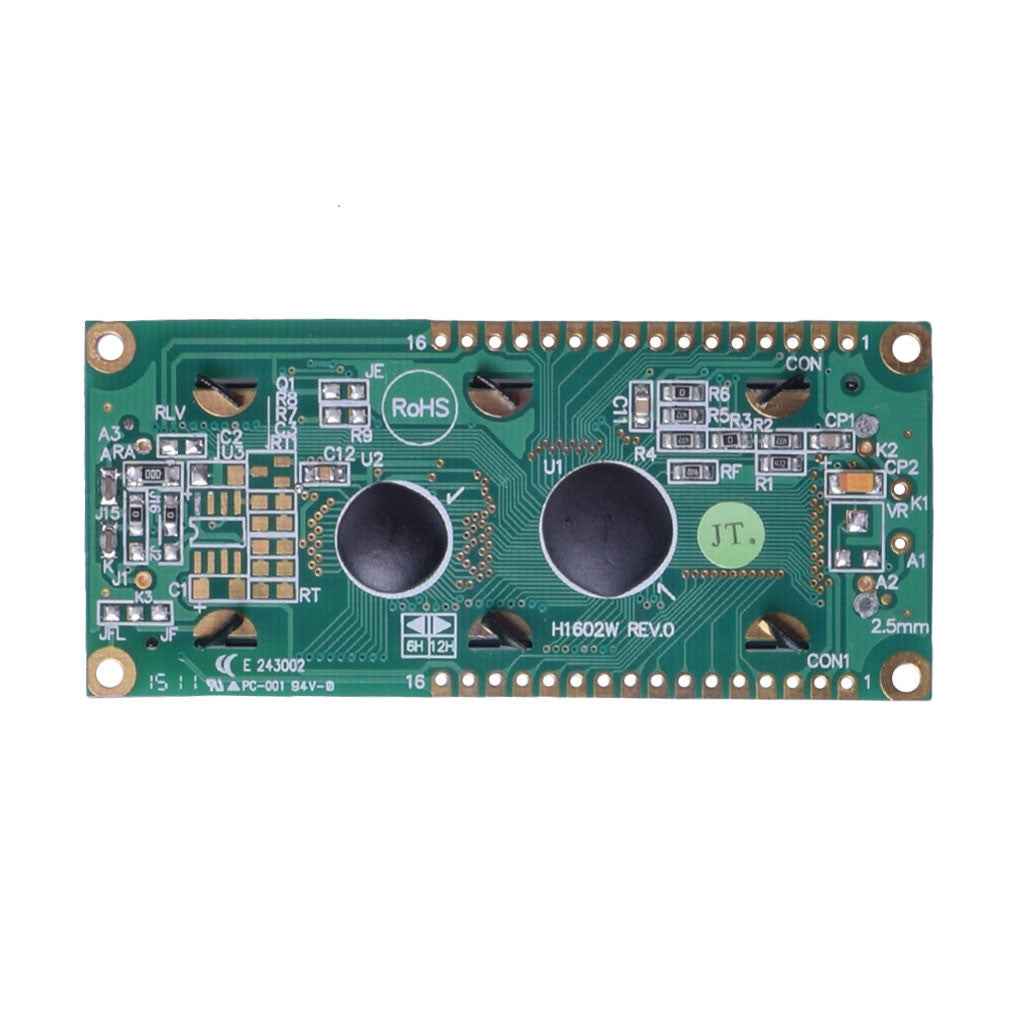

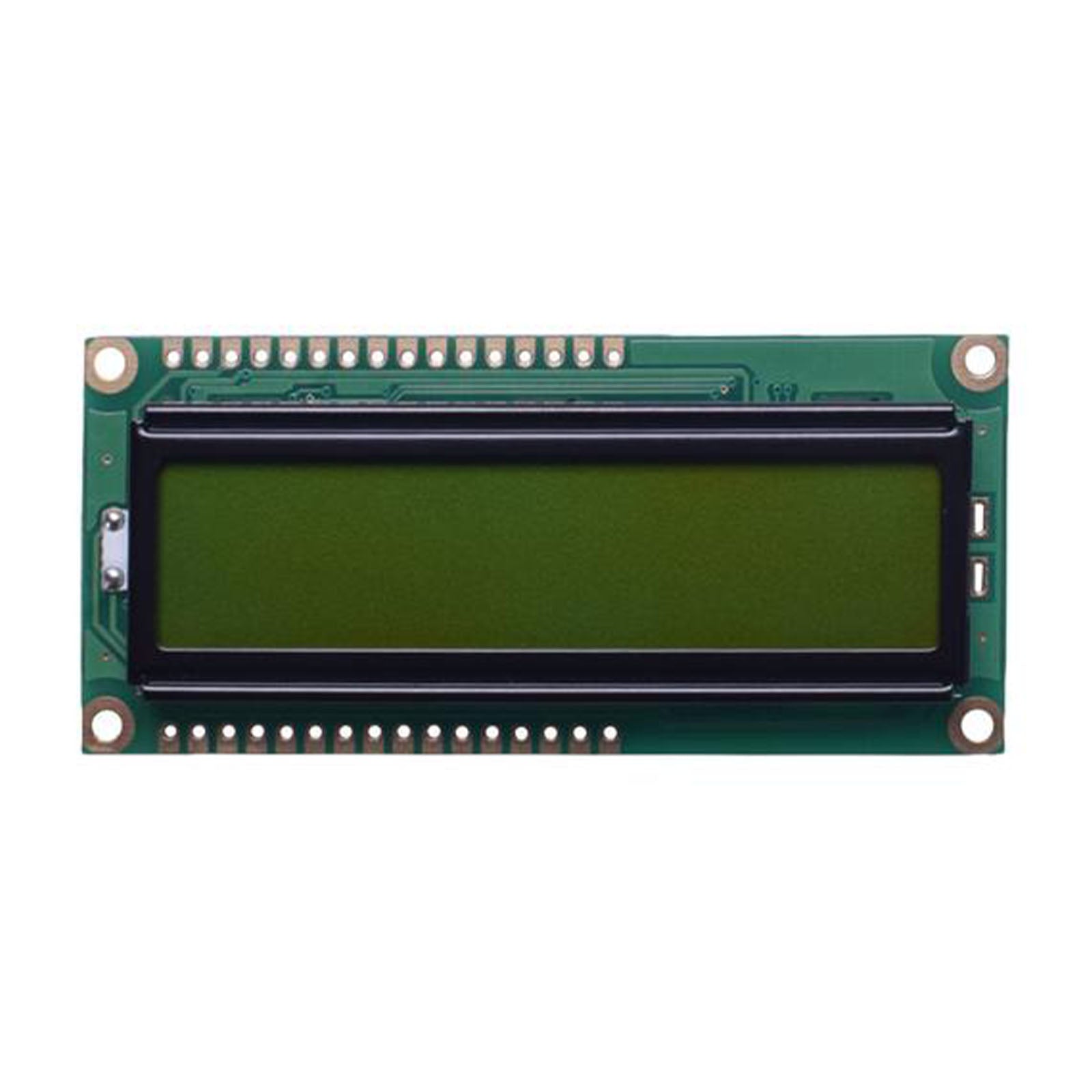

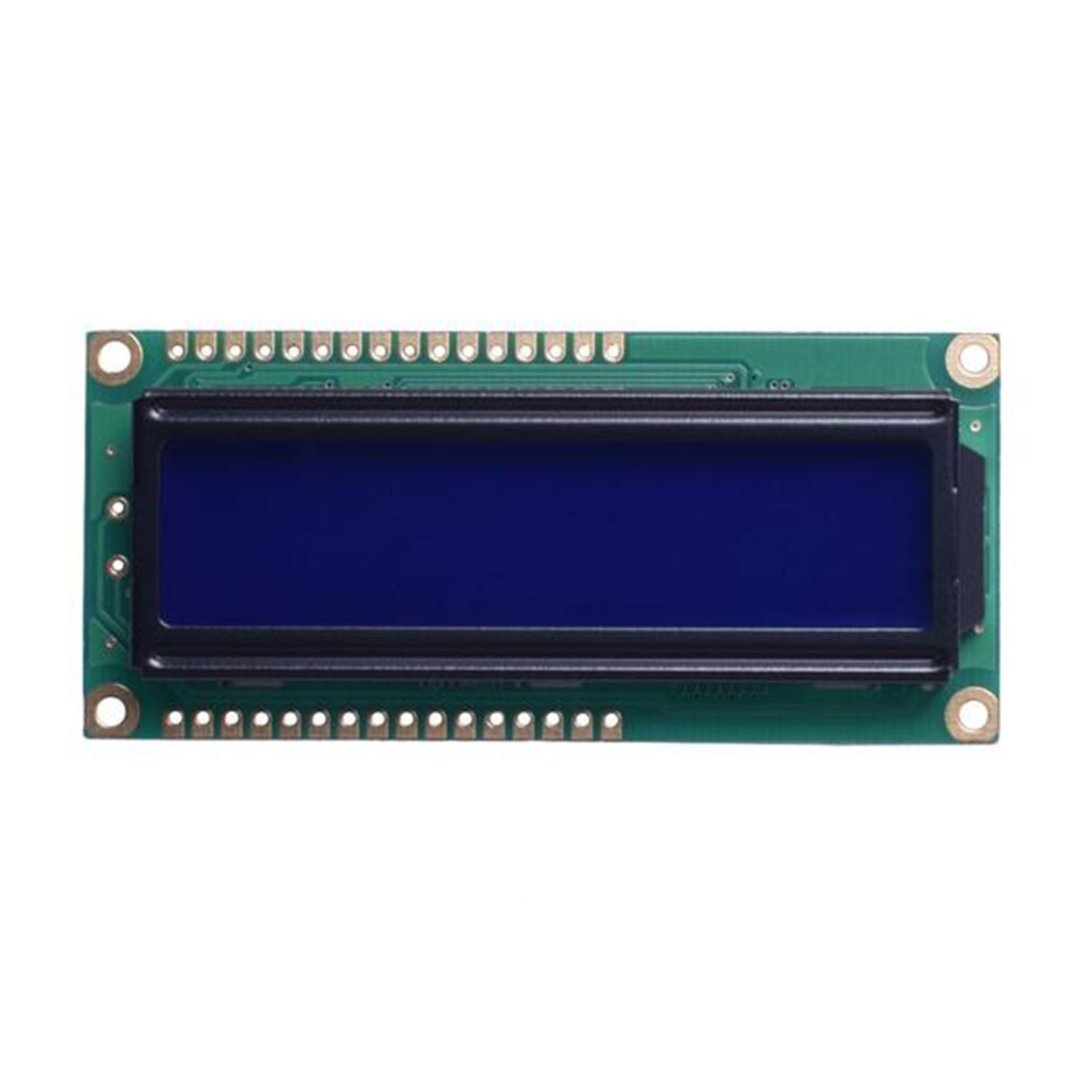

16×2 Character LCD FSTN Transflective Module with ST7066U Controller and 6800 Series MPU Interface
DM-LCD1602-425 is a 16 characters × 2 lines monochrome character LCD module using FSTN positive transflective display technology. It is designed for 5.0 V embedded systems that require a standard parallel MPU interface and a readable 1602 character display format.
The module uses an ST7066U controller IC, 6800 Series MPU interface, white LED backlight, 6:00 viewing direction, and an 80.0 × 36.0 × 13.5 mm maximum module outline.
Verified Technical Specifications
The parameters below are based on the DM-LCD1602-425 datasheet and the current product page information. They support electrical review, mechanical layout, sample evaluation, and purchasing checks for B2B projects.
| Parameter | Specification |
|---|---|
| Product Model | DM-LCD1602-425 |
| Product Type | 16×2 monochrome character LCD module |
| Display Format | 16 characters × 2 lines |
| Display Mode | FSTN Positive, Transflective |
| Controller IC | ST7066U |
| Interface | 6800 Series MPU Interface |
| Module Dimension | 80.0 × 36.0 × 13.5(MAX) mm |
| Power Supply | 5.0 V typical |
| Logic Supply Range | 4.5 V to 5.5 V |
| View Direction | 6:00 |
| Duty | 1/16 |
| Backlight | White LED |
| Weight | 34.7 g |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Optical and Electrical Characteristics
These values help engineers review display readability, 5 V logic compatibility, LED backlight drive requirements, and LCD response behavior before sample testing.
4.5 V to 5.5 V
The LCD logic supply is specified with 5.0 V typical operation and a 4.5 V to 5.5 V supply range.
1.2 mA Typ.
The logic supply current is specified as 1.0 mA minimum, 1.2 mA typical, and 1.5 mA maximum at VDD = 5.0 V.
3.5 V Typ., 32 mA Typ.
The white LED backlight supply voltage is specified as 3.4 V minimum, 3.5 V typical, and 3.6 V maximum, with 32 mA typical LED current.
30° / 60° / 45° / 45°
The datasheet lists 30° top, 60° bottom, 45° left, and 45° right viewing angles.
300 ms Typ.
The response time at 25°C is specified as 300 ms typical and 400 ms maximum.
CR 5 Typ., 620 cd/m² Typ.
The contrast ratio is specified as 5 typical. Luminance is listed as 496 cd/m² minimum and 620 cd/m² typical without LCD.
Pin and Interface Details
DM-LCD1602-425 uses a 16-pin parallel interface. The ST7066U instruction description supports both 8-bit bus mode and 4-bit bus mode through the interface data length setting.
Review the LCD logic supply, variable LCD operating voltage, RS/RW/E timing, DB0 to DB7 data lines, and LED backlight pins before PCB layout.
Mechanical Reference
The mechanical drawing is shown in the first screen for quick engineering review. Use the official drawing to confirm enclosure design, PCB mounting, display-window position, clearance planning, and connector-area review.
Module Outline
The module dimension is specified as 80.0 × 36.0 × 13.5(MAX) mm.
Mounting and Pads
Review mounting holes, solder pad position, pin row spacing, display window, module height, and LED backlight side clearance against the official drawing.
Design Confirmation
Confirm VA, AA, PCB outline, connector position, and the side-view thickness before tooling or volume procurement.
Reliability Conditions for Project Evaluation
These test conditions help customers review environmental tolerance before sample evaluation and product design.
Storage Conditions
High temperature storage is specified at 80°C for 200 hours. Low temperature storage is specified at -30°C for 200 hours.
Operating Conditions
High temperature operation is specified at 70°C for 200 hours. Low temperature operation is specified at -20°C for 200 hours.
Humidity and Thermal Shock
High temperature and humidity operation is specified at 60°C, 90%RH for 96 hours. Thermal shock resistance is specified from -20°C to 70°C for 10 cycles.
Vibration and Static Electricity
The datasheet lists vibration test conditions of 10 to 55 Hz in X, Y, and Z directions, and static electricity test conditions of VS = 800 V, RS = 1.5 kΩ, and CS = 100 pF.
Engineering Notes Before Ordering
Power Design
Check 5.0 V logic supply, VO contrast adjustment, and the 3.5 V typical LED backlight drive requirement before finalizing the host PCB.
Bus Mode Review
The ST7066U function set describes 8-bit and 4-bit MPU bus modes. Confirm host firmware timing and initialization before sample testing.
Variant Confirmation
The related engineering files include DM-LCD1602-424, DM-LCD1602-425, and DM-LCD1602-426. Confirm the exact part number and display appearance with DisplayModule before ordering.
Project Confirmation
Confirm sample availability, lead time, color option, backlight requirement, mechanical fit, and any customization requirement with DisplayModule before volume procurement.
Common Questions Before Sample Evaluation
Which controller IC is used?
The DM-LCD1602-425 datasheet lists ST7066U as the controller IC.
What interface does this 16×2 LCD use?
The module uses a 6800 Series MPU interface with RS, R/W, E, and DB0 to DB7 data bus lines.
Can it use 4-bit communication?
The ST7066U instruction description includes 8-bit and 4-bit MPU bus modes. Confirm your initialization sequence and timing during sample evaluation.
What is the operating temperature range?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C.
Does this module include touch functionality?
No touch controller IC or touch panel specification is listed for DM-LCD1602-425. Confirm any touch-related requirement with DisplayModule before ordering.
What should be checked before PCB layout?
Review the 16-pin pinout, VO contrast adjustment, LED backlight pins, 5.0 V supply, 6800 MPU timing, module outline, mounting holes, and LCD viewing direction.
Download Official Engineering Files
Download the official product datasheets and ST7066U controller datasheet to confirm dimensions, pin assignment, electrical characteristics, optical data, timing requirements, mechanical drawing, reliability conditions, and integration requirements.
