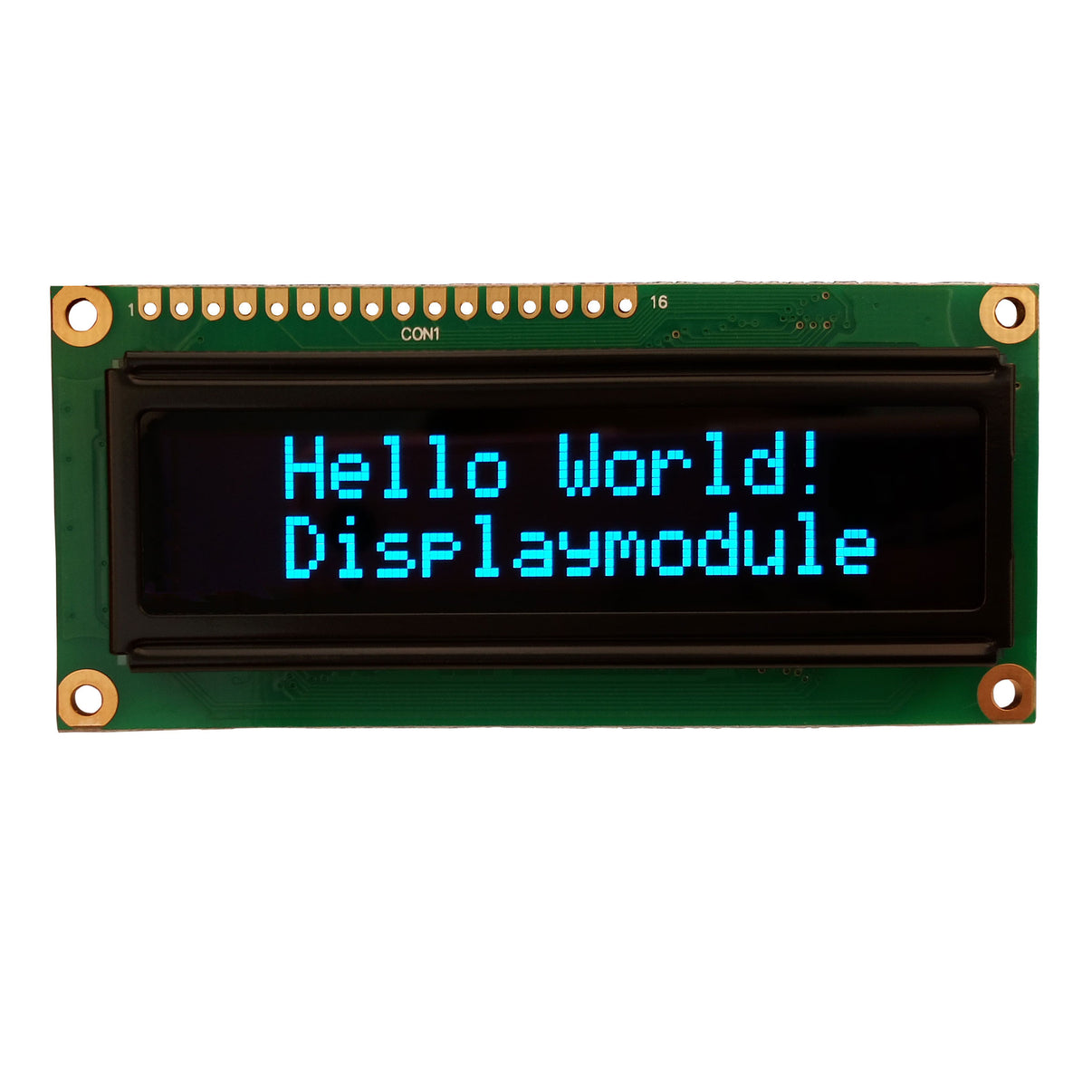

16x2 OLED character display module showing "Hello World! Displaymodule" with MCU, SPI, and I2C interfaces
16x2 green OLED character display module showing "Hello World! Displaymodule" with MCU, SPI, and I2C interfaces

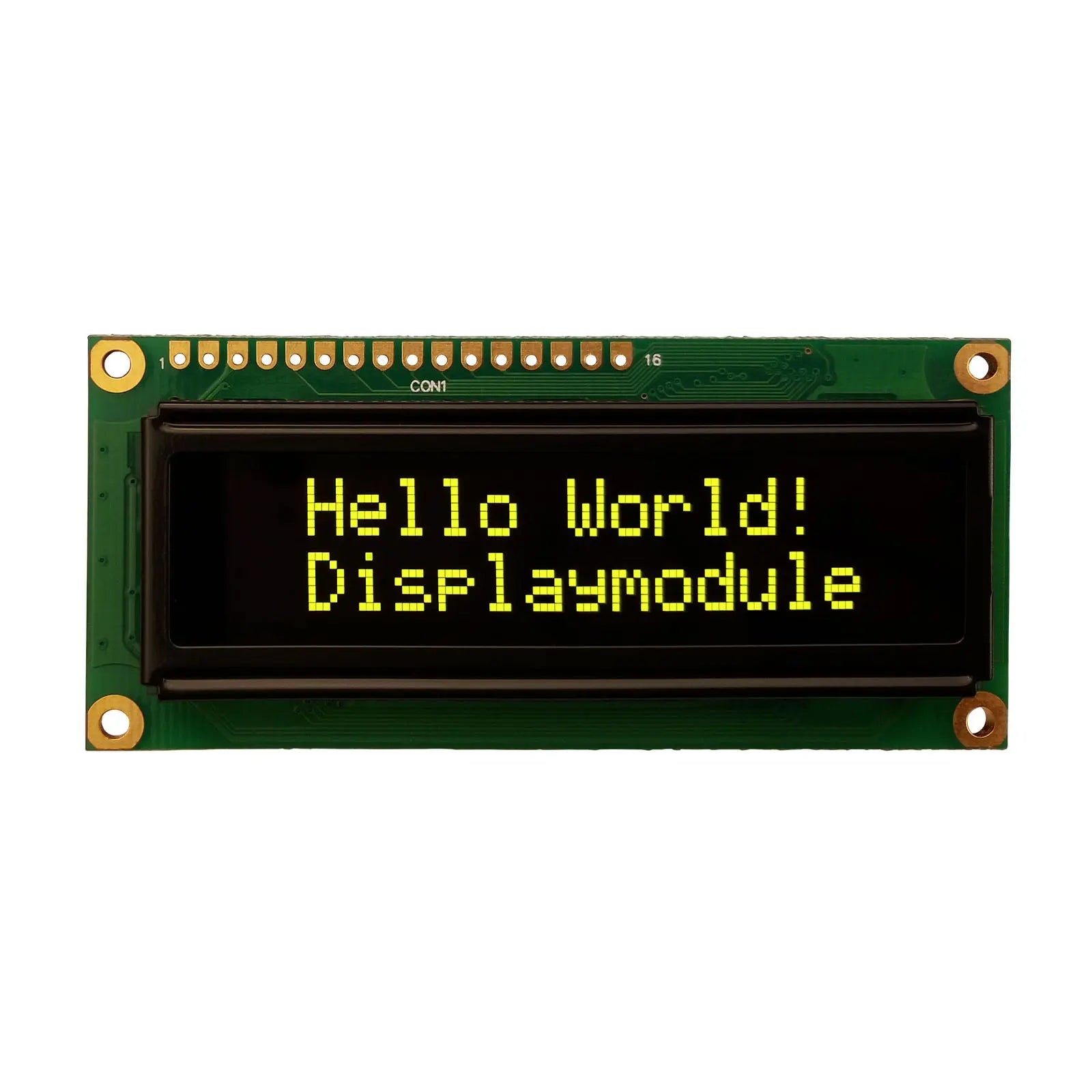

16x2 yellow OLED character display module showing "Hello World! Displaymodule" with MCU, SPI, and I2C interfaces

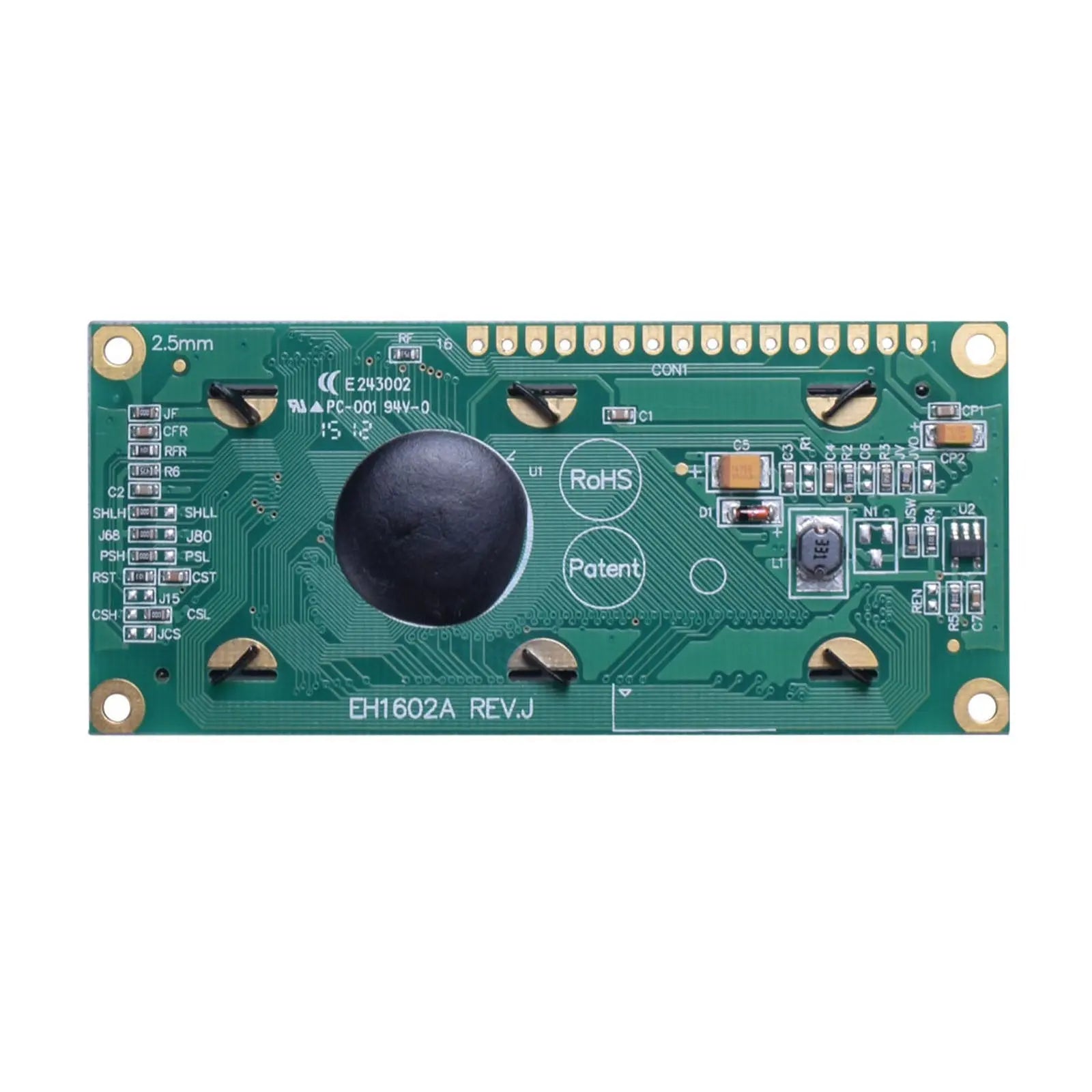

back of 16x2 OLED character display module with MCU, SPI, and I2C interfaces

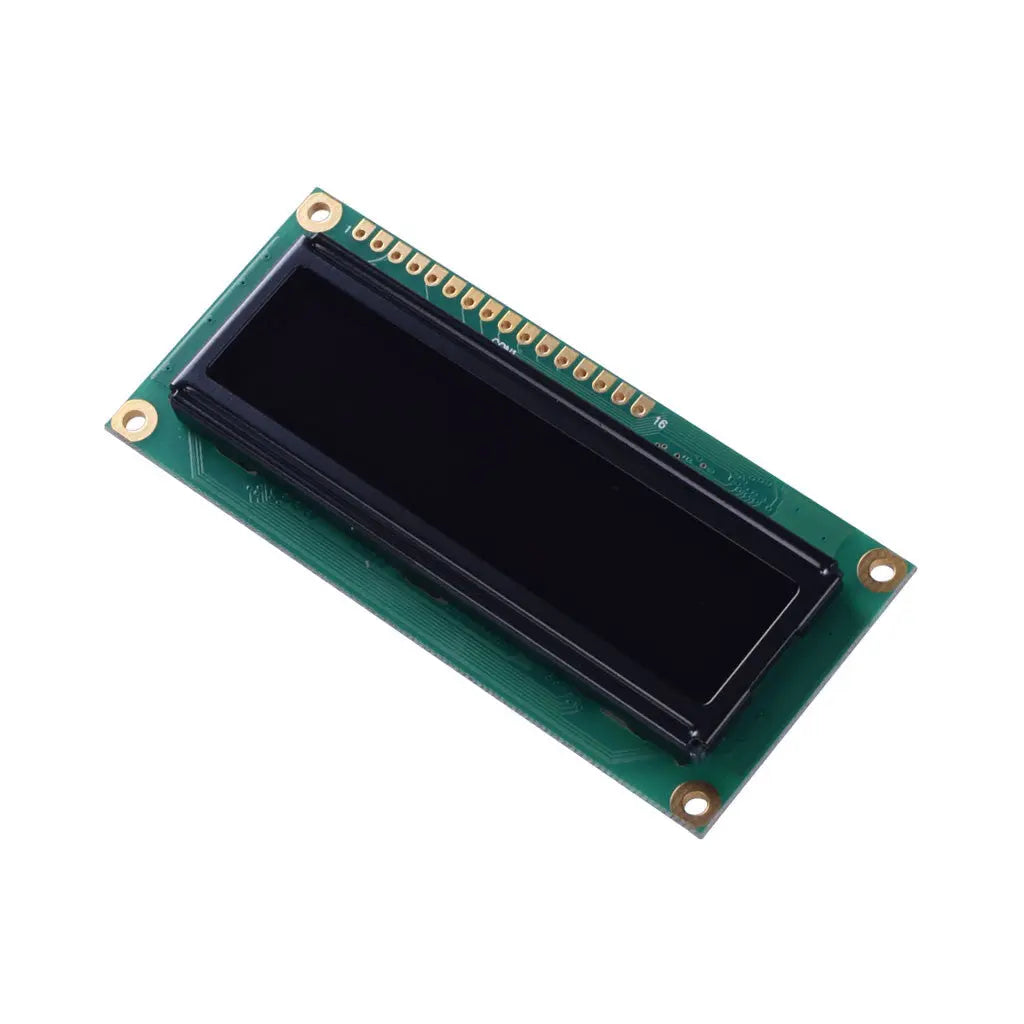

Top View of 16x2 OLED Character Display Module

16x2 OLED Character Display - MCU, SPI, I2C

Regular price $29.90
Sale price $29.90 Regular price $19.99
Datesheet:
Blue
Green
Yellow
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Display Format : 16 characters x 2 lines
  • Display Mode : Passive Matrix
  • Display Color : Green
  • Module Dimension : 80.0 x 36.0 x 10.0 mm
  • Power Supply : 3.0 V
  • Interface : Parallel or serial MPU interface(default 6800 MPU parallel)
  • Controller IC : WS0010
  • Operation Temperature : -40℃~80℃
  • Storage Temperature : -40℃~80℃
  • Weight : 22.8 g

Dimensions

Resources

Arduino initialization code and examples can be found in our DmOledLibrary which can be downloaded from bitbucket.org
