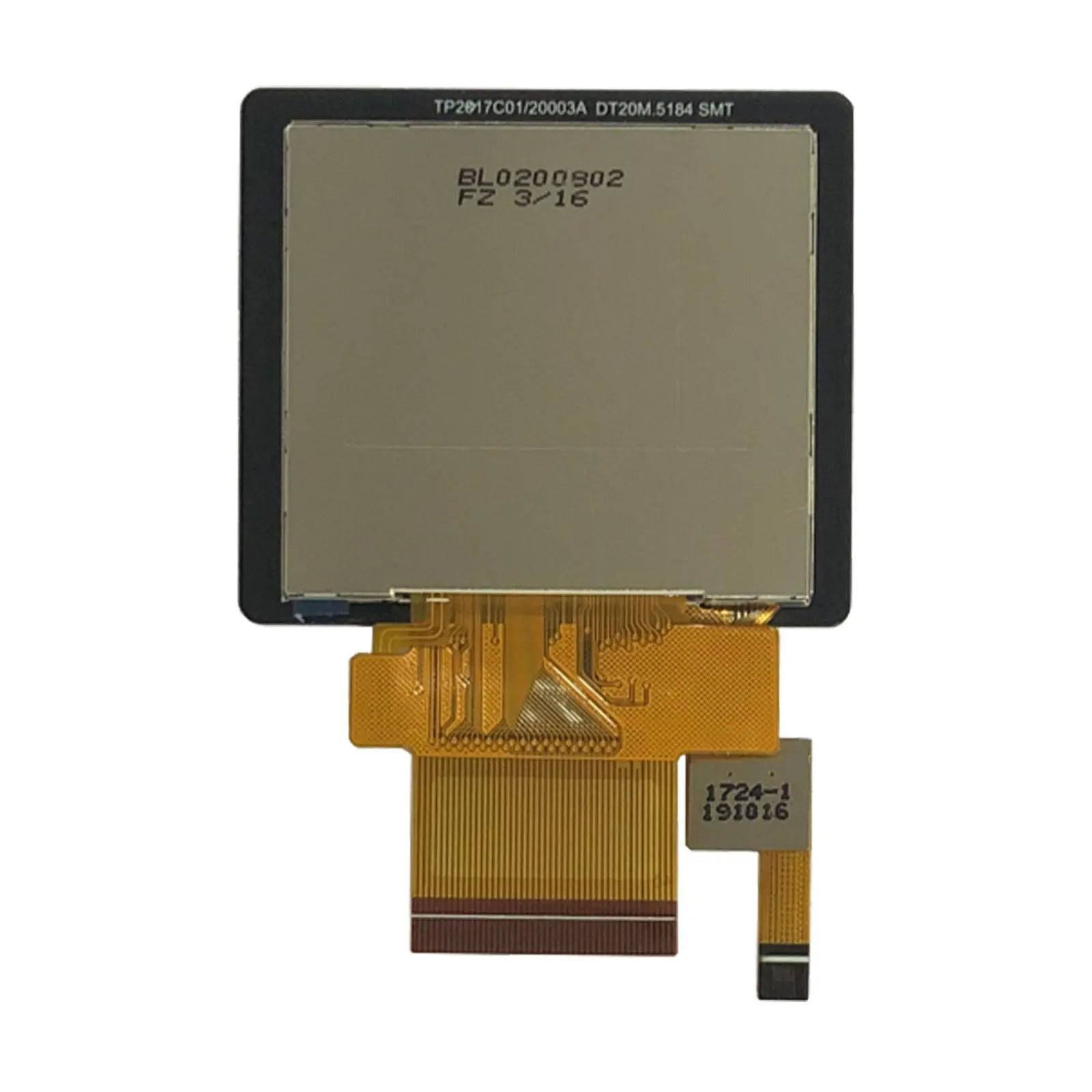

  • back of 2.0 inch 320x240 TFT transflective display with capacitive touch, MCU, SPI, and RGB interfaces
1 / 1

2.0" TFT Display 320x240 Transflective Capacitive - MCU, SPI, RGB

$44.90
Shipping calculated at checkout.
SKU: DM-TFT20-439
2.0 inch 320x240 TFT transflective display with capacitive touch, MCU, SPI, and RGB interfaces
$44.90

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

2.0" 320×240 TFT Display Specifications

The DM-TFT20-439 is a 2.0-inch TFT LCD module with 320 × 240 resolution, wide viewing angle, and 300 cd/m² brightness. Driven by the ILI9342C IC and compatible with multiple interfaces (MCU, SPI, RGB), this display is a versatile option for industrial UI displays and compact graphical systems.

Parameter Value Unit
Diagonal Dimension 2.0 inch
Resolution 320 × 240 pixels
Viewing Direction Wide angle -
Touch Mode None -
Module Dimensions 54.50 × 47.56 × 4.35 mm
Viewing Area 40.80 × 30.60 mm
Supply Voltage 2.8 / 3.3 V
Interface MCU (8/9/16/18-bit), 3/4-wire SPI, 16/18-bit RGB -
Luminance 300 cd/m²
Driver IC ILI9342C -
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

Mechanical Dimensions

2.0 inch TFT LCD mechanical drawing
