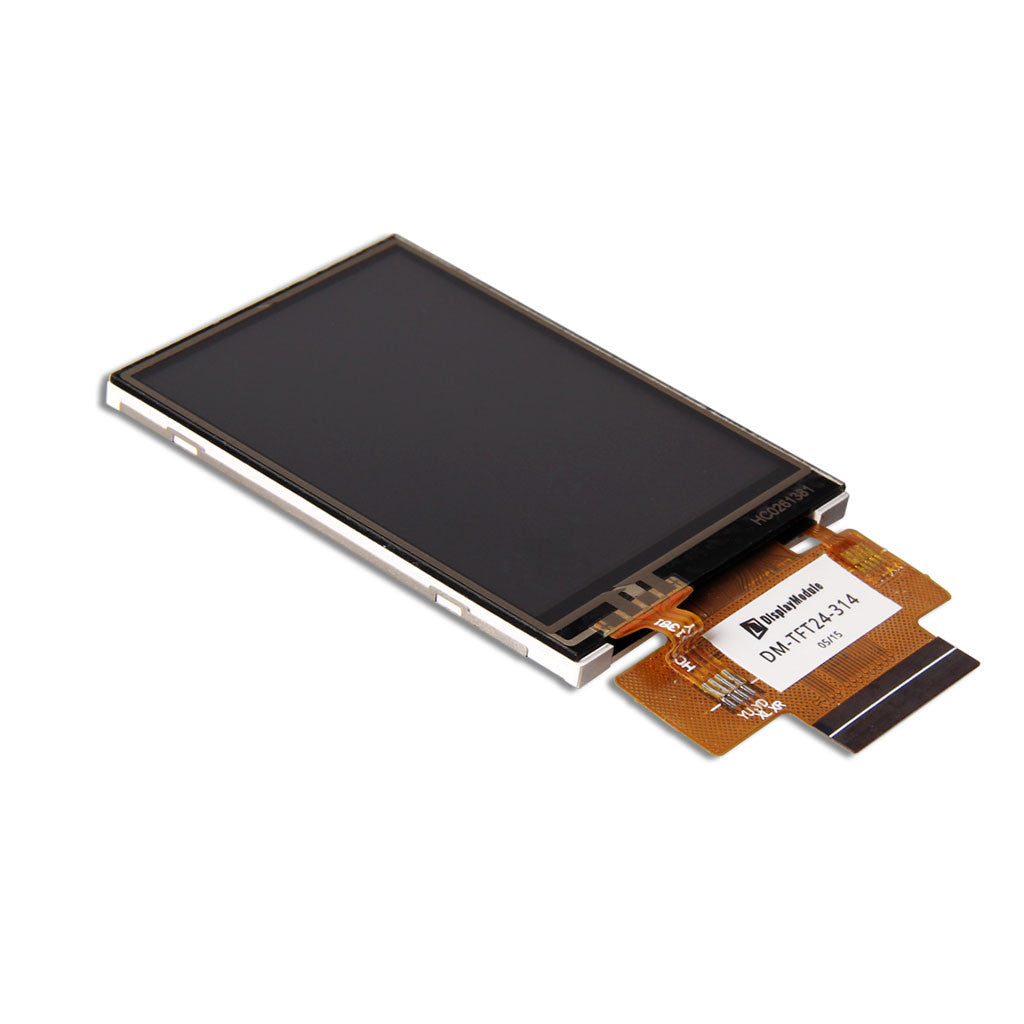

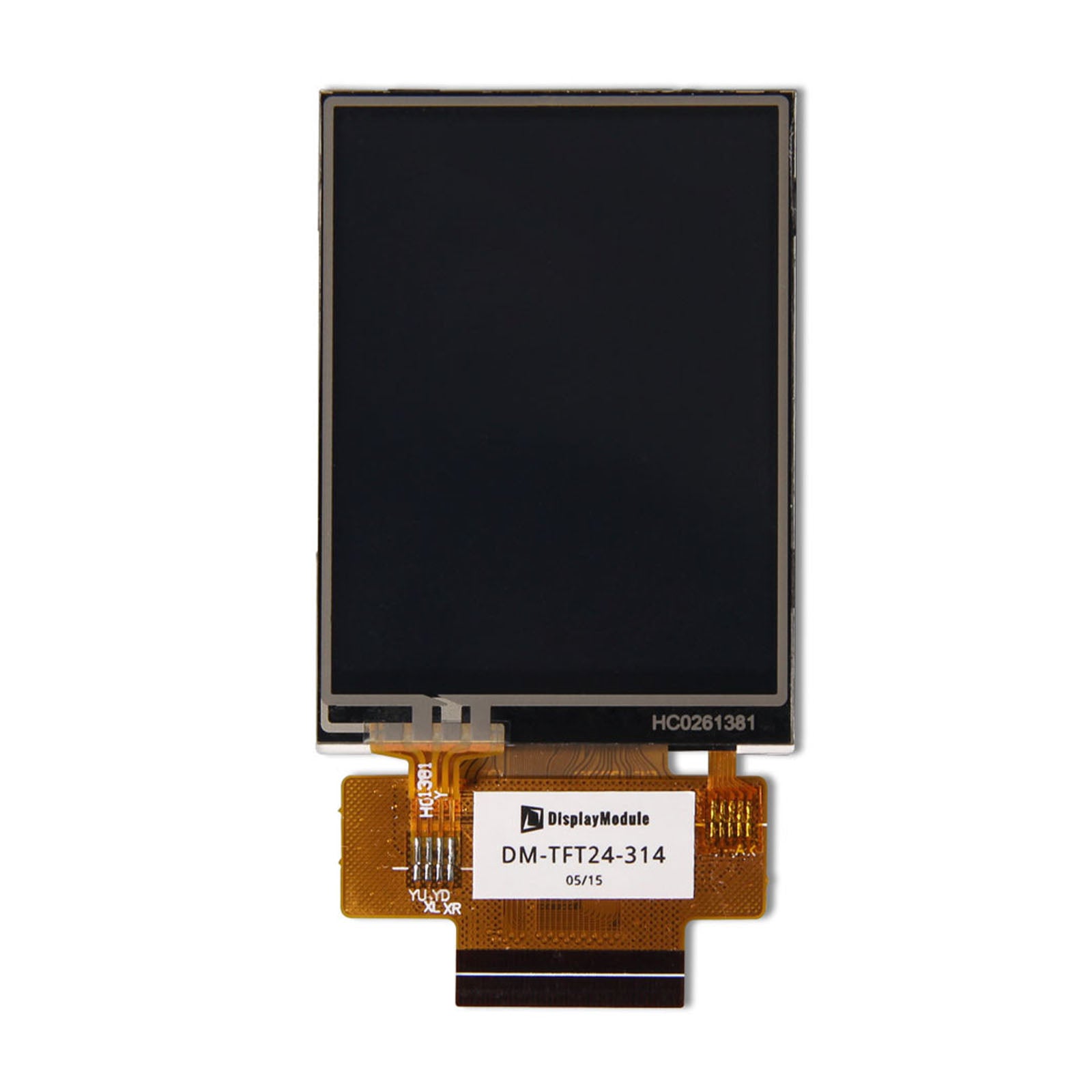

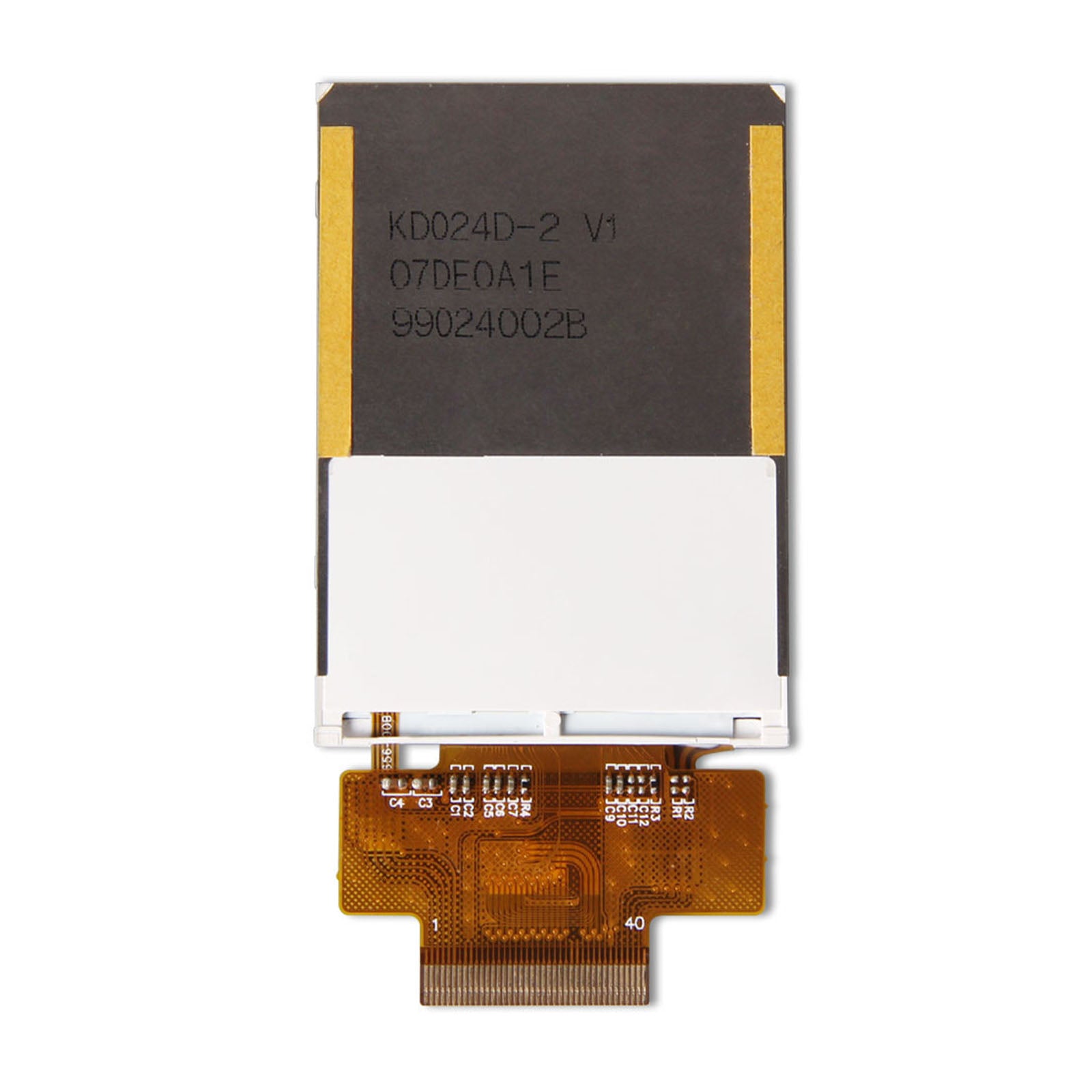

2.4" TFT(ILI9341) Display 240x320 Resistive - MCU
This 2.4-inch TFT LCD module delivers sharp 240 × 320 resolution with resistive touch, making it ideal for embedded systems requiring reliable touch control. With a brightness of ≥250 cd/m² and 8/16-bit MCU interface, it ensures clear visibility in various lighting conditions. The ILI9341V display controller provides efficient driver support, though initialization code is necessary for proper function.
Designed for durability, the module operates in temperatures from -20°C to 70°C, with a compact form factor of 47.72 × 60.26 × 5.8 mm. The viewing area measures 36.72 × 48.96 mm, offering a 12 o’clock viewing direction for optimal readability.
- High Contrast Display: ILI9341V driver ensures vibrant colors and sharp text, suitable for detailed graphics.
- Low Power Consumption: 3.3V supply voltage minimizes energy use in portable devices.
- Easy Integration: Standard MCU interface simplifies connection to microcontrollers like Arduino or STM32.
- Robust Touch: Resistive touch supports input with stylus or finger, ideal for industrial environments.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 2.4 | inch |
| Resolution | 240 × 320 | pixels |
| Viewing Direction | 12 o’clock | - |
| Touch Mode | Resistive | - |
| Module Dimensions | 47.72 × 60.26 × 5.8 | mm |
| Viewing Area | 36.72 × 48.96 | mm |
| Supply Voltage | 3.3 | V |
| Interface | 8/16-bit MCU | - |
| Luminance | ≥250 | cd/m² |
| Driver IC | ILI9341V | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
The compact design allows for easy integration into space-constrained applications. Below is the dimensional drawing for reference:
We offer customized solutions for bulk orders and specific requirements. Whether you need tailored firmware or branded packaging, we can adapt to your needs.
- Custom Configurations: Modify display parameters or touch sensitivity for specialized applications.
- Wholesale Pricing: Volume discounts available for orders above 100 units, with flexible shipping options.
- Technical Support: Dedicated assistance for integration and troubleshooting in enterprise projects.
Used in control panels for machinery, providing reliable touch input in harsh environments with wide temperature tolerance.
Integrates into portable diagnostic equipment where clear display and touch interface are critical for user interaction.
Ideal for smart home controllers or portable gadgets, offering cost-effective touch display solutions.
This display is compatible with a wide range of microcontrollers via the 8/16-bit parallel interface. It works seamlessly with popular platforms:
- Arduino Boards: Direct connection with libraries like DmTftLibrary for quick prototyping.
- ARM Cortex-M Series: Supports STM32 and similar MCUs with low-level driver integration.
- Raspberry Pi: Can be interfaced using GPIO for embedded projects, though additional hardware may be needed.
Practical use cases where this display excels due to its features:
Serves as the primary interface for IoT devices, displaying sensor data and allowing user input via touch.
Used in electronics training kits to teach display and touch integration with microcontrollers.
Fits into auxiliary displays for car systems, providing information with resistive touch durability.
Technical Notes: Proper initialization is required for the display to function correctly. Refer to the resources below for detailed guidance.
Resources:
Mechanical Dimensions
