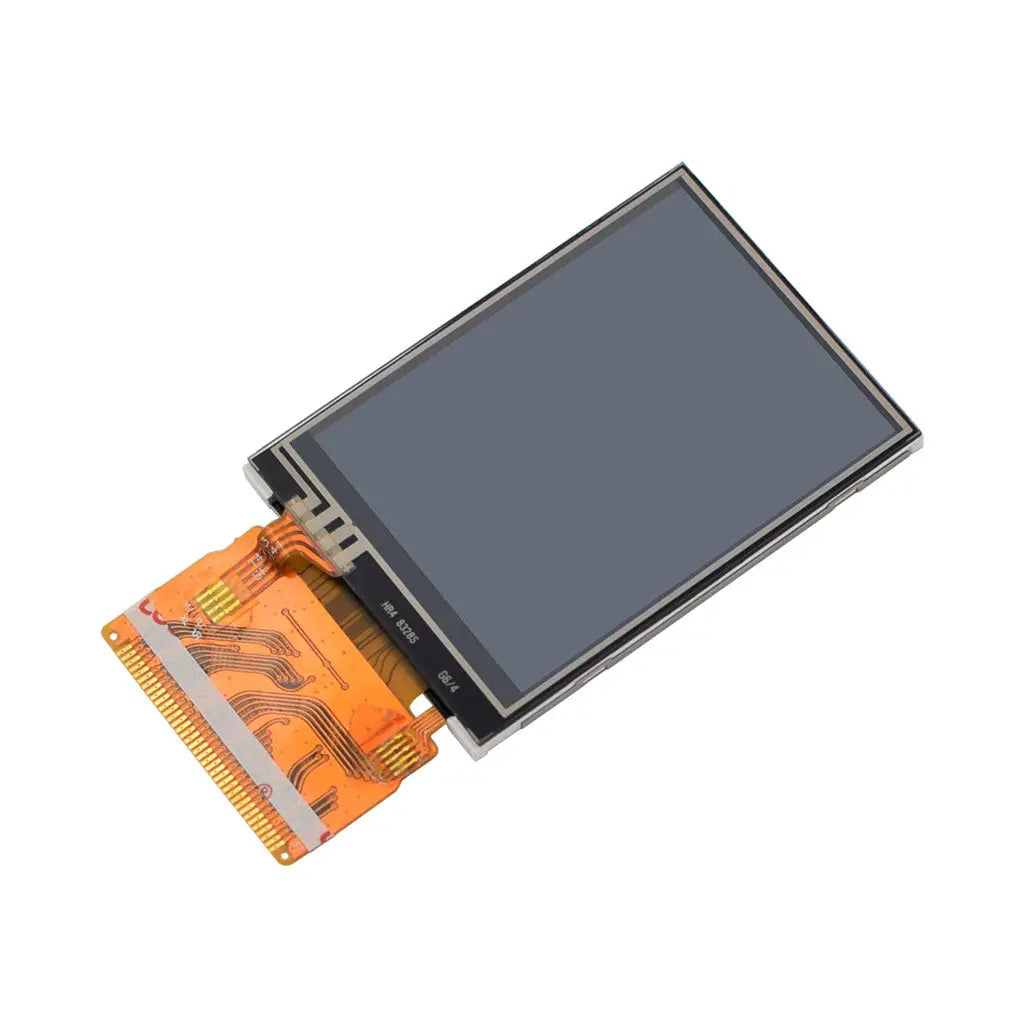

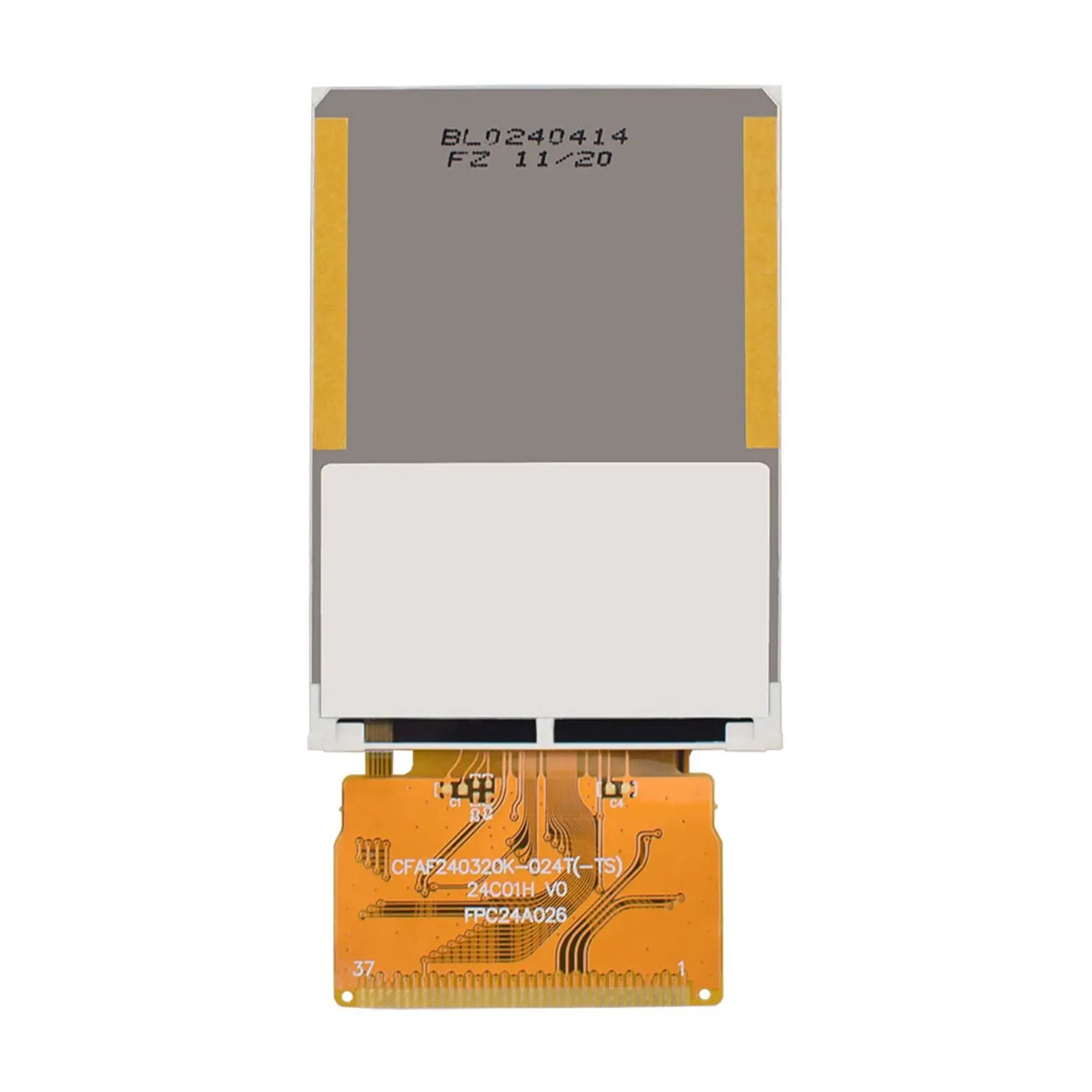

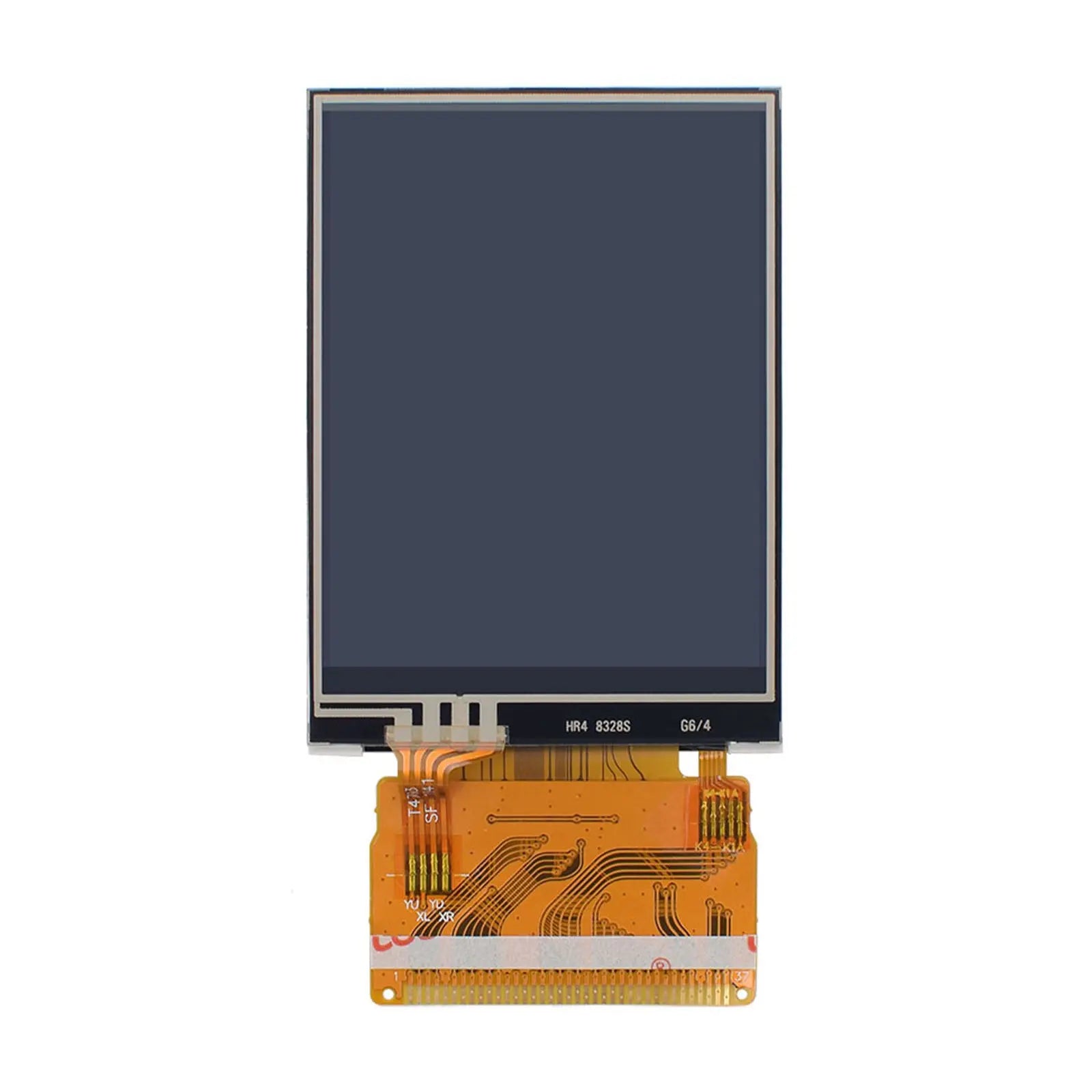

2.4" 240×320 TFT with Resistive Touch | ST7789V
The DM-TFT24-405 is a 2.4-inch TFT LCD featuring 240 × 320 resolution, ≥500 cd/m² brightness, and resistive touch capability. Driven by the ST7789V IC and interfacing via 8/16-bit MCU, it is ideal for embedded interfaces, instrumentation displays, and user panels requiring high brightness and direct touch input.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 2.4 | inch |
| Resolution | 240 × 320 | pixels |
| Viewing Direction | 12 o’clock | - |
| Touch Mode | Resistive | - |
| Module Dimensions | 42.7 × 60.3 × 3.8 | mm |
| Viewing Area | 36.7 × 48.9 | mm |
| Supply Voltage | 3.3 | V |
| Interface | 8/16-bit MCU | - |
| Luminance | ≥500 | cd/m² |
| Driver IC | ST7789V | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
