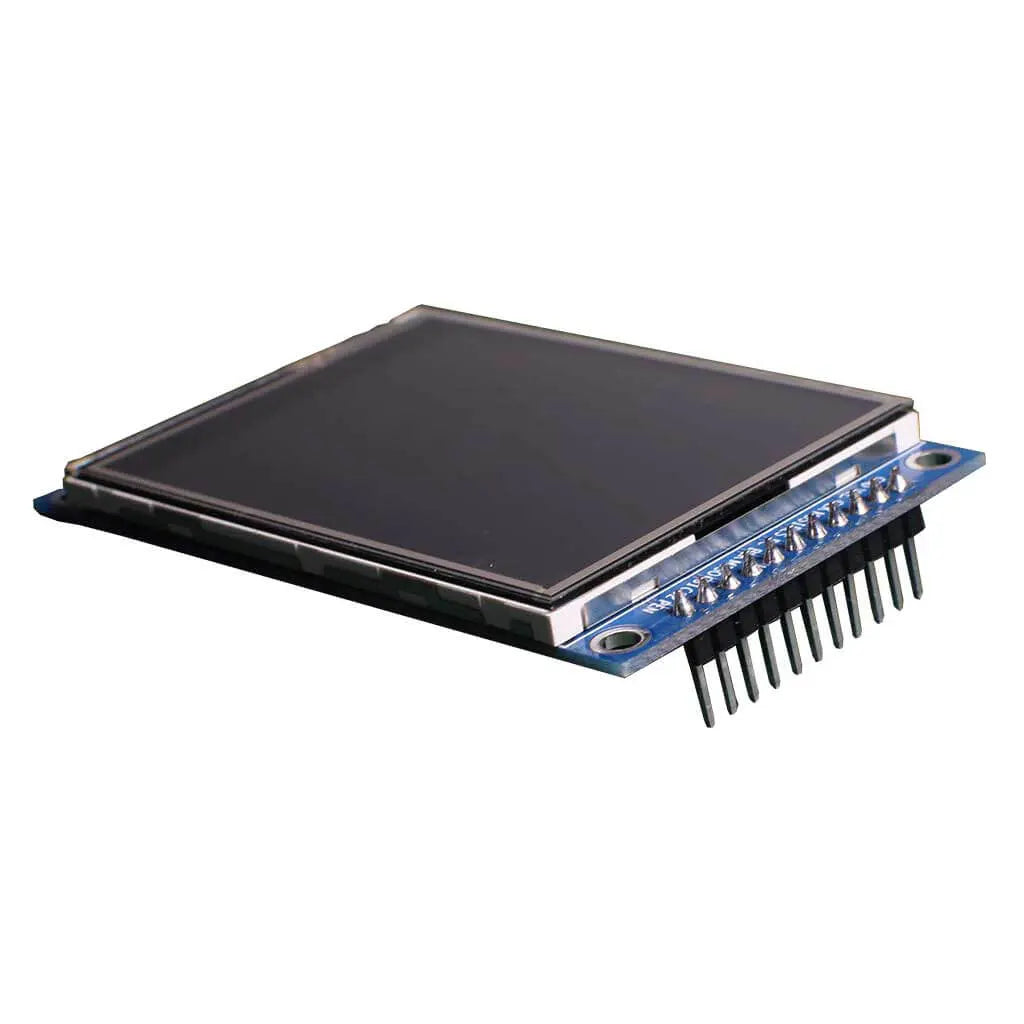

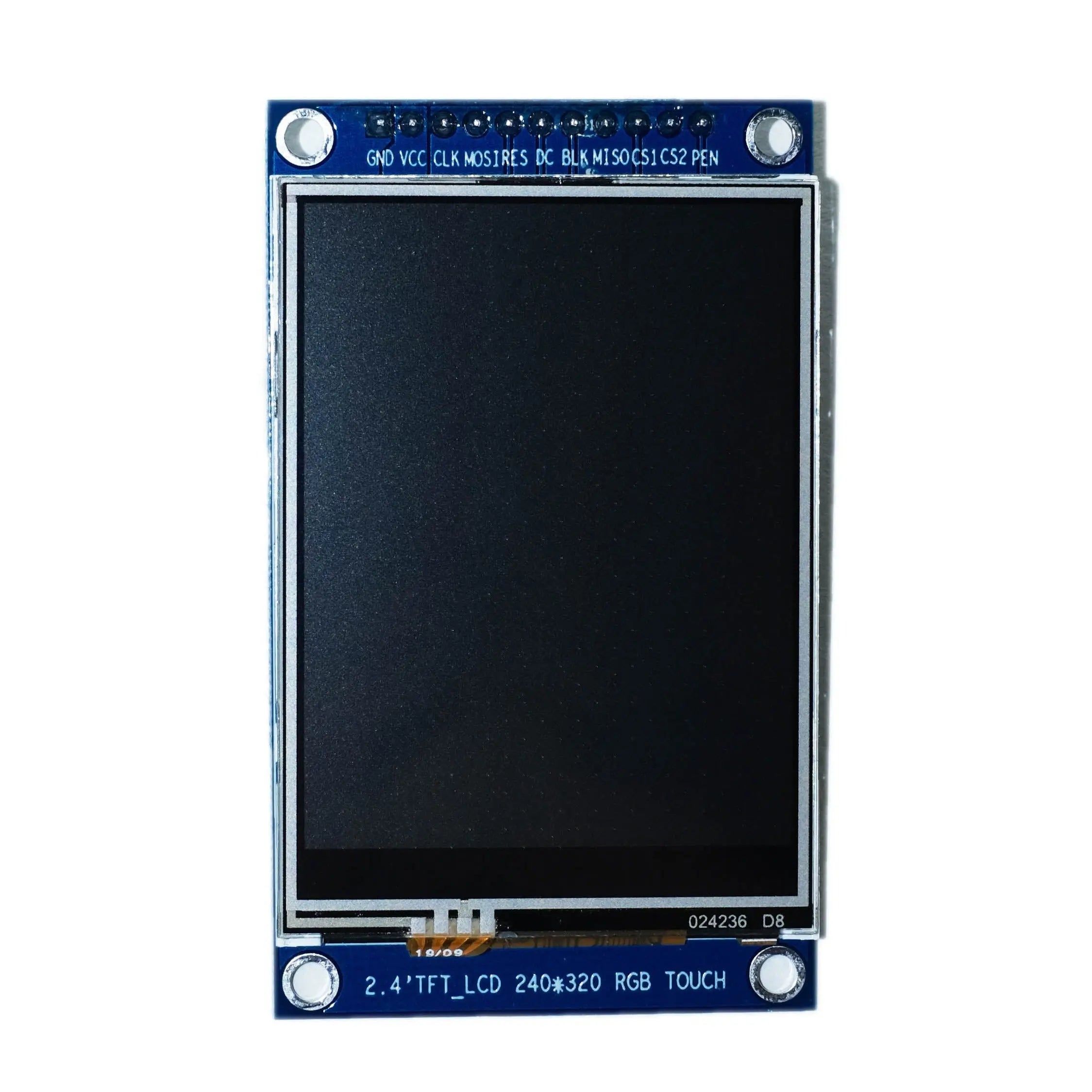

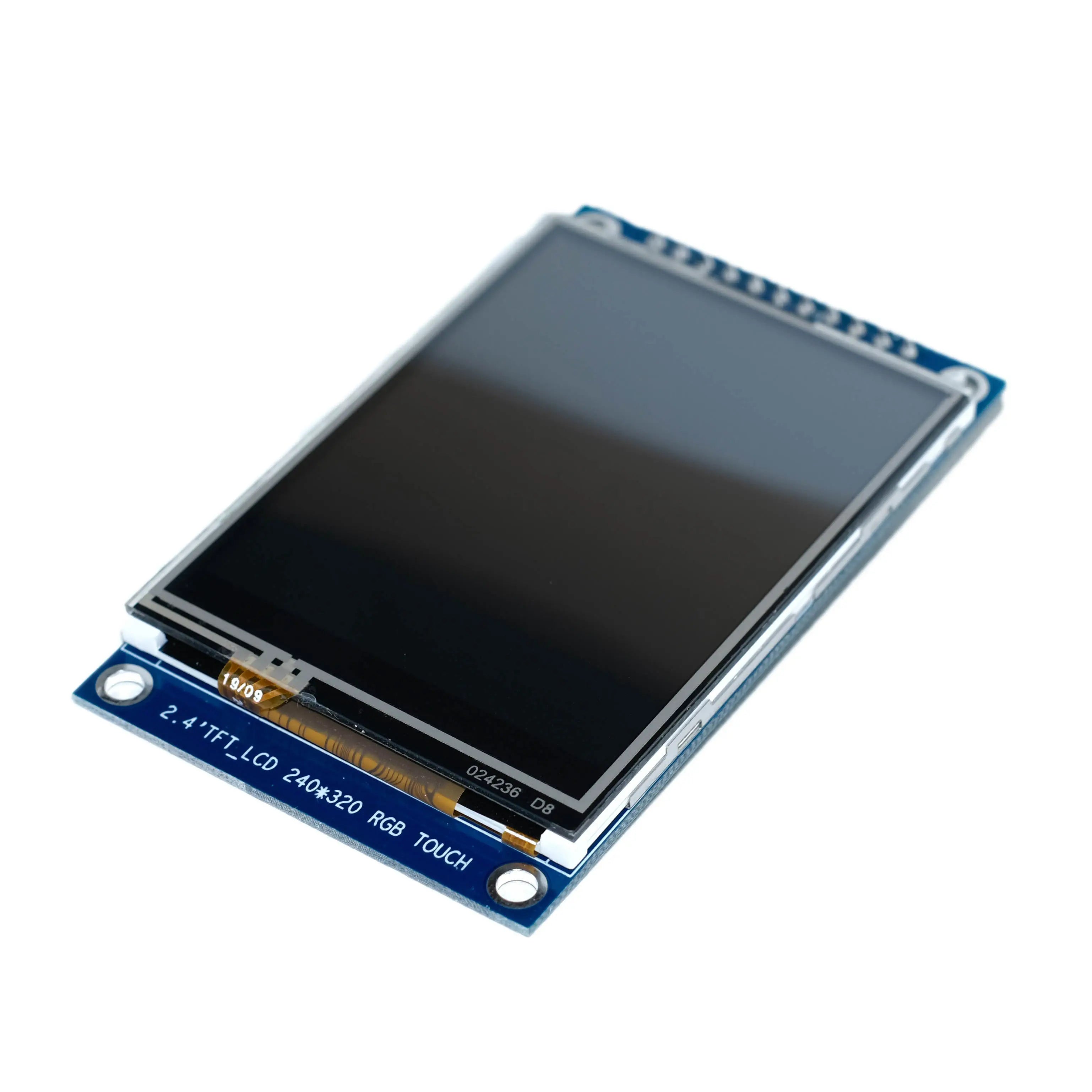

2.4" 240×320 TFT Display with Resistive Touch
This 2.4-inch TFT LCD module features approximately 240 × 320 resolution, SPI interface, and a resistive touch panel using XPT2046. Powered by the ILI9341 display controller, it is ideal for Arduino projects, touch UIs, and embedded systems requiring basic touch interaction.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 2.4 | inch |
| Resolution | ≈ 240 × 320 | pixels |
| Viewing Direction | 12 o’clock | - |
| Touch Mode | Resistive | - |
| Module Dimensions | ≈ 43.00 × 70.26 × 3.75 | mm |
| Viewing Area | ≈ 36.72 × 48.96 | mm |
| Supply Voltage | 2.8 | V |
| Interface | 4-wire SPI | - |
| Luminance | - | cd/m² |
| Driver IC | ILI9341 / XPT2046 | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
