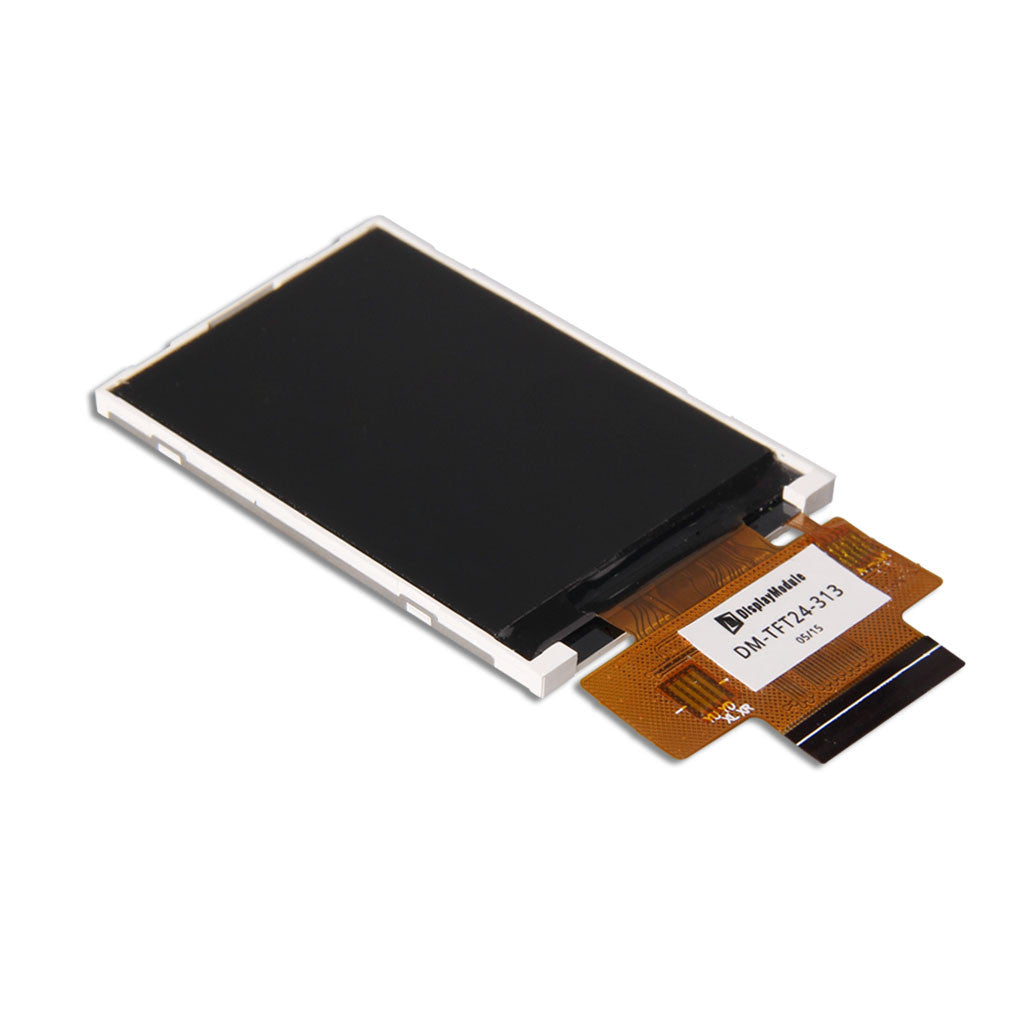

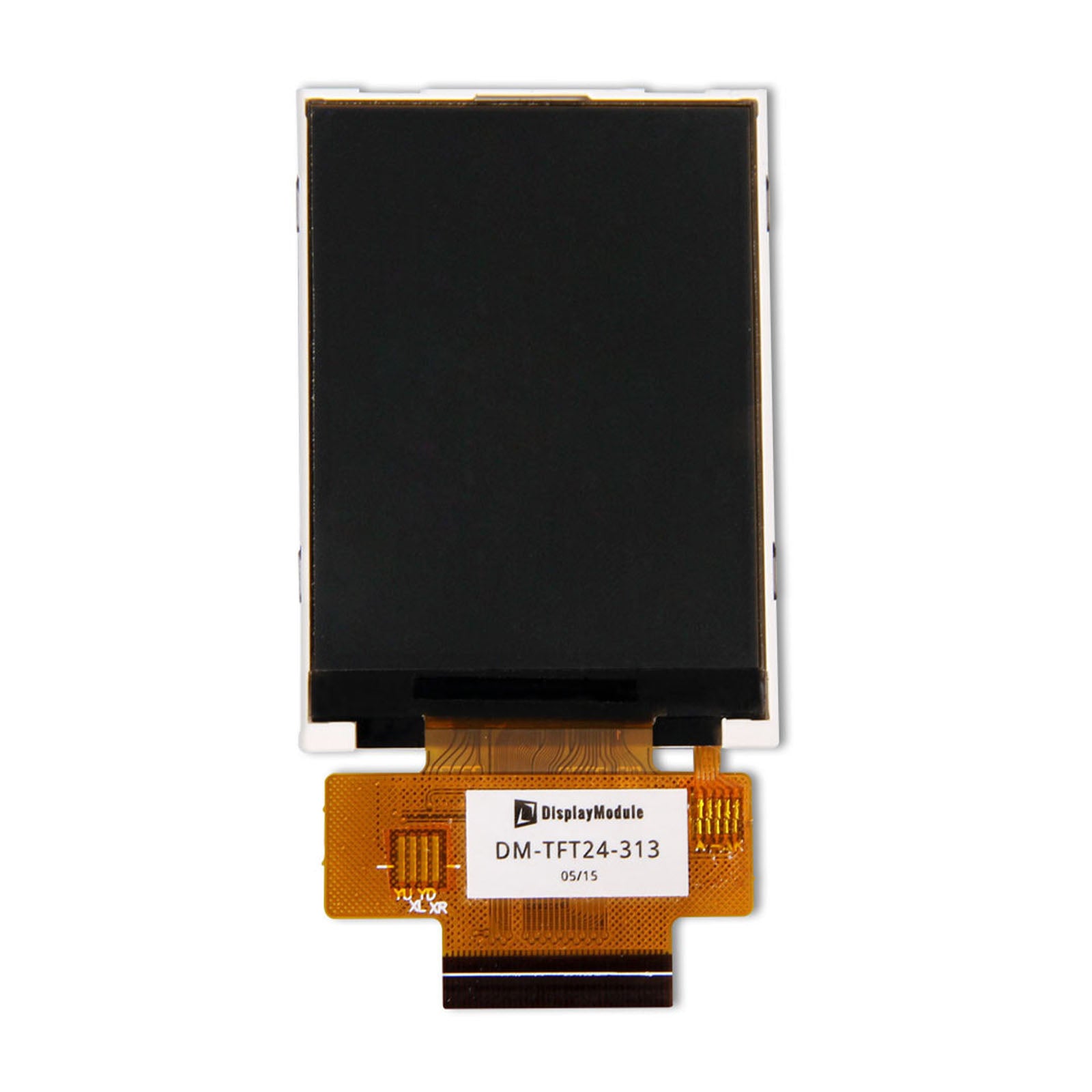

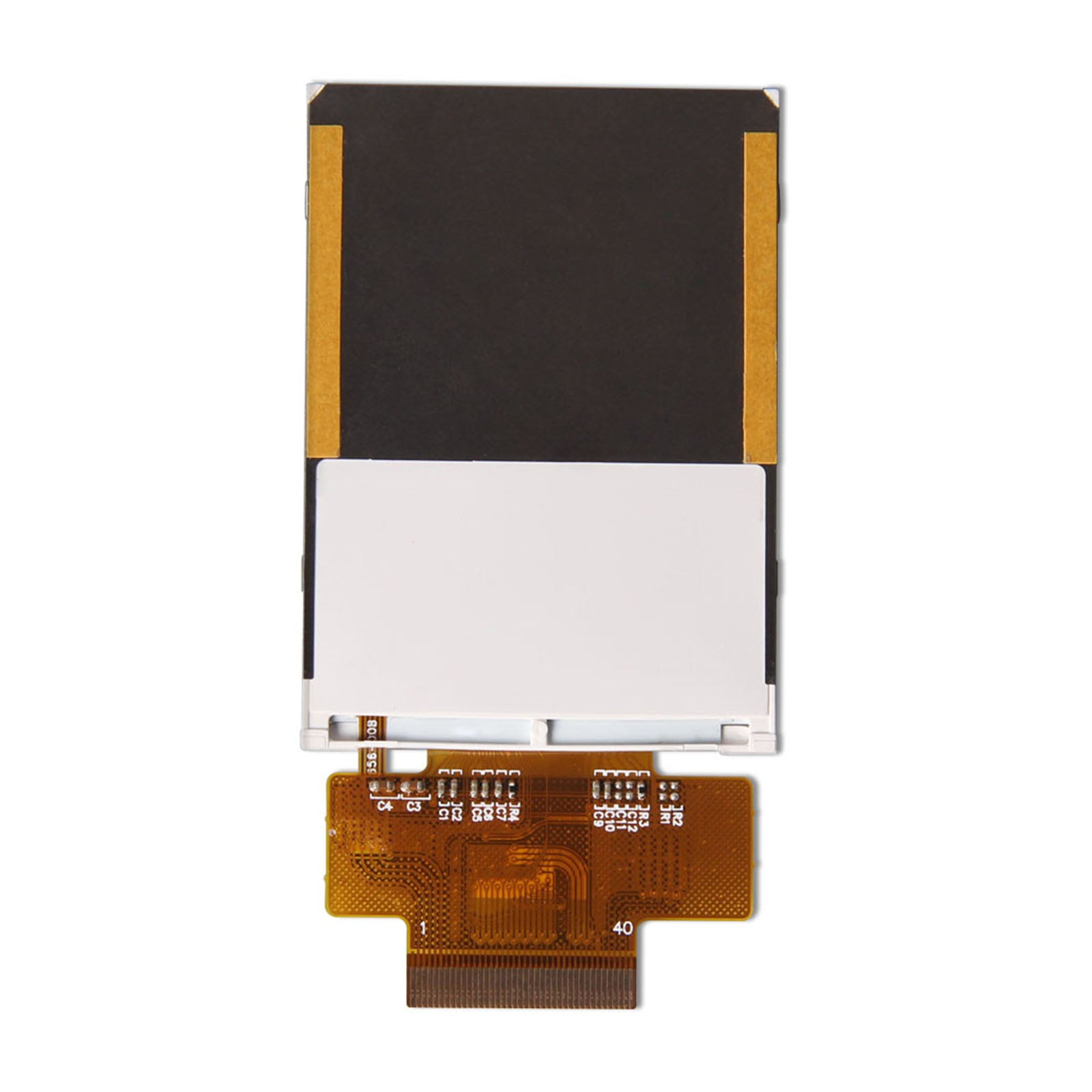

2.4" TFT(ILI9341) Display 240x320 - MCU
Engineered for high-performance embedded applications, this 2.4-inch TFT LCD delivers crisp 240×320 resolution with 262K color depth through an efficient MCU parallel interface. The ILI9341V driver ensures robust control, making it ideal for space-constrained designs requiring reliable visual output.
With a compact module size of 47.72×60.26×5.8mm and active area of 36.72×48.96mm, this display integrates seamlessly into portable devices. Operating at 3.3V supply voltage, it consumes minimal power while maintaining clear visibility in various lighting conditions.
- High Compatibility: Supports 8080-series MCU parallel interface with 8-bit or 16-bit data bus width for flexible system integration.
- Wide Temperature Range: Operates from -20°C to 70°C, ensuring reliability in industrial environments.
- Advanced Driver IC: ILI9341V controller provides built-in GRAM and gamma correction for accurate color reproduction.
- No Touch Function: Focused on display performance without touch capabilities, reducing complexity and cost.
| Parameter | Specification |
|---|---|
| Diagonal Size | 2.4 inch |
| Resolution | 240 × 320 pixels |
| Viewing Direction | 12 o’clock |
| Touch Mode | None |
| Module Dimensions | 47.72 × 60.26 × 5.8 mm |
| Active Area | 36.72 × 48.96 mm |
| Supply Voltage | 3.3 V |
| Interface | 8/16-bit MCU |
| Luminance | ≥250 cd/m² |
| Driver IC | ILI9341V |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
We offer customized display solutions for bulk orders and specific application requirements, ensuring optimal performance for your products.
- Customization Options: Tailored interfaces, connector types, and mechanical modifications available for OEM integrations.
- Volume Pricing: Competitive discounts for wholesale orders, with dedicated support for large-scale deployments.
- Technical Support: Access to engineering resources for design-in assistance and troubleshooting.
Ideal for control panels and operator interfaces in manufacturing equipment, providing clear status indicators and data visualization.
Used in handheld meters, test equipment, and medical devices where compact size and low power consumption are critical.
Integrated into IoT devices, automotive dashboards, and consumer electronics for reliable user interaction.
This display is designed for easy integration with various microcontrollers and embedded systems.
- MCU Interfaces: Compatible with 8080-series parallel interfaces, including 8-bit and 16-bit modes.
- Voltage Levels: Works with 3.3V systems, matching common MCU logic levels without additional level shifters.
- Driver Support: The ILI9341V controller is widely supported by popular libraries and embedded platforms.
Documentation: Access detailed specifications and integration guidelines through our technical documents.
Downloads: Download Product Datasheet | ILI9341V Driver IC Datasheet | Initialization Code Example
Mechanical Dimensions
