2.4" 240x320 TFT High Brightness Display Module - SPI
Sale price$19.90
2.4" 240x320 TFT High Brightness Display Module - SPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
2.4" 240×320 TFT Display Specifications

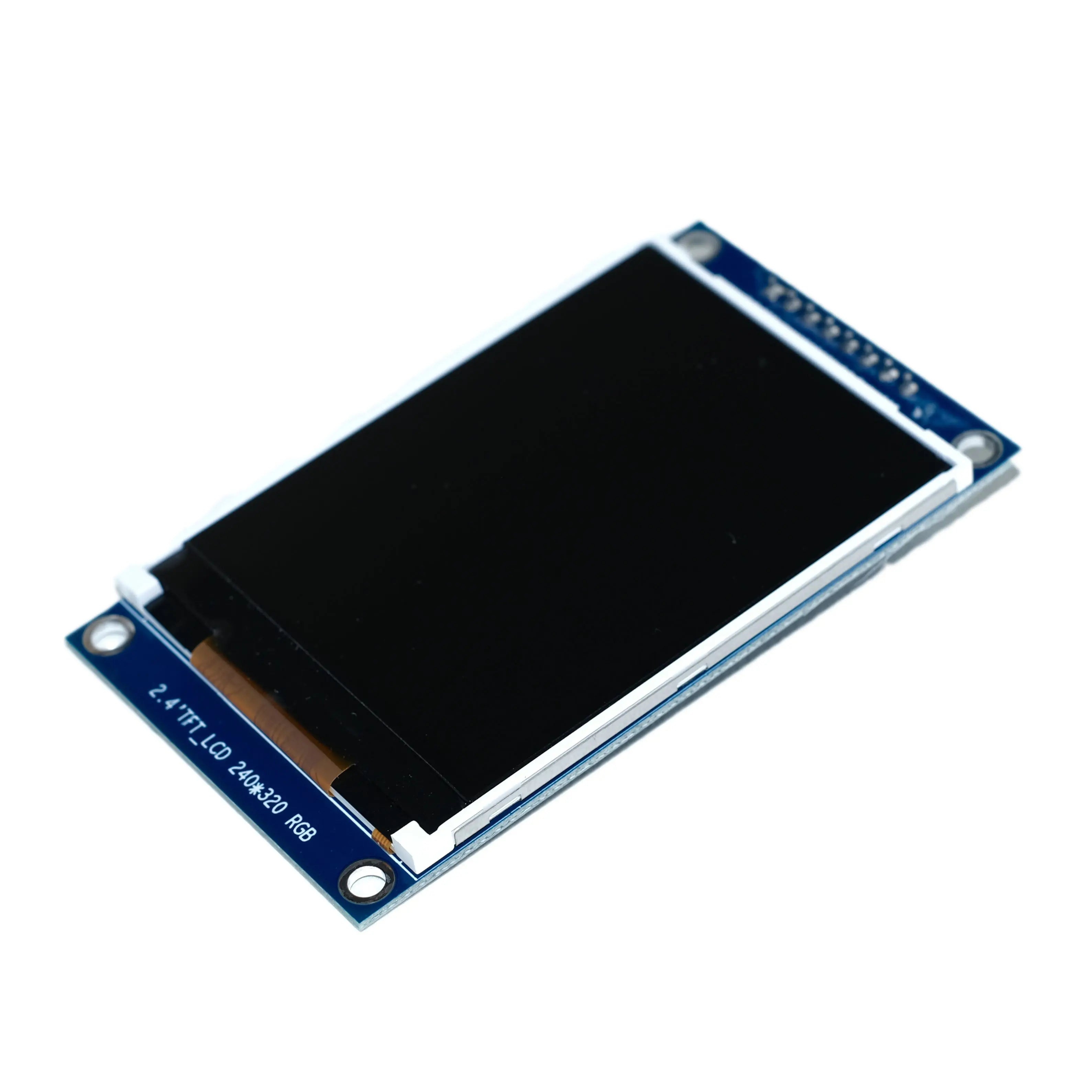

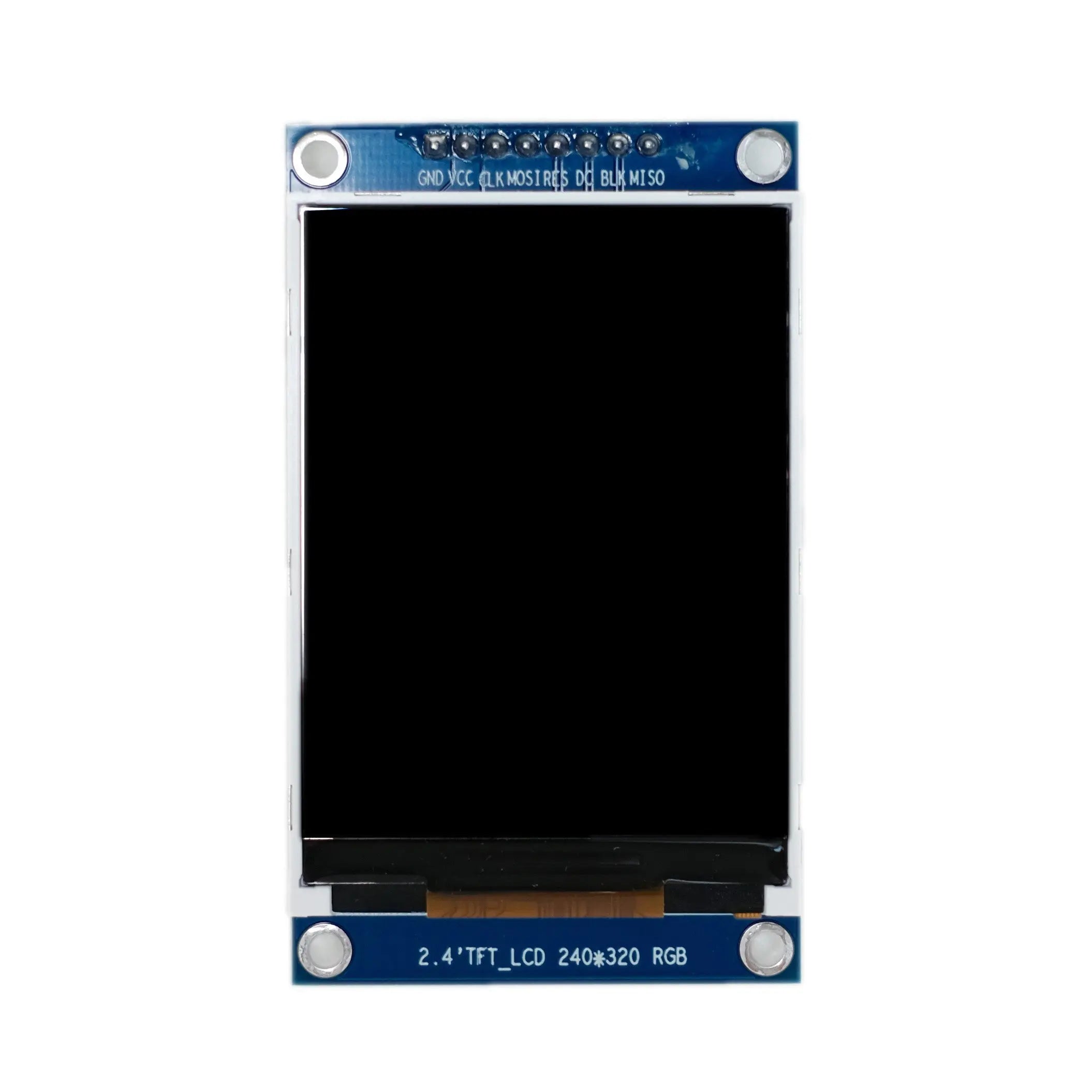

The DM-TFT24-401 is a 2.4-inch TFT LCD display module offering 240 × 320 resolution, driven by the ILI9341 controller via 4-wire SPI interface. With 300 cd/m² minimum luminance and a 12 o’clock viewing angle, it is well suited for handheld devices, compact control systems, and embedded GUI applications.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 2.4 | inch |
| Resolution | 240 × 320 | pixels |
| Viewing Direction | 12 o’clock | - |
| Touch Mode | None | - |
| Module Dimensions | 43 × 72 × 5 | mm |
| Viewing Area | 36 × 49 | mm |
| Supply Voltage | 2.8 | V |
| Interface | 4-wire SPI | - |
| Luminance | ≥ 300 | cd/m² |

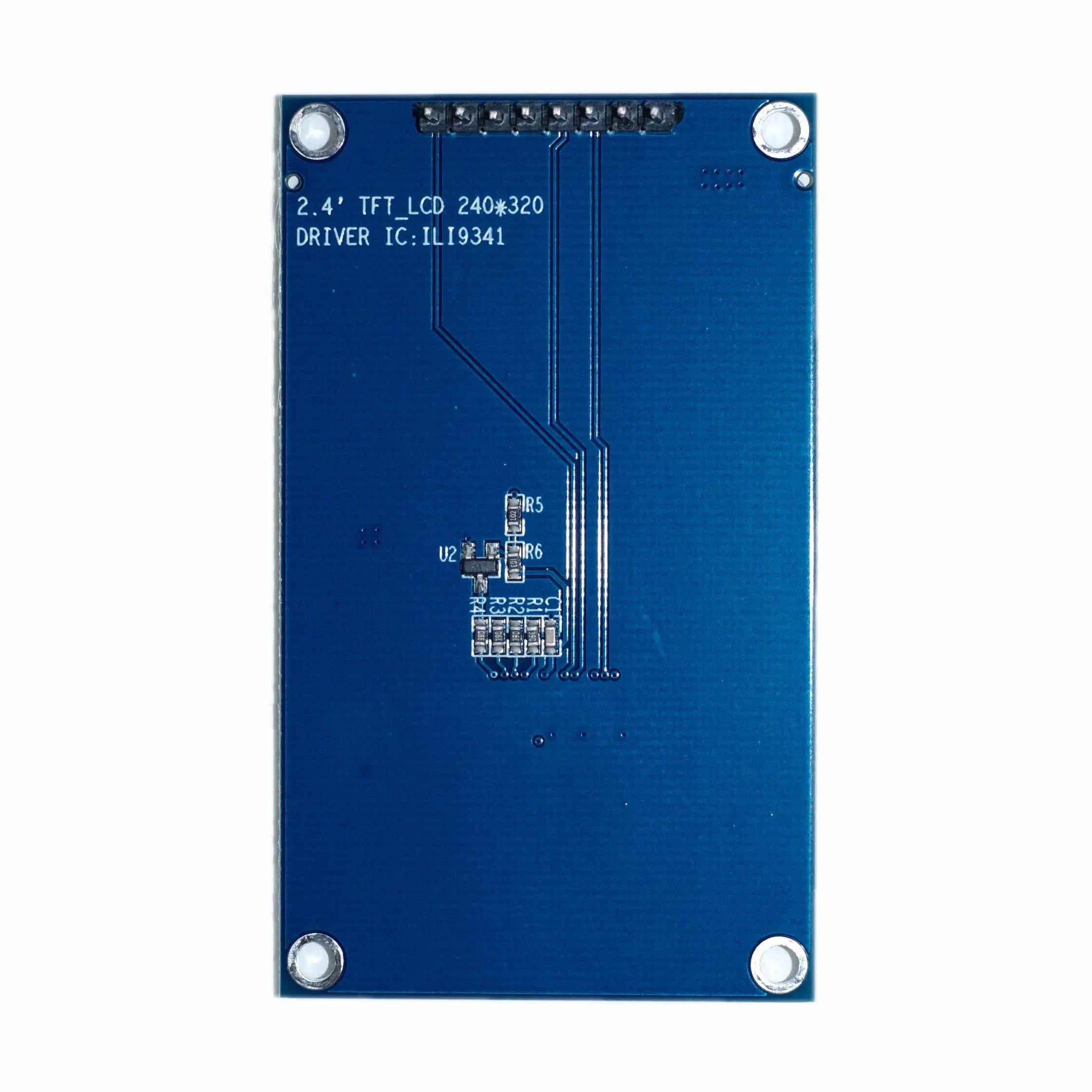

| Driver IC | ILI9341 | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
