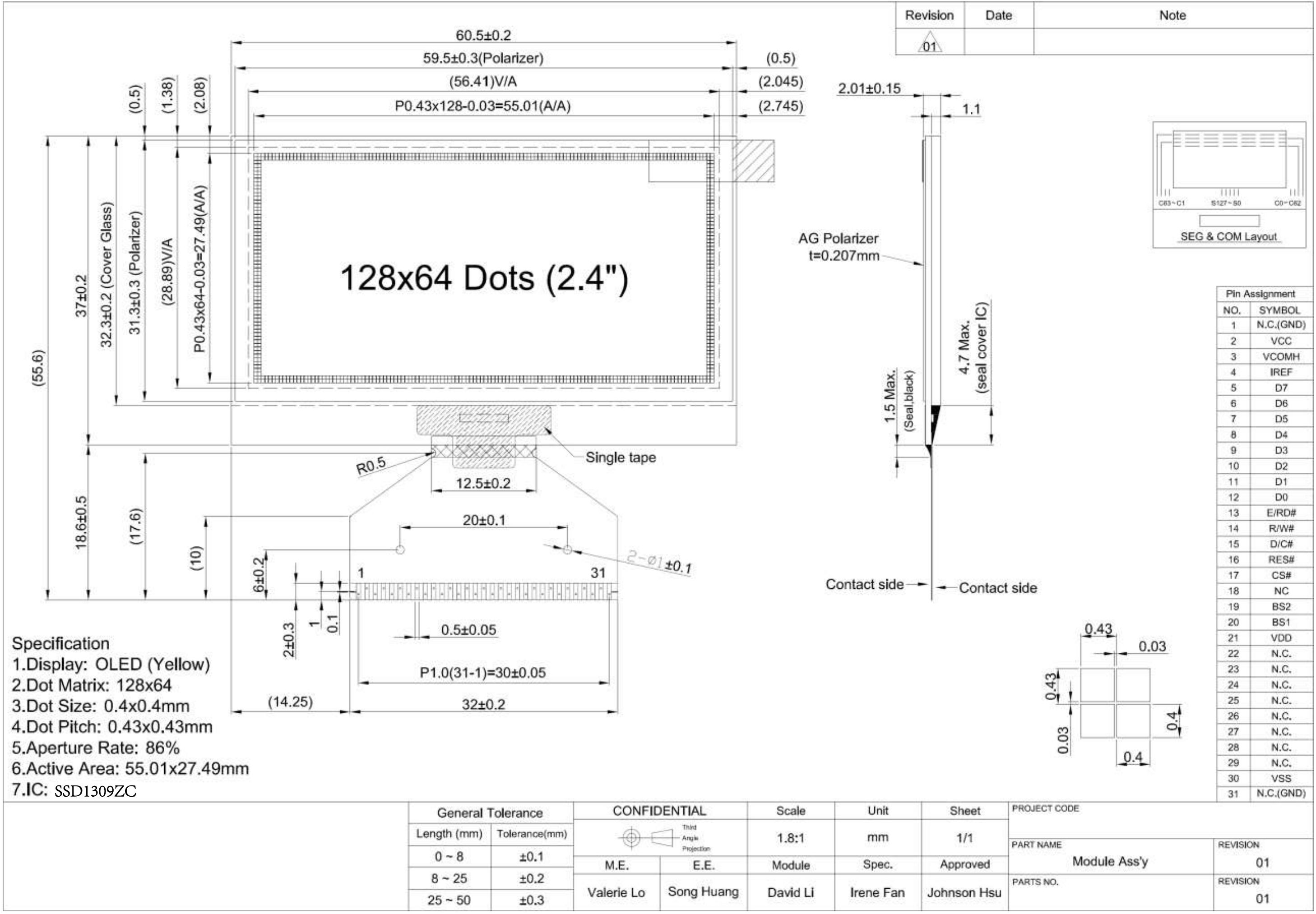

Dimensions
2.4" PMOLED Display
High-performance 2.4-inch PMOLED display delivering exceptional visual clarity and reliability for industrial and commercial applications. Featuring advanced small molecular organic light emitting diode technology with yellow color output.
Engineered with SSD1309ZC driver IC, this display module offers excellent quick response time of 10μs and operates reliably across a wide temperature range from -40°C to 70°C. The ultra-thin 2.01mm thickness enables optimal mechanical design integration.
- Multiple Interface Support: 8-bit 6800/8080-series parallel interface, Serial Peripheral Interface, and I2C Interface for flexible connectivity.
- Advanced Power Management: Features normal mode, standby mode, and sleep mode for optimal energy efficiency.
- High Reliability: Strong environmental resistance with anti-glare polarizer for enhanced visibility.
- Compact Design: Panel thickness of 1.82±0.1mm with active area of 55.01×27.49mm for space-constrained applications.
| Parameter | Specification |
|---|---|
| Display Type | PMOLED (Passive Matrix OLED) |
| Display Color | Yellow |
| Resolution | 128 × 64 dots |
| Dot Size | 0.4(W) × 0.4(H) mm |
| Active Area | 55.01 × 27.49 mm |
| Panel Size | 60.5 × 37 mm |
| Module Size | 60.5 × 55.6 × 2.01 mm |
| Operating Temperature | -40°C to 70°C |
| Contrast Ratio | 2000:1 |
| Viewing Angle | 160° |
| Response Time | 10μs |
| Module Weight | 9.02 ± 10% grams |
We provide comprehensive display solutions for business customers with customized options and bulk purchasing advantages.
- Custom Configuration Services: Tailored display solutions with modified specifications to meet specific application requirements.
- Volume Discount Programs: Competitive pricing for bulk orders with flexible delivery schedules.
- Technical Support: Dedicated engineering support for integration and implementation challenges.
- Quality Assurance: 12-month warranty with comprehensive technical documentation and reliability testing data.
Ideal for industrial control panels, measurement instruments, and factory automation systems requiring reliable display performance in harsh environments.
Perfect for portable medical equipment, diagnostic tools, and patient monitoring systems where clear visibility and reliability are critical.
Suitable for home appliances, wearable devices, and portable gadgets requiring compact, energy-efficient displays.
Excellent for automotive dashboards, infotainment systems, and auxiliary displays with wide temperature operation capability.
Technical Documentation: Complete datasheet with detailed electrical characteristics, interface specifications, and application guidelines available for download.
Reliability Data: Comprehensive testing results including lifetime specifications, environmental resistance, and quality assurance protocols.
Integration Support: Detailed power on/off sequences, interface timing charts, and mechanical integration guidelines.
Resources: Download Complete Technical Documentation
