Mechanical Dimensions

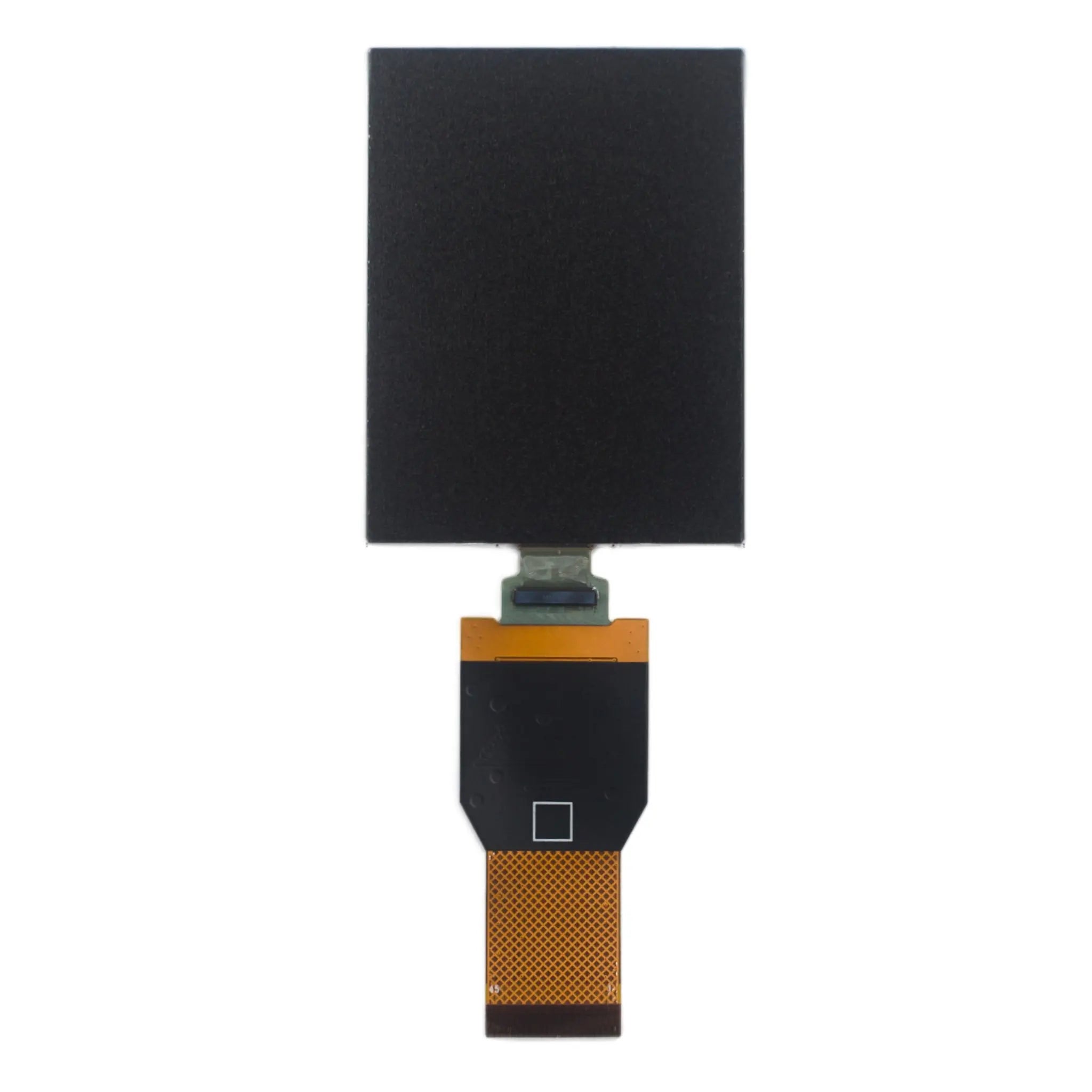

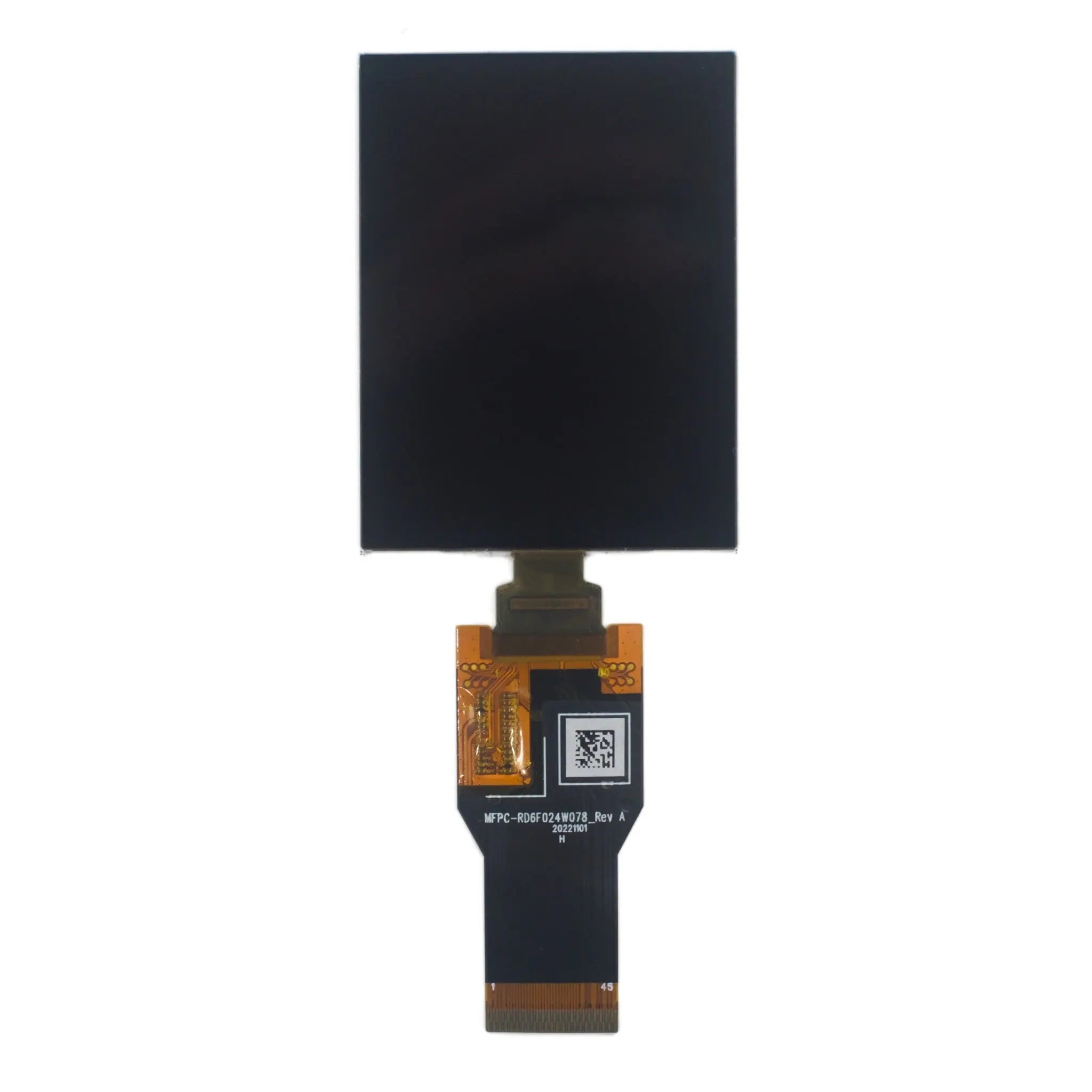

2.4" 450×600 AMOLED
The DMGXO0024S9NA is a 2.4-inch AMOLED display module designed for high-performance embedded systems. With a 450×600 pixel resolution, 800 cd/m² typical luminance, and wide 85° viewing angles, it delivers vibrant, sharp visuals suitable for compact devices such as wearables, instrumentation, and control interfaces.
This module supports MIPI DSI, 3/4-wire SPI, and 8-bit MCU interfaces, providing excellent flexibility for different application scenarios. The panel is driven by the RM690B0 display IC, ensuring stable operation and low power consumption.
- High Brightness: 800 cd/m² typical luminance — excellent readability in bright environments.
- Wide Viewing Angle: 85° in all directions (CR ≥ 200) for consistent image quality from any angle.
- Multi-Interface Support: MIPI DSI, 3-wire SPI, 4-wire SPI, and 8-bit MCU.
- High Color Depth: 16.7 M colors with real RGB arrangement.
| Parameter | Specification |
|---|---|
| Screen Size | 2.4 inch |
| Resolution | 450 × 600 pixels |
| Pixel Size | 0.0272 (H) × 0.078 (V) mm |
| Active Area | 36.72 (W) × 49.12 (H) mm |
| Outline Dimension | 38.72 (W) × 51.56 (H) × 0.78 (T) mm |
| Display Colors | 16.7 M |
| Interface | MIPI Command mode / SPI / MCU |
| Driver IC | RM690B0 |
We provide customized display solutions for businesses seeking to integrate high-performance AMOLED technology into their products. Our enterprise services include technical consultation, custom configurations, and volume manufacturing.
- Custom Integration: Tailored solutions for specific application requirements and form factors.
- Volume Pricing: Competitive wholesale rates for large quantity orders with flexible MOQs.
- Technical Support: Comprehensive engineering assistance throughout integration and production.
Ultra-compact AMOLED modules ideal for smartwatches, portable meters, and handheld instruments, offering excellent visibility even under strong ambient light thanks to 800 cd/m² brightness and wide 85° viewing angles.
High-contrast and fast-response displays suited for control panels, diagnostic tools, and embedded human–machine interfaces. Multi-interface support (MIPI / SPI / MCU) allows seamless integration into existing systems.
Reliable and precise display performance for endoscopic imaging, portable medical monitors, and diagnostic devices requiring accurate color reproduction, high luminance, and robust environmental endurance (−20 ~ 80 °C operating range).
Compatibility: This display module is compatible with standard interface protocols and can be integrated with various driver ICs and controllers. Operating temperature range of -20°C to 80°C ensures reliability across diverse environments.
Technical Documentation: Download complete datasheet for detailed specifications, pin definitions, and integration guidelines.
