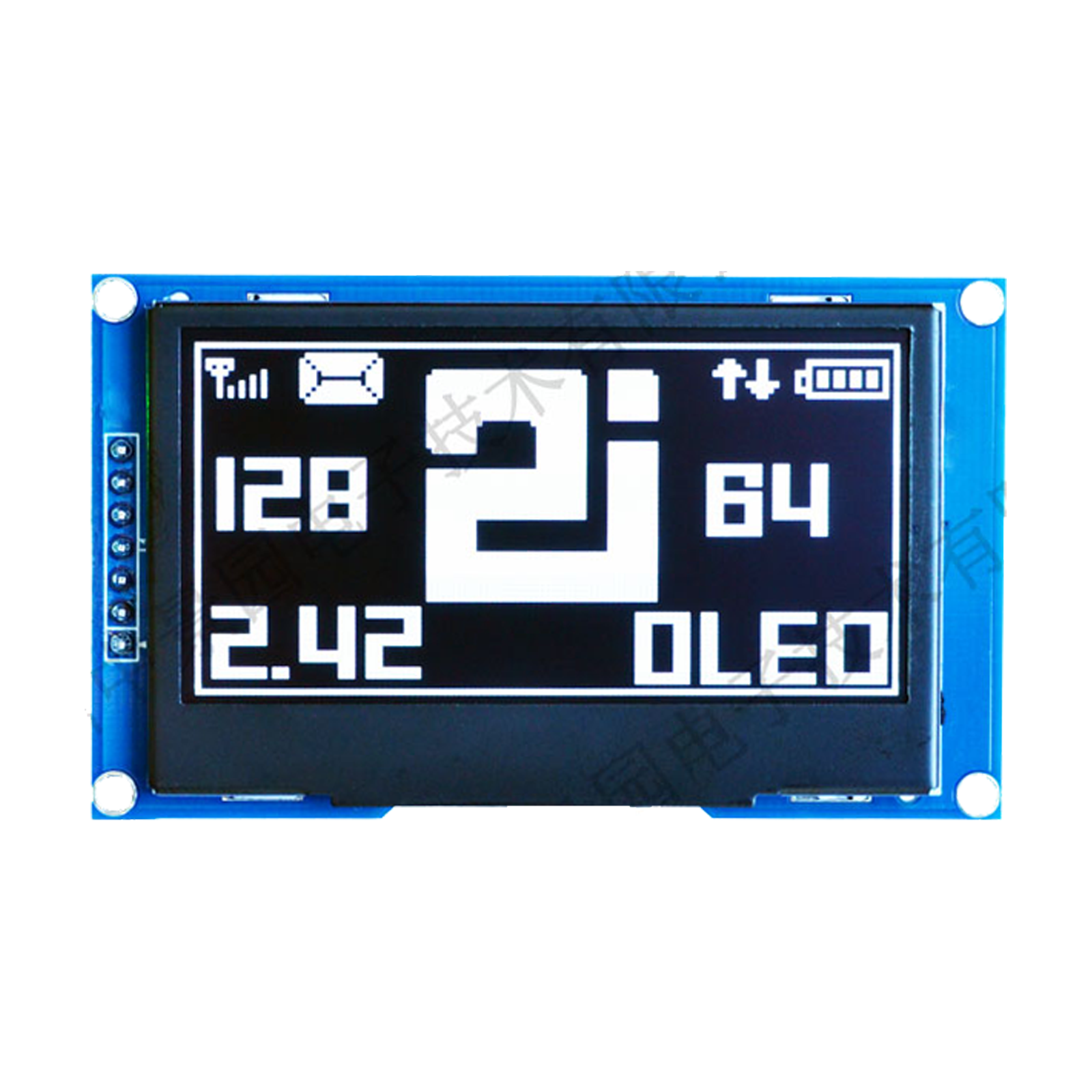

2.4-inch screen displaying some numbers

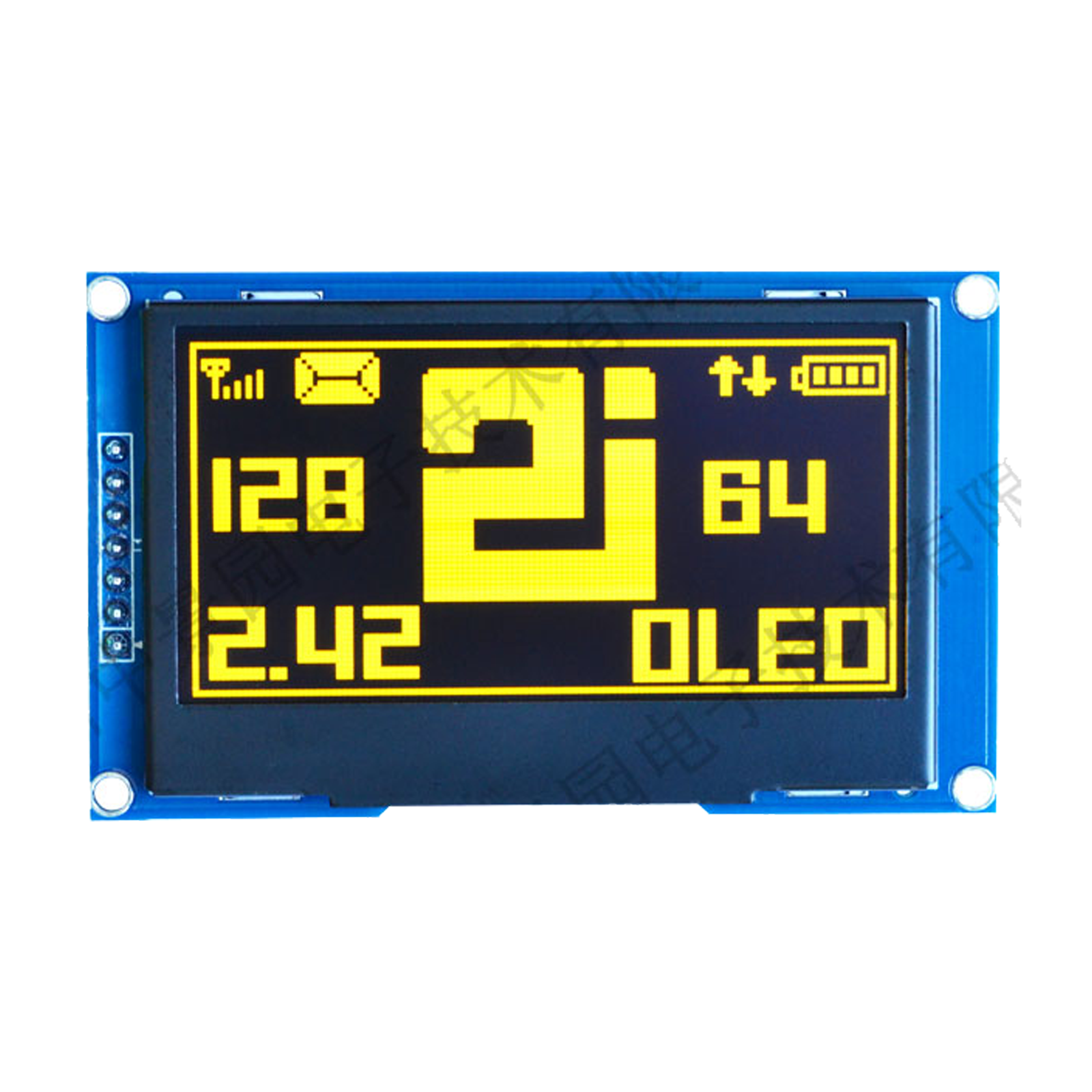

Yellow 2.4-inch screen displaying some numbers

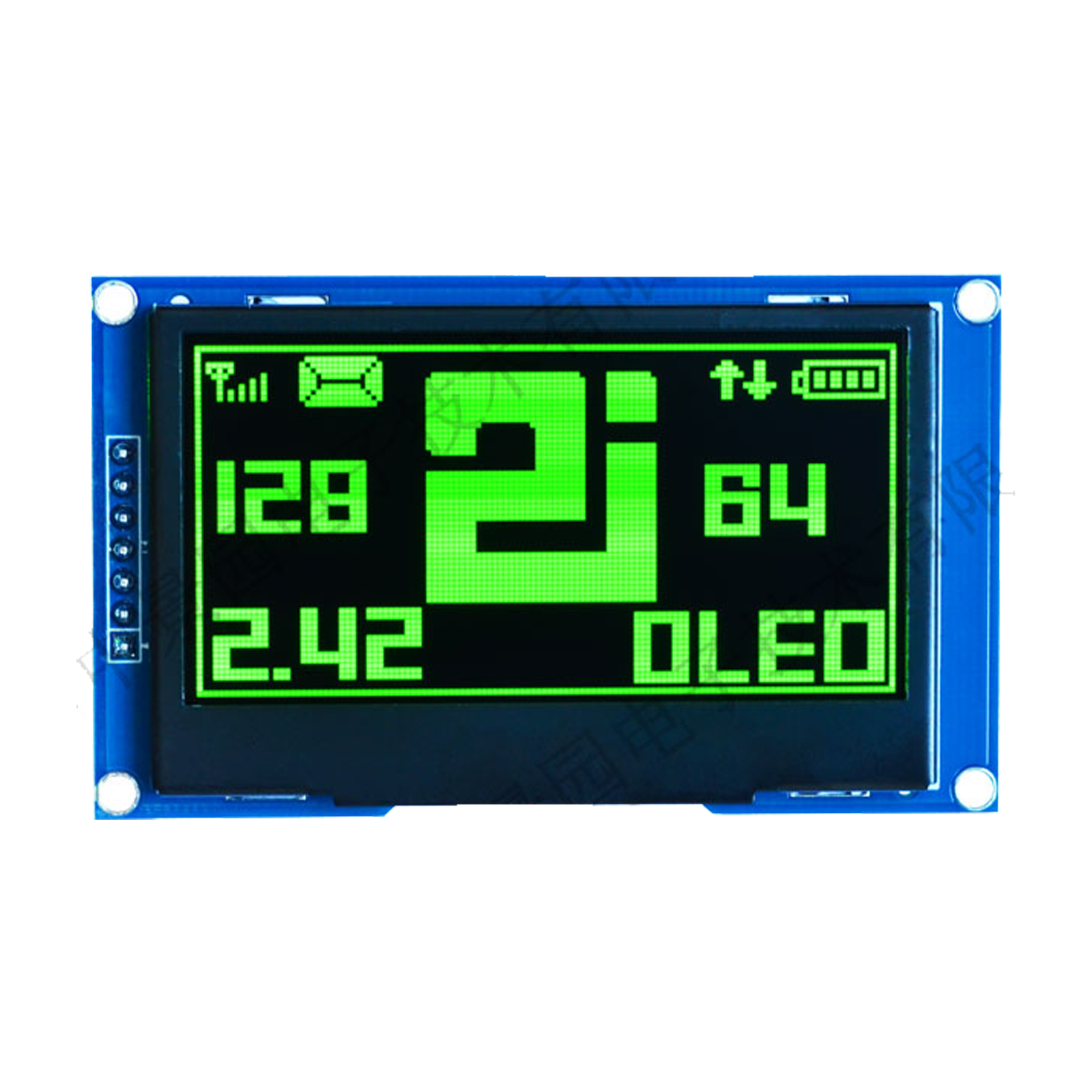

Green 2.4-inch screen displaying some numbers

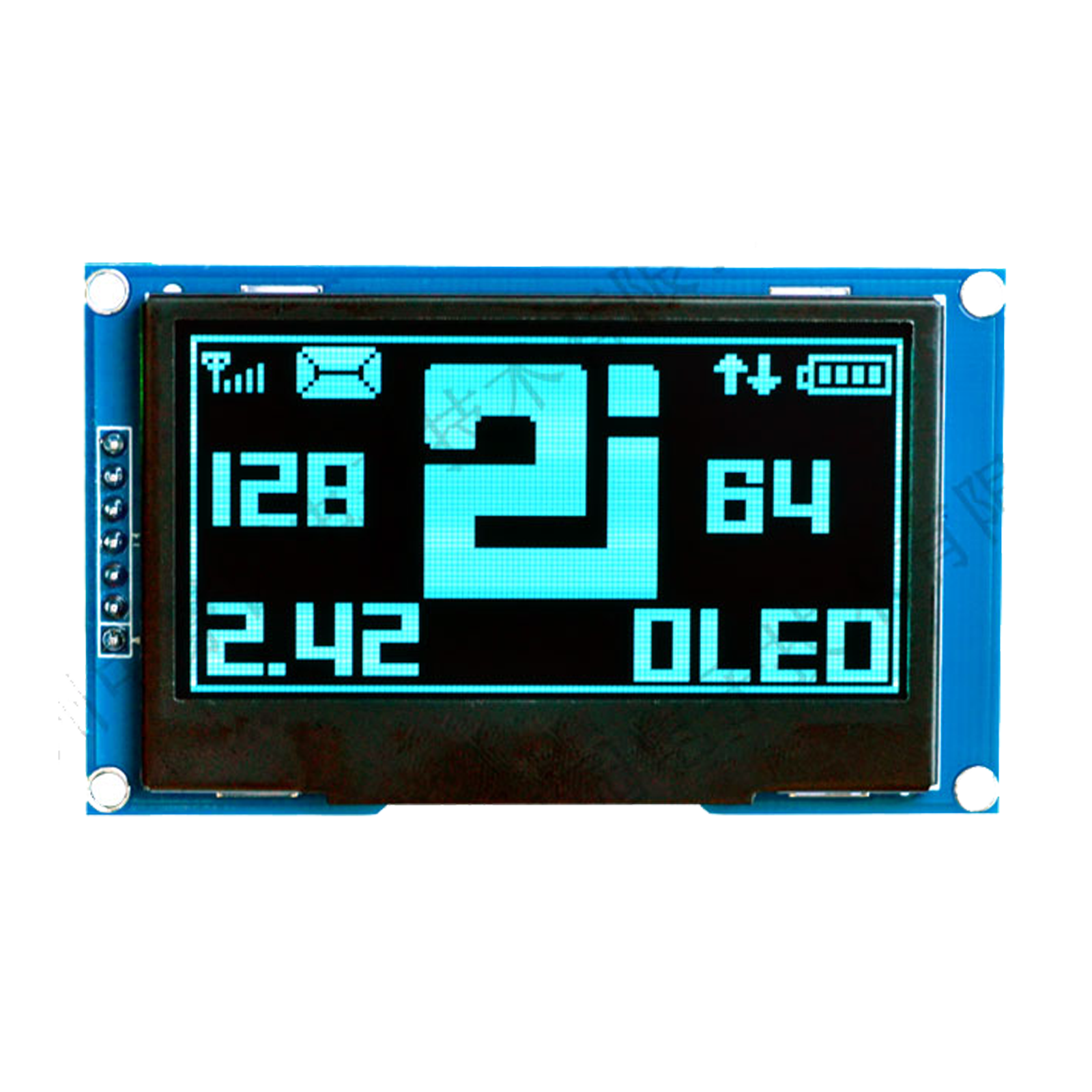

Blue 2.4-inch screen displaying some numbers

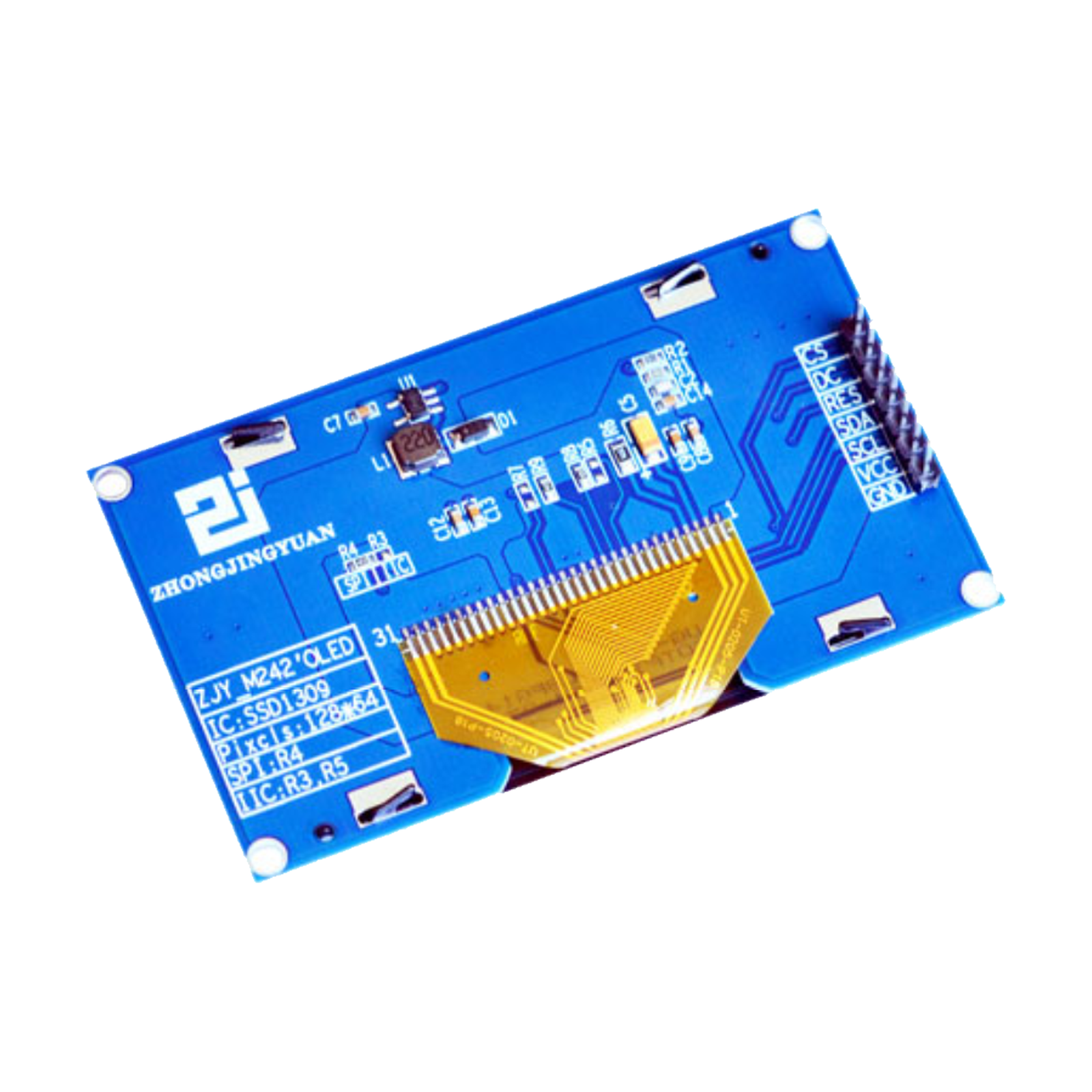

Back of 2.42 inch OLED Graphic Display Module with 128x64 resolution, All View feature, utilizing SPI and I2C interfaces

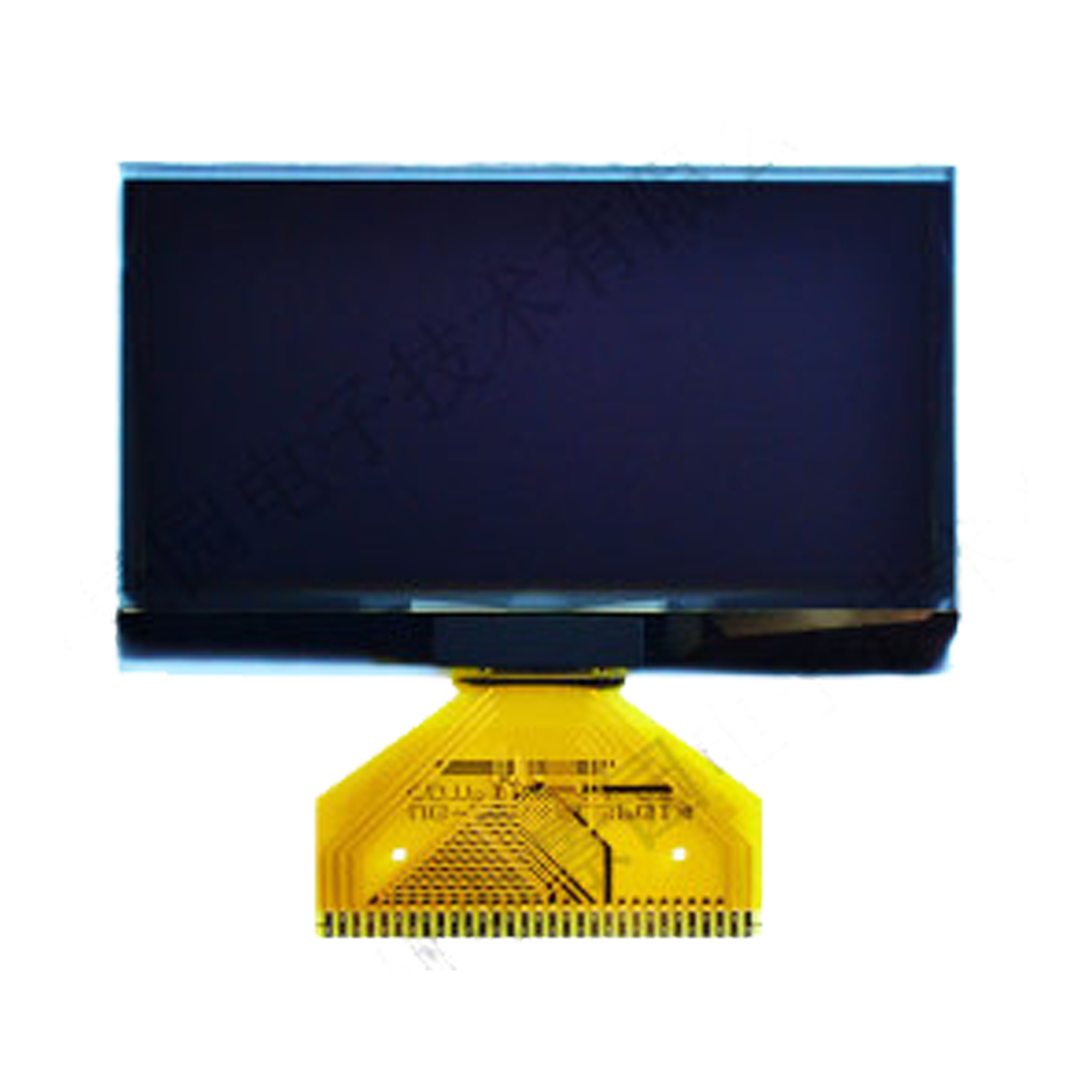

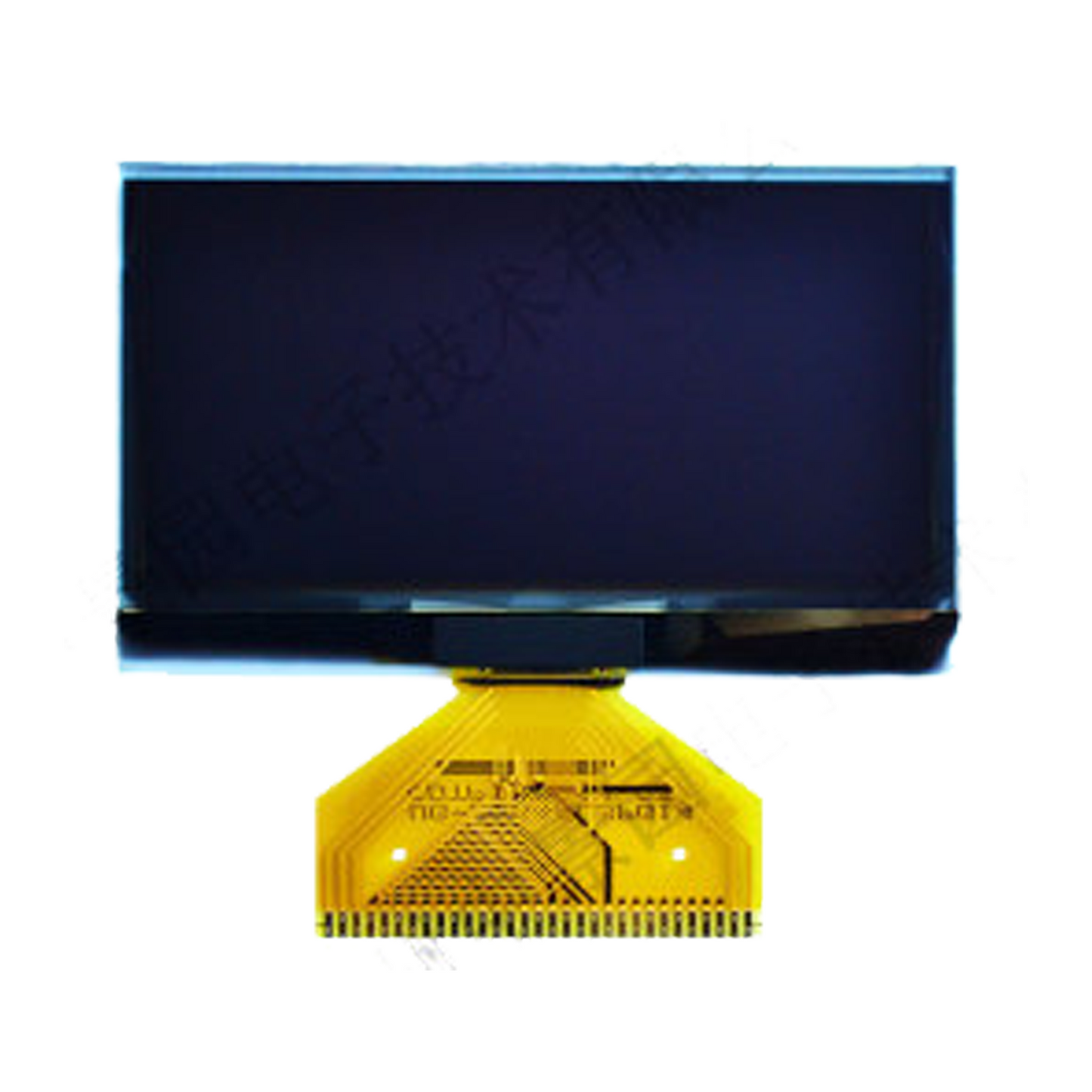

2.42 inch OLED Graphic Display Panel with 128x64 resolution, All View feature, utilizing SPI and I2C interfaces

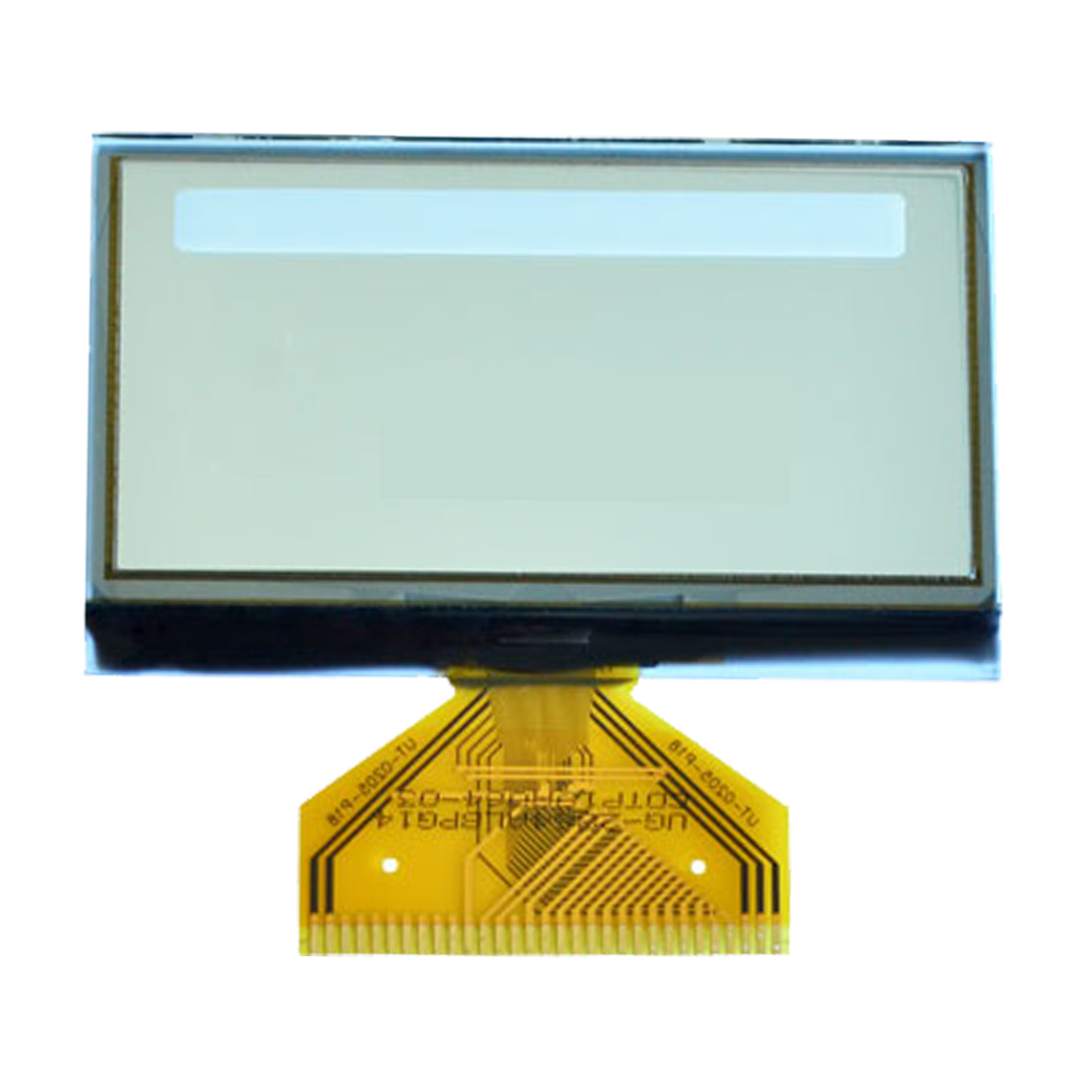

Back of 2.42 inch OLED Graphic Display Panel

2.42" OLED Graphic Display 128x64 All View - SPI, I2C

Regular price $34.90
Sale price $34.90 Regular price
Datesheet:
White Module
Yellow Module
Green Module
Blue Module
White Panel
Yellow Panel
Blue Panel
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 128 X 64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome(White/Yellow/Green/Blue)
  • Module Dimension : 60.50 × 37.00 × 2.00 mm
  • Viewing Area : 55.01 × 27.49 mm
  • Power Supply :  3.3 V
  • Interface : SPI,I2C
  • Controller IC : SSD1309
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃

Dimension


Resources

Datasheet : DM-OLED242-693

Driver IC : SSD1309
