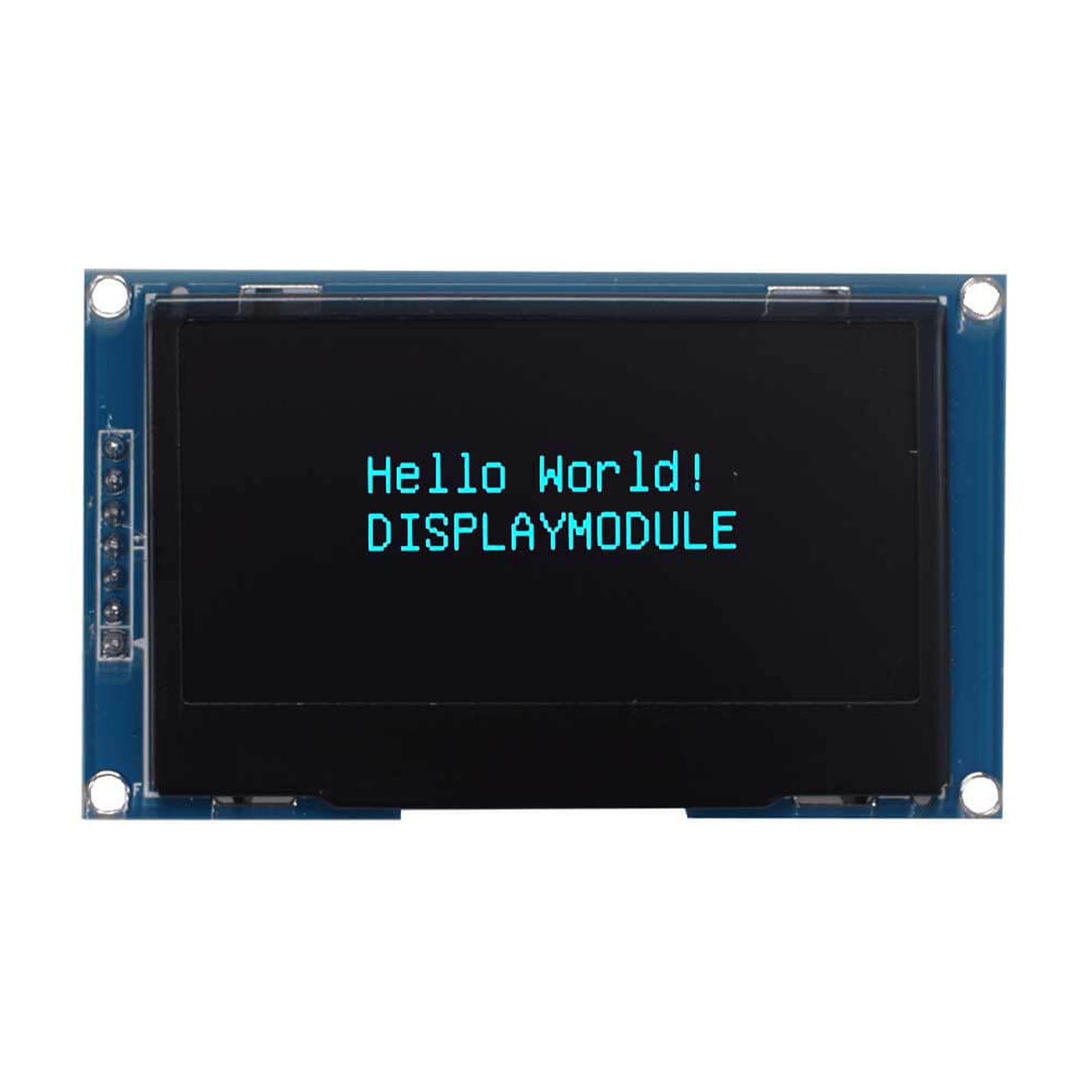

2.4-inch OLED display screen showing the blue characters 'Hello World! DISPLAYMODULE'

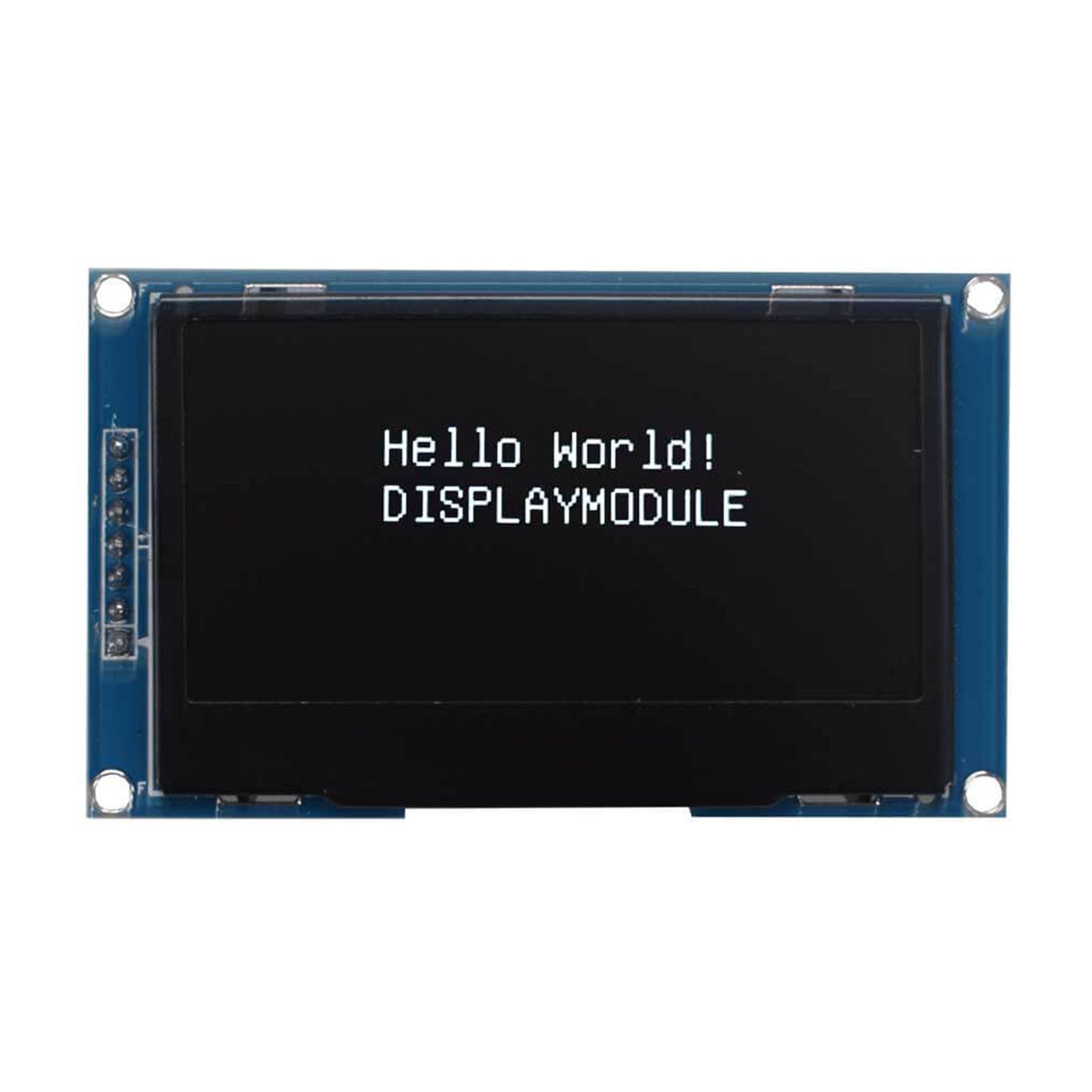

2.4-inch OLED display screen showing the white characters 'Hello World! DISPLAYMODULE'

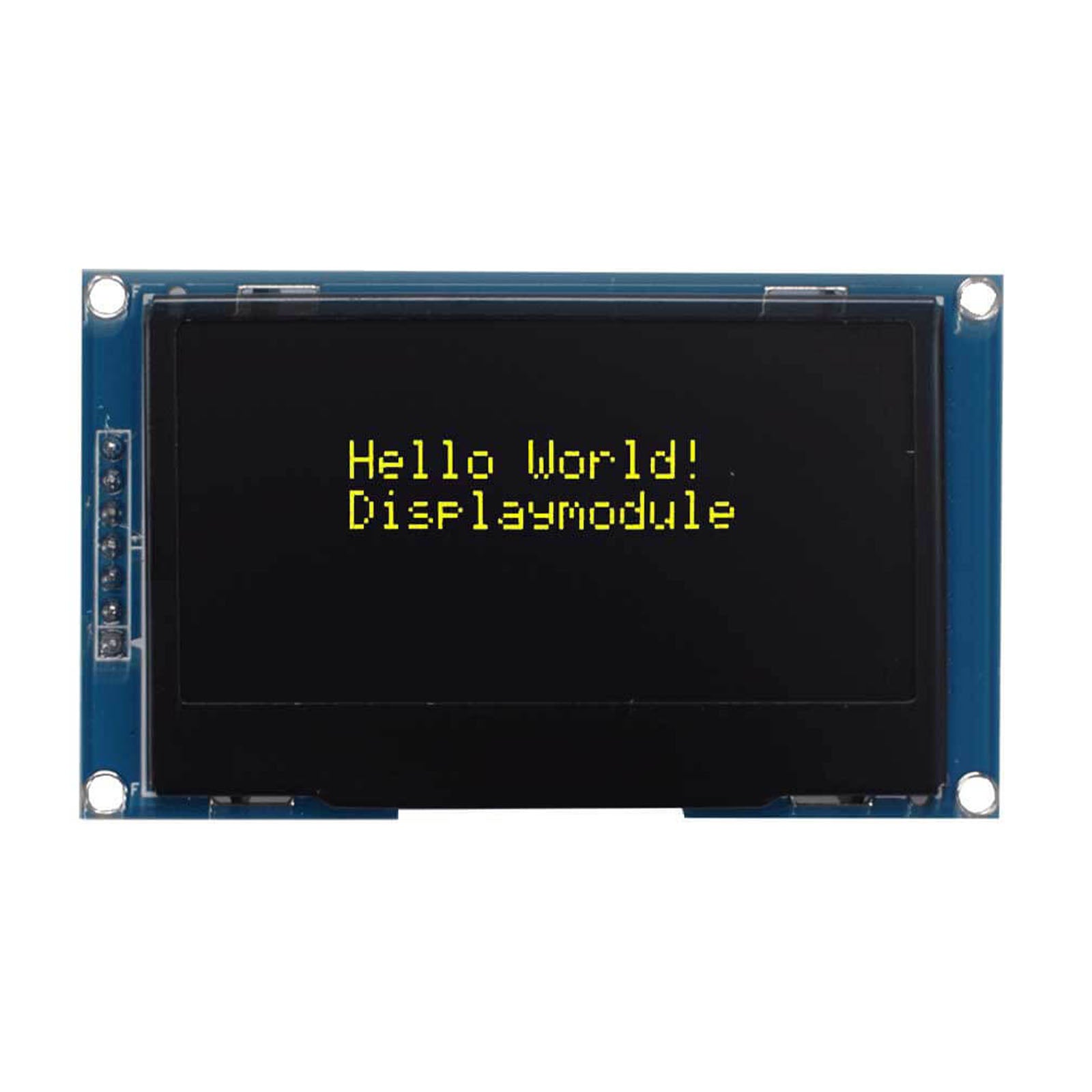

2.4-inch OLED display screen showing the yellow characters 'Hello World! DISPLAYMODULE'

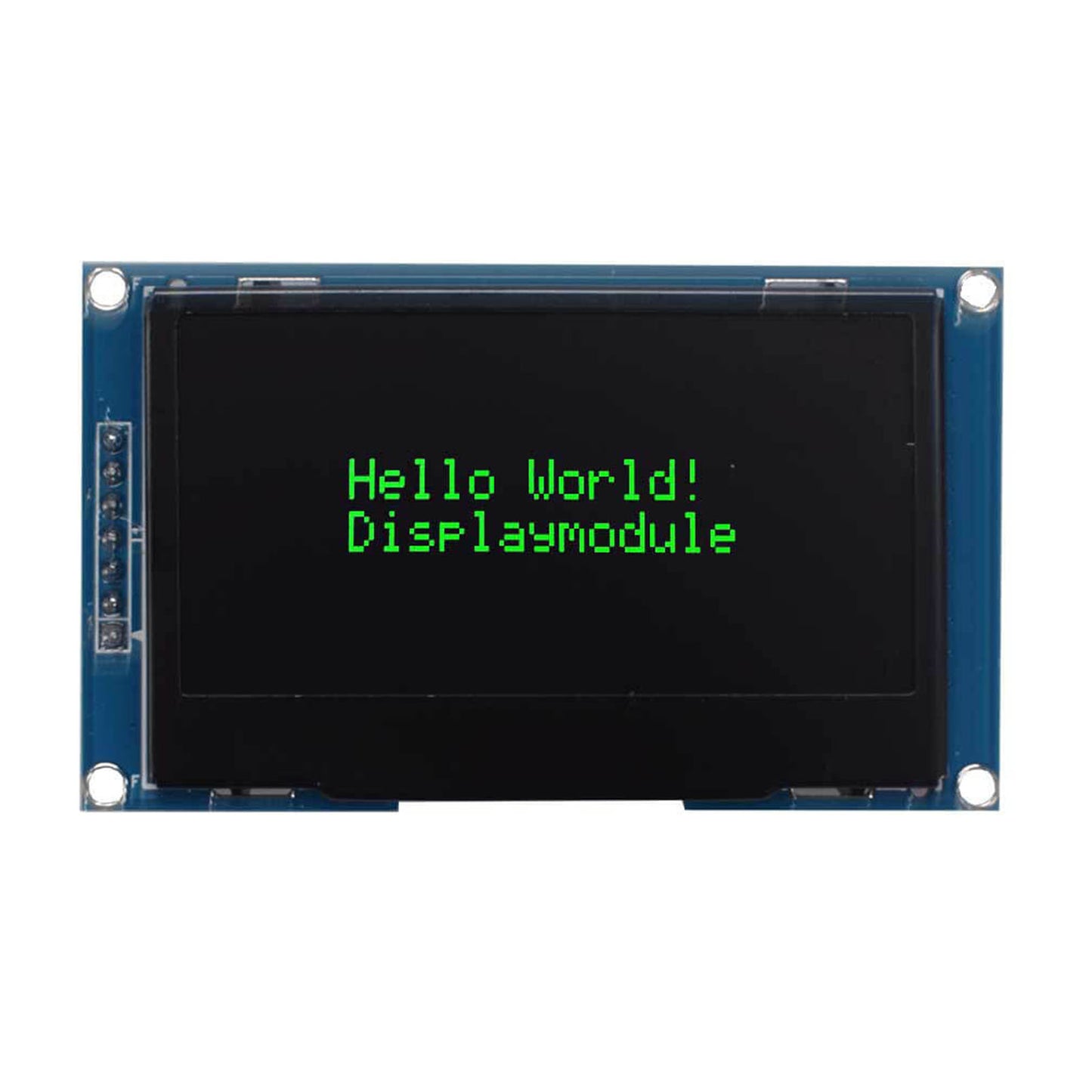

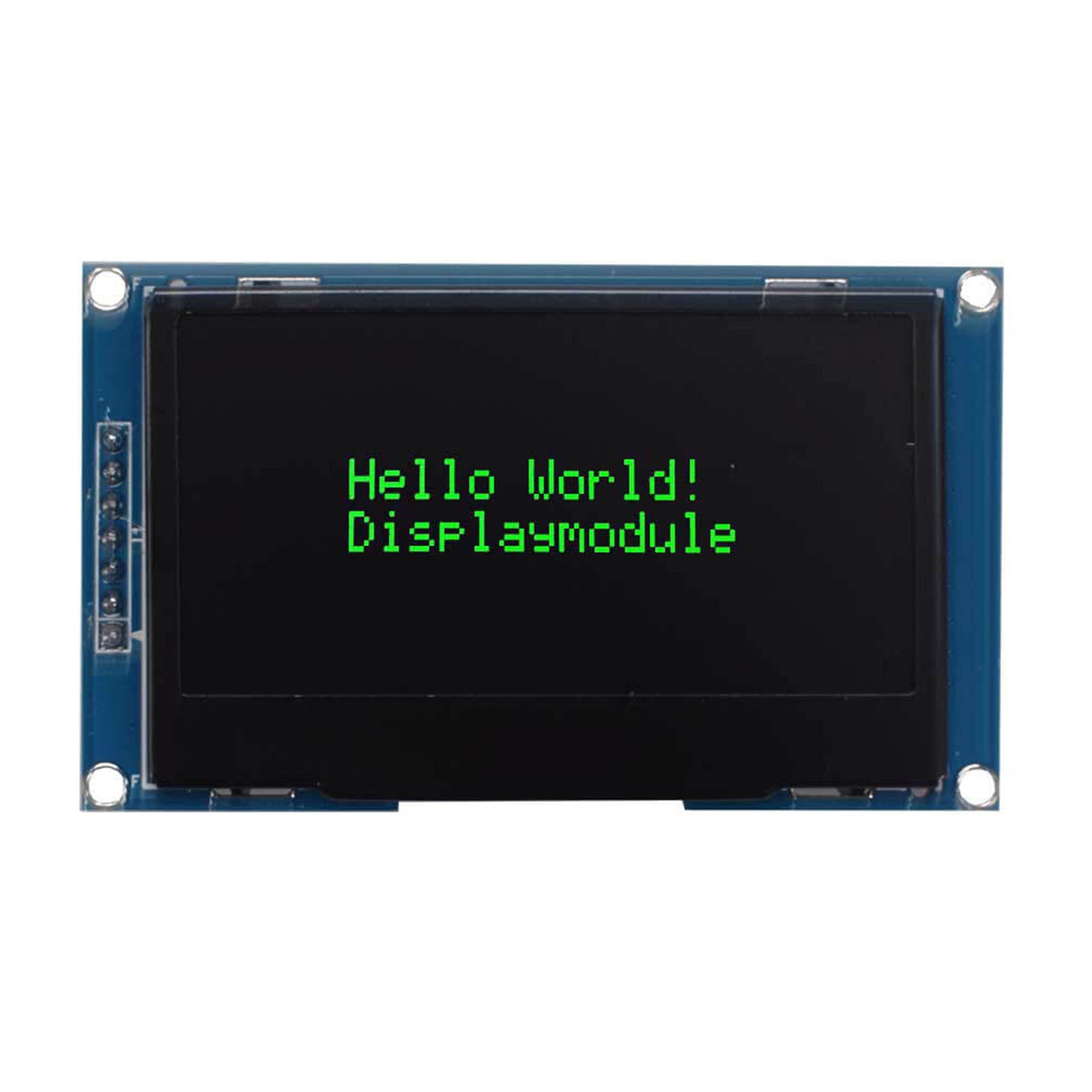

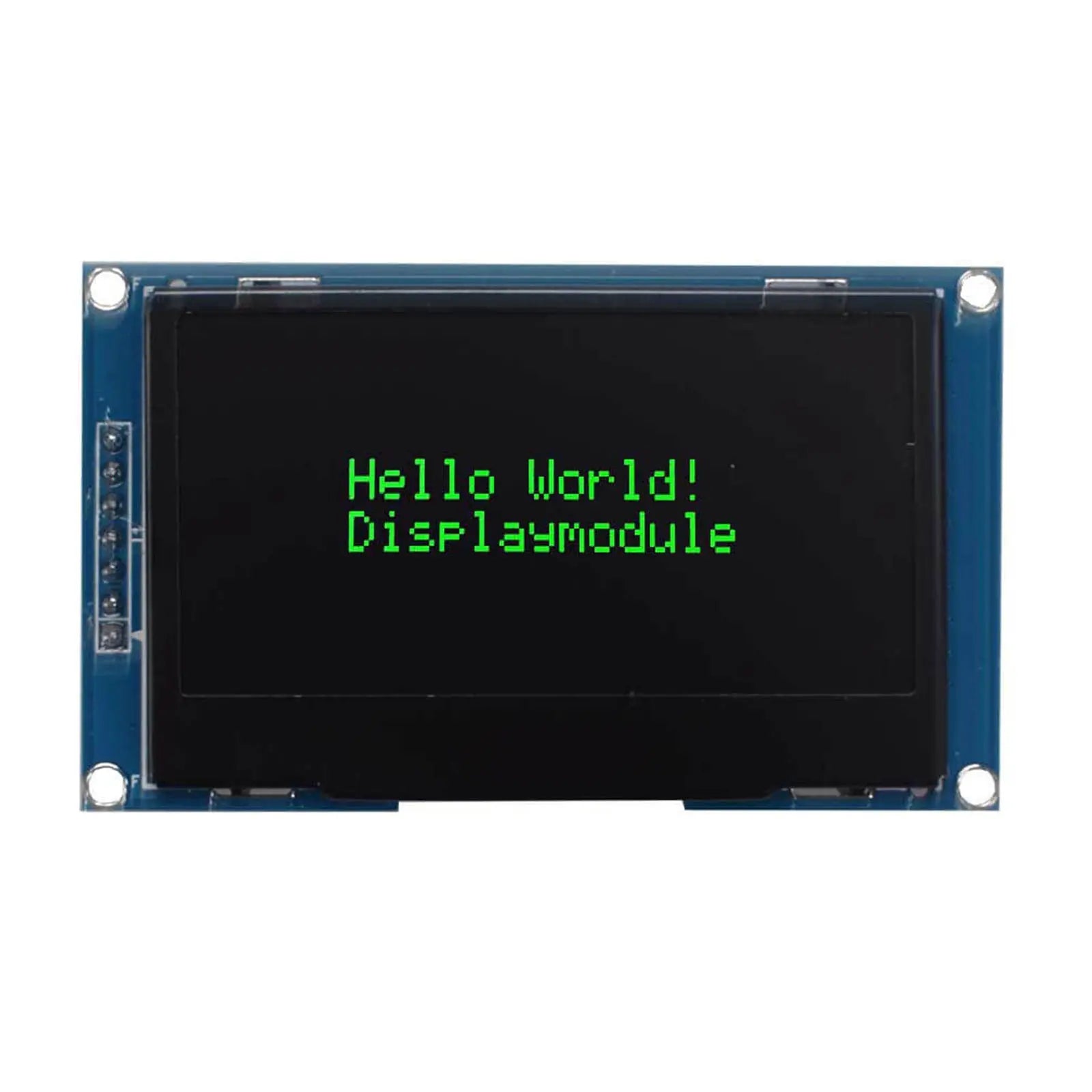

2.4-inch OLED display screen showing the green characters 'Hello World! DISPLAYMODULE'
2.42 inch Monochrome OLED Graphic Display Module with 128x64 resolution, utilizing SPI interface

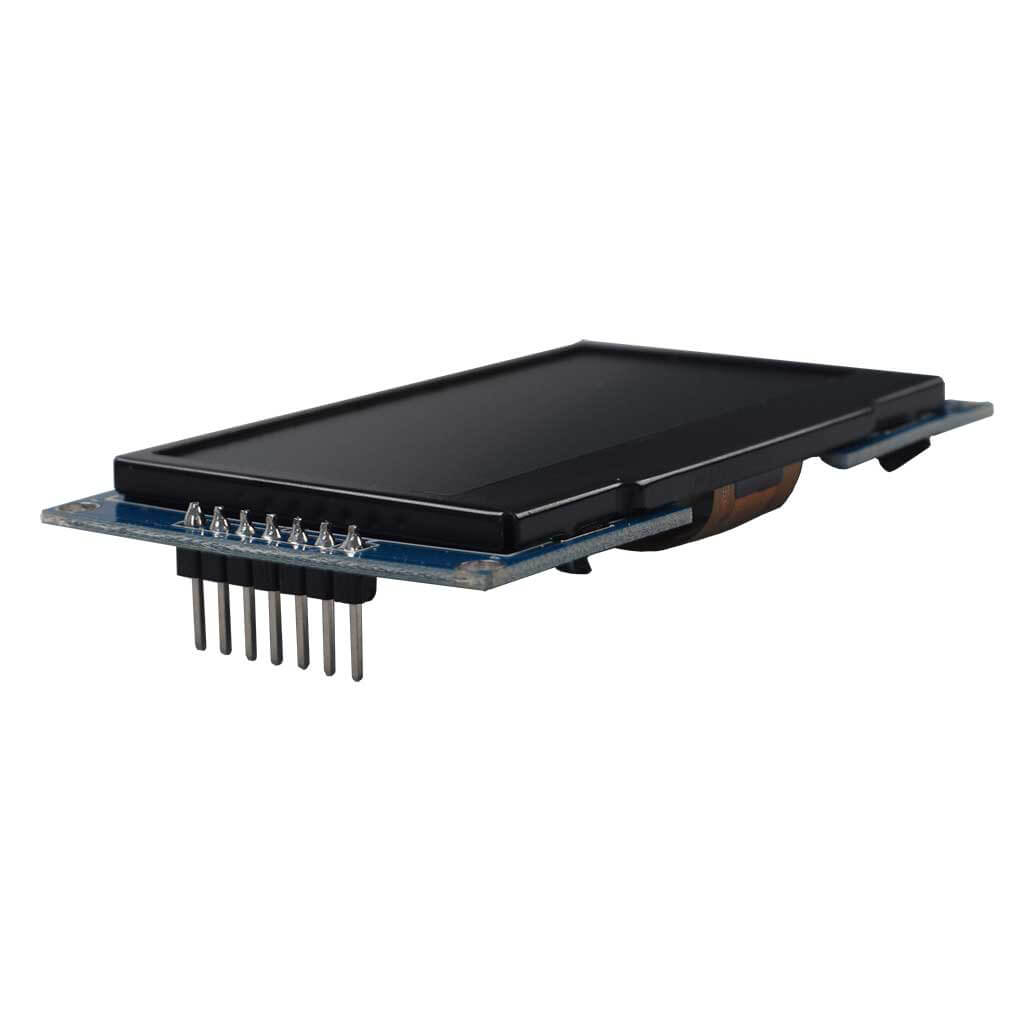

Side view of 2.42 inch Monochrome OLED Graphic Display Module

2.42" OLED Graphic Display 128x64 Monochrome - SPI

Regular price $29.90
Sale price $29.90 Regular price $33.99
Datesheet:
White
Green
Yellow
Blue
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 128 x 64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome(White/Blue/Yellow/Green)
  • Module Dimension : 72.00 x 43.00 x 2.70 mm
  • Viewing Area : 55.01 x 27.49 mm
  • Power Supply : 2.8 V
  • Interface : 4wire SPI
  • Controller IC : SSD1309
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃

Dimension

Resources

Display Drive IC:  SSD1309-Rev1.1

Arduino SSD1309 Library: u8glib
 uncomment device U8GLIB_SSD1309_128X64 u8g(13, 11, 10, 9); // SPI Com: SCK = 13, MOSI = 11, CS = 10, A0 = 9;
