2.47" IPS Display 480X480 Octagonal Shape Round U/D/L/R free - RGB

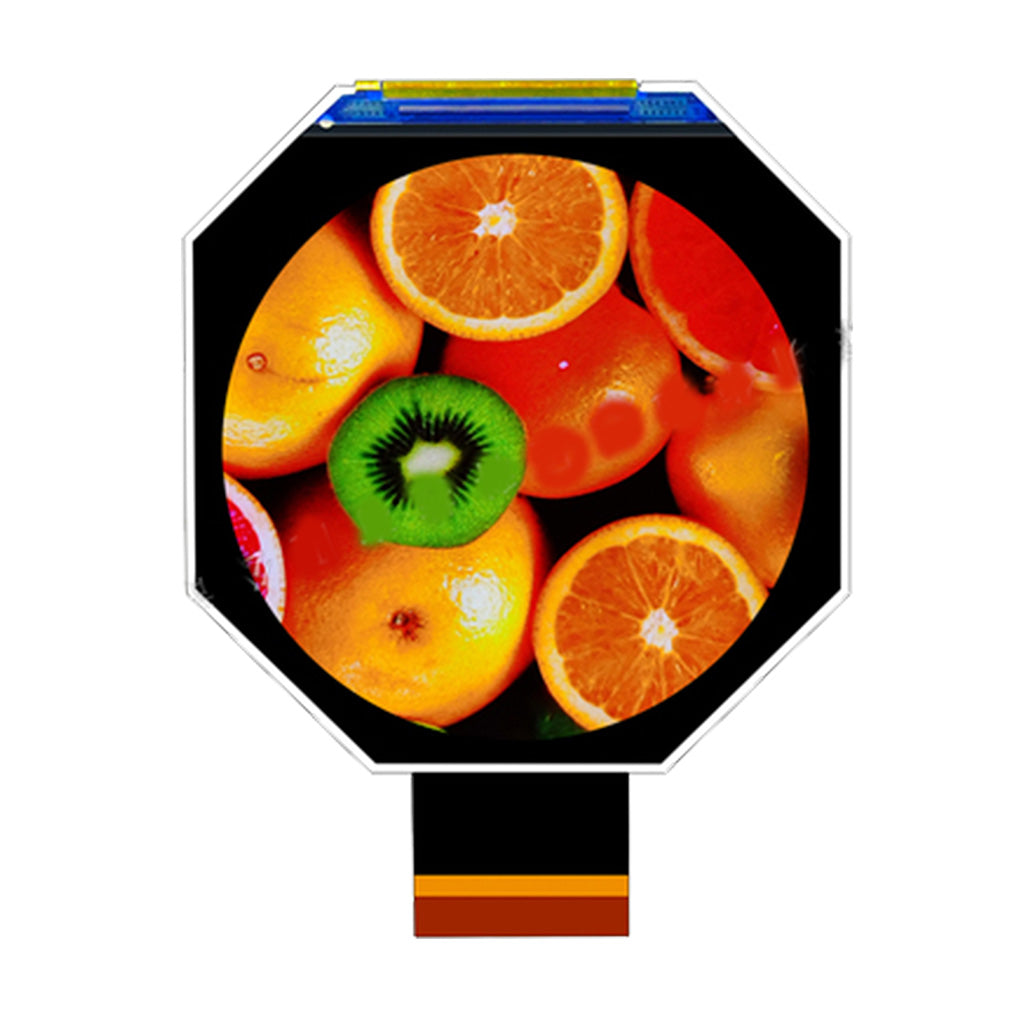

This 2.47-inch IPS display delivers high-quality visuals with a unique octagonal round design and 480x480 pixel resolution, supporting flexible mounting orientations (Up/Down/Left/Right free). Ideal for applications requiring wide viewing angles and consistent color reproduction.
Featuring IPS technology, the display ensures a wide viewing angle of up to 178 degrees, making it suitable for devices where multiple viewers are present. The drive IC HX8379-C provides robust performance with support for 16.7 million colors.

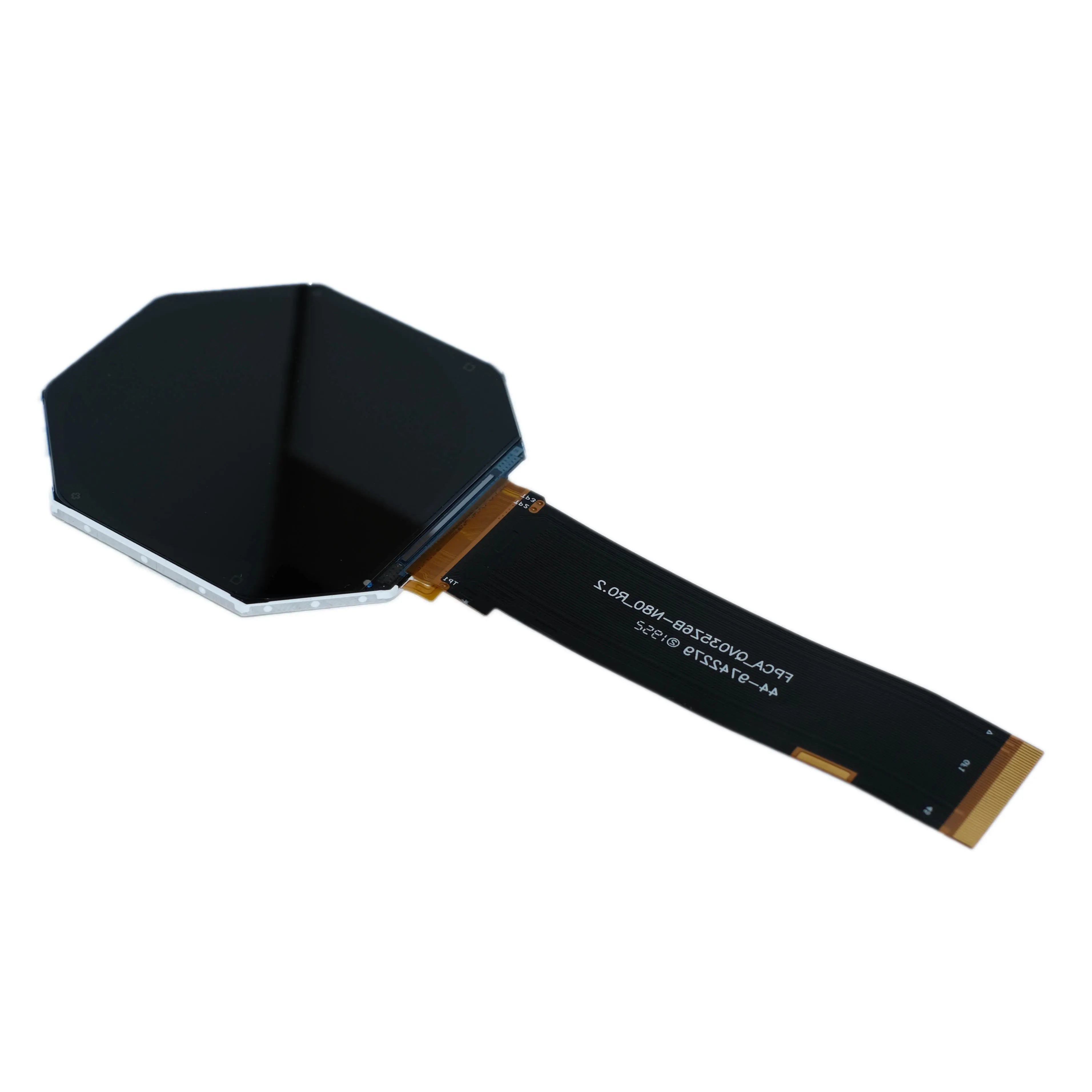

- Octagonal Round Design: Unique shape allows for versatile integration into circular or custom enclosures, ideal for wearable devices and industrial panels.
- Flexible Orientation: Supports mounting in any direction (up, down, left, right) without image degradation, simplifying installation.
- High Brightness & Contrast: IPS panel ensures consistent luminance and color accuracy even in bright environments.
- Low Power Consumption: Optimized drive circuitry reduces energy usage, extending battery life in portable applications.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 2.47 inch |
| Resolution | 480 x 480 pixel |
| View Direction | U/D/L/R free |
| Touch Mode | None |

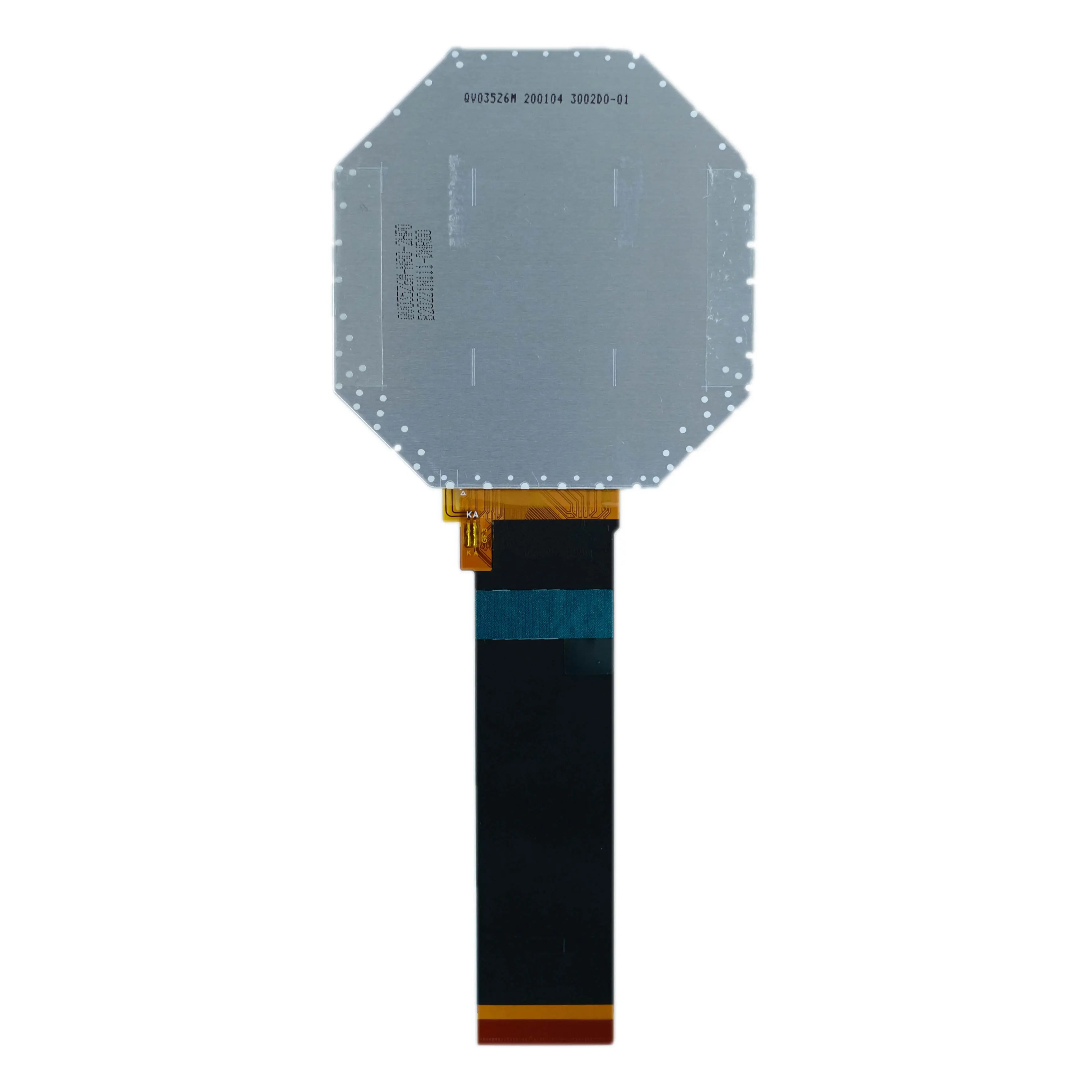

| Module Dimension | 66.64(H) x 70.14(V) mm |
| Viewing Area | 62.64 x 62.64 mm (circle) |
| Interface | RGB |
| Drive IC | HX8379-C |
| Operation Temperature | -10℃ to 60℃ |
| Storage Temperature | -30℃ to 70℃ |
We offer customized display solutions for businesses, including bulk ordering and tailored configurations to meet specific project requirements.
- Customization Services: Modify aspects like connector placement, backlight intensity, or firmware to align with your product design.
- Volume Discounts: Competitive pricing for large-scale orders, with support for just-in-time delivery to streamline supply chains.
- Technical Support: Dedicated engineering assistance for integration, including schematic reviews and compliance testing.
Ideal for smartwatches and fitness trackers, where the round shape and high resolution provide a sleek interface for health metrics.
Used in control panels and machinery interfaces, offering reliable performance in harsh environments with wide temperature ranges.
Suited for portable diagnostic devices, ensuring clear visibility of graphs and readings with accurate color representation.
The RGB interface ensures broad compatibility with various microcontrollers and processors, including ARM-based systems and FPGAs. The display works seamlessly with drivers supporting 24-bit color depth.
- Controller Support: Compatible with popular chips like STM32, Raspberry Pi (via adapter), and other embedded systems.
- Protocol Flexibility: Supports standard RGB signaling with HSYNC, VSYNC, and DE modes, allowing easy integration.
- Power Supply: Operates with 3.3V logic levels, matching common embedded standards.
Documentation: Access detailed datasheets and design files to accelerate your development process.
- Datasheet: DM-TFTR247-456, HX8379-C
- Example Code: HX8379-C-RGB-480x480
- 3D Model: DM-TFTR247-456
- Video: DM-TFTR247-456 (demo available on request)
Note: For optimal performance, ensure the drive IC configuration matches the display's timing parameters. Refer to the HX8379-C datasheet for register settings.
