2.47" Round IPS Display 480x480 Octagonal Shape U/D/L/R Free - MIPI

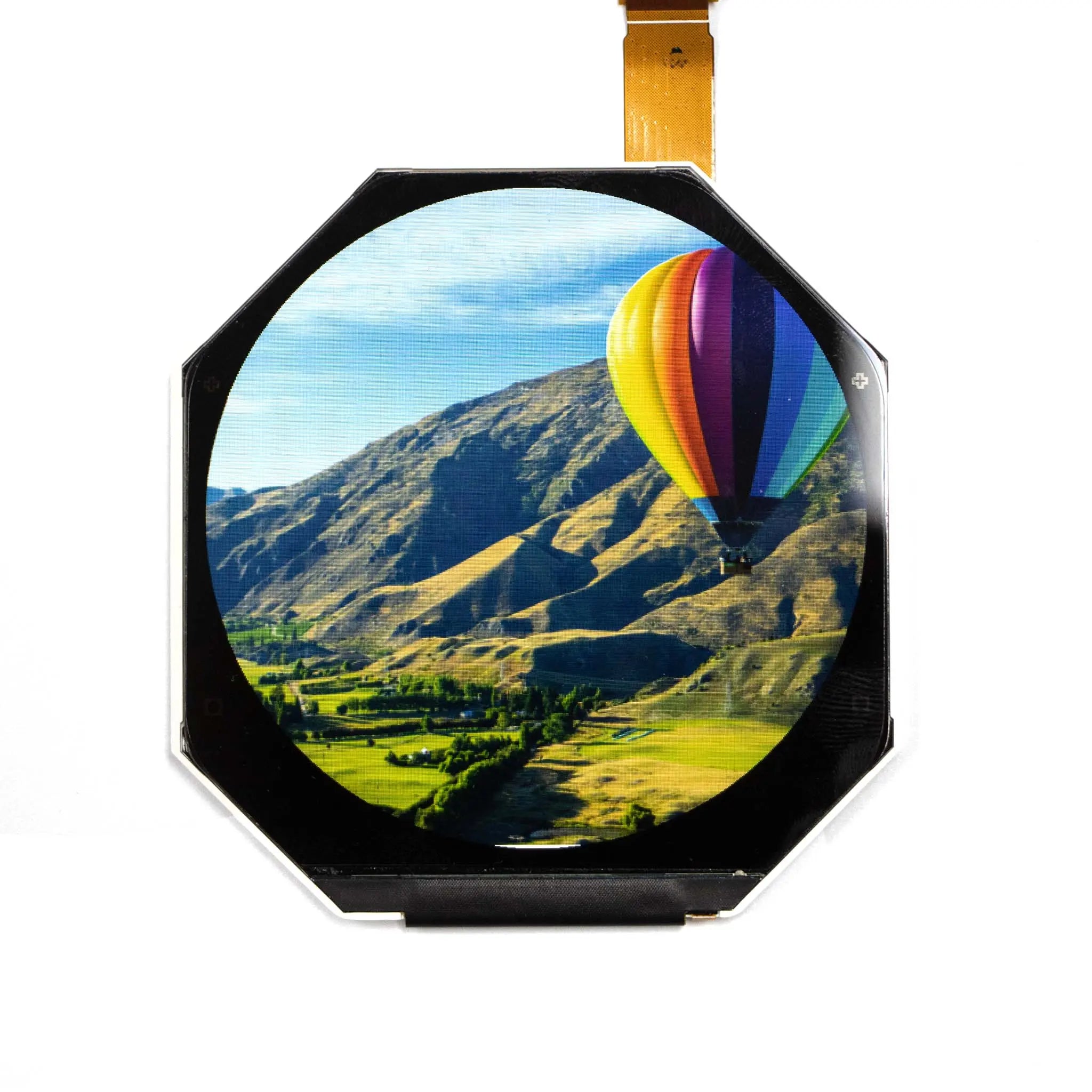

Experience exceptional visual clarity with our 2.47-inch circular IPS display, featuring a high-resolution 480×480 pixel matrix and true 16.7 million color reproduction. The octagonal-shaped panel with MIPI interface delivers superior performance for modern embedded applications.
Engineered with the HX8367C driver IC, this display delivers exceptional viewing angles of up to 85° in all directions (top/bottom/left/right) with a contrast ratio of 1000:1. The IPS technology ensures consistent color and clarity regardless of viewing angle.
- High-Resolution Circular Design: Perfect 480×480 pixel matrix optimized for circular display applications with no distortion at edges.
- Advanced IPS Technology: Delivers 70% NTSC color gamut with accurate color reproduction across all viewing angles.
- MIPI Interface: High-speed serial interface supporting efficient data transfer with minimal pin count.
- Robust Construction: Operating temperature range of -10°C to 60°C ensures reliability in various environments.
| Parameter | Specification |
|---|---|
| Diagonal Size | 2.47 inch |
| Resolution | 480 × 480 pixels |
| Display Colors | 16.7M colors |
| Driver IC | HX8367C |
| Interface | MIPI |
| View Direction | U/D/L/R free viewing direction |
| Module Dimension | 66.64(H) × 70.14(V) mm |
| Active Area | Ø62.64 mm (circular) |
| Contrast Ratio | 1000:1 (typical) |
| Response Time | <35 ms (Tr+Tf) |
| NTSC Ratio | 70% (typical) |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Weight | 25g |
For business and institutional customers, we offer tailored display solutions to meet your specific requirements.
- Custom Configuration Options: Specialized modifications including custom connectors, backlight adjustments, and firmware customization.
- Volume Discounts: Competitive pricing for bulk orders with flexible delivery schedules.
- Technical Support: Dedicated engineering support for integration and troubleshooting throughout your product development cycle.
Ideal for smartwatches, fitness trackers, and medical monitors where circular displays provide optimal user experience and space utilization.
Perfect for control panels, instrumentation, and monitoring systems requiring high visibility from multiple angles in challenging environments.
Enhance home appliances, smart home controllers, and portable devices with crisp, vibrant circular displays.
Technical Notes: The display operates in normally black, transmissive mode. Optimal performance requires proper voltage settings: VGH at 15V, VGL at -11V, and VCOM at -1V (adjustable for display quality optimization).
Resources: Download Datasheet | 3D Model (STEP) | Example Code (HX8367C-MIPI-480x480)
Dimensions
