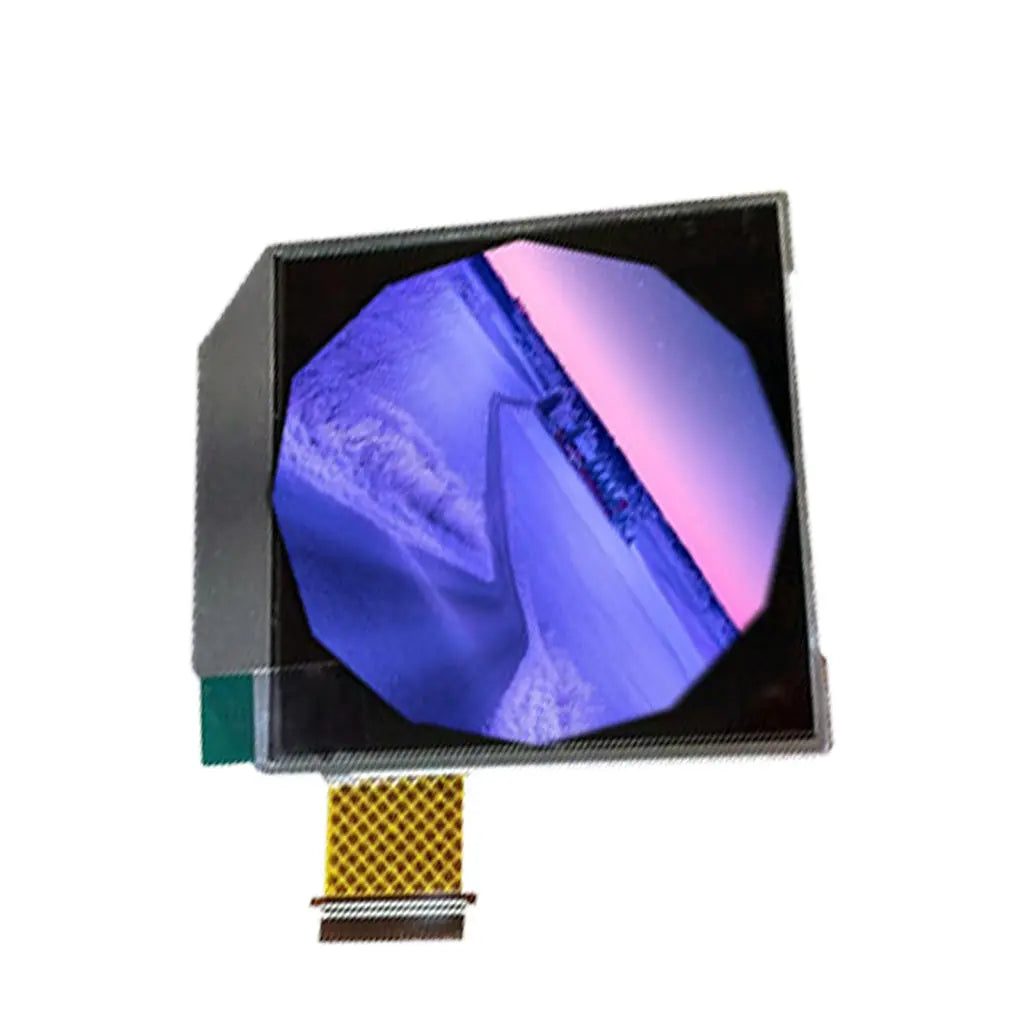

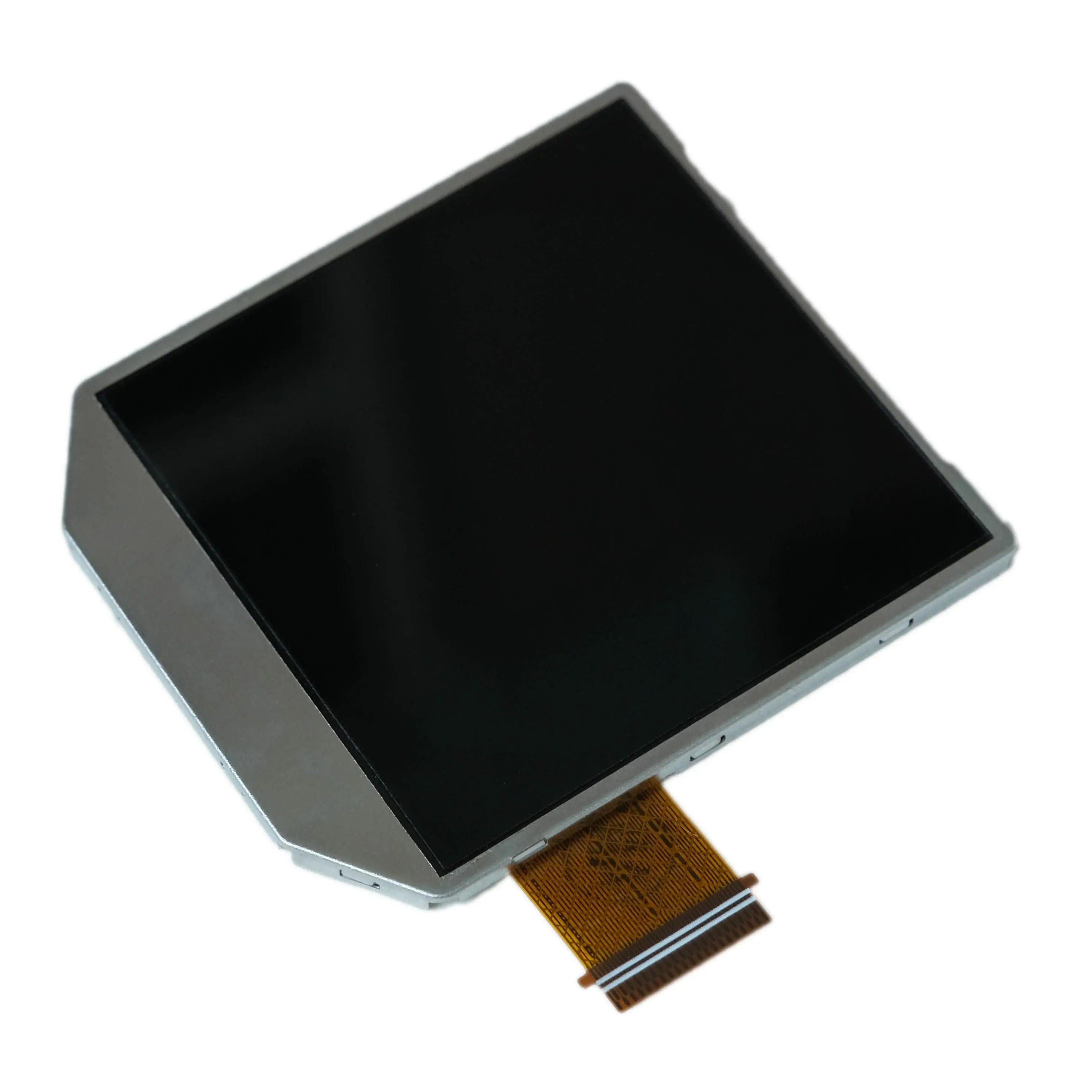

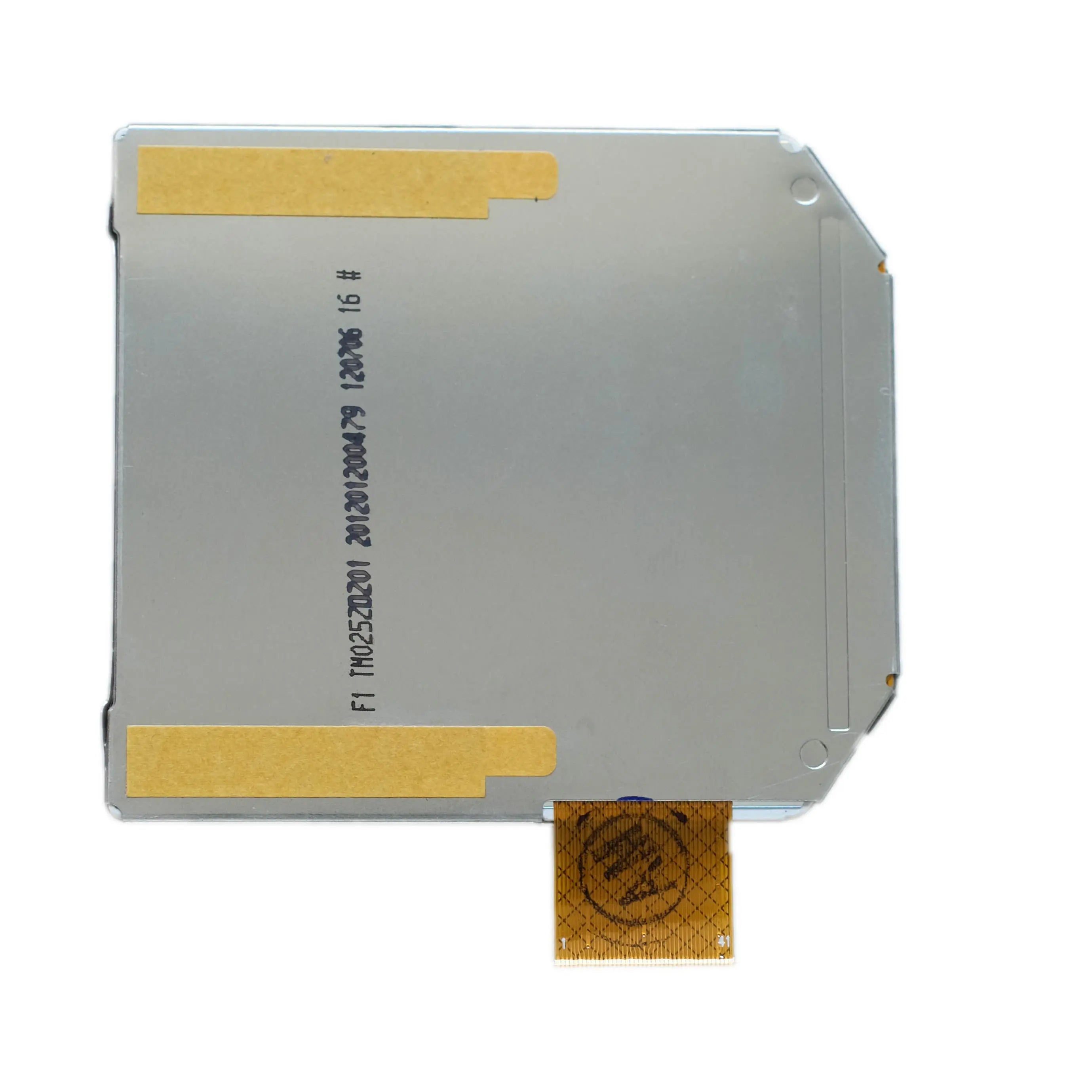

2.48" Round TFT Display 320x320 12 o'clock - RGB, SPI
Premium 2.48-inch circular TFT LCD display featuring 320×320 high-resolution pixels with 12 o'clock viewing direction. Engineered with the advanced S6D05A1 driver IC, this display supports dual interface options (3-wire 9-bit SPI and 24-bit RGB) for versatile embedded graphics applications.
Designed for symmetrical UI applications, this circular display offers exceptional image quality with support for 16.7 million colors. The compact form factor (50.44 × 56.34 × 2.6 mm) makes it ideal for space-constrained applications while maintaining a generous 44.64 × 44. mm viewing area.
- Dual Interface Support: Flexible connectivity with 3-wire 9-bit SPI serial interface and 24-bit parallel RGB interface
- Advanced Driver IC: S6D05A1 controller with built-in 4.1MB GRAM and power management functions
- High Color Depth: 16.7M color support with excellent gamma correction capabilities
- Wide Temperature Range: Operational from -20°C to +70°C for robust performance
| Parameter | Specification |
|---|---|
| Diagonal Size | 2.48 inches |
| Resolution | 320 × 320 pixels |
| Viewing Direction | 12 o'clock |
| Module Dimensions | 50.44 × 56.34 × 2.6 mm |
| Active Area | 44.64 × 44.64 mm |
| Supply Voltage | 1.8V / 2.8V |
| Interface | 3-wire 9-bit SPI + 24-bit RGB |
| Driver IC | S6D05A1 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
We provide comprehensive display solutions for businesses and OEM manufacturers seeking reliable circular TFT displays for their products.
- Custom Configuration: Tailored solutions for specific application requirements including interface customization
- Volume Pricing: Competitive bulk pricing for large quantity orders with flexible MOQ options
- Technical Support: Dedicated engineering support for integration and customization needs
- Quality Assurance: Rigorous quality control and testing procedures ensuring reliable performance
Smart watches, fitness trackers, and health monitoring devices requiring circular displays with low power consumption.
Control panels, instrumentation, and industrial equipment interfaces needing robust circular displays.
Dashboard instruments, cluster displays, and automotive infotainment systems with circular form factors.
Medical devices, patient monitoring systems, and portable diagnostic equipment requiring reliable displays.
Compatibility: Compatible with most ARM Cortex processors and popular microcontrollers supporting SPI/RGB interfaces. Requires 1.8V/2.8V power supply with typical consumption under 120mW during operation.
Technical Documentation: Display Module Datasheet (PDF) | S6D05A1 IC Datasheet
Development Resources: Example code available for S6D05A1-SPI-320x320 implementation and 3D model for mechanical integration.
Mechanical Dimensions
