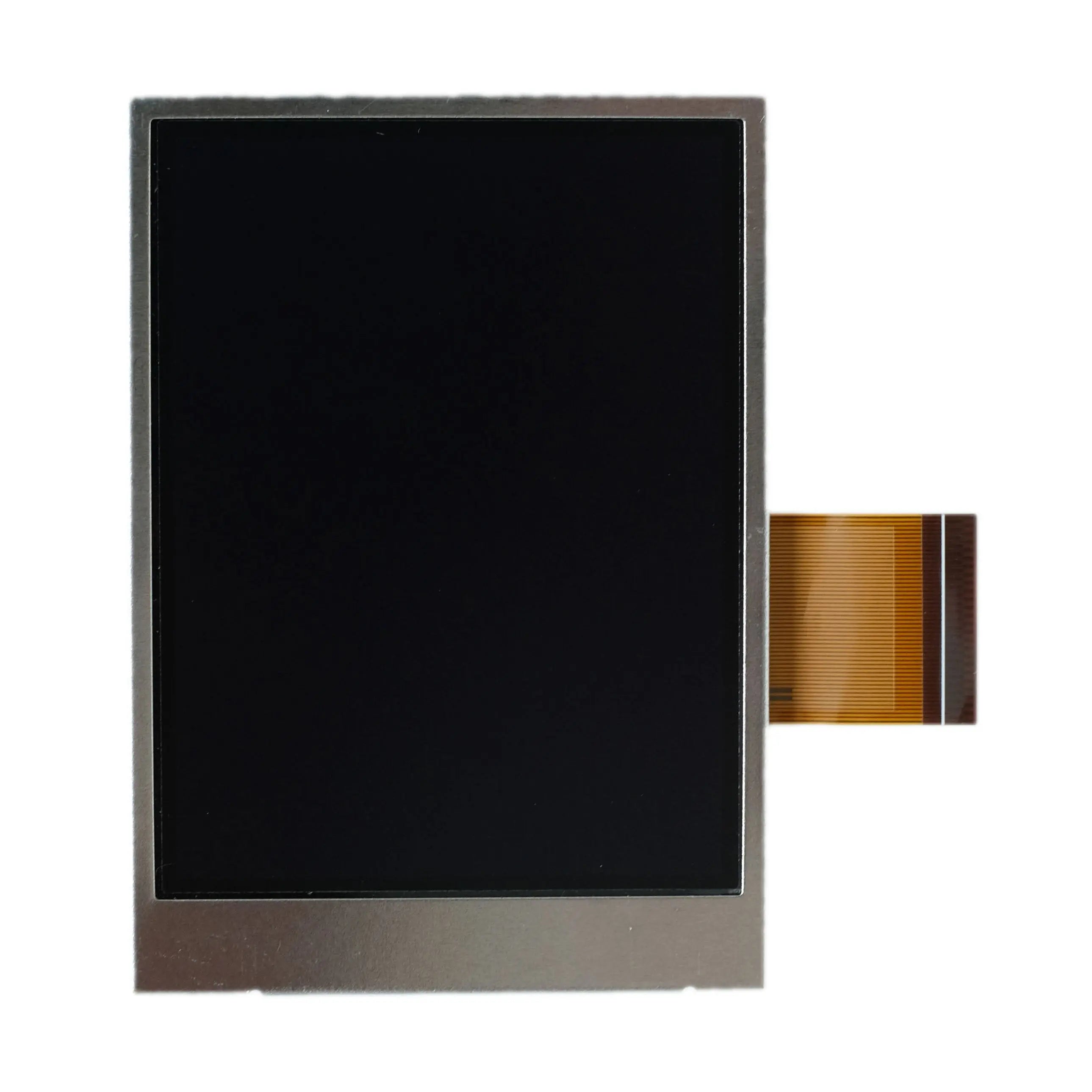

• 2.6 inch Transflective TFT Display Panel with 320x432 resolution, utilizing SPI, MCU, and RGB interfaces
  • Back of 2.6 inch Transflective TFT Display Panel with 320x432 resolution

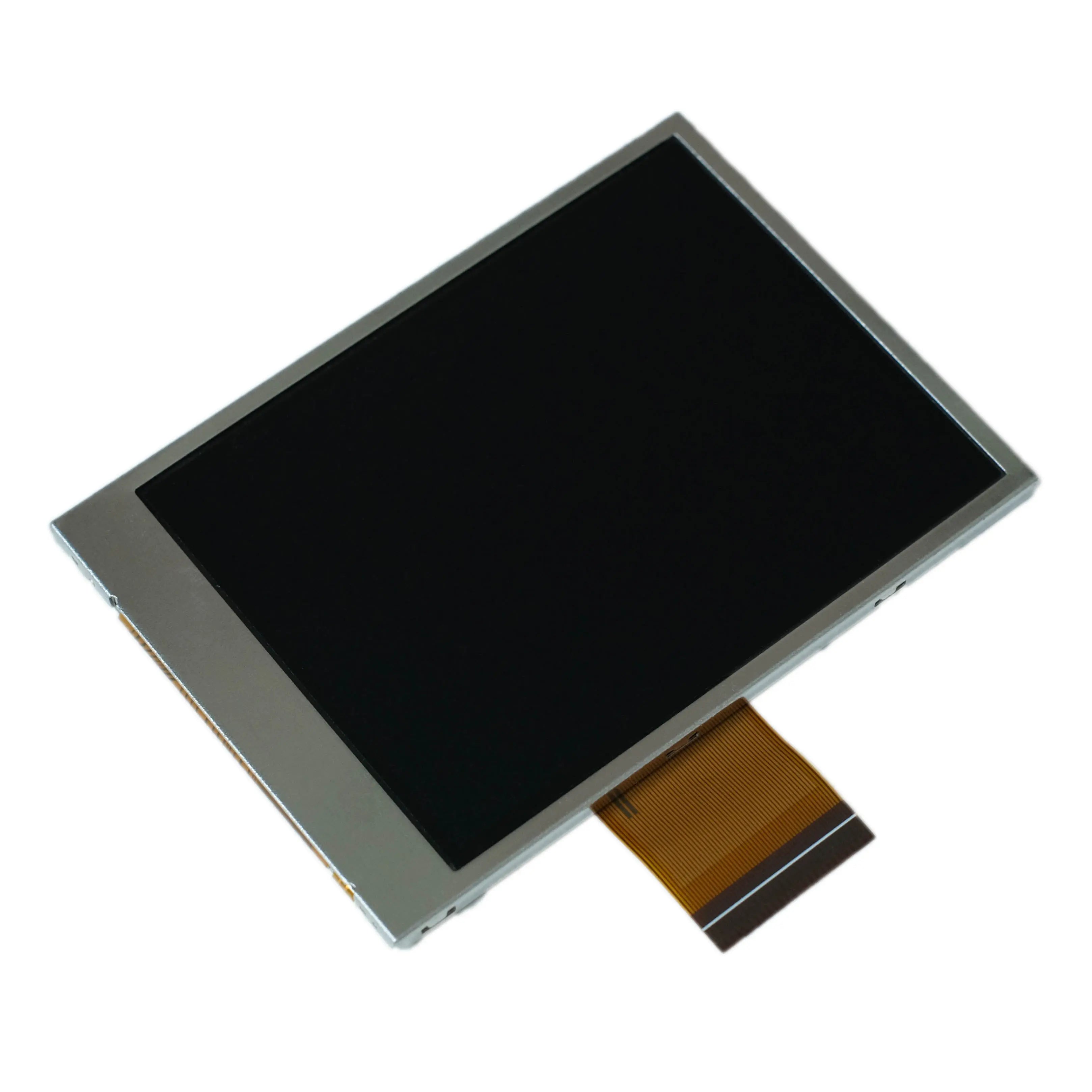

  • Top view of 2.6 inch Transflective TFT Display Panel
1 / 1

2.6" 320x432 TFT Transflective - SPI, MCU, RGB

$39.90
Shipping calculated at checkout.
SKU: DM-TFT26-384
2.6 inch Transflective TFT Display Panel with 320x432 resolution, utilizing SPI, MCU, and RGB interfaces
$39.90

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

2.6" 320×432 TFT Display Specifications

The 2.6-inch TFT LCD offers 320 × 432 resolution, 500 cd/m² brightness, all-direction viewing, and wide interface support. With ILI9488 driver IC, this module is ideal for industrial control, handheld devices, and embedded systems operating in harsh temperature environments.

Parameter Value Unit
Diagonal Dimension 2.6 inch
Resolution 320 × 432 pixels
Viewing Direction All -
Touch Mode None -
Module Dimensions 46.76 × 65.85 × 2.6 mm
Viewing Area 39.84 × 53.78 mm
Supply Voltage 3.3 V
Interface 8/9/16/18/24-bit MCU, 3/4-SPI, 16/18/24-bit RGB -
Luminance 500 cd/m²
Driver IC ILI9488 -
Operating Temperature -30 ~ 85 °C
Storage Temperature -40 ~ 85 °C

Mechanical Dimensions

2.6 inch TFT LCD mechanical drawing

Technical Resources
  • 2.6 inch Transflective TFT Display Panel with 320x432 resolution, utilizing SPI, MCU, and RGB interfaces
  • Back of 2.6 inch Transflective TFT Display Panel with 320x432 resolution
  • Top view of 2.6 inch Transflective TFT Display Panel
1 / 1
Press & drag to view
