144x32 Graphic LCD 2.67" - MCU

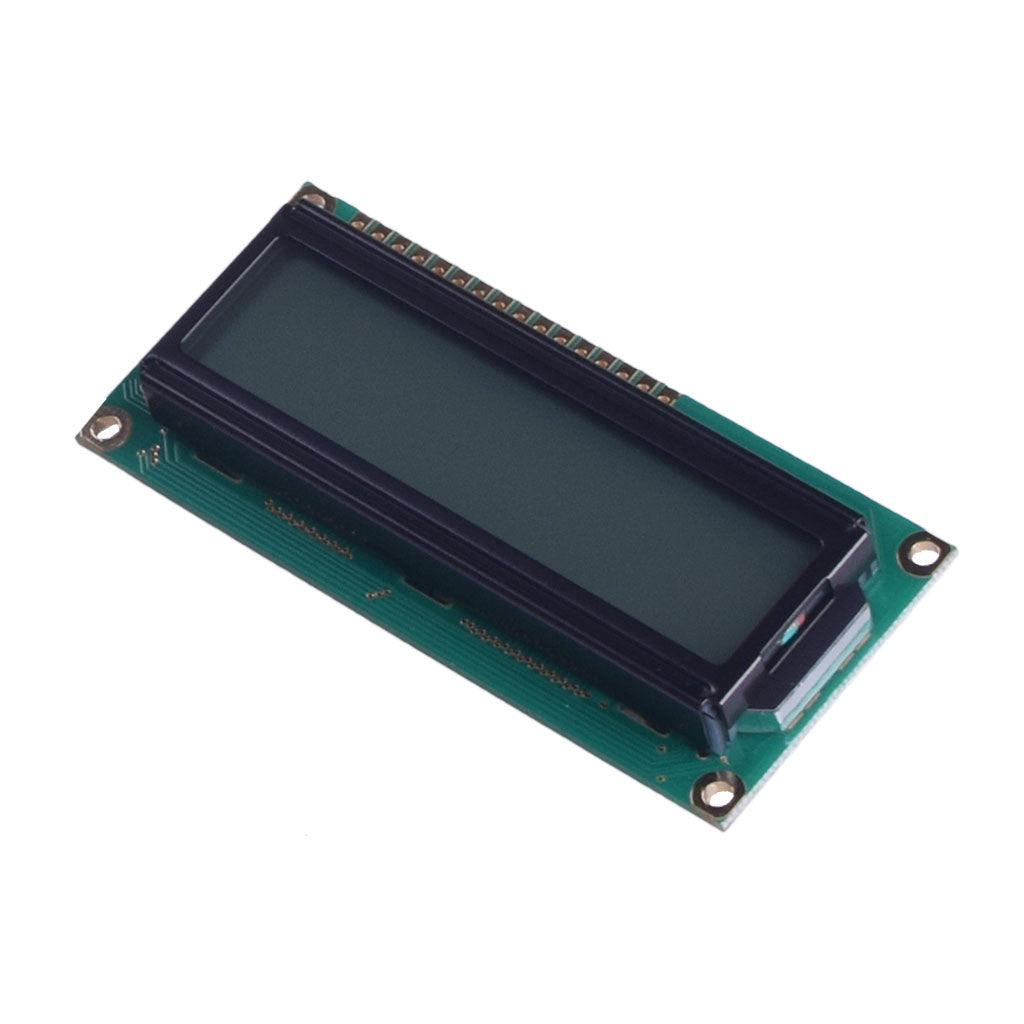

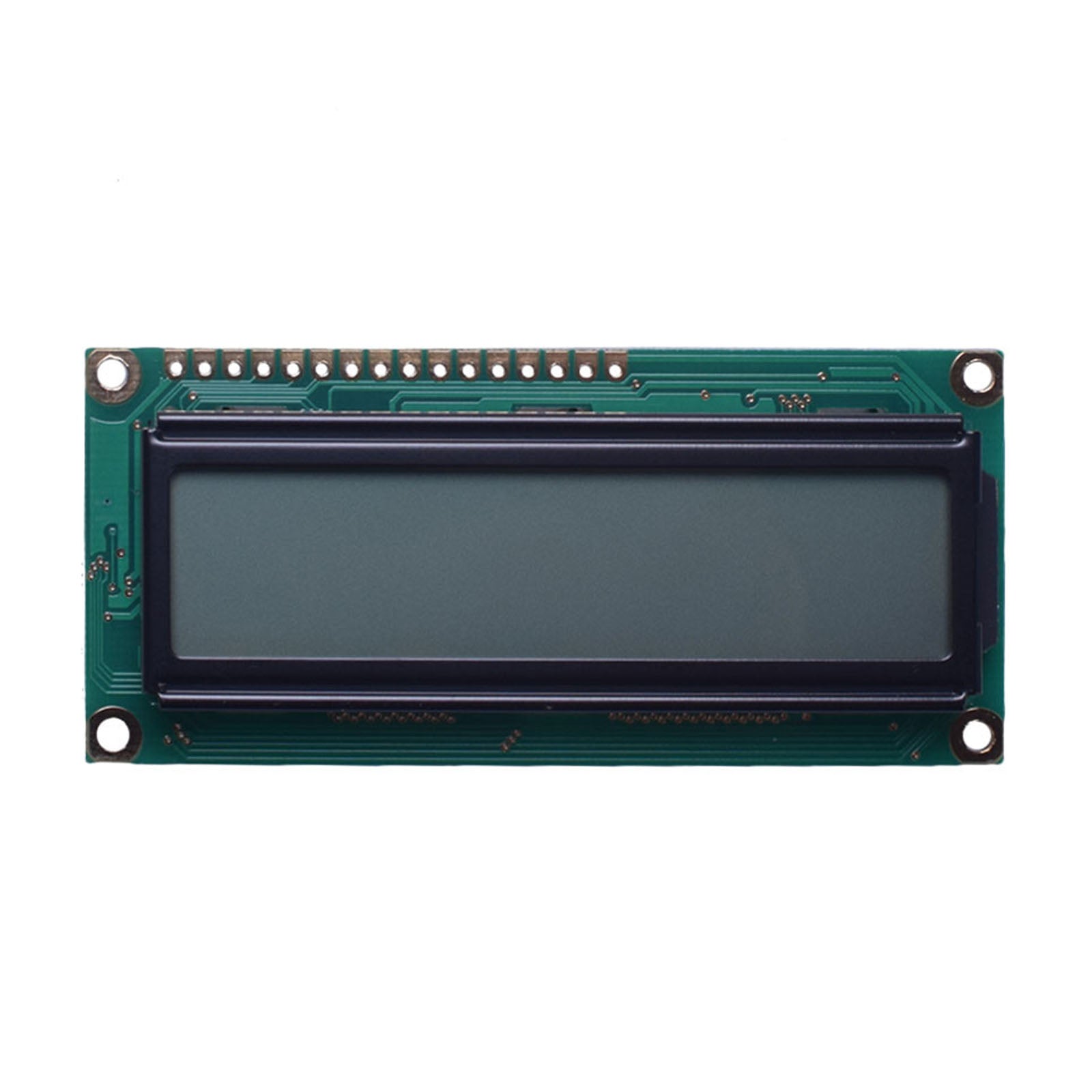

The 144x32 Graphic LCD display module is a compact and efficient solution for microcontroller-based applications. With a resolution of 144 x 32 pixels on a 2.67-inch screen, it offers clear and sharp graphics. The FSTN positive transflective display ensures excellent readability in both indoor and outdoor environments, while the low power consumption of 5.0V makes it ideal for portable devices.
Engineered for reliability, this module features a white LED backlight for consistent illumination and is controlled by the ST7920 IC, ensuring smooth graphics rendering. With a compact module dimension of 80.0 x 36.0 x 13.2 mm and a weight of only 31.9 grams, it integrates easily into space-constrained designs.
- Wide Temperature Range: Operates from -20°C to 70°C and stores from -30°C to 80°C, suitable for industrial environments.
- Easy Integration: Parallel MPU interface simplifies connection to microcontrollers like ARM or AVR.
- Energy Efficient: Low power draw extends battery life in portable applications.
| Technical Parameter | Specification |
|---|---|
| Resolution | 144 x 32 pixels |
| Display Mode | FSTN Positive, Transflective |
| View Direction | 6:00 |
| Module Dimension | 80.0 x 36.0 x 13.2 (MAX) mm |
| Power Supply | 5.0 V |
| Backlight | White LED |
| Interface | Parallel MPU Interface |
| Controller IC | ST7920 |
| Operation Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Weight | 31.9 g |
We offer tailored display solutions for businesses, including custom modifications and bulk ordering options. Our enterprise programs are designed to scale with your needs.
- Customization Services: Modify specifications like connector types or backlight colors to fit your product requirements.
- Wholesale Pricing: Volume discounts available for orders above 100 units, with flexible logistics support.
This LCD module is versatile enough for various sectors, providing reliable performance in demanding conditions.
Ideal for machinery interfaces, displaying real-time parameters like temperature or pressure with high visibility.
Used in portable diagnostic equipment where compact size and low power are critical for patient monitoring.
Integrates into handheld gadgets, smart home controllers, and wearable tech for user-friendly displays.
The parallel MPU interface ensures broad compatibility with popular microcontroller families. Below are key compatible systems:
- ARM Cortex-M Series: Direct connection with minimal external components for embedded projects.
- AVR and PIC Microcontrollers: Supported through standard GPIO pins, with example code available.
- Raspberry Pi Pico: Compatible via parallel interface libraries for rapid prototyping.
Explore common use cases where this display excels, highlighting its adaptability and performance.
Displays vehicle data like speed or fuel levels, with wide temperature tolerance for car interiors.
Shows sensor readings in smart agriculture or home automation, leveraging low power consumption.
Used in multimeters or oscilloscopes for clear numeric and graphic output in compact tools.
Access detailed documentation and support materials to aid your integration process.
Technical Notes: Ensure proper 5.0V power supply for stable operation. The display is optimized for 3.3V or 5V logic levels in MCU communication.
Resources: Download DM-LCD14432-464 Datasheet | DM-LCD14432-463 Datasheet | ST7920 Controller IC Datasheet
