2.7" OLED Monochrome Graphic Display 128x64 - SPI
2.7" OLED Monochrome Graphic Display 128x64 - SPI
SKU:DM-OLED27-634
Regular price
$34.90 USD
Regular price
Sale price
$34.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
![Side of 2.7 inch Monochrome OLED Graphic Display Module with 128x64 resolution, utilizing SPI interface](http://www.displaymodule.com/cdn/shop/products/side1_fe65cf44-a3c2-42fe-b88b-86ea11e02e14.jpg?v=1571264637&width=1445)

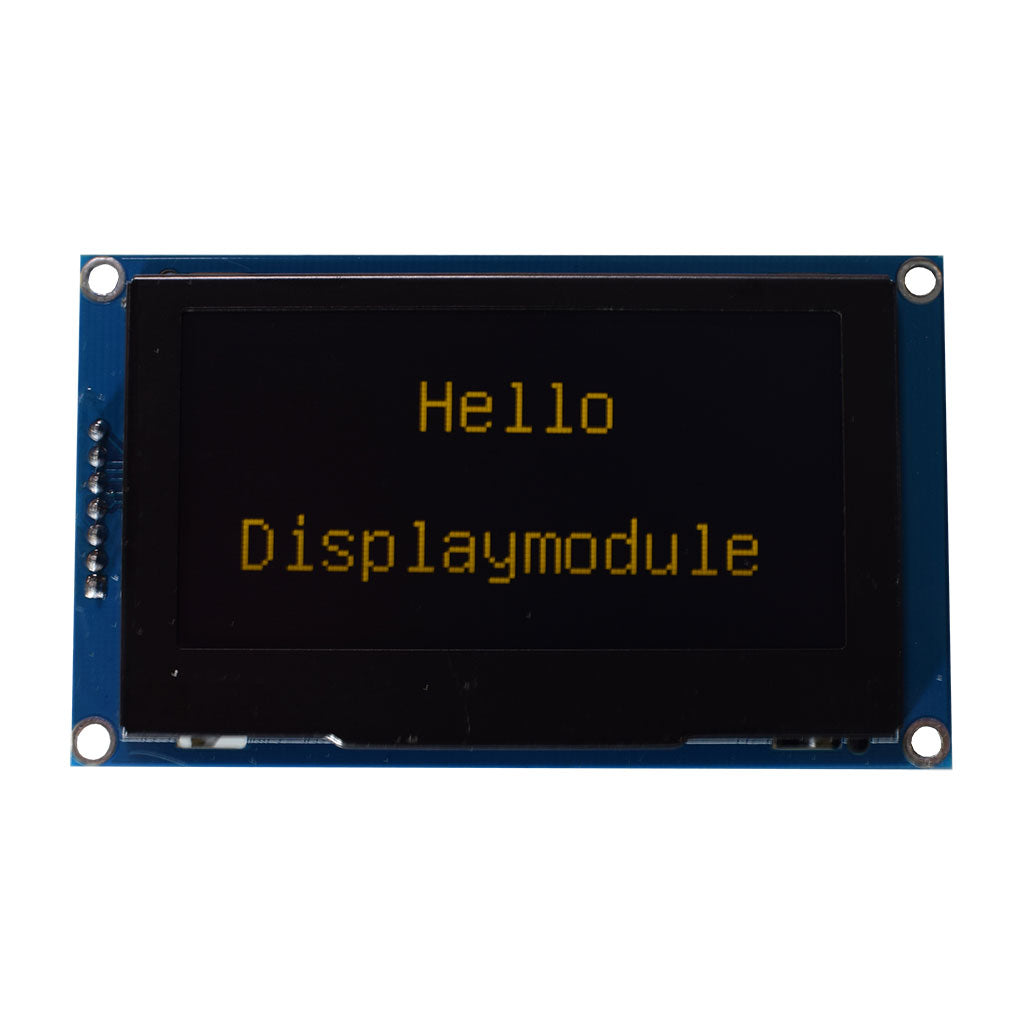

![2.7-inch monochrome OLED screen displaying the characters 'Hello Displaymodule'](http://www.displaymodule.com/cdn/shop/products/disyellow.jpg?v=1571264637&width=1445)
![Back of 2.7 inch Monochrome OLED Graphic Display Module](http://www.displaymodule.com/cdn/shop/products/back_75d3caf6-3ff7-49b1-b19a-996075eec4c0.jpg?v=1571264637&width=1445)

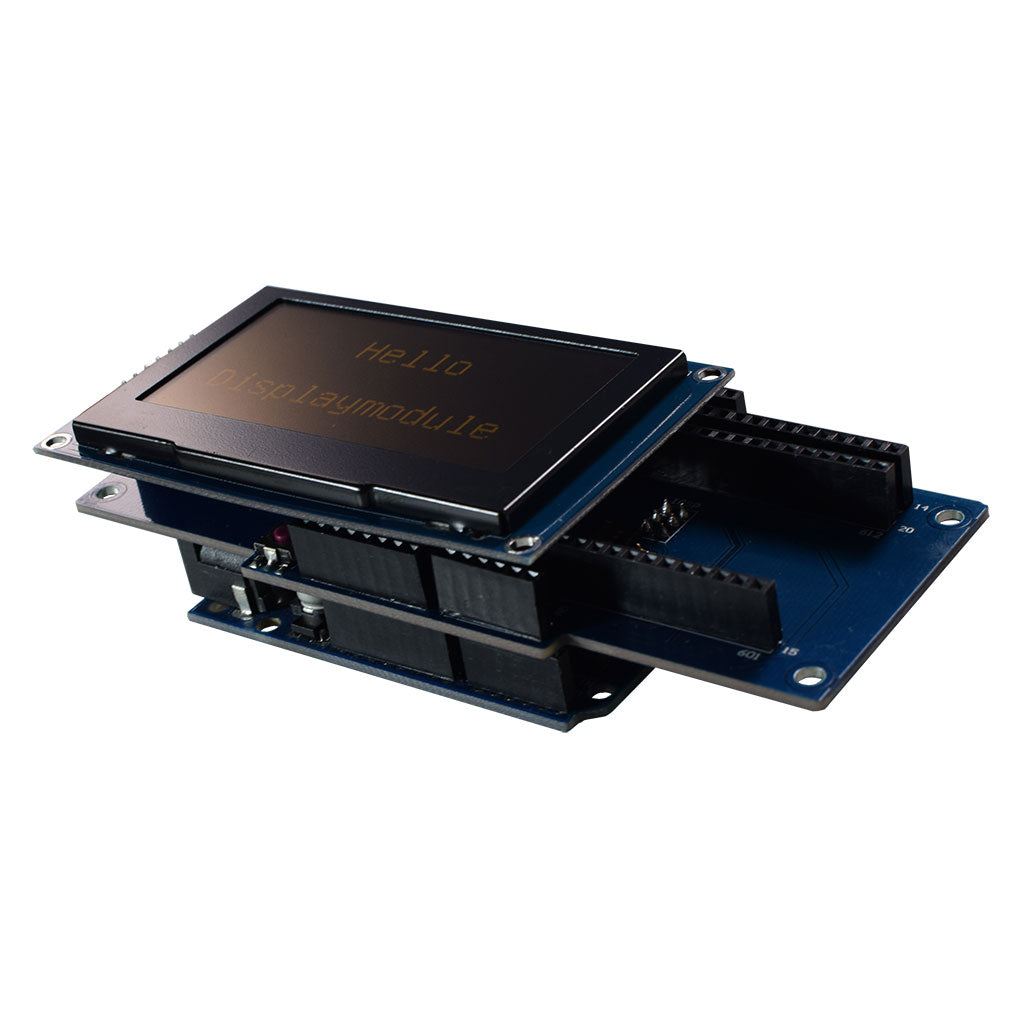

![2.7-inch monochrome OLED Display Module with adapter](http://www.displaymodule.com/cdn/shop/products/diswithadpyellow.jpg?v=1571264637&width=1445)
Display Specifications
- Resolution : 128x 64 pixel
- Display Mode : Passive Matrix OLED
- Display Color : Monochrome (16 Gray Scale)
- Module Dimension : 85.00 x 50.00 x 2.7 mm
- Viewing Area : 61.41 x 30.69 mm
- Power Supply : 2.8 V
- Interface : 4line SPI
- Controller IC : SSD1325
- Operation Temperature : -40℃~80℃
- Storage Temperature : -40℃~90℃
Dimension
![](http://cdn.shopify.com/s/files/1/0264/7629/files/oled27-634_684afa38-d52e-4967-9ebc-74d75f320674.jpg?v=1537512506)
Resources
- DM-OLED27-634
- Driver IC: SSD1325-Rev2.1
Arduino SSD1325 Library: u8glib
uncomment device U8GLIB_NHD27OLED_GR u8g(13, 11, 10, 9)
