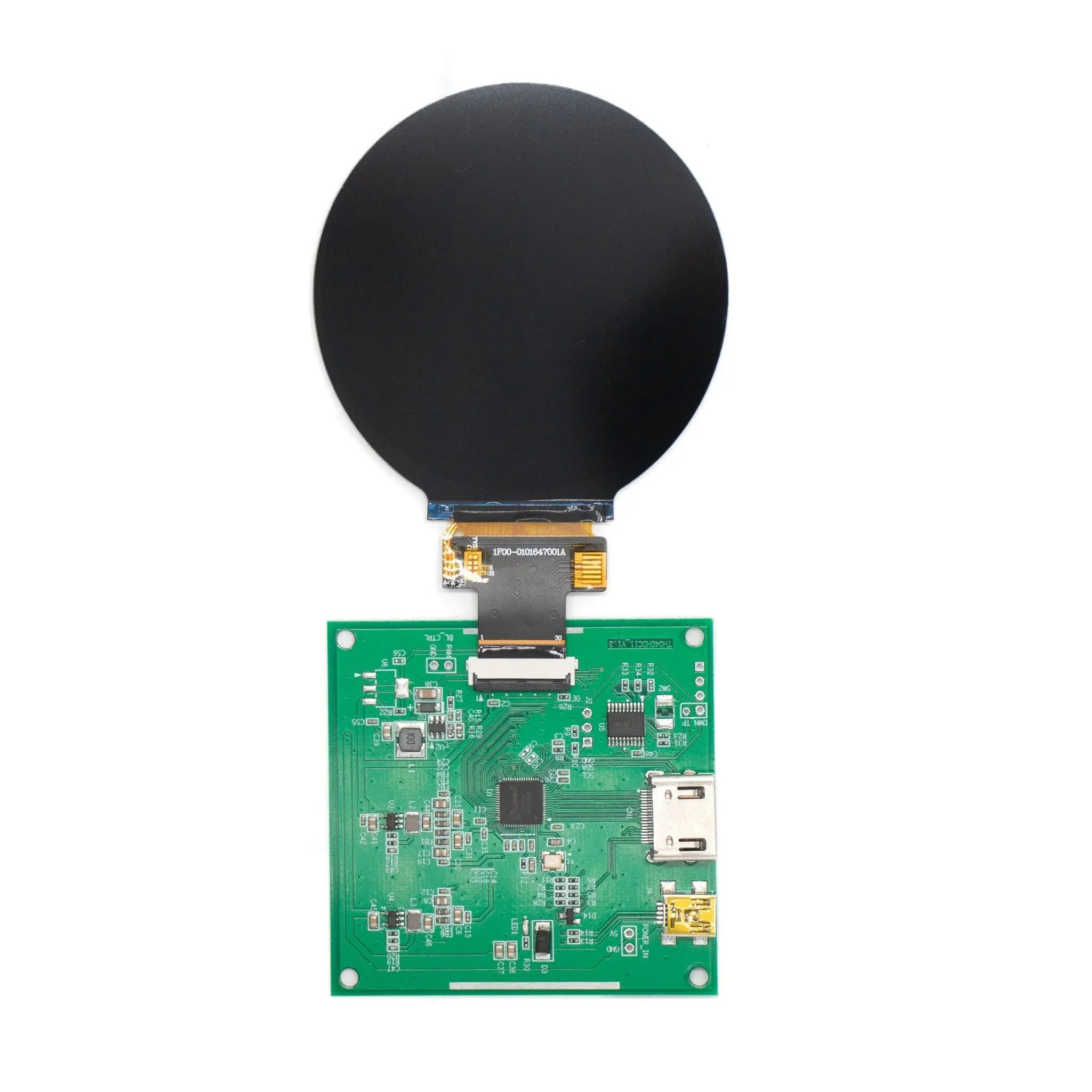

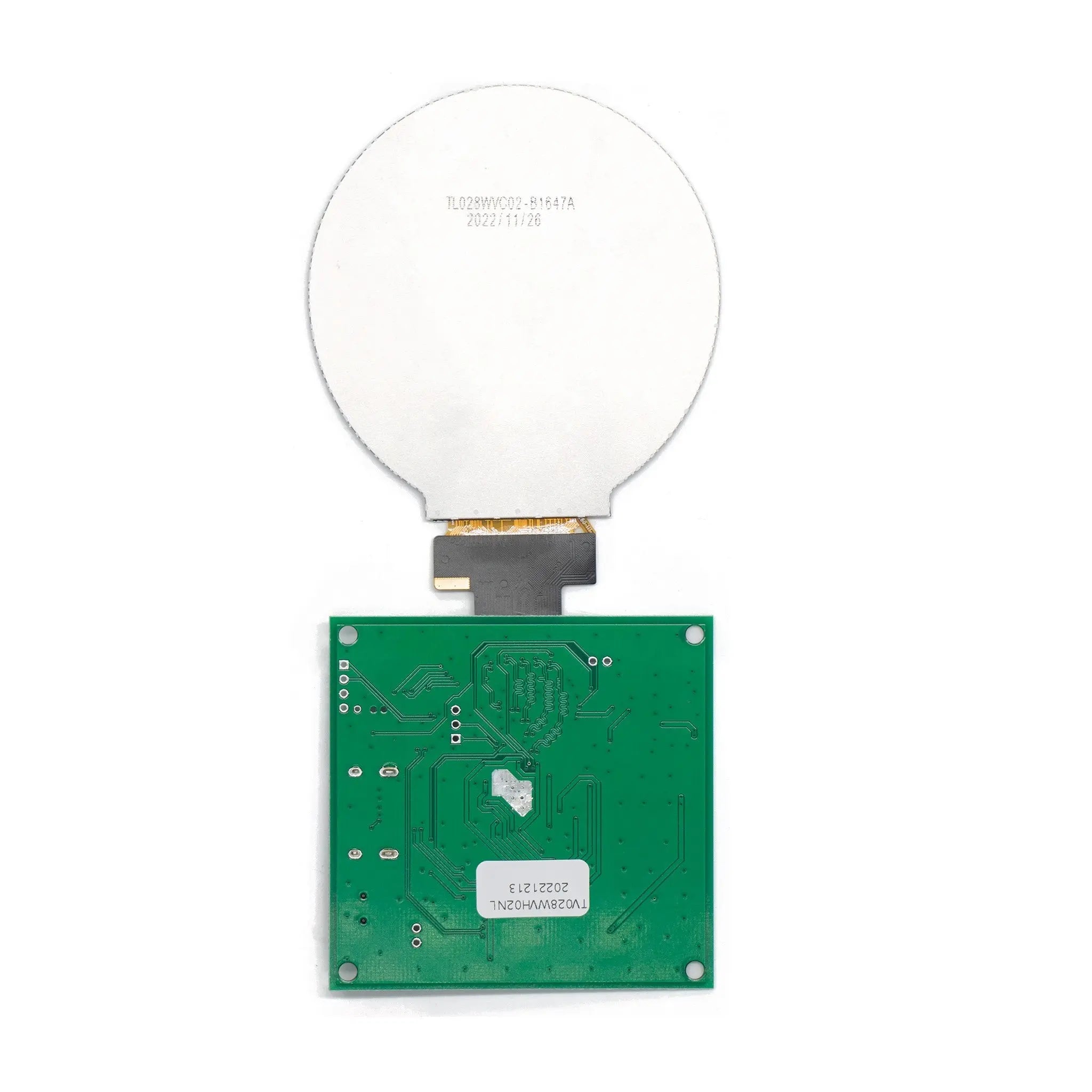

2.76" Round TFT Display 480x480 - MIPI, RGBMIPI
Sale price$34.90
2.76" Round TFT Display 480x480 - MIPI, RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
2.76" 480×480 TFT LCD Display Specifications
This 2.76-inch TFT LCD module delivers 480 × 480 resolution with flexible MIPI and RGB interfaces. Featuring a compact round design, wide temperature tolerance, and ST7701S driver IC, it is ideal for handheld devices, embedded displays, and industrial equipment requiring vibrant graphics and dual-interface compatibility.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 2.76 | inch |
| Resolution | 480 × 480 | pixels |
| Viewing Direction | - | - |
| Touch Mode | None | - |
| Module Dimensions | 76.48 × 73.03 × 2.34 | mm |
| Viewing Area | 70.13 × 70.13 | mm |
| Supply Voltage | 2.8 | V |
| Interface | MIPI, RGB | - |
| Luminance | - | - |
| Driver IC | ST7701S | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
The following diagram provides detailed measurements for accurate mechanical integration and enclosure design.
Technical Resources
Download datasheets and 3D model files for in-depth specifications and mechanical design reference.
