2.8" 240x320 TFT Display Panel (ILI9341) with Resistive Touch - SPI, MCU, RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

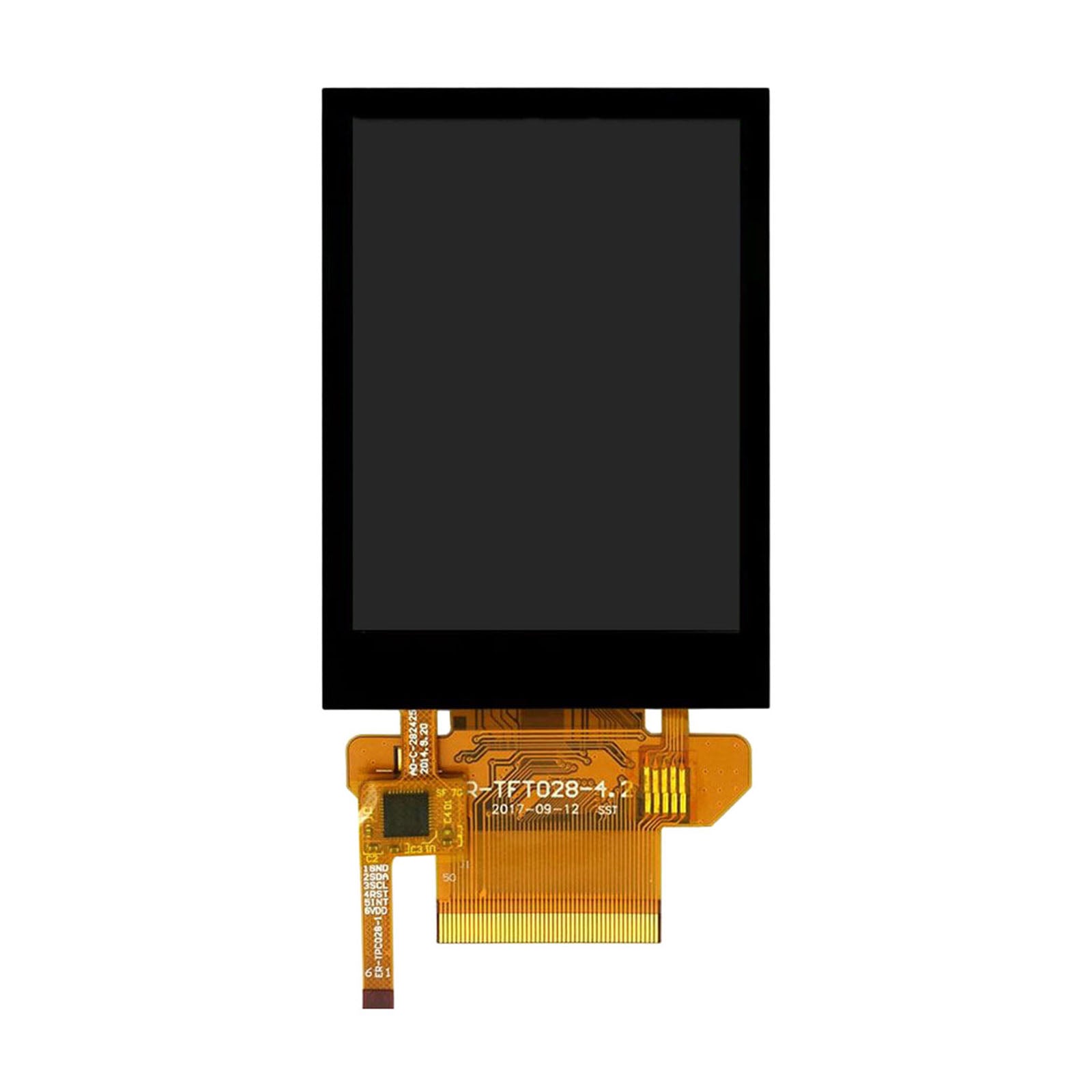

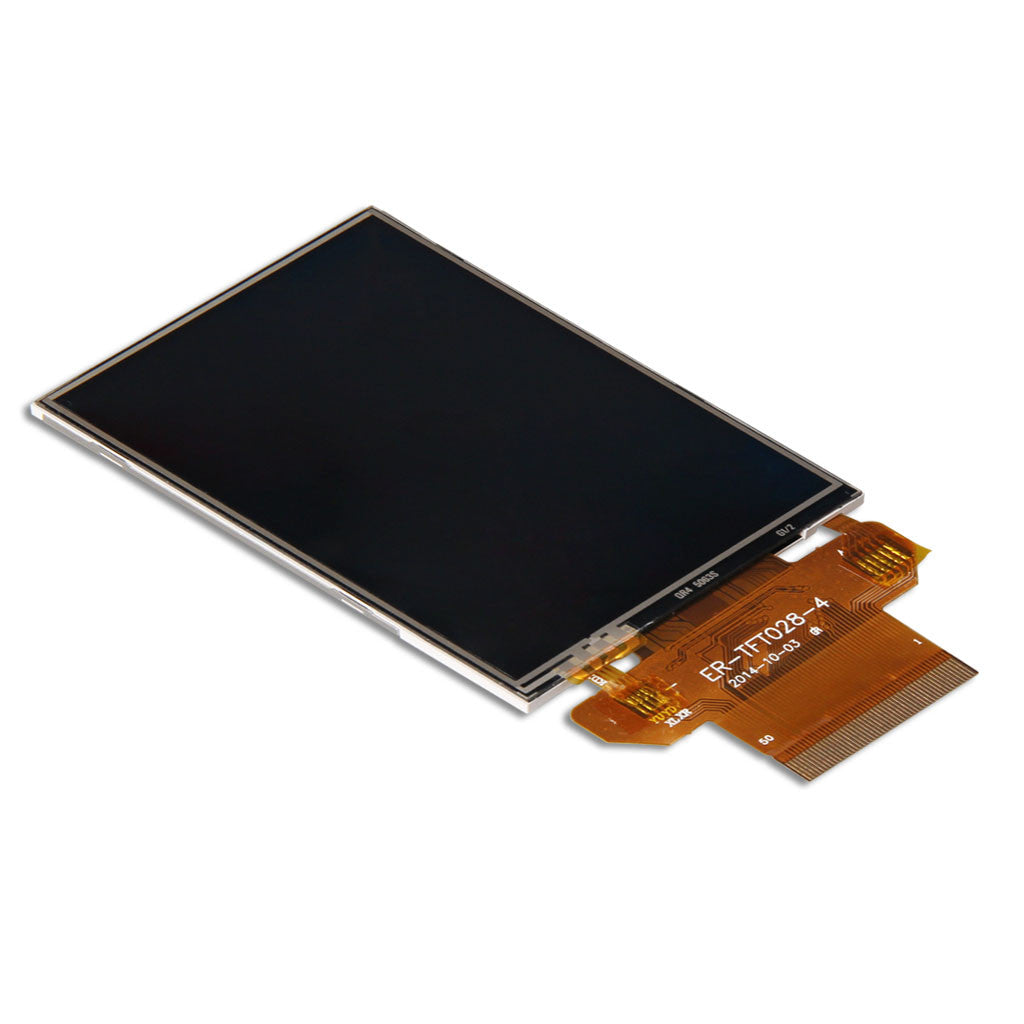

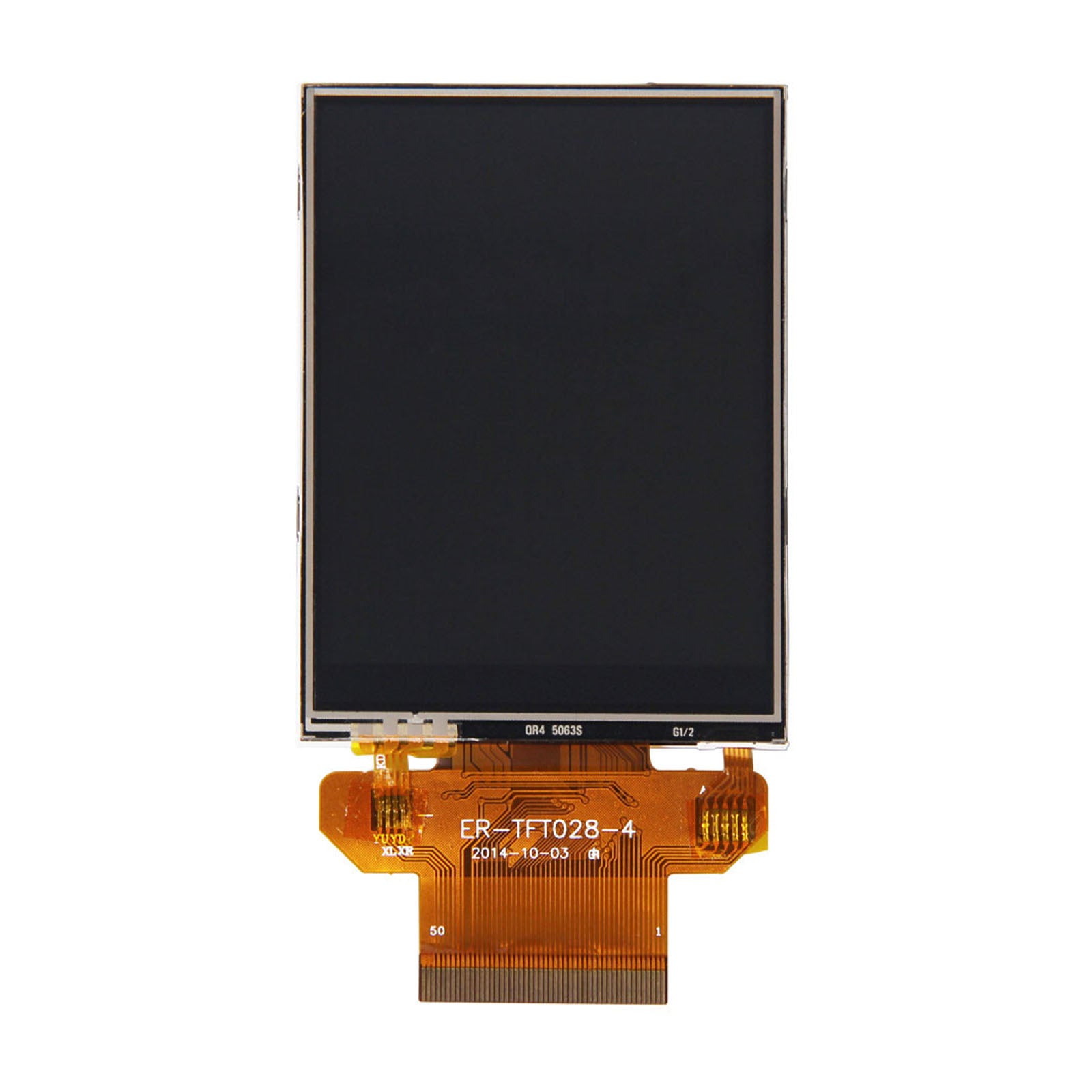

2.8" 240x320 TFT Display Panel with Resistive Touch - SPI, MCU, RGB Interface
This professional-grade 2.8-inch TFT LCD module delivers crisp 240×320 resolution with versatile interface options including SPI, MCU, and RGB. Powered by the reliable ILI9341 display controller and XPT2046 resistive touch controller, it's engineered for industrial and embedded applications.
With a compact 50.20×69.30×4.00mm footprint and 57.6×43.2mm active viewing area, this display maximizes screen real estate while minimizing board space. The 0.18mm dot pitch ensures sharp text and graphics rendering across 65K/262K color depth.
- Multi-Interface Support: Configurable via IM0-IM3 pins for 8/9/16/18-bit MCU, 16/18-bit RGB, or 3/4-wire SPI interface flexibility.
- Wide Voltage Range: Logic supply (VCI) 2.5-3.3V (typical 2.8V) with I/O compatibility from 1.65V to 3.3V.
- Robust Construction: Operating temperature range of -20°C to +70°C with storage tolerance from -30°C to +80°C.
- High-Brightness Backlight: 4-channel LED array with maximum 80mA forward current capability for optimal visibility.
| Parameter | Specification |
|---|---|
| Display Type | TFT/Transmissive |
| Resolution | 240(RGB)×320 pixels |
| Module Dimensions | 50.20×69.30×4.00mm |
| Viewing Area | 57.6×43.2mm |
| Dot Pitch | 0.18×0.18mm |
| Display Colors | 65K/262K |
| Supply Voltage (VCI) | 2.5V - 3.3V (Typical 2.8V) |
| I/O Voltage (VDDIO) | 1.65V - 3.3V (Typical 2.8V) |
| Operating Current | 8mA (Typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
For industrial and commercial applications requiring reliability and scalability, we offer customized display solutions with volume pricing and technical support.
- Bulk Order Programs: Competitive pricing for volume purchases with flexible delivery schedules and customized packaging.
- Custom Configuration: Interface optimization, connector modifications, and firmware customization to match your specific application requirements.
- Technical Integration Support: Comprehensive documentation and engineering support for seamless integration into your products.
Human-machine interfaces for PLC systems, CNC machines, and process control equipment requiring reliable touch input and clear visual feedback.
Patient monitoring systems, diagnostic equipment, and portable medical instruments needing compact displays with precise touch interaction.
IoT devices, smart home controllers, and automation systems requiring versatile interface options and robust temperature performance.
This display module is designed for seamless integration with popular development platforms and industrial controllers.
- Development Board Ready: Direct compatibility with Arduino shields and mbed platforms through standardized pin configurations.
- Multi-Platform Support: Compatible with STM32, ESP32, Raspberry Pi, and other mainstream microcontrollers through SPI, MCU, or RGB interfaces.
- Touch Shield Integration: Works seamlessly with DM-TFT28-105 Touch Shield for Arduino/mbed development.
Interface Configuration: The display supports multiple interface modes configured via IM0-IM3 pins, including 8080 MCU (8/9/16/18-bit), RGB (16/18-bit), and SPI (3/4-wire) protocols. Refer to datasheet for detailed pin mapping.
Technical Documentation: Download DM-TFT28-304 Datasheet (PDF) | Compatible Touch Shield Information
