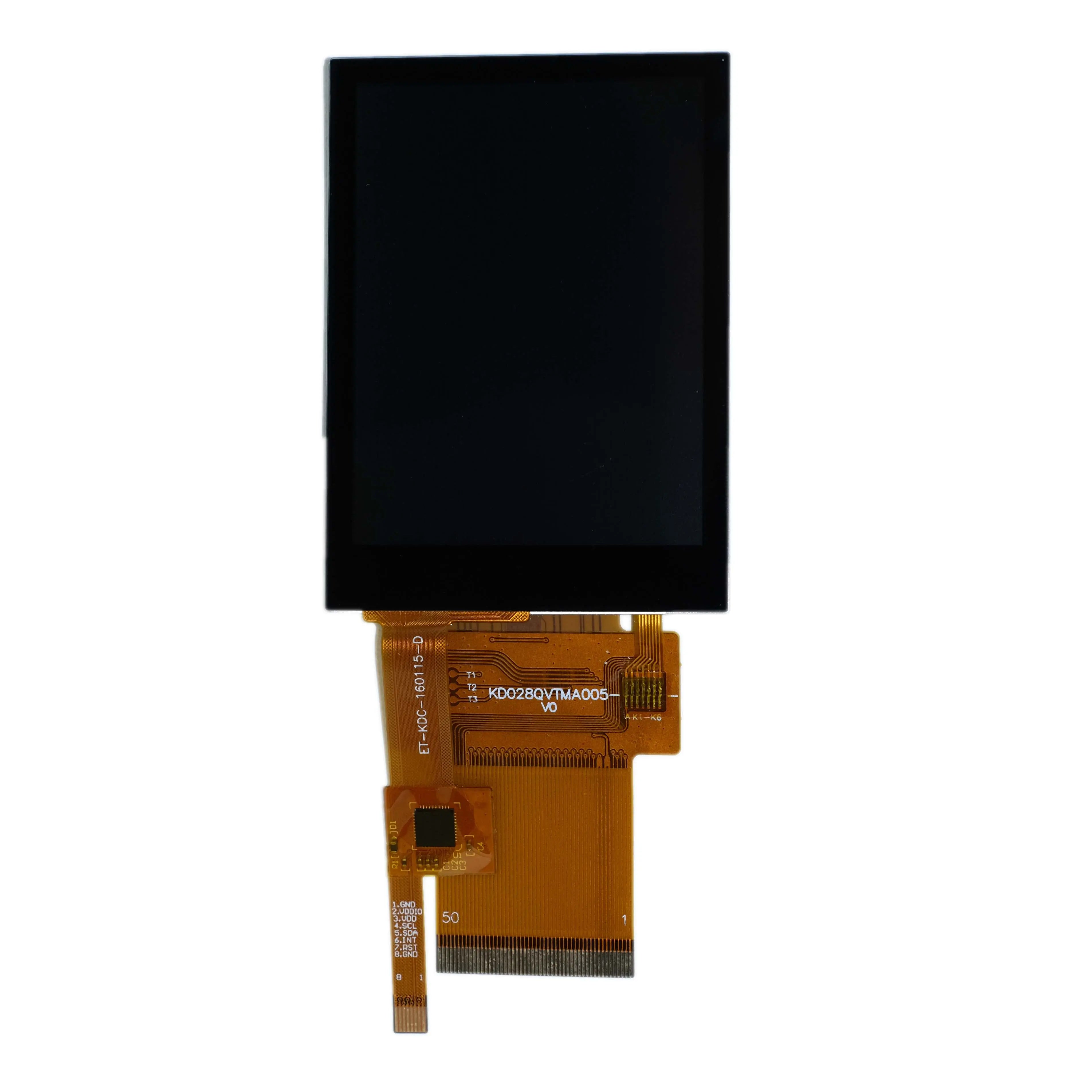

2.8" TFT Display 240×320 with Capacitive Touch
The 2.8" TFT Display with capacitive touch is a high-performance LCD module featuring 240×320 resolution and advanced touch capabilities. Powered by the ST7789V display driver and FT6336G touch controller, this display supports multiple interfaces including 8080 MCU, SPI, and RGB. With its 408 cd/m² brightness and 12 o'clock viewing angle, it delivers crisp visuals for demanding applications.
Engineered for reliability, this display integrates the ST7789V controller that supports up to 18-bit color depth (262K colors) and multiple interface options. The FT6336G touch controller enables responsive single-point touch and gesture recognition with I²C communication.
- Multi-Interface Support: Seamlessly connects via 8080 MCU parallel, SPI (3/4-wire), or 16/18-bit RGB interfaces.
- High Brightness: 408 cd/m² luminance ensures excellent visibility even in brightly lit environments.
- Touch Sensitivity: FT6336G controller provides precise touch detection with configurable sensitivity settings.
- Power Efficiency: Low-power modes reduce consumption to microamp levels when not in active use.
| Parameter | Specification |
|---|---|
| Display Size | 2.8 inch |
| Resolution | 240 × 320 pixels |
| Viewing Area | 43.20 × 57.60 mm |
| Module Dimensions | 50.20 × 69.70 × 3.85 mm |
| Supply Voltage | 2.75V |
| Luminance | 408 cd/m² |
| Driver IC | ST7789V + FT6336G |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
We provide tailored display solutions for businesses and OEMs requiring specialized configurations or bulk quantities.
- Custom Configurations: Modify interface options, touch sensitivity, or firmware to match your specific application requirements.
- Volume Discounts: Competitive pricing for bulk orders with flexible MOQ options for manufacturing partners.
- White Labeling: Custom branding options available for resellers and system integrators.
- Technical Support: Dedicated engineering assistance for integration challenges and optimization.
Rugged touch interfaces for control panels, PLC systems, and factory automation equipment requiring reliable operation in demanding environments.
Compact displays for portable diagnostic equipment, patient monitors, and handheld medical instruments needing responsive touch interaction.
Smart home controllers, portable gaming devices, and IoT interfaces benefiting from the display's high brightness and multi-interface support.
This display offers versatile connectivity options compatible with a wide range of microcontrollers and development platforms:
- Microcontroller Interfaces: Compatible with popular MCUs including STM32, ESP32, Raspberry Pi Pico, and Arduino platforms.
- Communication Protocols: Supports SPI (up to 15MHz), I²C (100-400kHz), and parallel 8080 MCU interface.
- Development Frameworks: Works with Arduino IDE, PlatformIO, STM32CubeIDE, and Micropython environments.
- Operating Voltage: 2.75V operation compatible with 3.3V logic systems common in embedded designs.
Technical Documentation: Access detailed specifications, interface protocols, and application notes.
- 📄 Display Module Datasheet (PDF)
- 📄 ST7789V Display IC Datasheet
- 📄 FT6336G Touch Controller Datasheet
Design Notes: For optimal performance, maintain signal integrity with short trace lengths and proper decoupling capacitors near power pins. Allow at least 300ms after power-up before initializing communication with the touch controller.
