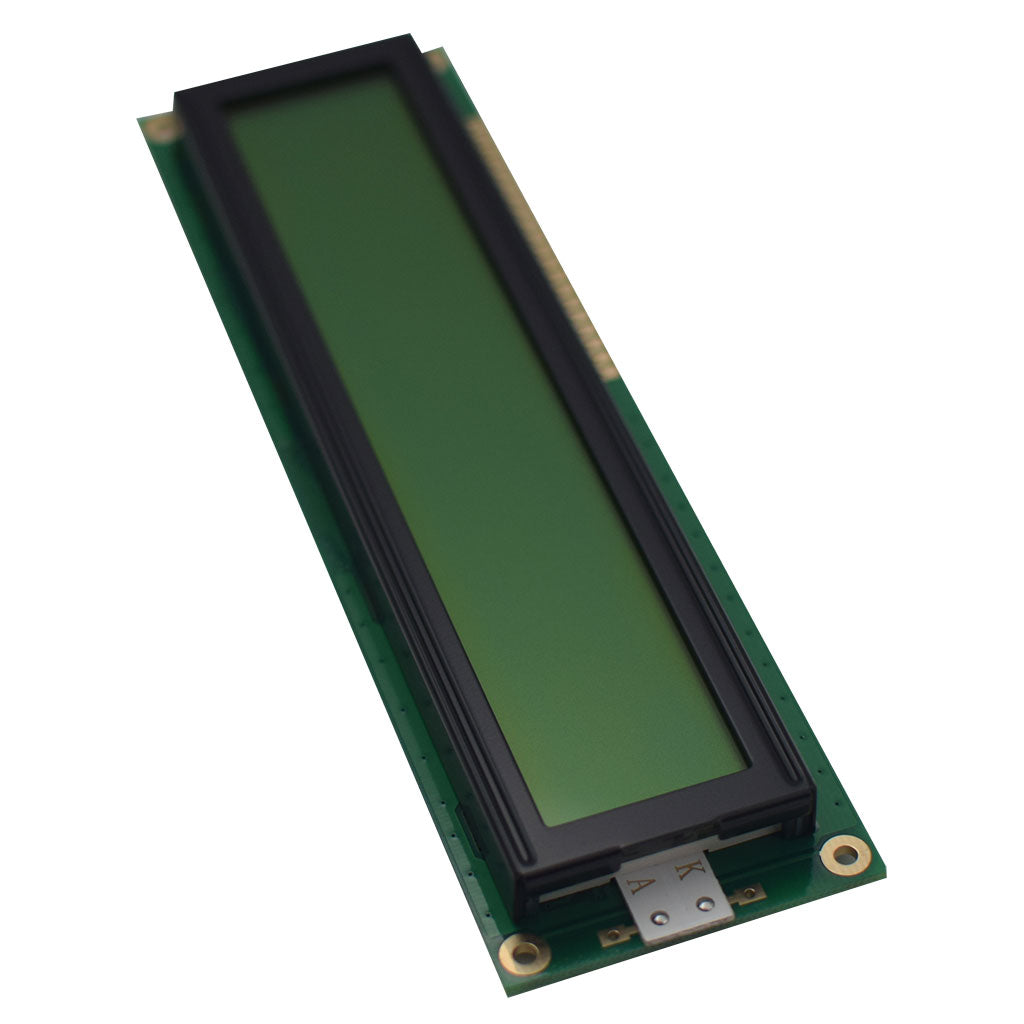

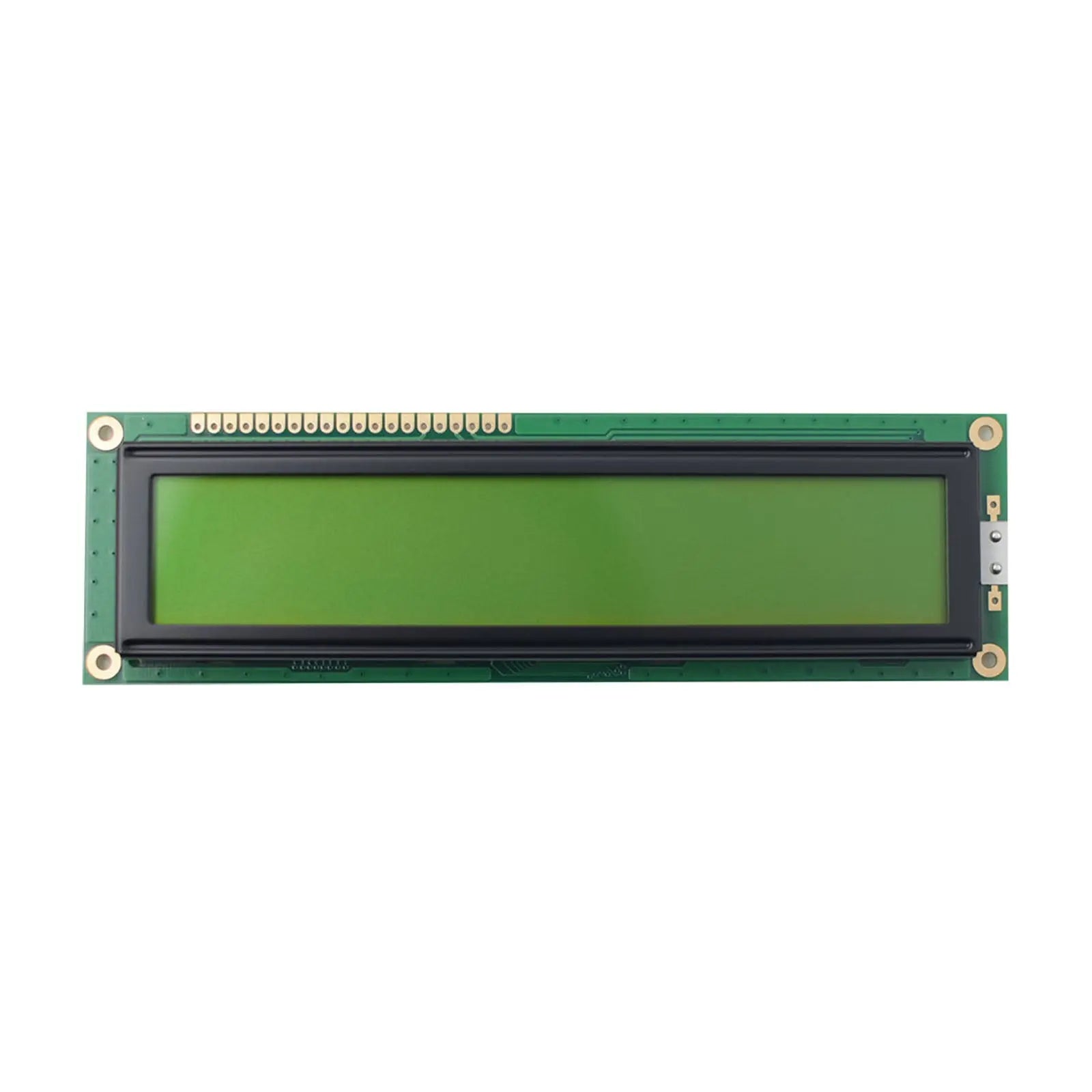

202x32 LCD Graphic Display Industrial 4.9" - MCU
Engineered for industrial applications requiring reliable performance in demanding environments, this 4.9-inch graphic LCD delivers crisp 202x32 resolution with exceptional clarity. The yellow-green STN positive display ensures optimal visibility across various lighting conditions.

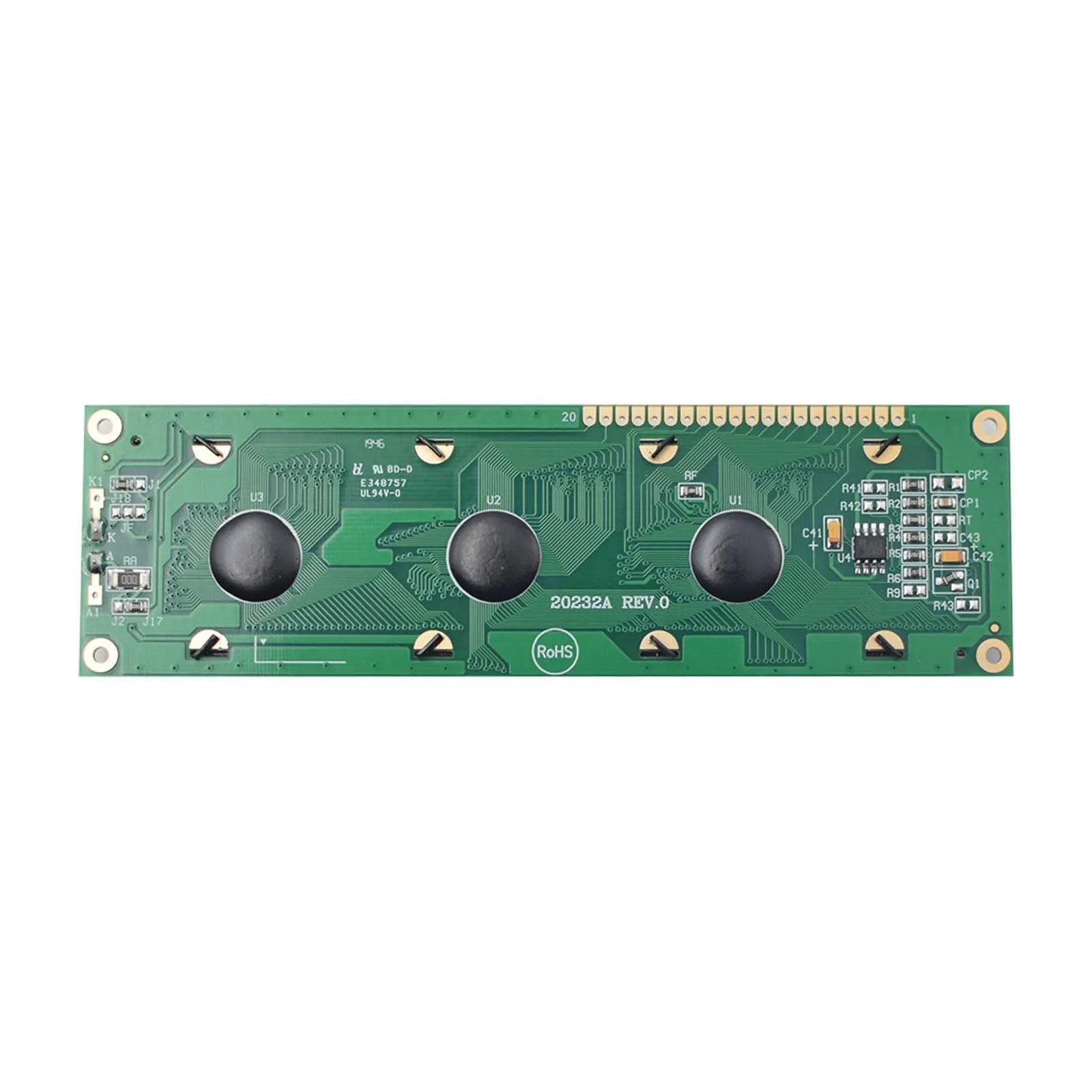

Built with industrial-grade components, this display module features a robust 146.0×43.0×13.7mm housing that withstands vibration, thermal shock, and electrostatic discharge. The integrated SBN1661G controller provides seamless parallel MPU interface compatibility.
- Industrial Durability: Certified for operation in -20℃ to +70℃ environments with 200-hour reliability testing at temperature extremes.
- Optimized Visibility: Yellow-green transflective display with 3:1 contrast ratio ensures readability in both dim and bright lighting conditions.
- Flexible Interface: Supports both 68-type and 80-type microcontroller timing through hardware-configurable RESET pin selection.
- Integrated Backlight: LED yellow-green illumination with 260 cd/m² typical brightness at 300mA drive current.
| Parameter | Specification |
|---|---|
| Resolution | 202 × 32 dots |
| Display Mode | STN Positive, Yellow Green, Transflective |
| Active Area | 119.16 × 18.86 mm |
| Module Dimensions | 146.0 × 43.0 × 13.7 mm (MAX) |
| Pixel Pitch | 0.59 × 0.59 mm |
| View Direction | 6 o'clock |
| Power Supply | 5.0V ±10% (4.5V to 5.5V) |
| Operating Current | 10.0mA typical @ 5.0V |
| Backlight Voltage | 3.9V to 4.5V (4.2V typical) |
| Backlight Current | 240mA to 360mA (300mA typical) |
For industrial clients and OEM manufacturers, we offer customized display solutions with flexible integration options and volume pricing.
- Bulk Order Programs: Competitive pricing for volume purchases with flexible delivery scheduling to support production cycles.
- Custom Configuration: Modified pinouts, connector types, and mechanical adaptations to match specific application requirements.
- Technical Support: Dedicated engineering assistance for display integration, driver development, and compatibility testing.
Machine interface panels, process monitoring displays, and equipment status indicators for factory automation systems.
Patient monitoring equipment, diagnostic instruments, and portable medical devices requiring reliable display performance.
Oscilloscope displays, multimeter readouts, and calibration equipment interfaces with precise character rendering.
Interface Compatibility: The display supports both 68-type and 80-type microcontroller interfaces selected via the RESET pin configuration. Ensure proper timing selection during hardware design.
Backlight Considerations: LED backlight requires constant current drive between 240mA-360mA for optimal performance and longevity. Voltage regulation is recommended.
Documentation: Download complete technical documentation
Dimensions
