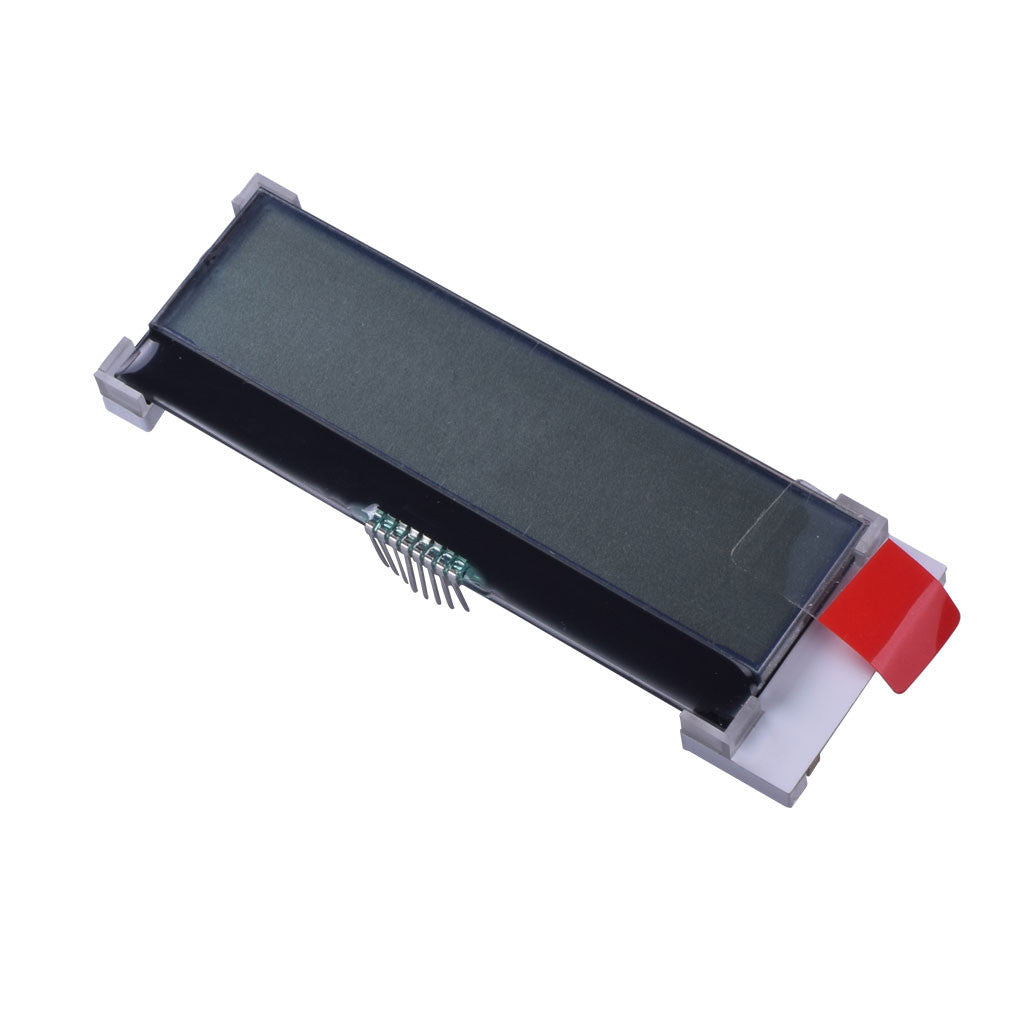

20x2 Character COG LCD FSTN Transflective - I2C
This high-performance 20x2 character COG LCD module combines FSTN positive transflective technology with I2C interface for efficient embedded system integration. Delivering crisp character display with wide viewing angles and low power consumption.
Engineered with Sitronix ST7036I controller, the module supports 5x8 dot matrix characters and features white LED backlight for uniform illumination. The compact design (74.2 x 25.2 x 6.3 mm) makes it ideal for space-constrained applications.
- Viewing Optimization: 6:00 view direction with transflective mode ensures readability in both indoor and outdoor lighting conditions.
- Power Efficiency: Low operating current (0.2mA typical) extends battery life in portable devices.
- Easy Integration: I2C interface simplifies connection with most microcontrollers using only two wires.
| Parameter | Specification |
|---|---|
| Display Format | 20 characters x 2 lines |
| Display Mode | FSTN Positive, Transflective |
| View Direction | 6:00 |
| Module Dimensions | 74.2 x 25.2 x 6.3 (MAX) mm |
| Power Supply | 3.3V |
| Backlight | White LED |
| Interface | I2C MPU Interface |
| Controller IC | ST7036I |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Weight | 15.1 g |
We provide customized display solutions for OEM and bulk applications, offering flexibility in configuration and packaging to meet specific project requirements.
- Custom Configurations: Modify backlight color, connector types, or labeling for seamless integration into your products.
- Volume Discounts: Competitive pricing for large quantity orders with dedicated technical support.
- White-Label Options: Brand the modules with your company logo and packaging for resale applications.
Status displays for CNC machines, PLC controllers and measurement instruments requiring reliable operation in -20°C to 70°C environments.
Patient monitoring systems and portable diagnostic equipment where low power consumption and clear readability are critical.
Home automation panels, smart appliances and portable gadgets benefiting from I2C interface simplicity.
Compatibility Notes: The I2C interface operates at standard frequencies up to 300kHz and requires pull-up resistors on SDA/SCL lines. Compatible with 3.3V and 5V microcontroller systems.
Documentation: Download Product Datasheet | ST7036 Controller Documentation
Dimensions
