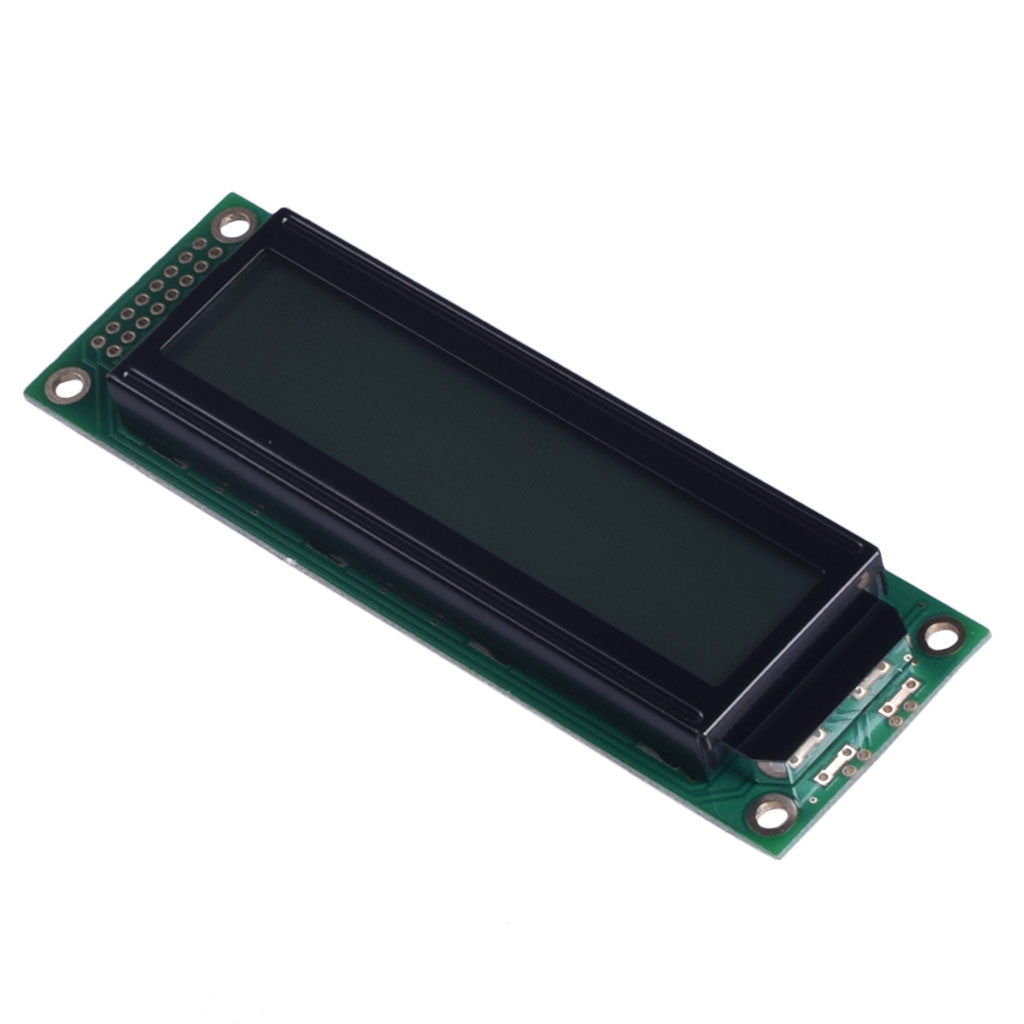

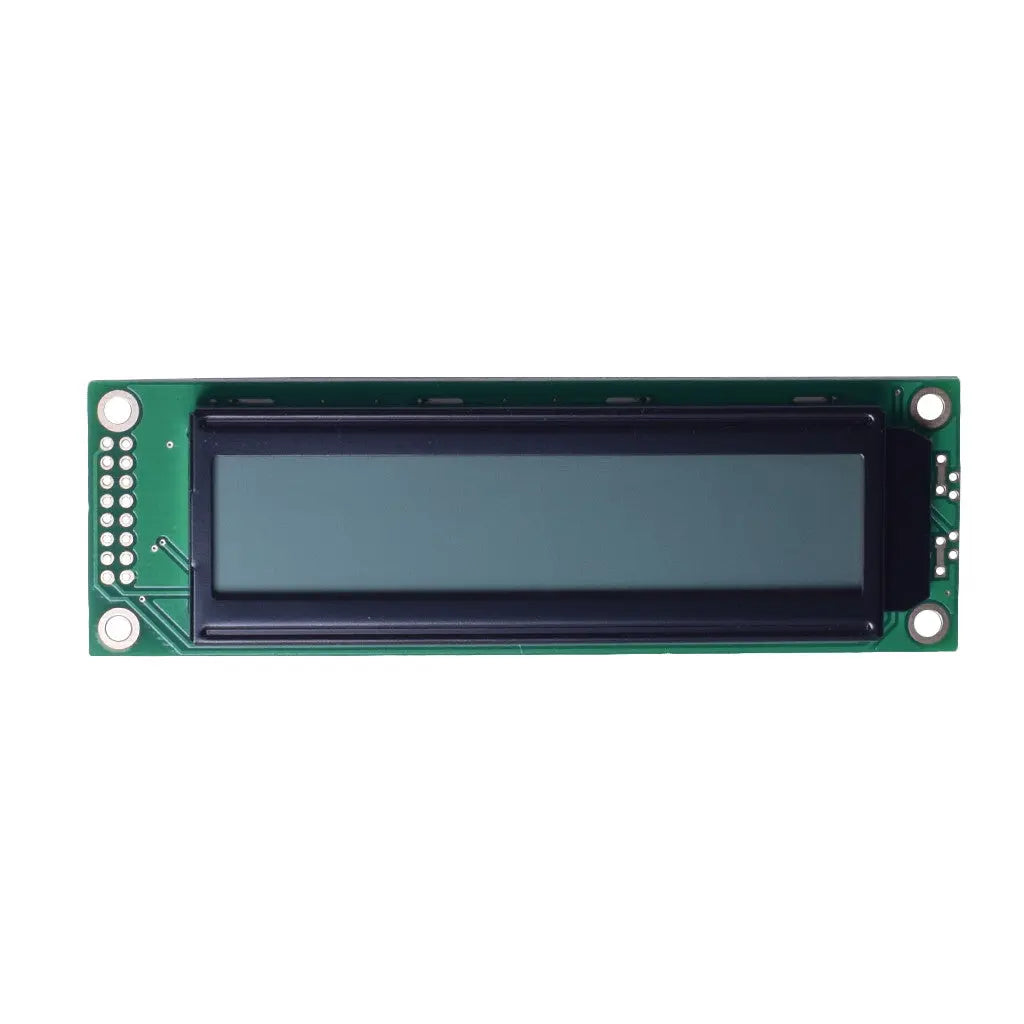

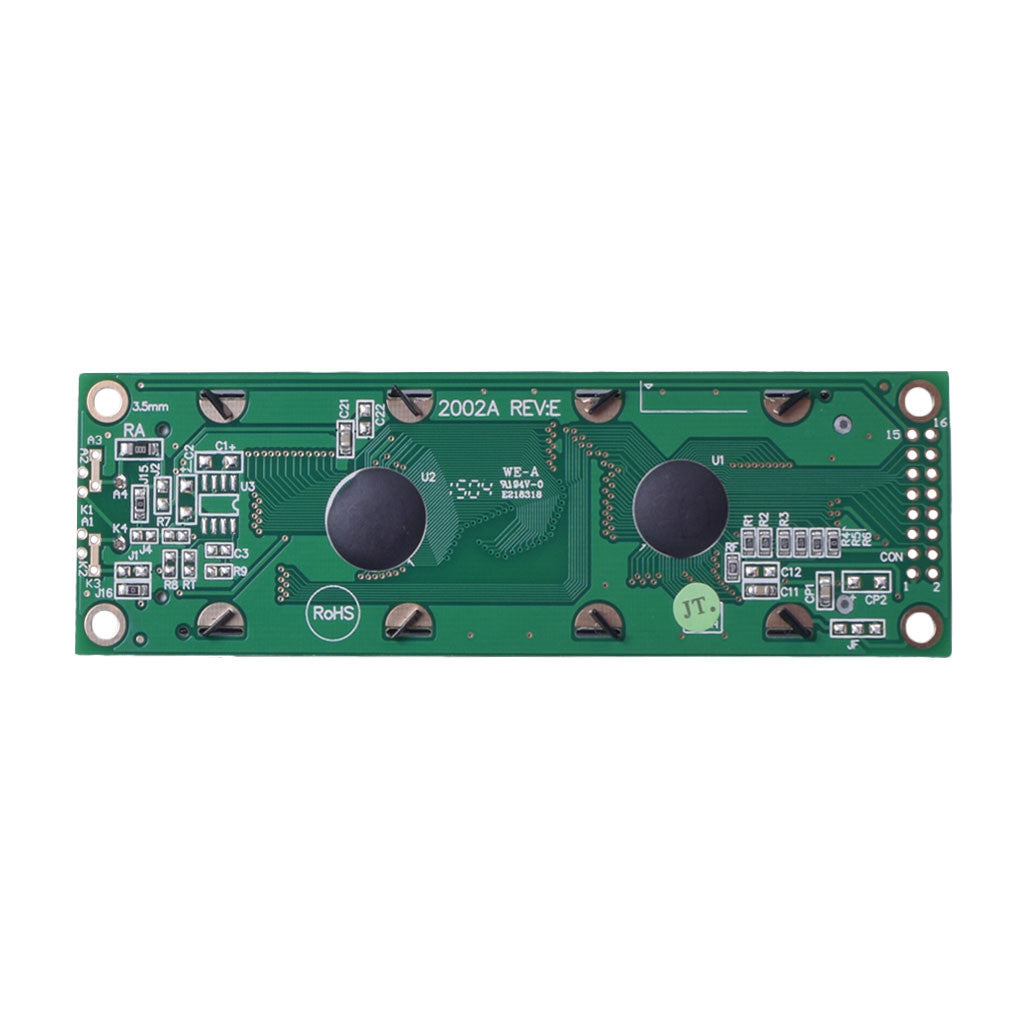

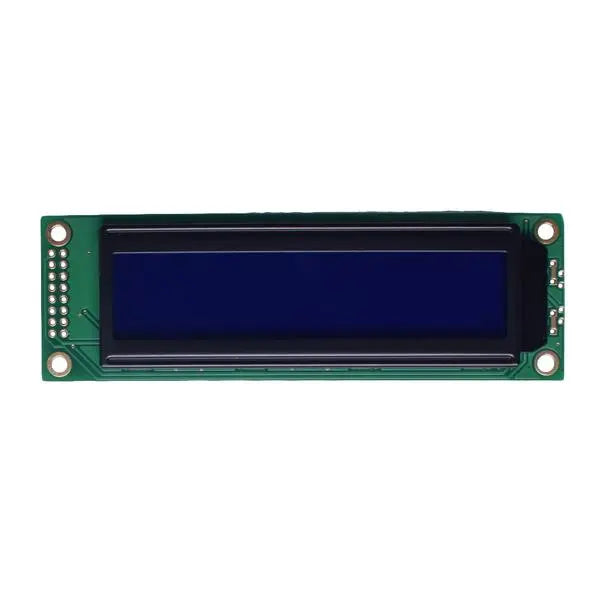

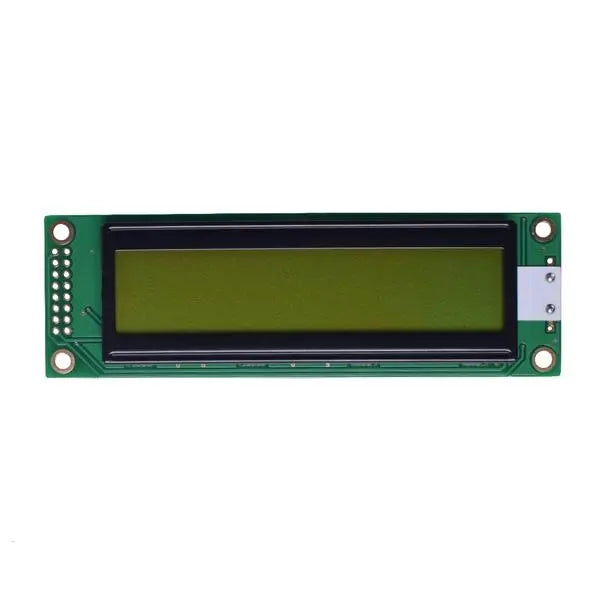

20x2 Character LCD FSTN Transflective - MCU
Engineered for clarity and reliability, this 20-character by 2-line FSTN (Film Super-Twisted Nematic) LCD module delivers superior readability with a transflective design that ensures optimal viewing under various lighting conditions. Powered by the industry-standard ST7066U controller, it supports parallel MPU interface for seamless integration into embedded systems.
The module features a white LED backlight with typical luminance of 450 cd/m², ensuring bright and consistent illumination. With a compact footprint of 116.0 × 37.0 mm and low power consumption of just 1.2mA (typical at 5V), it's ideal for space-constrained and power-sensitive applications.
- Wide Operating Range: Functions reliably from -20°C to +70°C, with storage tolerance from -30°C to +80°C.
- Standard Interface: 6800-series MPU parallel interface supporting both 4-bit and 8-bit data transfer modes.
- High Compatibility: Fully compatible with HD44780 instruction set for easy programming and quick development.
- Robust Construction: Weighing only 56.0 grams with maximum thickness of 13.9mm, built for durability in industrial environments.
| Parameter | Specification |
|---|---|
| Display Format | 20 characters × 2 lines |
| Display Mode | FSTN Positive, Transflective |
| View Direction | 6:00 |
| Module Dimension | 116.0 × 37.0 × 13.9(MAX) mm |
| Power Supply | 5.0V (±10%, 4.5V to 5.5V) |
| Supply Current (Typical) | 1.2mA @ 5.0V |
| Backlight | White LED |
| Backlight Current | 32mA (Typical) @ 3.5V |
| Interface | 6800 Series MPU Interface |
| Controller IC | ST7066U |
| Operation Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Weight | 56.0 grams |
We support business customers with customized display solutions and volume manufacturing programs. Our flexible approach enables rapid prototyping and scalable production.
- Custom Configurations: Modified backlight colors, connector types, and labeling options available for OEM applications.
- Volume Pricing: Competitive discounts for orders exceeding 100 units, with dedicated technical support for large deployments.
- Quality Assurance: Full reliability testing including high/low temperature operation, thermal shock, and vibration resistance.
Machine interface panels, process indicators, and equipment status displays requiring clear readability in factory environments.
Patient monitoring systems, diagnostic equipment, and portable medical instruments where reliability is critical.
Printers, copiers, and multifunction devices providing user interface and status information.
Compatibility Notes: Fully compatible with most microcontrollers supporting parallel interface. The ST7066U controller provides standard instruction set for easy programming.
Documentation: Download complete datasheet | ST7066U controller documentation
Additional Resources: Alternative model datasheet | Third variant documentation
Dimensions
