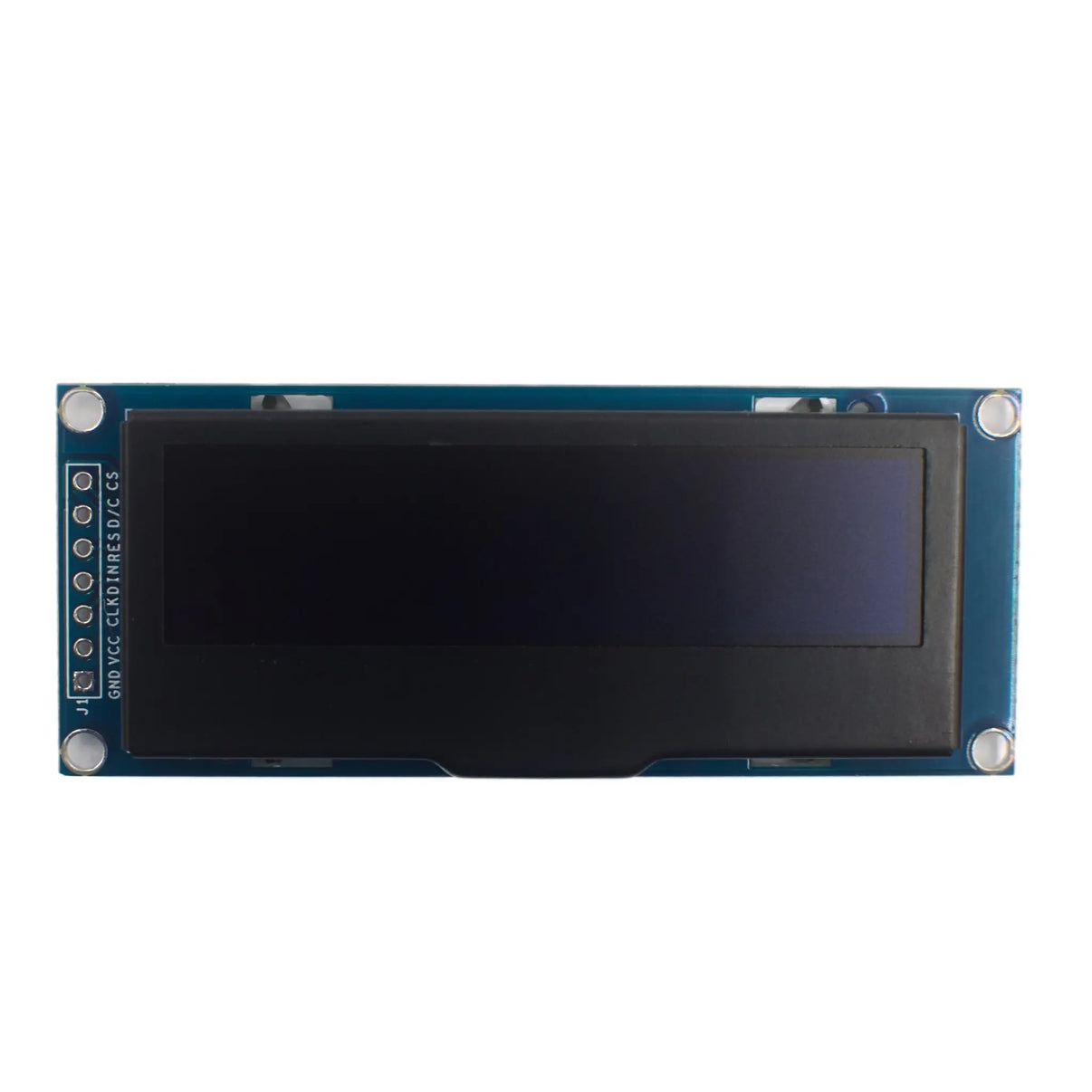

2.2" 128×32 White Passive Matrix OLED Display - SPI Interface
This 2.2-inch passive matrix OLED display features 128×32 pixel resolution with bright white monochrome output. With a compact PCB form factor and low power operation, it is ideal for embedded systems, smart meters, and other low-profile digital readout applications.
Engineered for reliability and performance, this OLED display module operates within a wide temperature range of -40℃ to 70℃, making it suitable for industrial applications. The module supports both SPI and I2C interfaces with simple hardware configuration changes.
- High Contrast Display: Bright white monochrome output with excellent readability in various lighting conditions.
- Flexible Interface: Supports both SPI and I2C communication protocols with easy switching capability.
- Compact Design: PCB dimensions of 74.0 × 30.0 × 8.2mm for space-constrained applications.
- Wide Operating Range: Designed to perform reliably in temperatures from -40℃ to 70℃.
| Technical Parameter | Specification |
|---|---|
| Display Type | PMOLED |
| Display Size | 2.2 inches |
| Resolution | 128 × 32 dots |
| Active Area | 55.02 × 13.1 mm |
| Pixel Pitch | 0.43 × 0.41 mm |
| Pixel Size | 0.41 × 0.39 mm |
| PCB Size | 74.0 × 30.0 × 8.2 mm |
| Operating Temperature | -40℃ to 70℃ |
| Storage Temperature | -40℃ to 85℃ |
| Interface | SPI/I2C (Default SPI) |
| Driver IC | SSD1305 |
We provide customized display solutions for business and industrial customers, offering tailored configurations to meet specific application requirements.
- Bulk Procurement Programs: Volume discounts and customized configurations for large-scale deployments.
- Custom Modifications: Tailored solutions including special interfaces, mounting options, and display characteristics.
- Technical Support: Comprehensive engineering support for integration and implementation.
Perfect for control panels, measurement instruments, and industrial automation systems requiring clear, reliable display readouts.
Ideal for portable medical equipment, diagnostic tools, and patient monitoring systems where space and power efficiency are critical.
Excellent choice for smart home devices, wearable technology, and portable gadgets requiring compact, high-contrast displays.
This OLED display module is designed for easy integration with various microcontroller platforms and development boards.
- Microcontroller Support: Compatible with Arduino, Raspberry Pi, STM32, and other popular MCU platforms
- Interface Flexibility: Switchable between SPI and I2C interfaces with simple resistor changes
- Development Resources: Comprehensive documentation and sample code available for quick prototyping
Technical Notes: Display performance optimized for 3.3V operation with SPI interface as default configuration. The module includes comprehensive command set for advanced display control and power management features.
