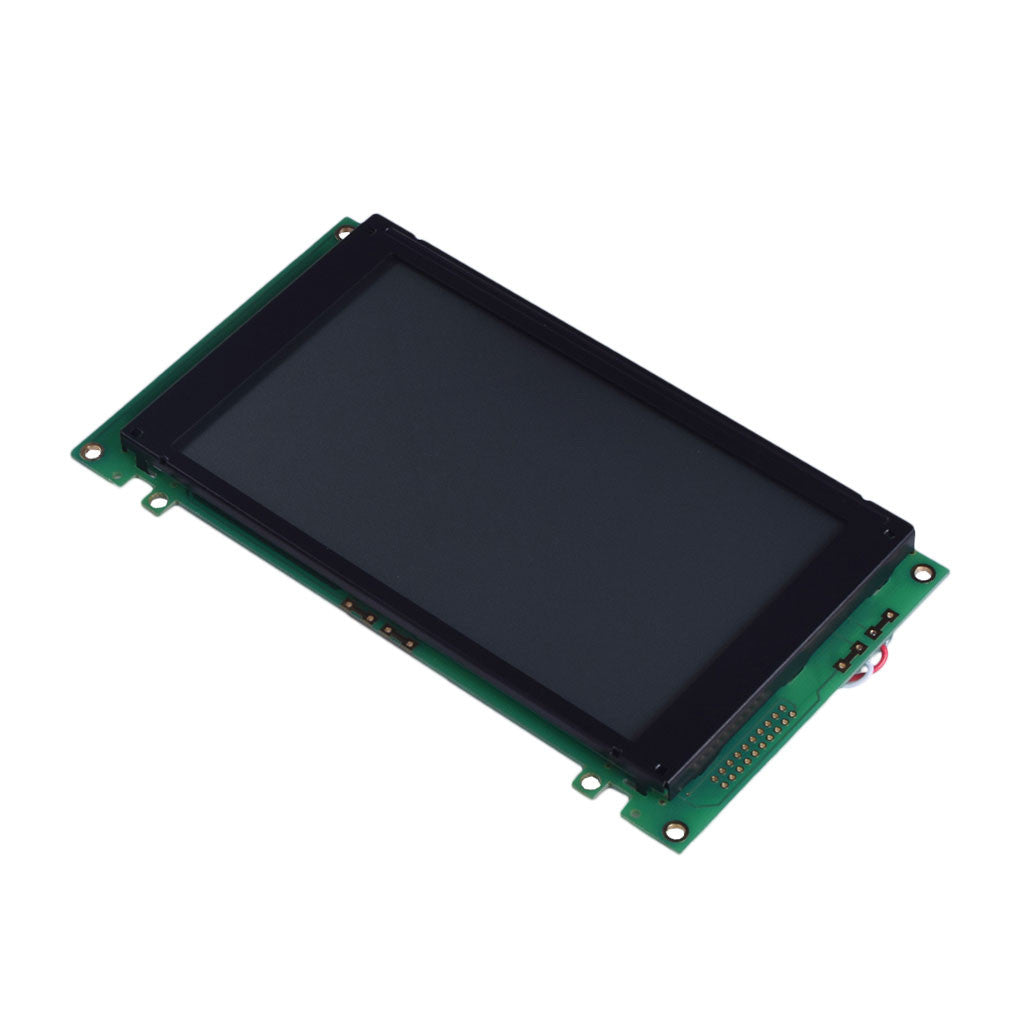

Large 5.15-inch 240x128 Graphic LCD display module with MCU interface
Large 5.15-inch 240x128 blue backlight Graphic LCD display module with MCU interface

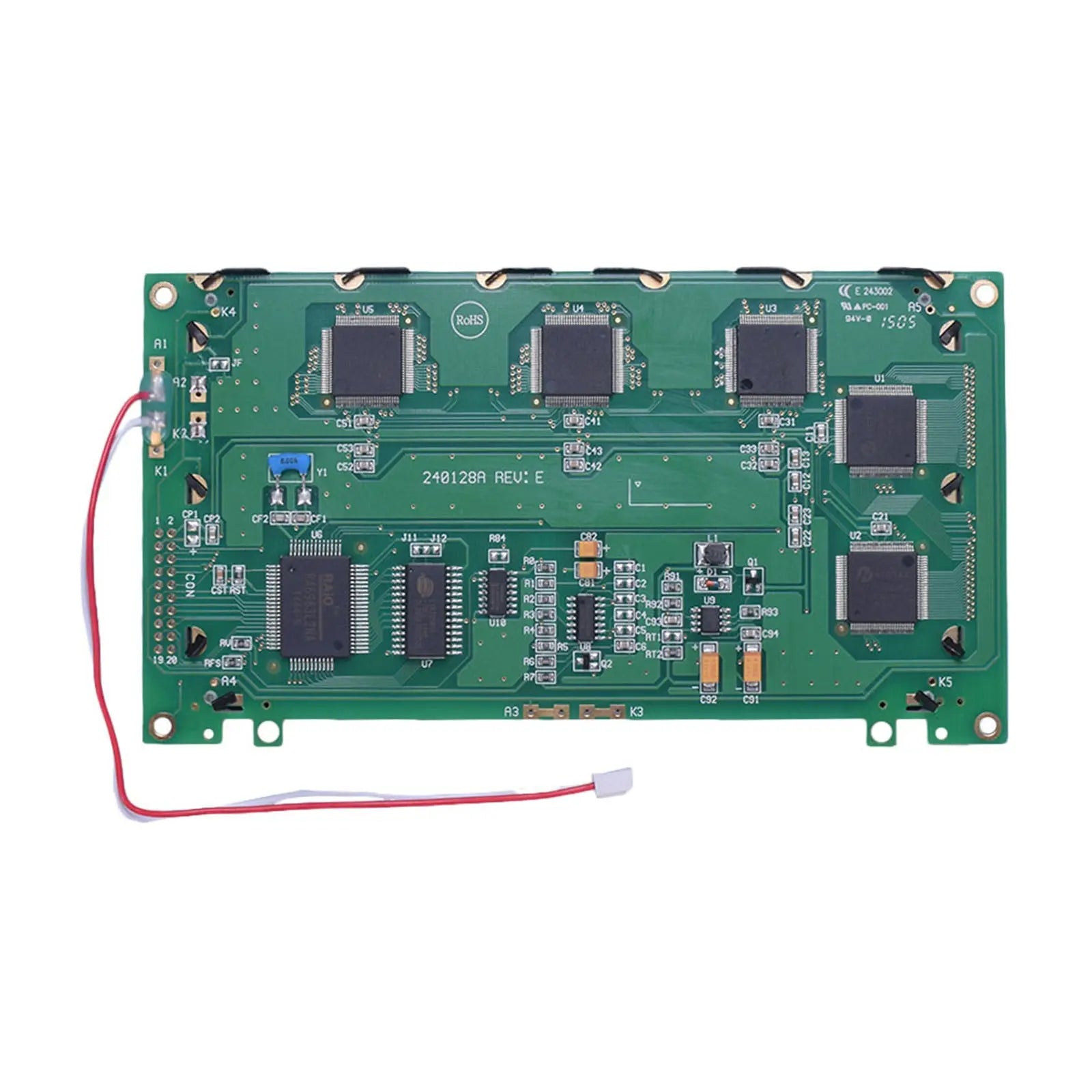

Back of Large 5.15-inch 240x128 Graphic LCD display with MCU interface
Top view of Large 5.15-inch 240x128 Graphic LCD display module

240x128 Graphic LCD 5.15" Large - MCU

Regular price $69.00
Sale price $69.00 Regular price $76.99
Datesheet:
Black White
Blue
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 240 x 128 pixels
  • Display Mode : FSTN Positive, Transflective
  • View Direction : 6:00
  • Module Dimension : 170.0 x 93.4 x 12.4(MAX) mm
  • Power Supply : 5.0 V
  • Backlight : White LED
  • Interface : Parallel MPU Interface
  • Controller IC : RA6963
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 203.5 g

Dimensions
