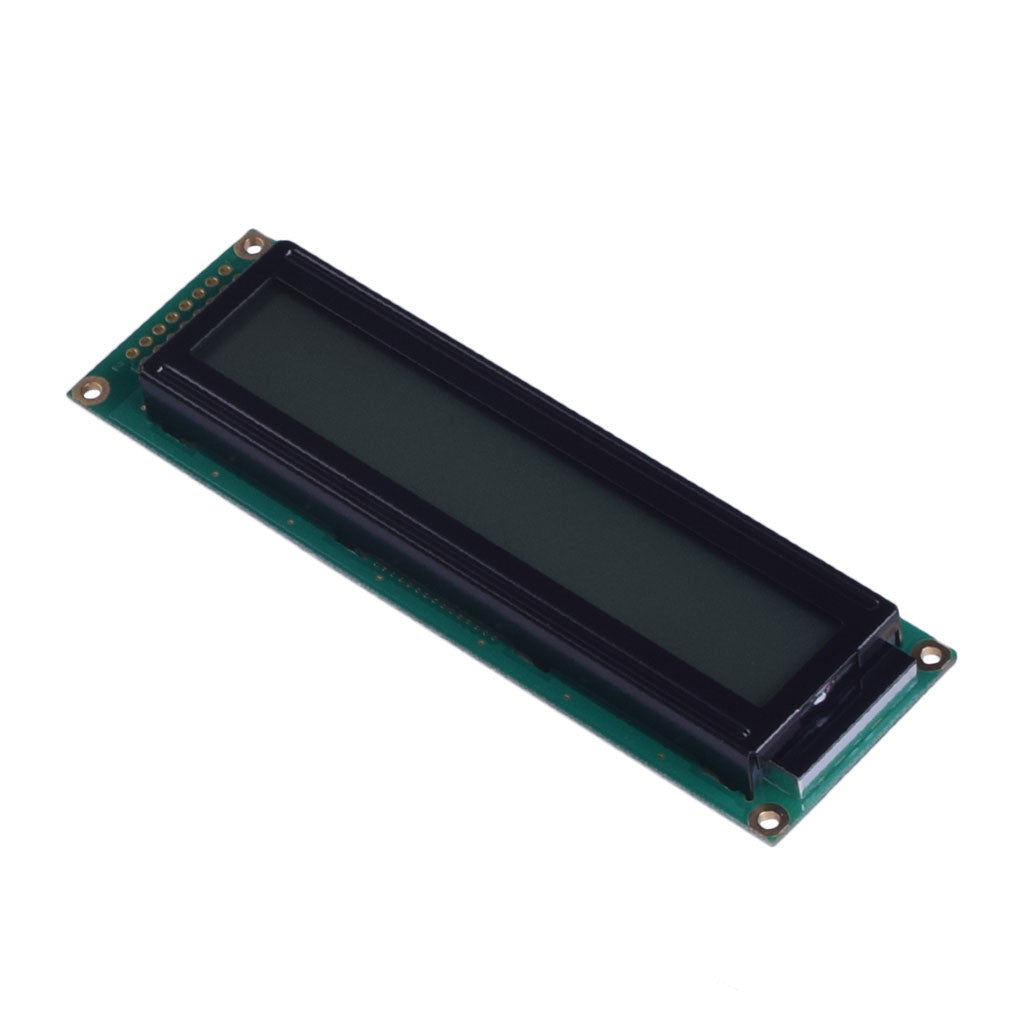

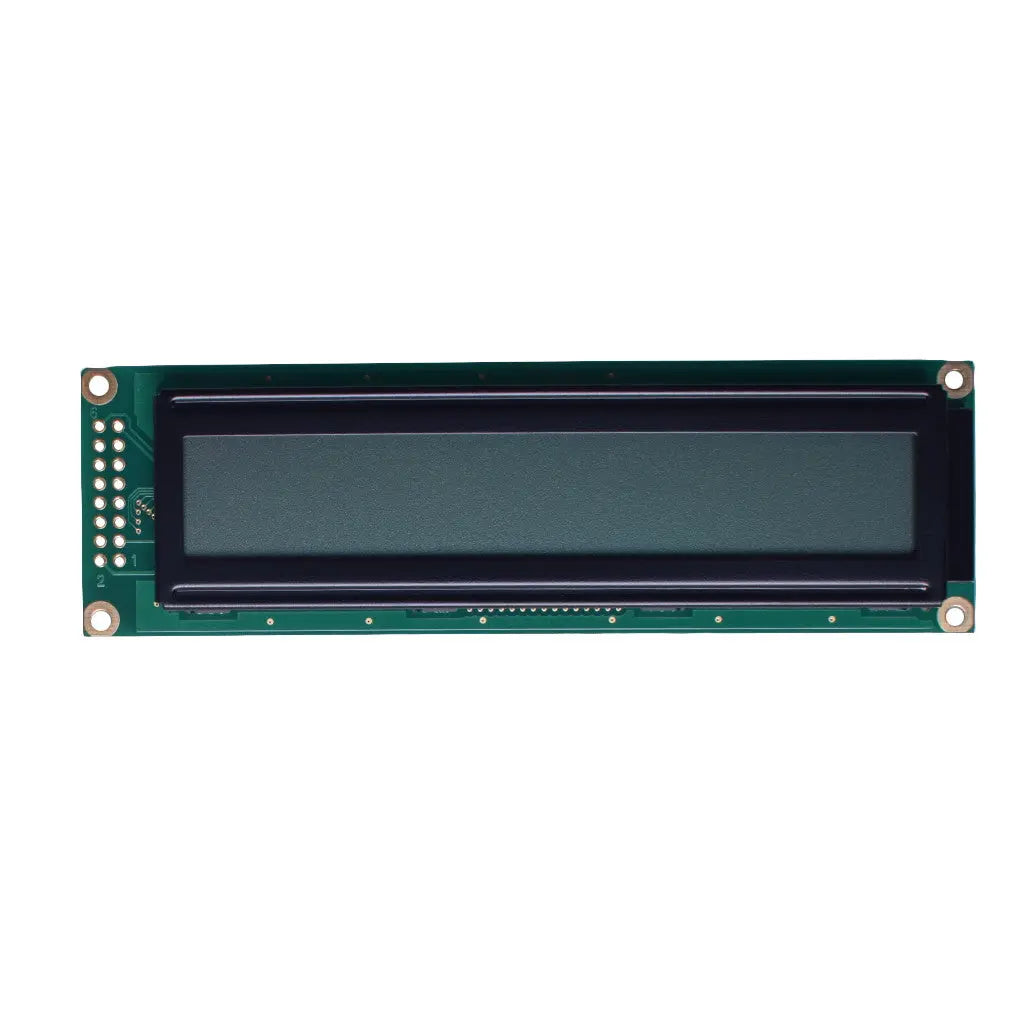

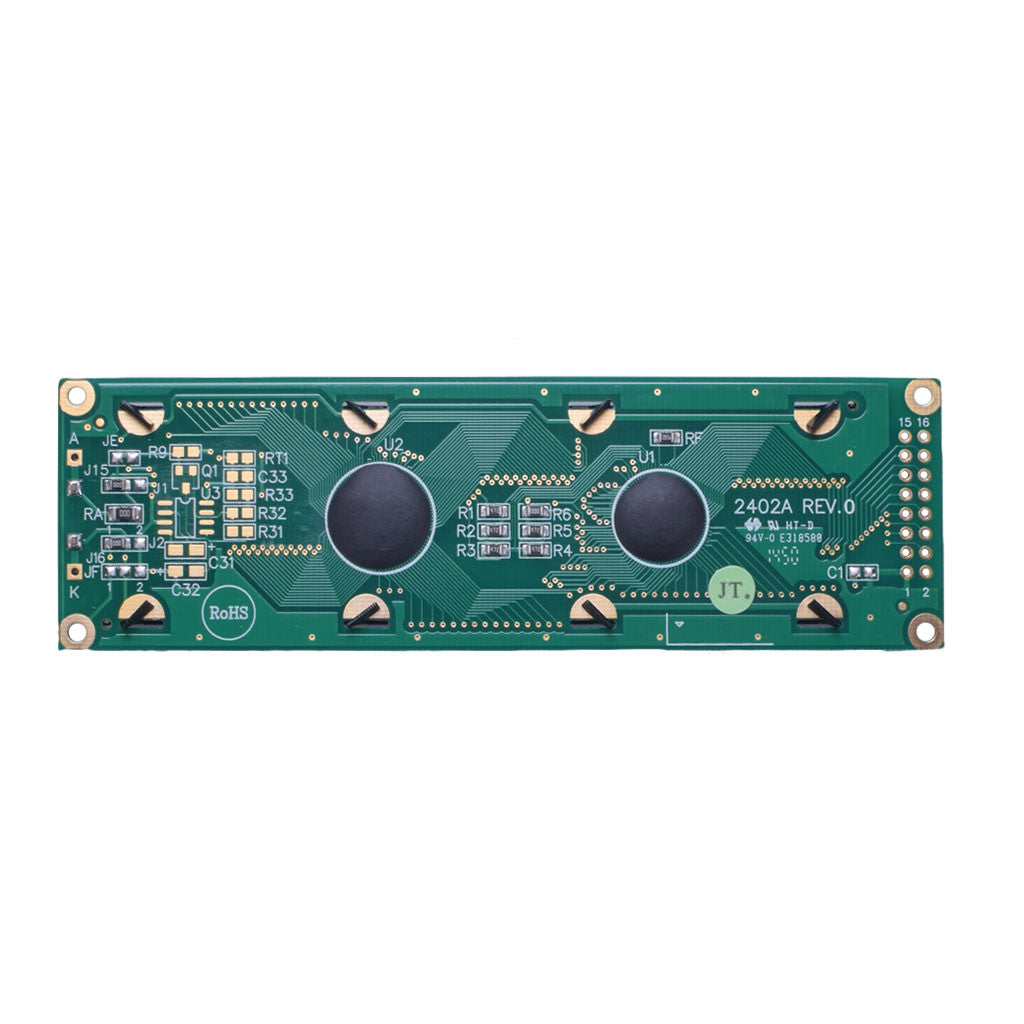

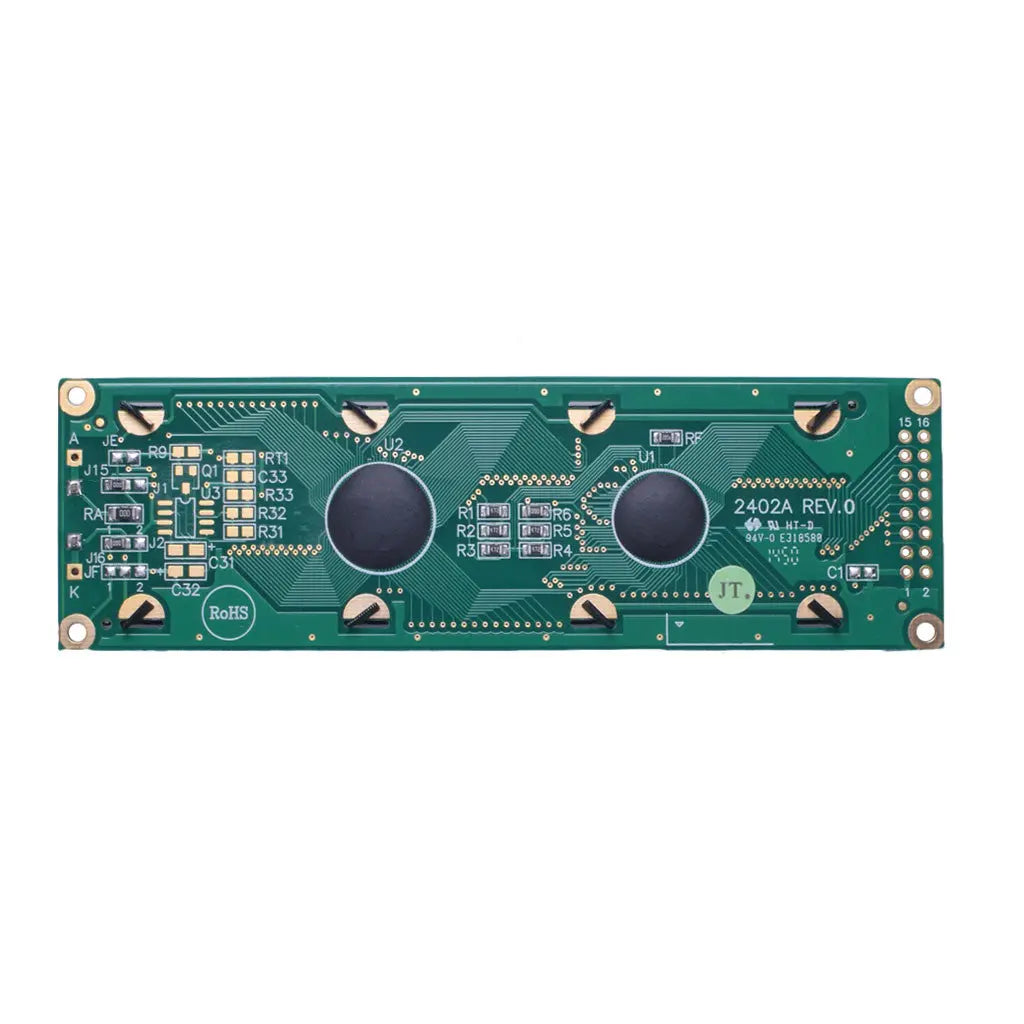

24x2 Character LCD FSTN Transflective - MCU (Please contact us for volume need)
This 24x2 Character LCD module delivers high-contrast display performance with FSTN (Film Super Twisted Nematic) positive transflective technology, ensuring clear visibility in both indoor and outdoor lighting conditions. Designed for seamless integration with microcontrollers (MCUs), it features a compact form factor and low power consumption, making it ideal for portable and embedded systems.
Engineered with the ST7066U controller IC, the module supports 6800-series MPU parallel interface, offering flexible 4-bit or 8-bit data bus options. The display operates at 1/16 duty cycle with a view direction of 6:00 (bottom-viewing), providing wide viewing angles of 30° top, 60° bottom, and 45° left/right for optimal readability.
- High Reliability: Operates in temperatures from -20°C to +70°C, with storage tolerance up to -30°C to +80°C, ensuring stability in harsh environments.
- Low Power Consumption: Typical supply current of 1.2 mA at 5.0V, ideal for battery-powered devices.
- Easy Integration: Module dimensions of 118.0 x 36.0 x 13.6 mm (max) and weight of 57.0 g allow for space-efficient designs.
- Bright Backlight: White LED backlight with typical luminance of 450 cd/m² for enhanced visibility in dark conditions.
| Parameter | Specification |
|---|---|
| Display Format | 24 characters x 2 lines |
| Display Mode | FSTN Positive, Transflective |
| View Direction | 6:00 |
| Module Dimension | 118.0 x 36.0 x 13.6 mm (MAX) |
| Power Supply | 5.0 V (4.5 V to 5.5 V range) |
| Supply Current (IDD) | 1.2 mA typical at 5.0V |
| Backlight | White LED |
| Backlight Voltage | 3.4 V to 3.6 V |
| Backlight Current | 32 mA typical |
| Interface | 6800 Series MPU Parallel Interface |
| Controller IC | ST7066U |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Weight | 57.0 g |
| Response Time | 300 ms typical |
| Contrast Ratio | 5:1 typical |
We offer customized solutions for bulk orders and specialized applications. Whether you need tailored display configurations or white-label options, our team can provide support for high-volume deployments.
- Volume Discounts: Competitive pricing for large-scale purchases, with flexible payment terms.
- Customization Services: Modify display parameters, firmware, or mechanical design to meet specific project requirements.
- Technical Support: Dedicated assistance for integration, including documentation and design guidelines.
For volume inquiries, please contact us to discuss your needs.
Ideal for machinery interfaces, PLC systems, and monitoring equipment where reliable display under varying temperatures is critical.
Used in portable diagnostic tools and patient monitors, benefiting from low power consumption and clear transflective visibility.
Integrated into dashboard displays and diagnostic readers, withstanding vibrations and temperature fluctuations.
Compatibility Notes: This module is compatible with most MCUs supporting 6800-series parallel interfaces. Ensure proper voltage levels (5.0V logic) and follow initialization sequences for stable operation.
Resources: Download full datasheet | ST7066U controller documentation
For technical support or customization queries, refer to the provided documents or contact our team.
