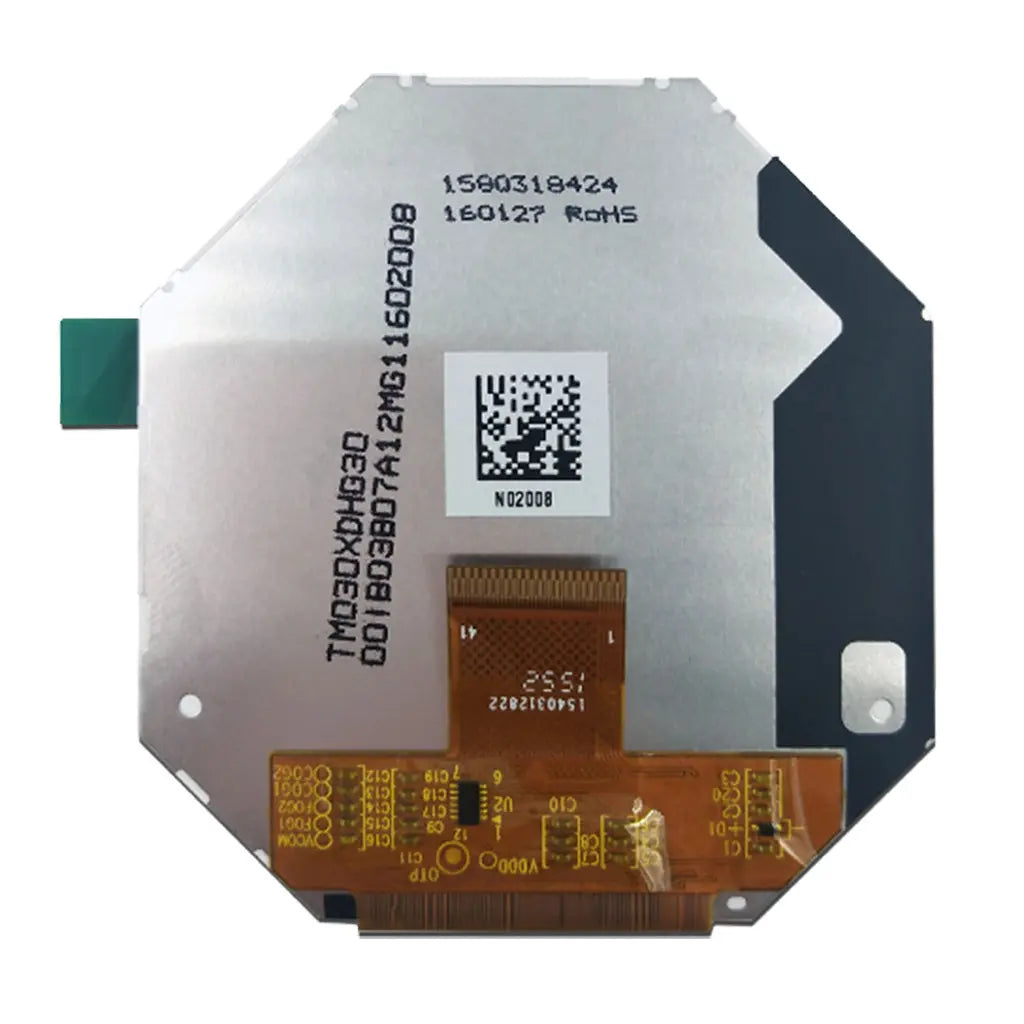

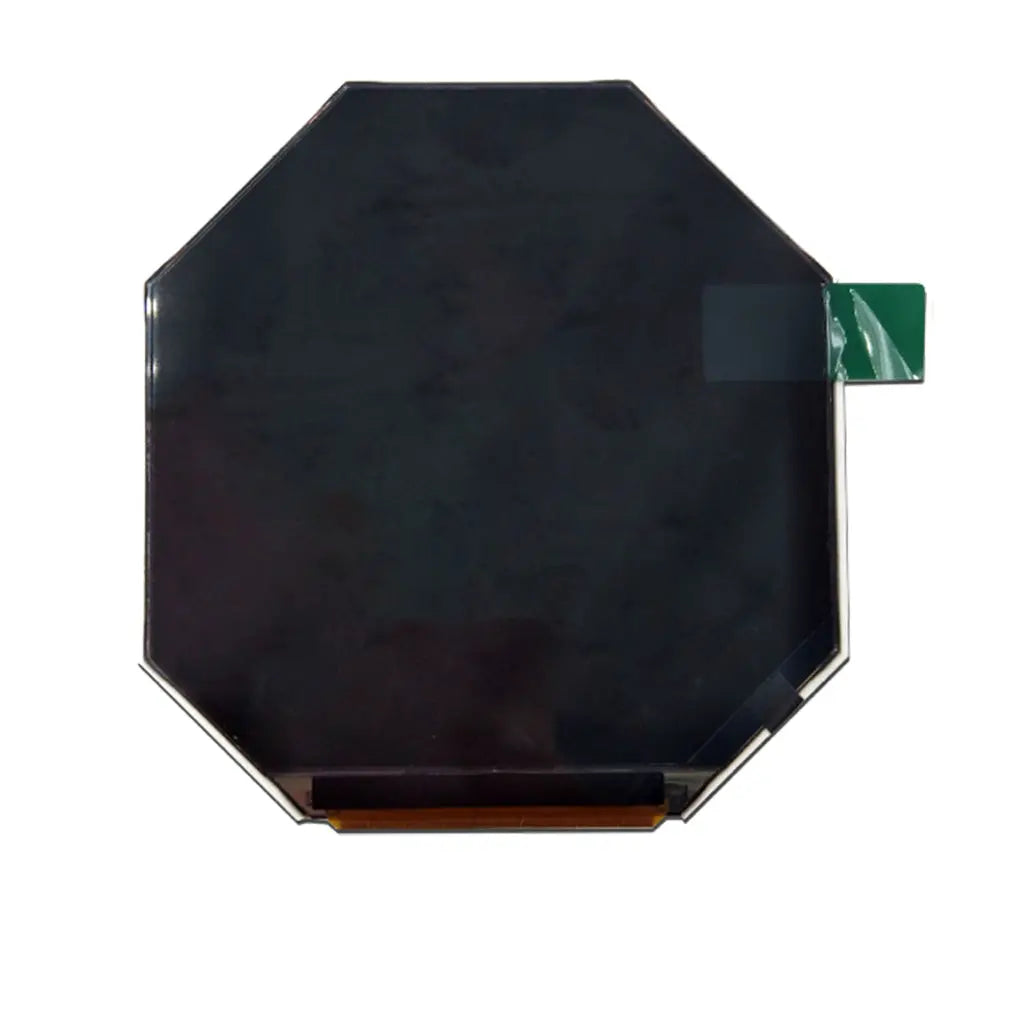

3.0" Round TFT Display 480x480 450nits Full Color TFT - RGB, SPI
This 3.0-inch TFT LCD display delivers exceptional visual performance with 480×480 resolution, 450 cd/m² brightness, and full 24-bit color depth. Powered by the HX8369A driver IC, it supports both RGB and SPI interfaces for versatile integration into various applications.
With its compact form factor (58.01 × 61.38 × 2.45 mm) and square viewing area (53.28 × 53.28 mm), this display is ideal for space-constrained applications. The HX8369A driver ensures efficient performance with low power consumption, operating at just 1.8V/2.8V supply voltage.
- Dual Interface Support: Flexible connection options with both RGB parallel interface and serial SPI for different microcontroller capabilities.
- High Contrast Ratio: Delivers crisp, clear images with excellent readability in various lighting conditions.
- Wide Temperature Range: Operates reliably from -20°C to 70°C, suitable for industrial environments.
- Low Power Consumption: Optimized power design makes it ideal for battery-powered devices and portable applications.
| Parameter | Specification |
|---|---|
| Display Type | TFT LCD |
| Diagonal Size | 3.0 inch |
| Resolution | 480 × 480 pixels |
| Active Area | 53.28 × 53.28 mm |
| Module Dimensions | 58.01 × 61.38 × 2.45 mm |
| Pixel Pitch | 0.111 × 0.111 mm |
| Brightness | 450 cd/m² (typical) |
| Color Depth | 16.7M colors (RGB 8-8-8) |
| Interface | RGB 24-bit parallel + SPI serial |
| Driver IC | HX8369A |
| Supply Voltage | 1.8V / 2.8V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Touch Panel | Not included |
We offer customized display solutions for businesses and OEMs, with flexible options for volume orders and specialized requirements.
- Bulk Order Discounts: Competitive pricing for volume purchases with tiered discount structures.
- Customization Options: Modifications available for interface configurations, connector types, and mechanical adaptations.
- White-Label Solutions: Private labeling available for resellers and system integrators.
-
Technical Support: Dedicated engineering support for integration challenges and custom firmware development.
Medical monitors, handheld test equipment, and portable instrumentation benefiting from the compact size and low power consumption.
Human-machine interfaces for control systems, automation equipment, and industrial monitoring with wide temperature operation.
Smart home controllers, wearable devices, and portable entertainment systems requiring high-resolution displays.
This display module is designed for easy integration with various platforms and controllers:
- Microcontroller Support: Compatible with popular MCUs including ARM Cortex-M series, ESP32, and Raspberry Pi.
- Interface Options: Choose between RGB parallel interface for high-speed data transfer or SPI for pin-constrained applications.
- Operating Systems: Drivers available for embedded Linux, FreeRTOS, and other real-time operating systems.
- Development Resources: Comprehensive documentation and sample code to accelerate integration.
Documentation: Access complete technical specifications, integration guides, and application notes.
Downloads: Product Datasheet (PDF) | HX8369A Driver IC Datasheet | 3D Model (STEP)
Support: For technical questions or customization inquiries, contact our engineering team.
Mechanical Dimensions
Refer to the mechanical drawing below for enclosure design and integration reference.
