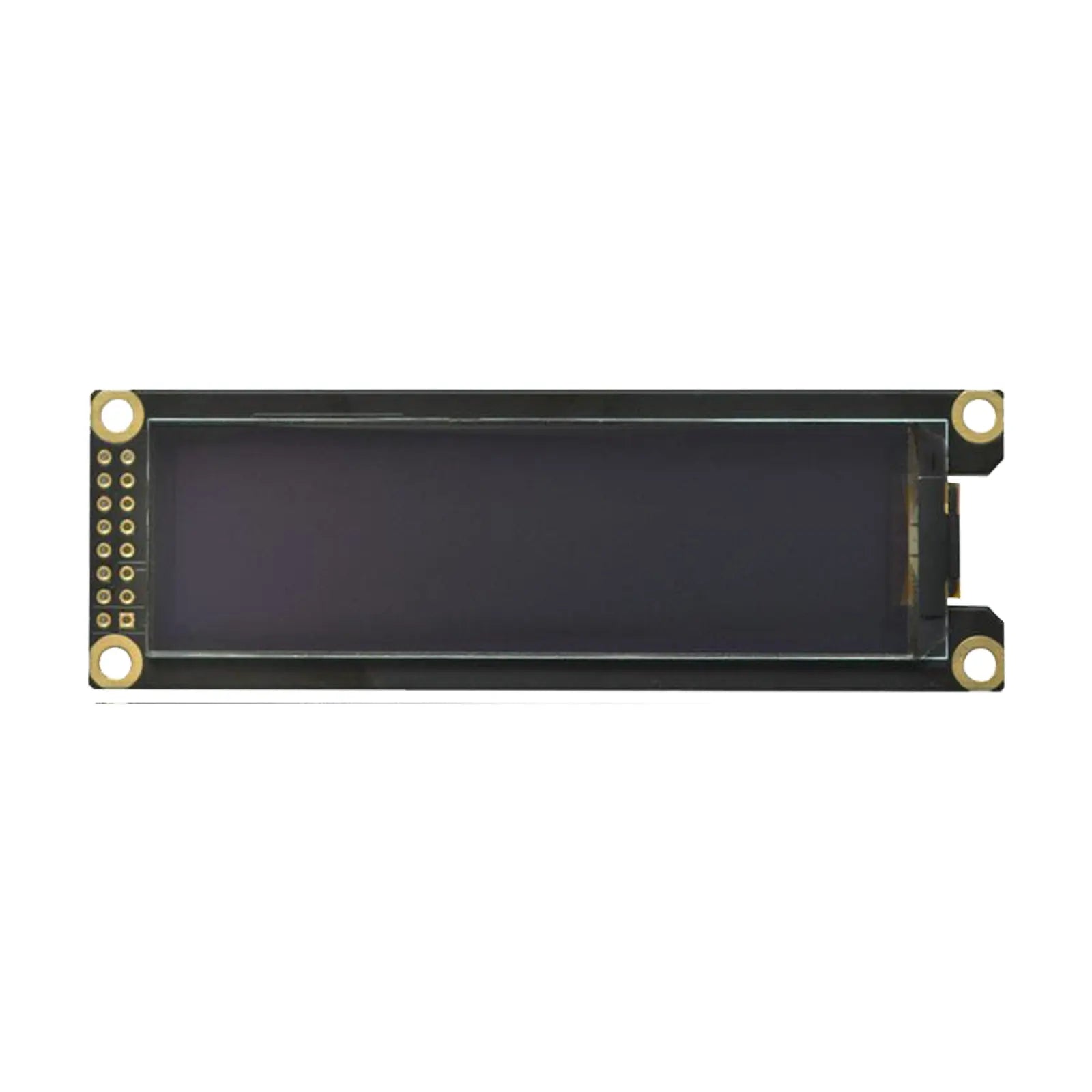

3.12-inch 256x64 OLED graphic display module with SPI interface

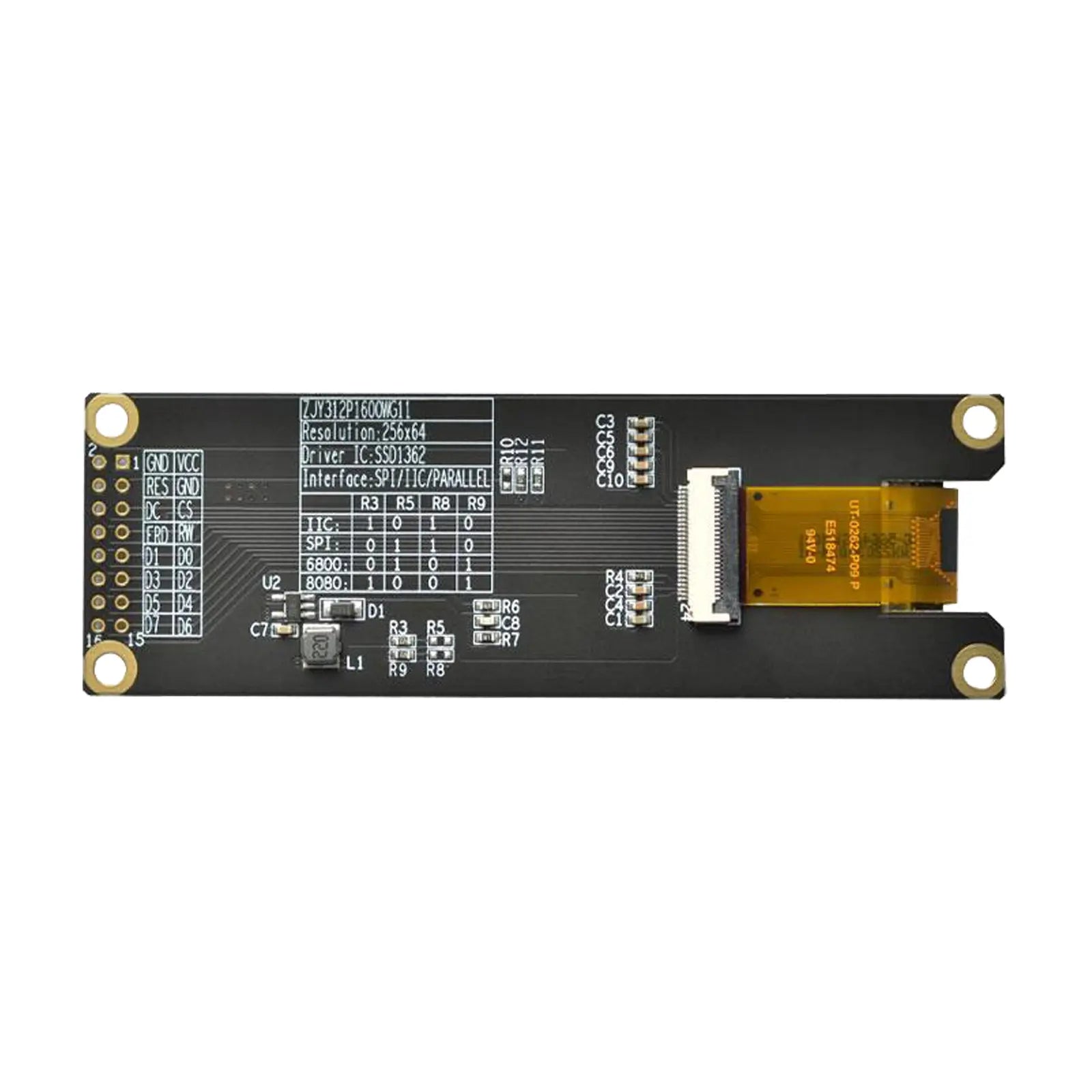

back of 3.12-inch 256x64 OLED graphic display module with SPI interface

3.12" OLED Graphic Display 256x64 - SPI

Regular price $29.90
Sale price $29.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 3.12 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome with 16 Gray Scales (White)
  • Module Dimension : 98.9 x 25.8 x 2.0 mm
  • Viewing Area : 76.78 x 19.18 mm
  • Power Supply : 3.0 V
  • Interface : 4-wire SPI
  • Controller IC : SSD1362
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃

Dimensions

Resources

Product reviews
