3.4" Round TFT Display 800x800 350nits All View Capacitive - MIPIWith Touch
Sale price$99.00
3.4" Round TFT Display 800x800 350nits All View Capacitive - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
3.4" 800×800 TFT LCD Display Specifications

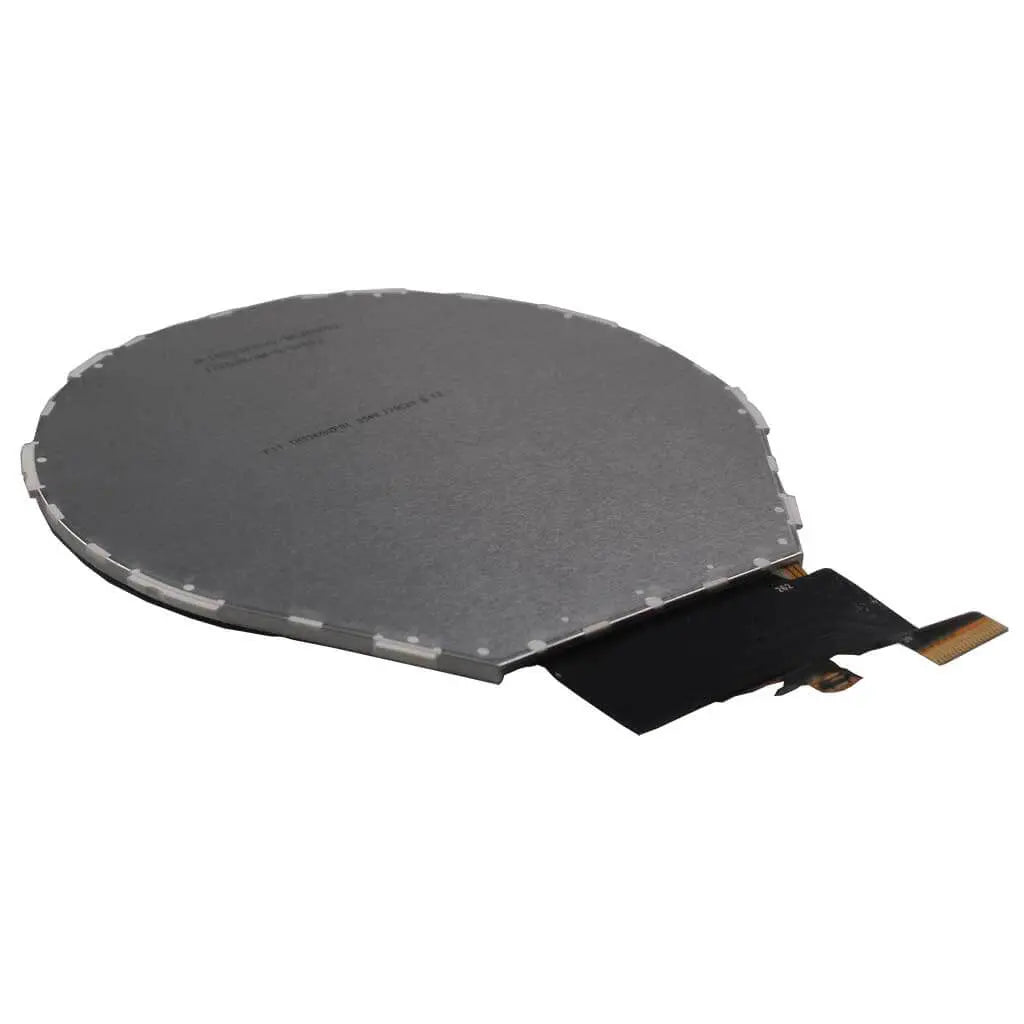

The DM-TFTR34-359 is a 3.4-inch round TFT LCD panel with 800 × 800 resolution and MIPI 3-lane interface. Featuring the ILI9881C display driver and HX8526-E30 backlight IC, this module provides 350 cd/m² brightness and a free viewing angle—making it ideal for embedded UI, wearable controls, and round-form display systems.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 3.4 | inch |
| Resolution | 800 × 800 | pixels |
| Viewing Direction | Free | - |
| Touch Mode | None | - |
| Module Dimensions | 99.0 × 96.6 × 3.98 | mm |
| Viewing Area | 87.6 × 87.6 | mm |
| Supply Voltage | 1.8 | V |
| Interface | MIPI 3-lane | - |
| Luminance | 350 | cd/m² |
| Driver IC | ILI9881C + HX8526-E30 | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
