3.5" TFT Display 320x240 - RGB

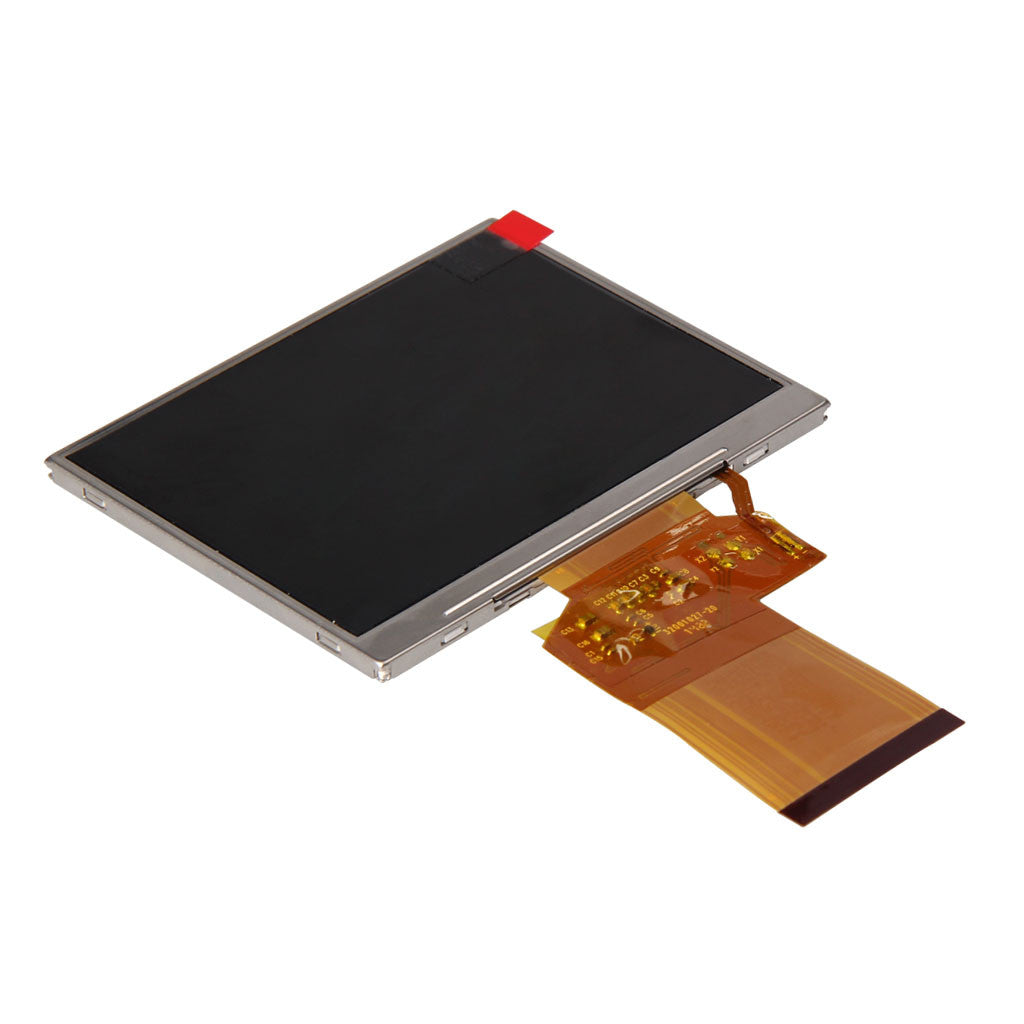

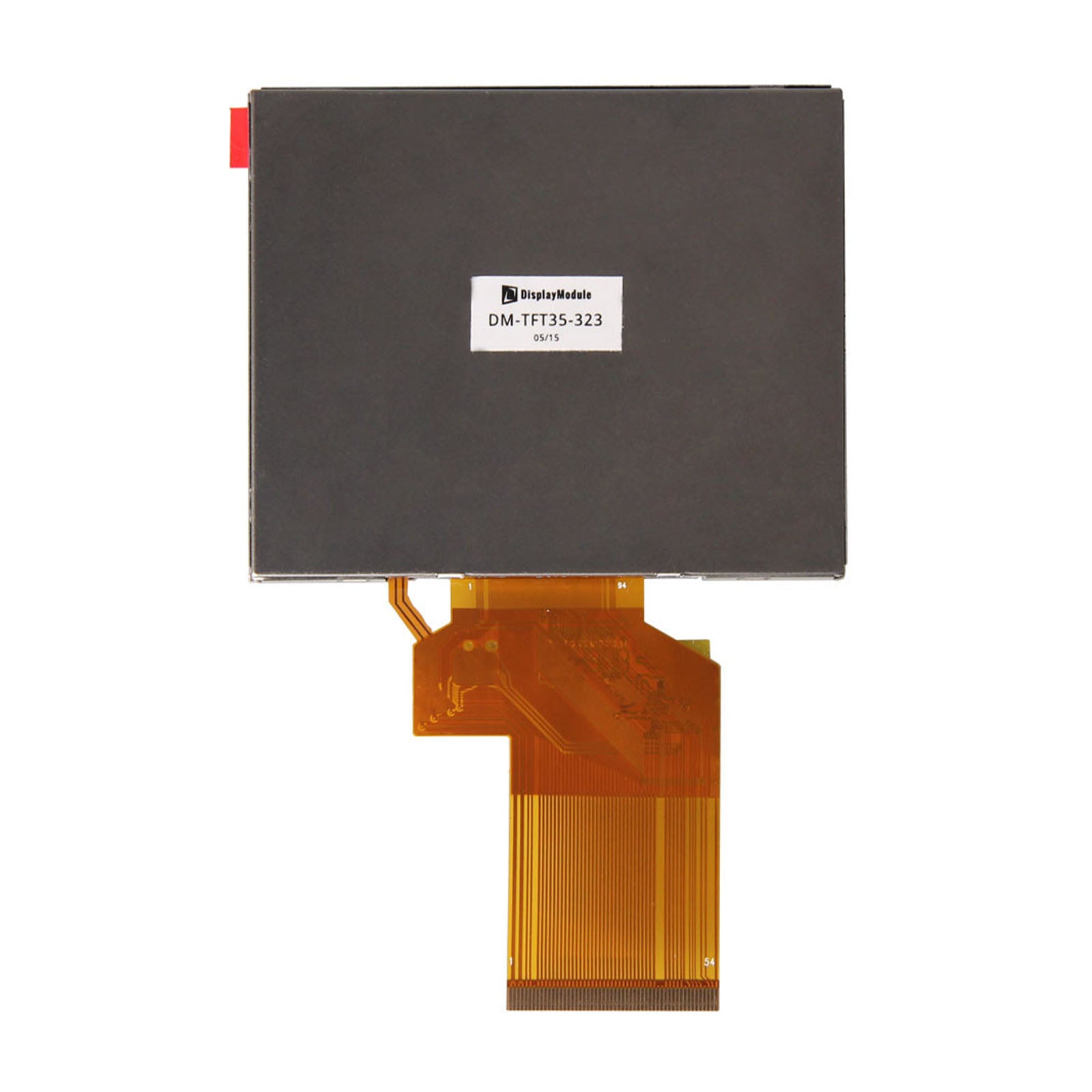

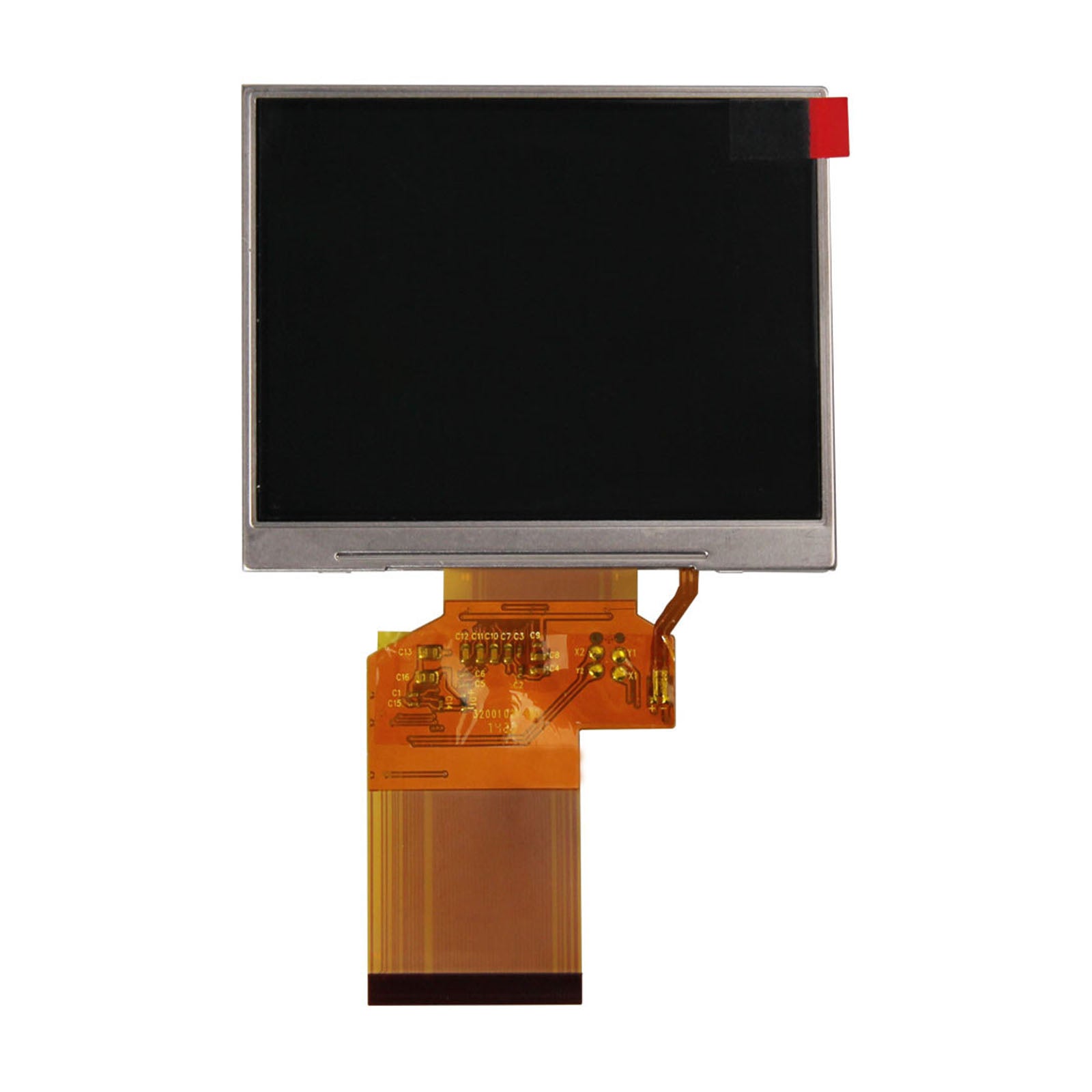

The 3.5" TFT Display 320x240 - RGB (model DM-TFT35-323) delivers crisp 320×240 resolution with 420 cd/m² brightness through its 24-bit RGB interface. Engineered for reliability in demanding environments, this 3.45-inch display features a specialized 12 o'clock viewing angle and industrial-grade temperature tolerance.
Powered by the HX8238-A driver IC, this display integrates charge pump, VCOM generator, and gamma correction circuits in a single chip solution. The compact 76.9×63.9×3.26mm module fits space-constrained designs while delivering 262K colors with precise control over contrast and brightness parameters.
- Industrial Durability: Operates from -20°C to +70°C with storage tolerance from -30°C to 80°C
- Power Efficiency: Sleep mode consumption as low as 50μA with optimized charge pump circuitry
- Flexible Control: SPI interface for real-time adjustment of contrast, brightness and gamma settings
- Multiple Interfaces: Supports parallel RGB (24-bit), serial RGB (8-bit), CCIR656 and YUV modes
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 3.45 inch |
| Resolution | 320 × 240 pixels |
| Viewing Area | 70.08 × 52.56 mm |
| Module Dimensions | 76.9 × 63.9 × 3.26 mm |
| Luminance | 420 cd/m² |
| Viewing Direction | 12 o'clock |
| Interface | 24-bit RGB |
| Driver IC | HX8238-A |
| Supply Voltage | 3.3V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
For industrial and commercial applications, we offer customized display solutions with volume pricing advantages.
- Volume Discounts: Special pricing for orders exceeding 100 units with flexible payment terms
- Custom Configurations: Modified viewing angles, extended temperature ranges (-30°C to +85°C), and anti-glare treatments
- OEM Branding: Custom bezels, connector placements, and branding options for system integrators
Rugged display solution for factory automation equipment, PLC interfaces, and process monitoring panels requiring clear visibility in bright environments.
Reliable display for portable diagnostic equipment, patient monitors, and handheld instruments where consistent color accuracy is critical.
Dashboard displays for fleet management, vehicle telematics, and public transit information systems operating in temperature-variable environments.
Integration Notes: This display requires no initialization code and features automatic content recognition. Compatible with 3.3V systems and supports SPI control for parameter adjustment.
Documentation: Display Module Datasheet (PDF) | HX8238-A Controller Datasheet (PDF)
Mechanical Dimensions
