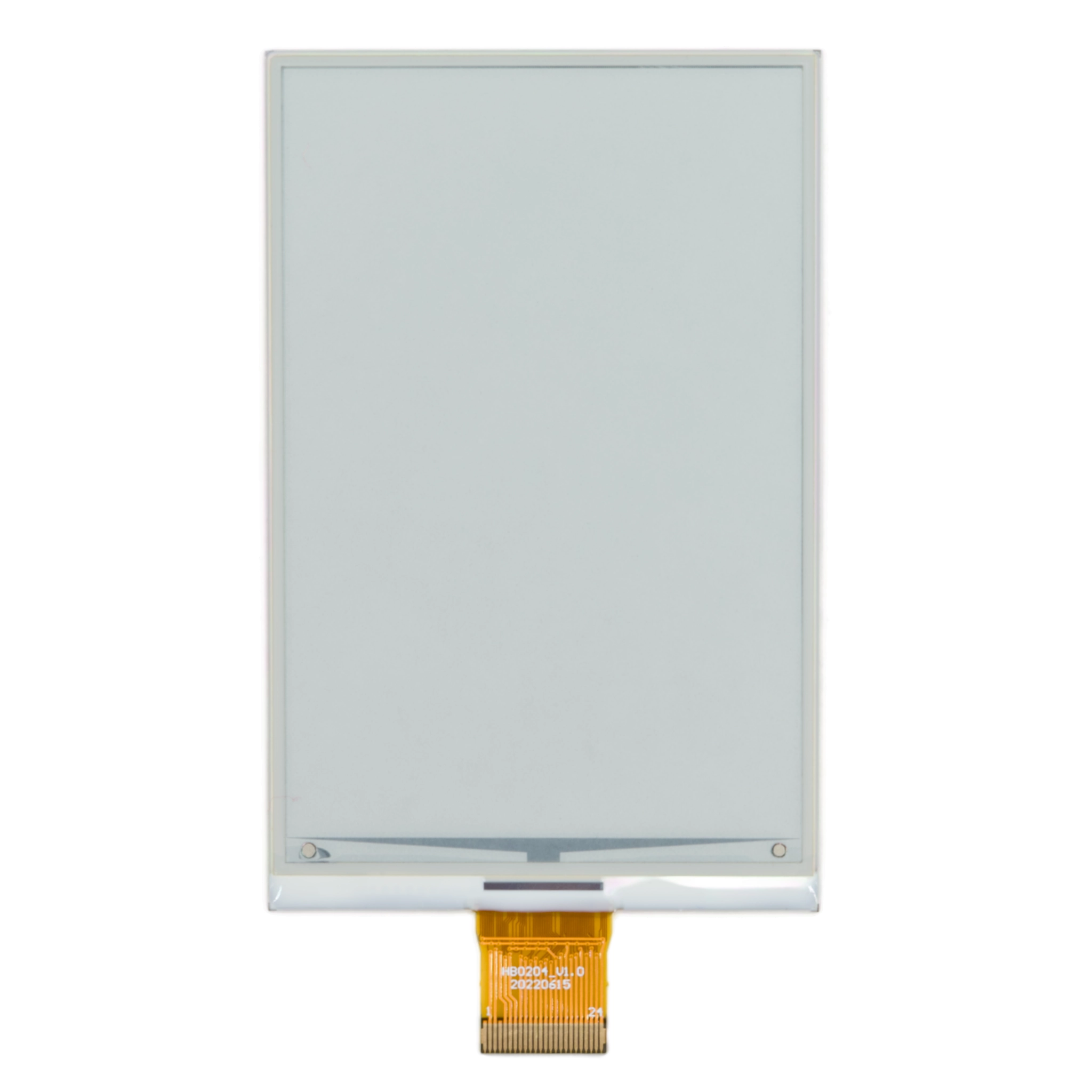

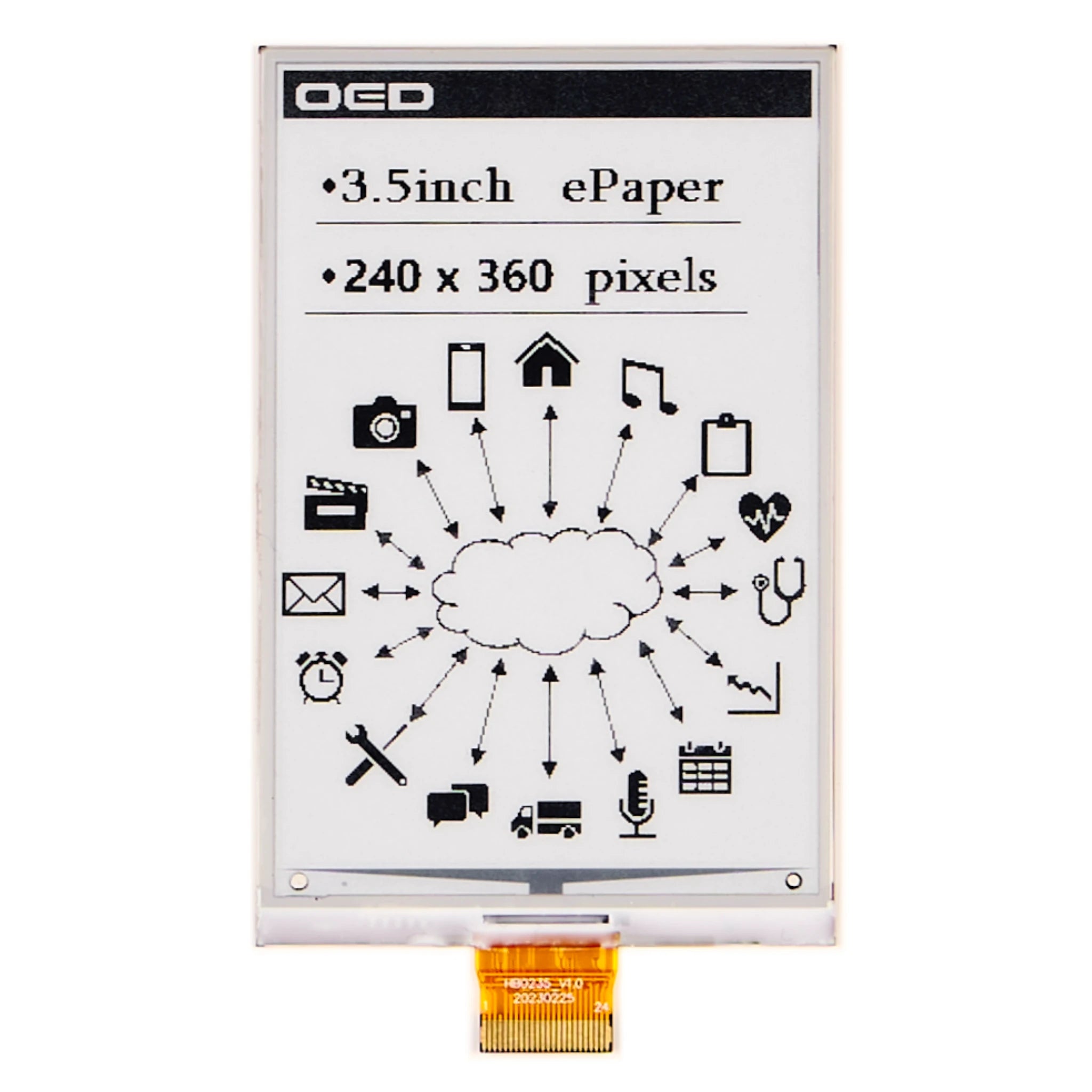

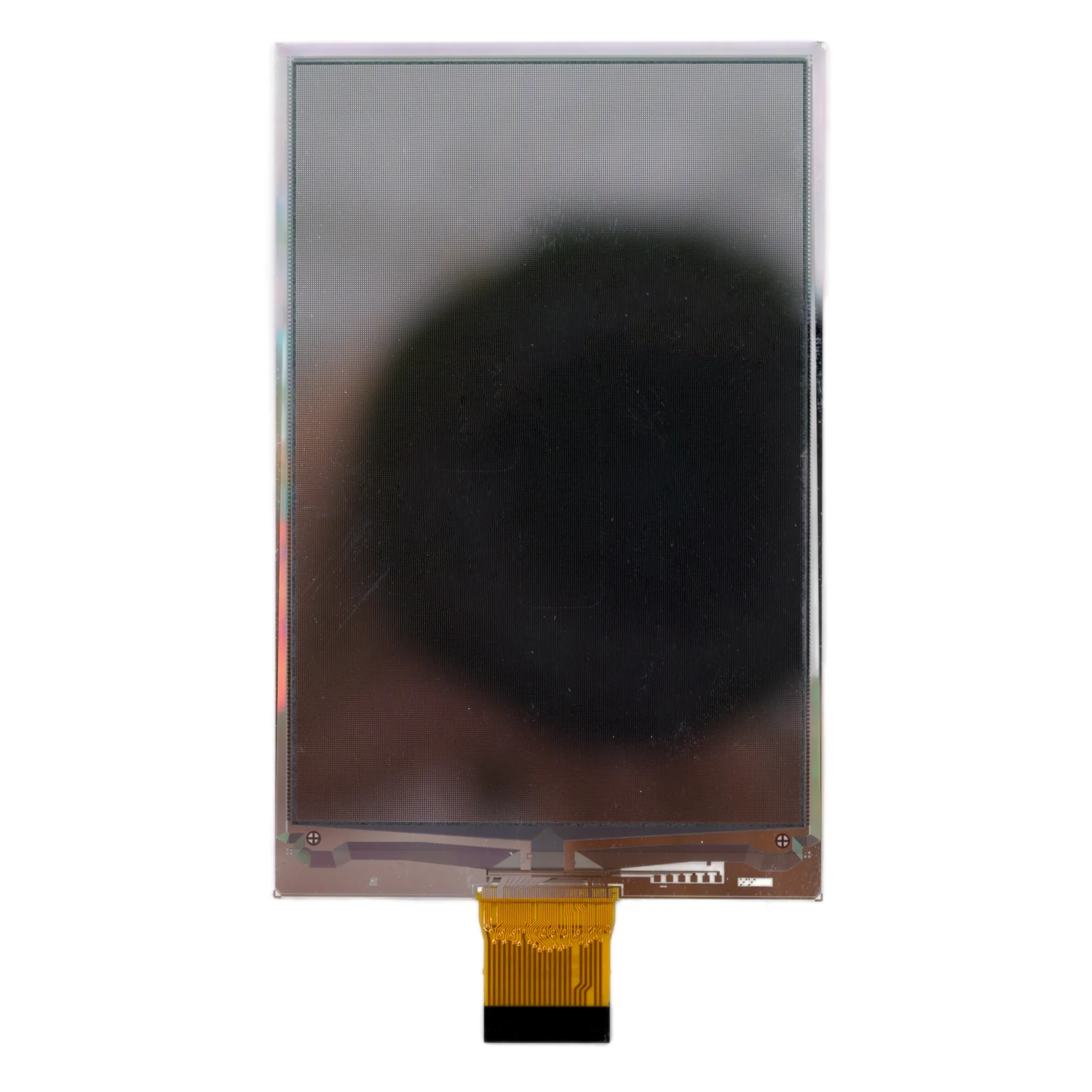

3.5" AM EPD Display 240×360 | DMAYE03501JNA
The DMAYE03501JNA is a 3.5-inch Active Matrix Electrophoretic Display (AM EPD) with a resolution of 240×360 pixels. Featuring pure reflective mode, ultra-wide viewing angles, and ultra-low power consumption, this display is ideal for portable electronic devices such as Electronic Shelf Label (ESL) systems. It integrates on-chip display RAM, booster, regulator control, oscillator, and supports both 4-wire and 3-wire SPI interfaces. The module’s bi-stable display technology ensures image retention without continuous power, making it highly energy-efficient.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 3.52 | inch |
| Display Resolution | 240 × 360 | pixels |
| Display Mode | Pure Reflective / Bi-stable | - |
| Active Area | 49.670 × 74.505 | mm |
| Pixel Pitch | 0.2069 × 0.2069 | mm |
| Pixel Configuration | Square | - |
| Outline Dimensions | 84.7 × 54.41 × 0.82 | mm |
| Weight | 8.2 | g |
| Interface | 4-wire SPI / 3-wire SPI | - |
| White Reflectivity | ≥ 45% | - |
| Contrast Ratio | ≥ 20:1 | - |
| Typical Power Consumption | 12 | mW |
| Deep Sleep Mode Power | 1 | µW |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMAYE03501JNA
