3.5" IPS Display 320x240 Capacitive - RGB
3.5" IPS Display 320x240 Capacitive - RGB
SKU:DM-TFT35-371
Regular price
$44.90 USD
Regular price
Sale price
$44.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

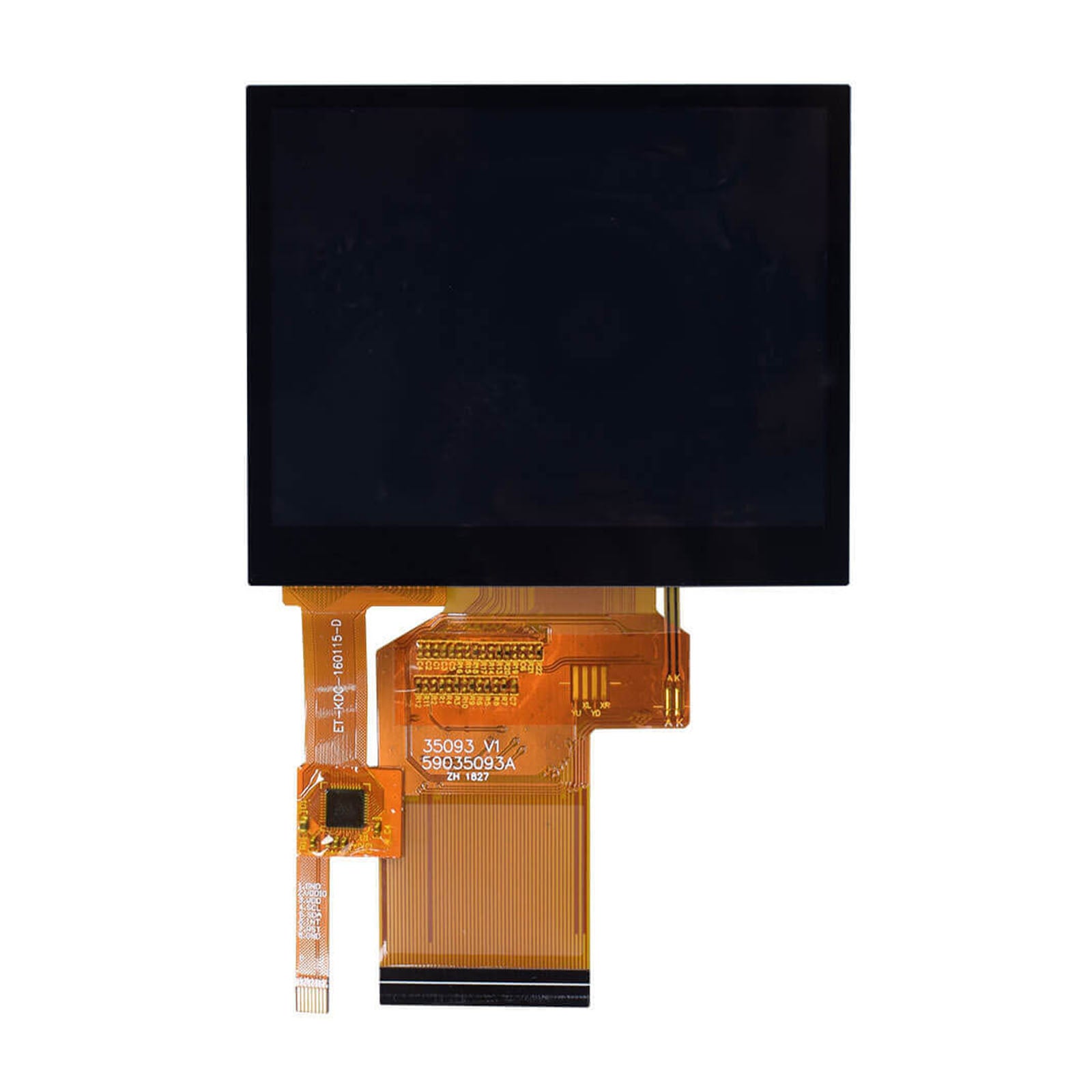

![3.5-inch IPS display panel with 320x240 resolution, capacitive touch functionality, and RGB interface](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-371face.jpg?v=1659144710&width=1445)

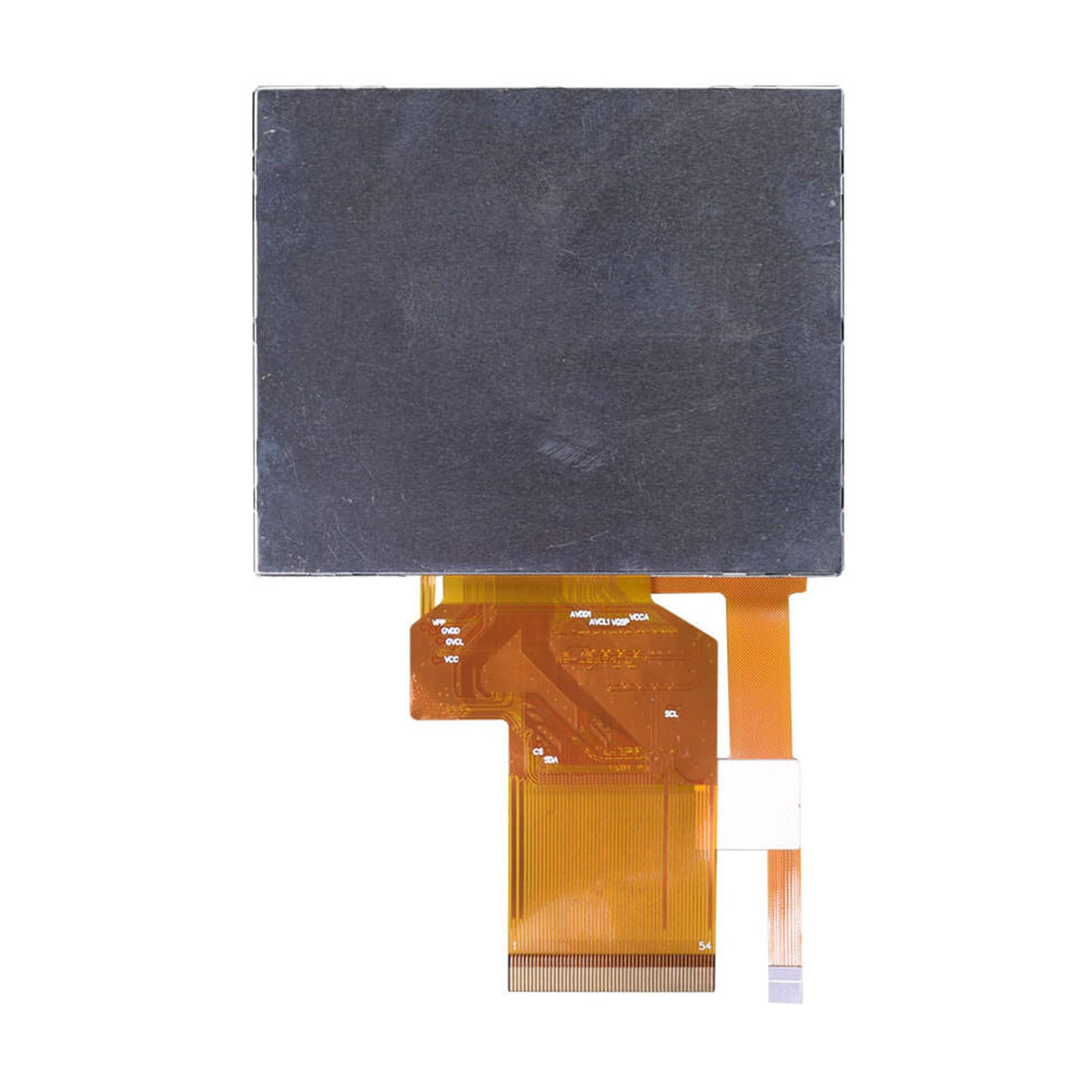

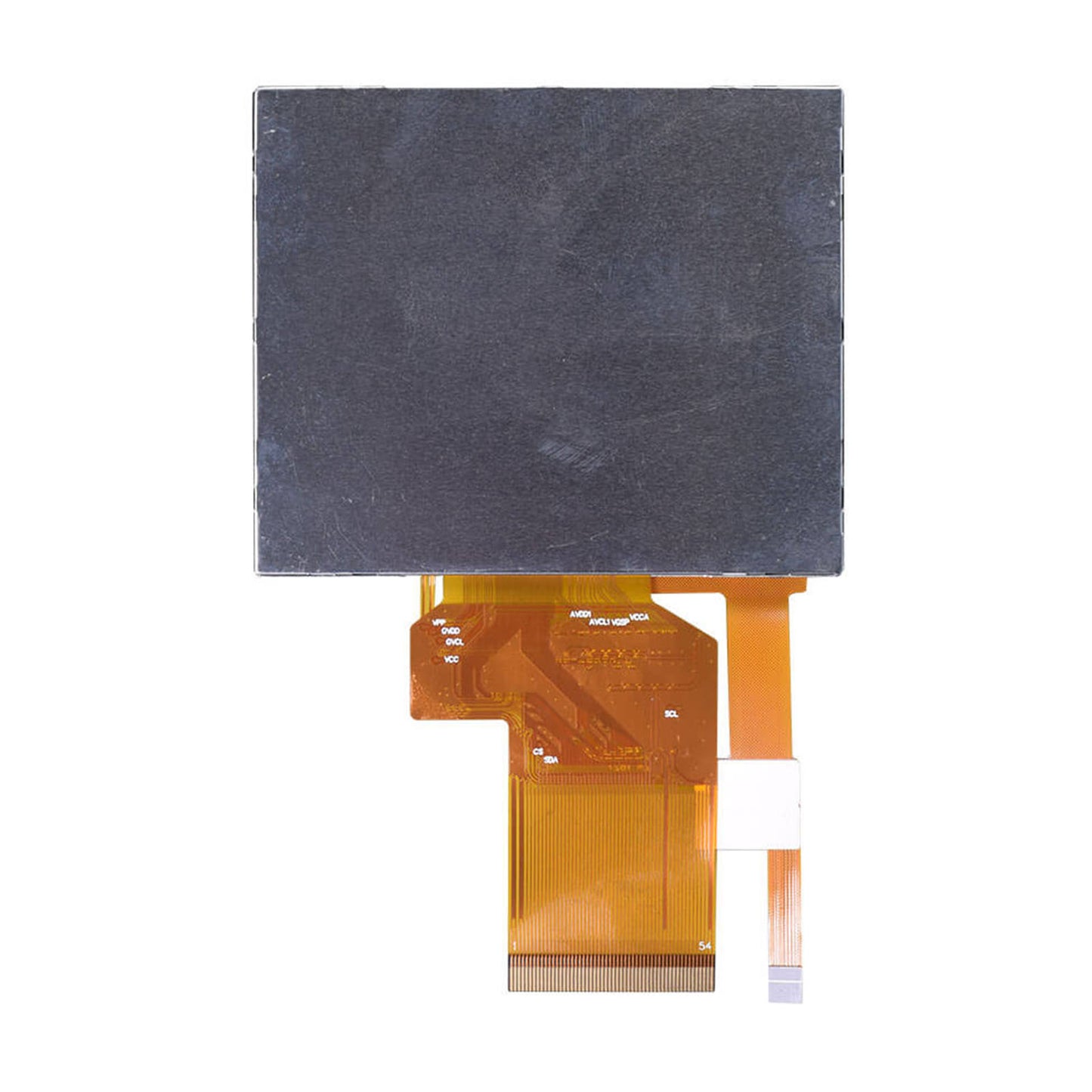

![back of 3.5-inch IPS display panel with 320x240 resolution](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-371back.jpg?v=1659144710&width=1445)

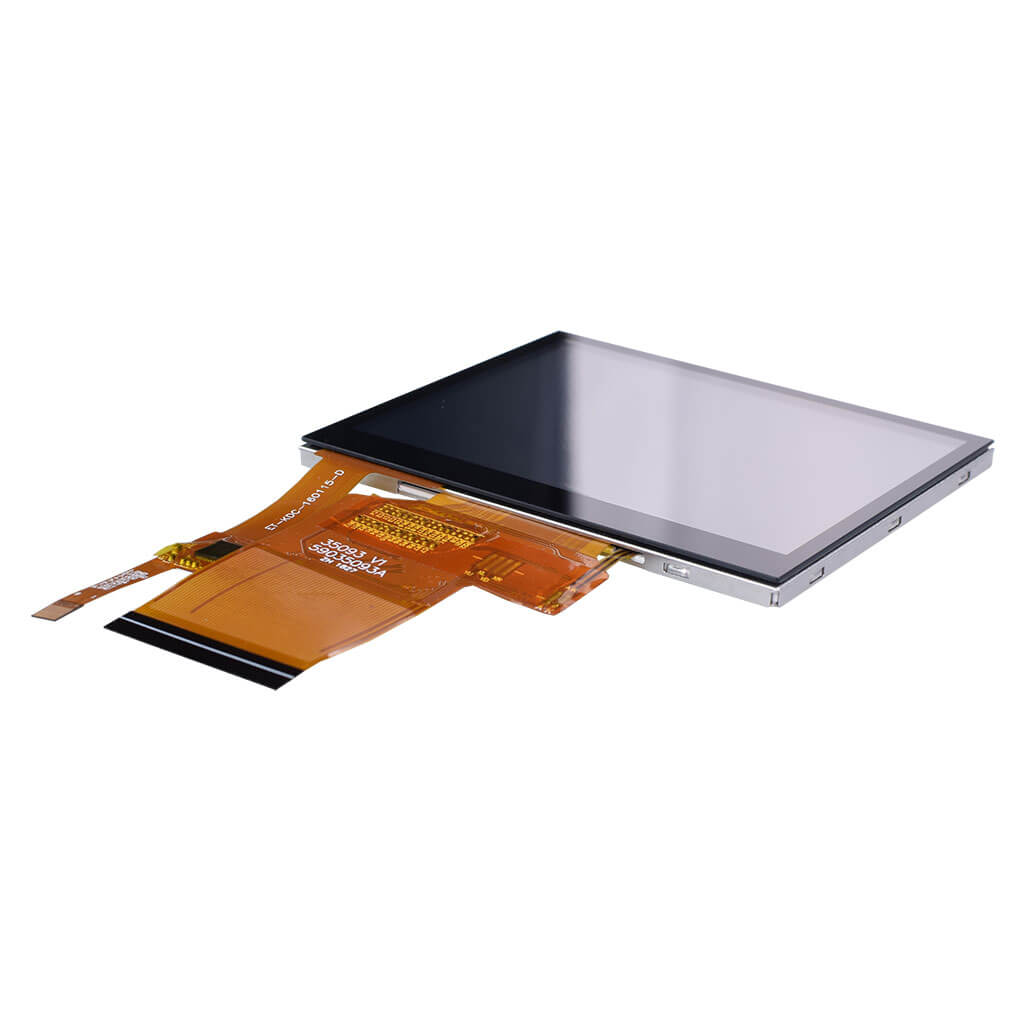

![top view of 3.5-inch IPS display panel with 320x240 resolution](http://www.displaymodule.com/cdn/shop/products/side_b2bee81f-19b7-445b-baaa-43e5ed0360c7.jpg?v=1659144710&width=1445)
Display Specifications
- Diagonal Dimension : 3.5 inch
- Resolution : 320(RGB) x 240 pixel
- View Direction : All
- Touch Mode : Single points and Gestures
- Module Dimension : 76.9 x 63.9 x 4.4 mm
- Viewing Area : 70.08 x 52.56 mm
- Supply Voltage : 3.3 V
- Interface : 24bit RGB
- Luminance : 470 cd/m2
- Drive IC : ST7272A FT6336G
- Operation Temperature : -30℃~85℃
- Storage Temperature : -40℃~85℃
Dimensions
![](http://cdn.shopify.com/s/files/1/0264/7629/files/TFT35-371_b47162b9-c316-4021-9c22-792674c547d4.jpg?v=1537514961)
Resources
- DM-TFT35-371
- Display Controller:ST7272A-V0.3
- CTP Controller: FT6336G-V1.0
