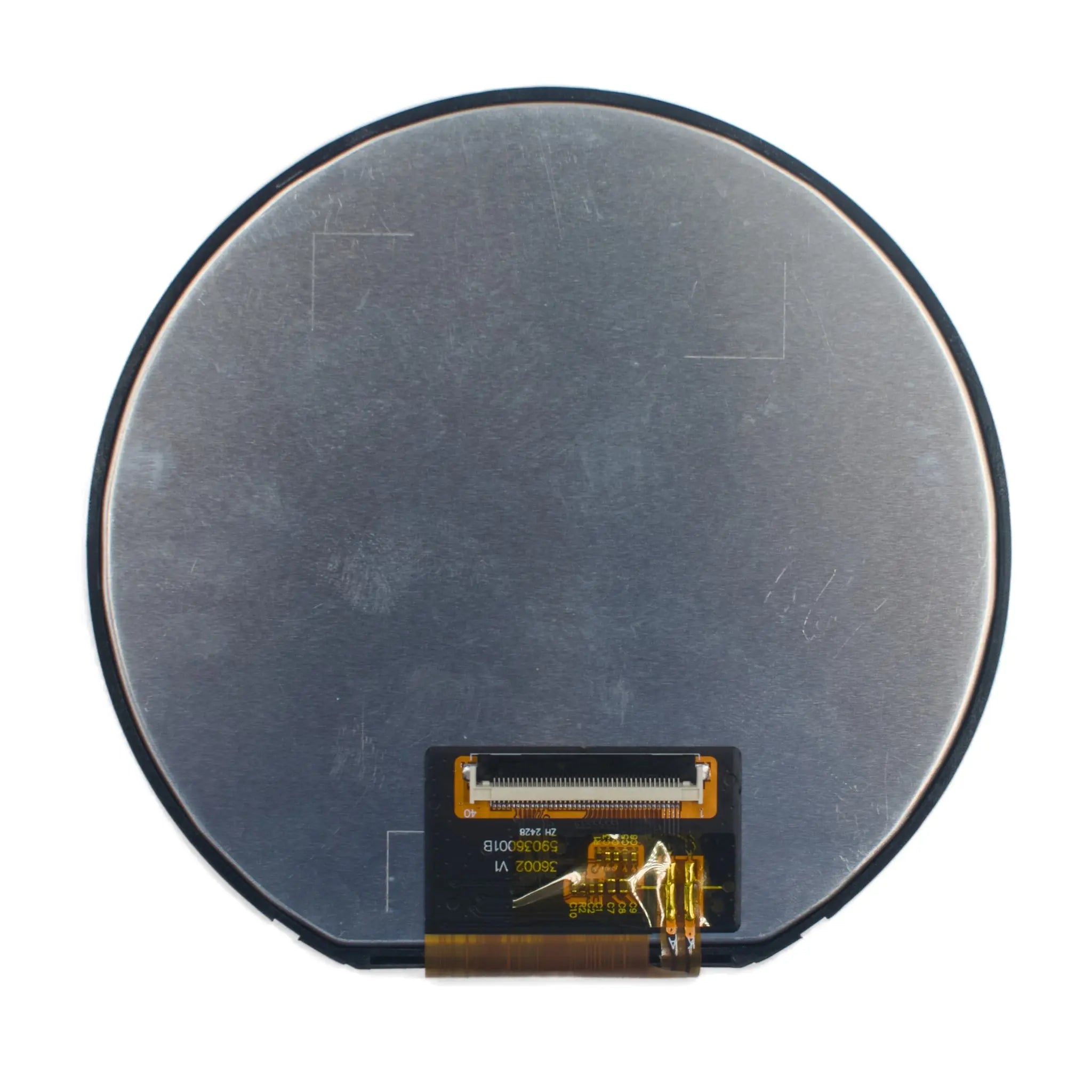

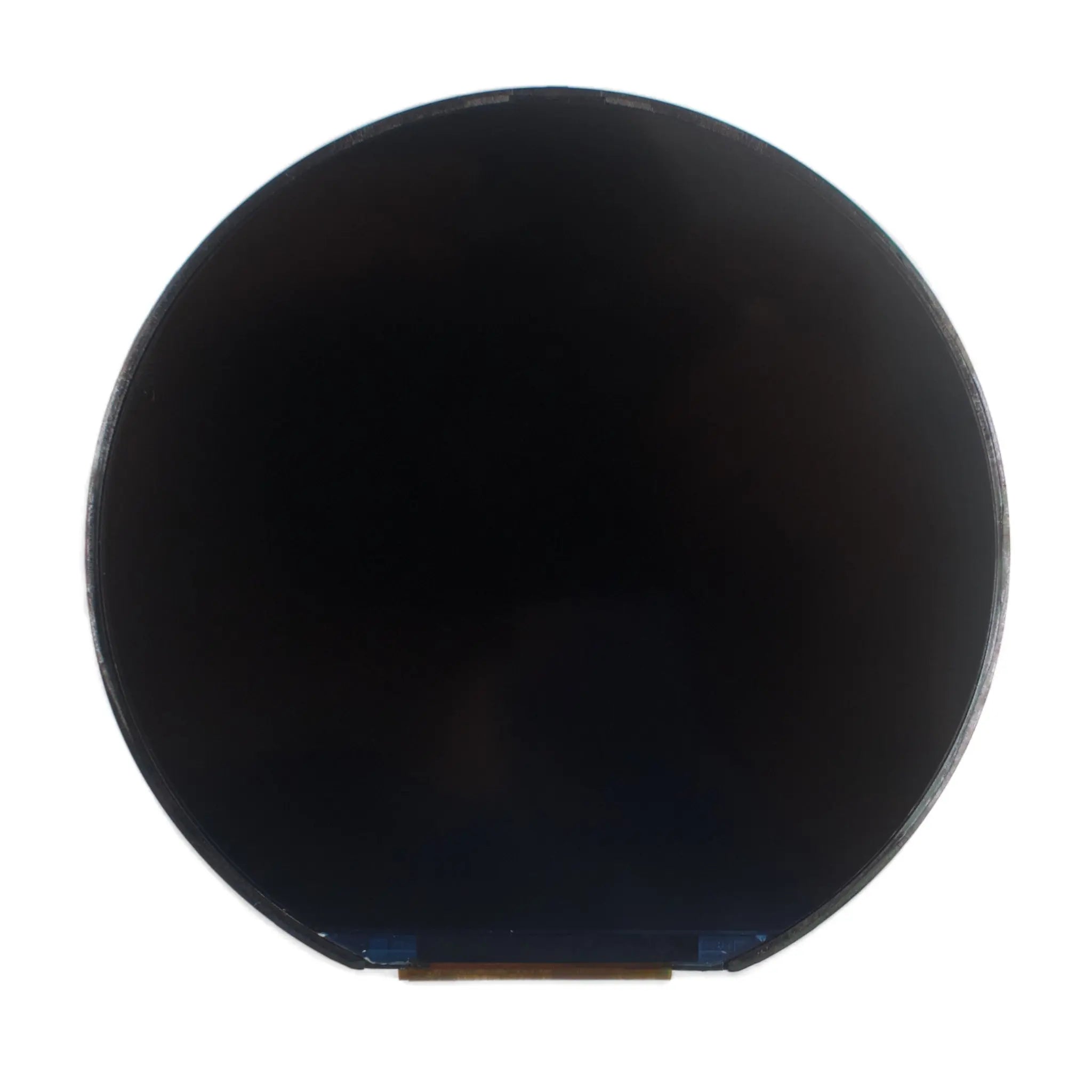

3.6" TFT LCD Display 544×506 – RGB Interface
Experience crystal-clear visuals with this 3.6-inch TFT LCD display featuring 544×506 resolution and 24-bit RGB interface. Engineered for industrial applications requiring reliable performance in extreme temperatures from -35°C to +85°C.
Built with amorphous silicon TFT technology and ST72566 driver IC, this display delivers exceptional 1200:1 contrast ratio and 85° viewing angles in all directions. The transmissive normally black design ensures optimal readability in various lighting conditions.
- High-Brightness Backlight: 900-1300 cd/m² LED illumination with 50,000-hour lifespan
- Robust Construction: Compact 98.88×94.12×7.71mm module weighing just 79g
- Multiple Sync Modes: Supports SYNC, SYNC-DE, and DE mode operation
- Wide Voltage Range: 3.1V to 3.6V operation with 35mA typical current consumption
| Parameter | Specification |
|---|---|
| Display Area | 89.76 × 83.49 mm |
| Pixel Pitch | 0.055(H) × 0.165(V) mm |
| Contrast Ratio | 1200:1 (Typical) |
| Response Time | 40ms (Tr+Tf) |
| Color Gamut | 55% NTSC |
| Viewing Angle | 85°/85°/85°/85° (L/R/U/D) |
| Power Supply | 3.3V ±0.3V |
| Backlight Voltage | 16V (Typical) |
| Clock Frequency | 20MHz (Typical) |
We provide customized display solutions for OEM and ODM projects with flexible mounting options and interface adaptations.
- Bulk Order Programs: Volume pricing and customized configurations for large-scale deployments
- Custom Interface Support: Adaptation for various microcontroller and processor interfaces
- Extended Temperature Versions: Specialized variants for extreme environment applications
Rugged display solution for factory automation, PLC interfaces, and industrial monitoring systems requiring wide temperature operation.
High-reliability displays for patient monitoring devices, diagnostic equipment, and portable medical instruments.
Dashboard displays, rear-seat entertainment systems, and automotive instrumentation with extended temperature tolerance.
Technical Notes: Proper power sequencing is critical for module longevity. Follow specified power-on/off sequences: VDD stabilization → DISP signal activation (10ms delay) → Backlight power (250ms delay).
Resources: Download complete technical documentation
Mechanical Dimensions
