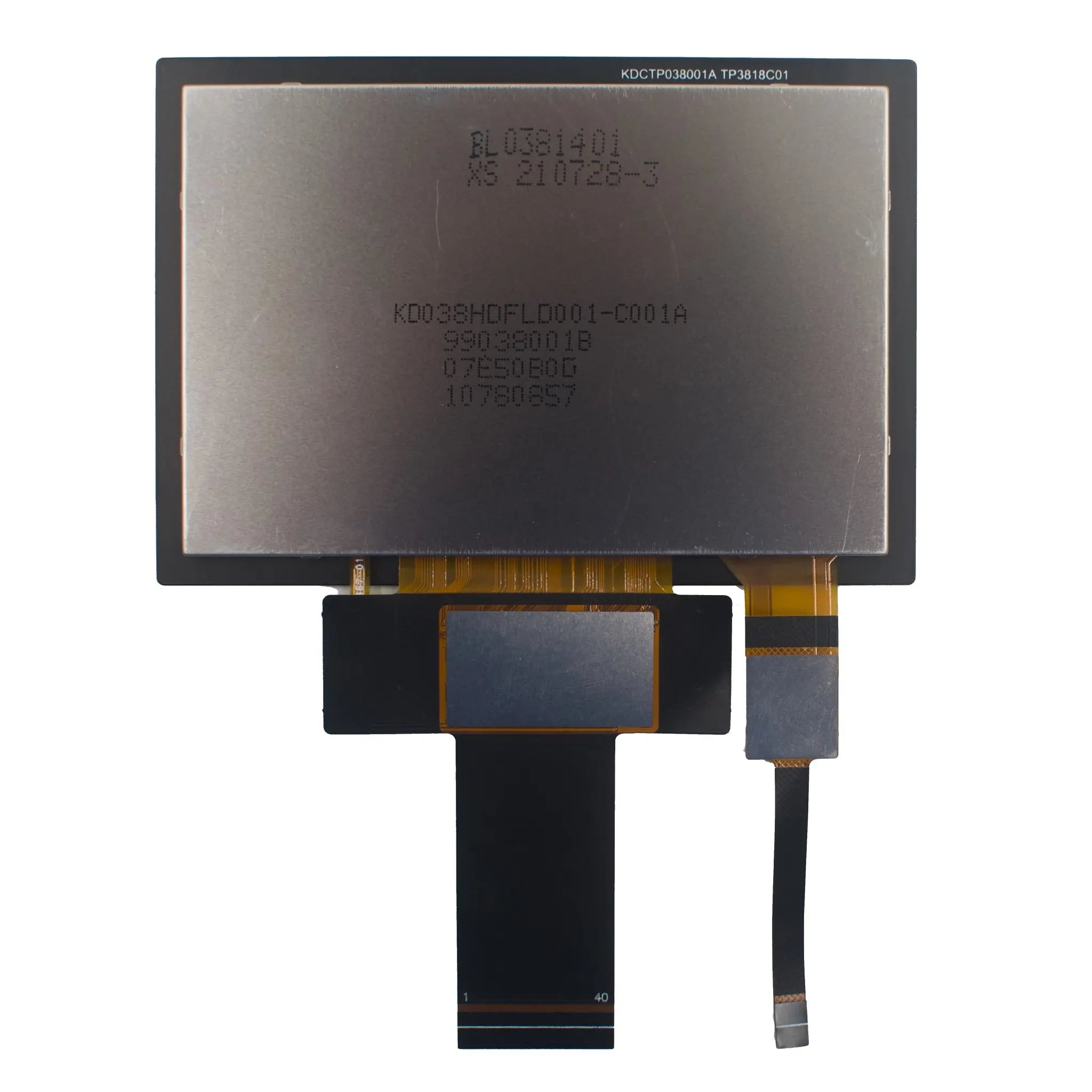

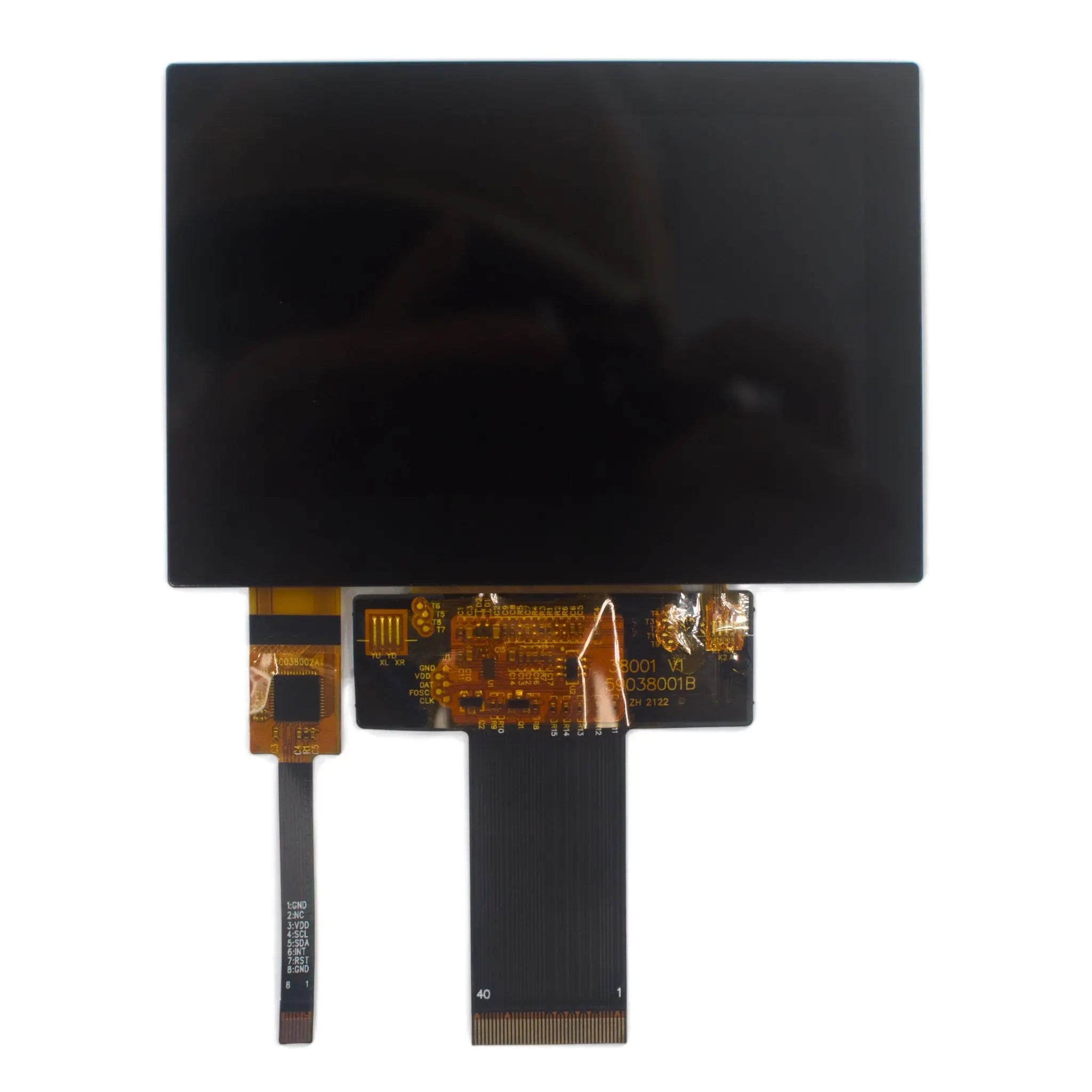

3.8" 1024×600 TFT LCD Display with 16.7M Colors – LVDS Interface
A high-performance 3.8-inch TFT LCD display featuring 1024×600 resolution with 16.7 million colors, delivering crisp visuals comparable to premium tablet displays. The transmissive, normally black display mode ensures excellent contrast ratios up to 1000:1 for optimal viewing in various lighting conditions.
Engineered with amorphous silicon TFT technology, this display module combines a compact 3.8-inch form factor with industrial-grade reliability. The JD9168 controller IC ensures stable performance while supporting both 6-bit and 8-bit LVDS interfaces for flexible integration.
- High Brightness: 800 cd/m² typical brightness with 80% uniformity ensures clear visibility in bright environments
- Wide Viewing Angles: 85° horizontal and vertical viewing angles provide consistent color from multiple positions
- Fast Response: 30ms rise time and 45ms fall time eliminate motion blur for dynamic content
- Integrated Touch: Optional 5-point capacitive touch panel with GT911 controller for interactive applications
| Technical Parameter | Specification |
|---|---|
| Display Type | TFT LCD, Transmissive/Normally Black |
| Screen Size | 3.8 inches (diagonal) |
| Resolution | 1024 (RGB) × 600 pixels |
| Pixel Pitch | 0.0807 × 0.0807 mm |
| Active Area | 82.64 × 48.42 mm |
| Module Dimensions | 97.92 × 67.93 × 4.81 mm |
| Weight | 60 grams |
| Interface | 6BIT/8BIT LVDS |
| Controller IC | JD9168 |
| Operating Voltage | 3.3V typical (2.5V-6.6V range) |
| Operating Temperature | -20°C to +70°C |
| Backlight Type | 14-chip White LED, edge lighting |
| Backlight Lifetime | 50,000 hours (to 50% brightness) |
For industrial and commercial applications, we offer customized display solutions with flexible integration options and volume pricing for large-scale deployments.
- Custom Configurations: Modified firmware, alternative touch controllers, and specialized bonding options available
- Volume Pricing: Competitive pricing structures for OEMs and system integrators with minimum quantity commitments
- Technical Support: Comprehensive documentation and engineering support for seamless integration into your products
- Quality Assurance: All modules undergo rigorous testing with AQL 0.65 for major defects and 1.5 for minor defects
Compact display solution for industrial control panels, PLC interfaces, and manufacturing equipment with reliable performance in harsh environments.
High-resolution display for portable medical equipment, patient monitors, and diagnostic devices requiring precise color reproduction.
Rugged display for automotive infotainment, navigation systems, and rear-seat entertainment with wide temperature tolerance.
Compact high-resolution display for portable devices, smart home controls, and embedded systems requiring premium visual quality.
Technical Notes: The display supports standard LVDS timing with 51MHz pixel clock and 60Hz refresh rate. Compatible with industrial PCs, embedded systems, and custom controllers with LVDS output capability.
Resources: Download complete technical documentation
Mechanical Dimensions
