3.59" High PPI FFS TFT Display - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
3.59" High PPI FFS TFT Display - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

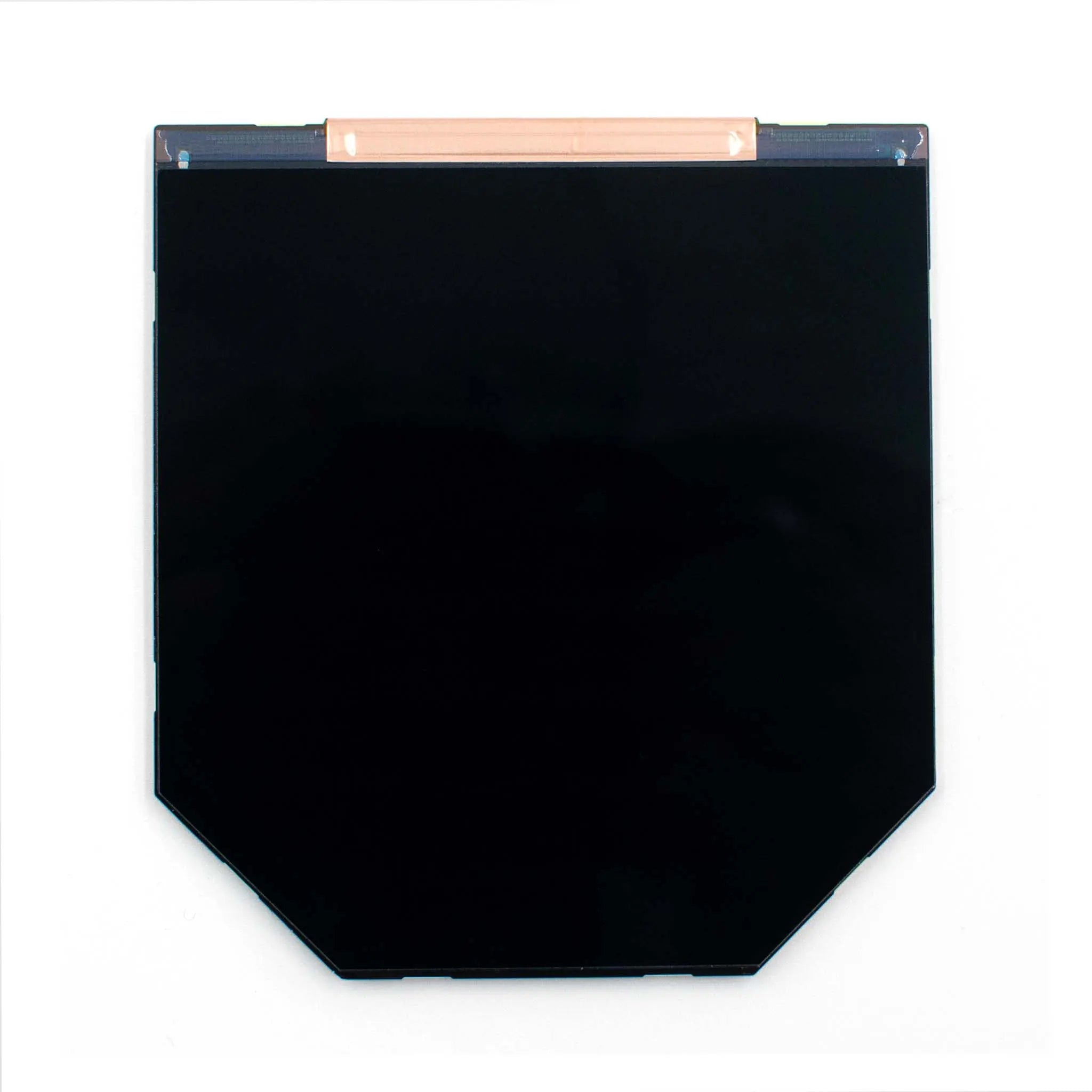

3.95" High PPI FFS TFT Display - MIPI
The 3.95-inch TFT LCD display delivers an ultra-high resolution of 3840 × 3744 pixels with a staggering 1512 PPI (pixels per inch), equivalent to the clarity of a high-end smartphone screen but packed into a compact form factor. Engineered with LTPS (Low-Temperature Polycrystalline Silicon) and FFS (Fringe Field Switching) technology, it ensures vibrant colors, wide viewing angles, and low power consumption—ideal for applications where precision and efficiency are critical.
Featuring the NT57900 driver IC and a 2-port C-PHY interface compatible with MIPI standards, this display supports DSC (Display Stream Compression) for seamless data transmission without quality loss. The active area of 62.8992 × 64.512 mm provides a generous viewing space, while the module size of 67.8 × 74.312 × 2.2 mm ensures easy integration into slim devices.
- High Brightness and Contrast: With 16.7 million colors, the display offers true-to-life imagery, making it suitable for medical imaging or industrial monitoring where color accuracy is paramount.
- Robust Interface: The C-PHY interface with 6 trios enables high-speed data transfer, reducing latency in AR/VR applications.
- Compact Design: The slim profile (2.2 mm thickness) allows for embedding into wearable devices or optical modules without adding bulk.
- Energy Efficient: LTPS technology minimizes power consumption, extending battery life in portable systems.
| Parameter | Specification |
|---|---|
| Screen Size | 3.95 inch |
| Display Mode | FFS |
| Resolution | 3840 × 3744 pixels |
| Pixel Density | 1512 PPI |
| Technology | LTPS |
| Active Area | 62.8992 × 64.512 mm |
| Module Size | 67.8 × 74.312 × 2.2 mm |
| Display Colors | 16.7 million |
| Interface | 2-Port C-PHY (MIPI 6 Trios + DSC) |
| Driver IC | NT57900 |
The precise mechanical layout ensures compatibility with standard mounting systems. Below is the dimensional drawing for integration reference:
We offer customized display solutions for businesses requiring high-volume orders or tailored specifications. Whether you need modifications for specific environments or white-label options, our team provides end-to-end support.
- Bulk Procurement: Volume discounts for orders above 100 units, with flexible payment terms and logistics support.
-
Customization Services:
67.8 × 74.312 × 2.2 mm Display Colors 16.7 million Interface 2-Port C-PHY (MIPI 6 Trios + DSC) Driver IC NT57900 Mechanical DimensionsThe precise mechanical layout ensures compatibility with standard mounting systems. Below is the dimensional drawing for integration reference:
We offer customized display solutions for businesses requiring high-volume orders or tailored specifications. Whether you need modifications for specific environments or white-label options, our team provides end-to-end support.
- Bulk Procurement: Volume discounts for orders above 100 units, with flexible payment terms and logistics support.
- Customization Services: Adjustments to brightness, interface, or form factor to meet unique project needs, such as military-grade durability or medical sterilization compliance.
- OEM/ODM Partnerships: Full technical collaboration for integrating the display into your products, including driver optimization and quality assurance.
With ultra-high PPI and low latency, this display delivers immersive experiences in virtual reality headsets or augmented reality glasses, where pixel-level clarity reduces the "screen door" effect.
Ideal for scientific visualization, such as microscope interfaces or satellite imaging, where 3840 × 3744 resolution reveals fine details without blurring.
Used in medical devices like endoscopes or industrial sensors, the compact size and high accuracy support critical real-time monitoring.
Technical Notes: This display operates optimally with MIPI C-PHY compatible sources. Ensure proper heat dissipation in confined spaces to maintain performance. Certification includes RoHS and CE standards.
Resources: Download Datasheet (PDF) | View Dimensional Drawing
Mechanical Dimensions
