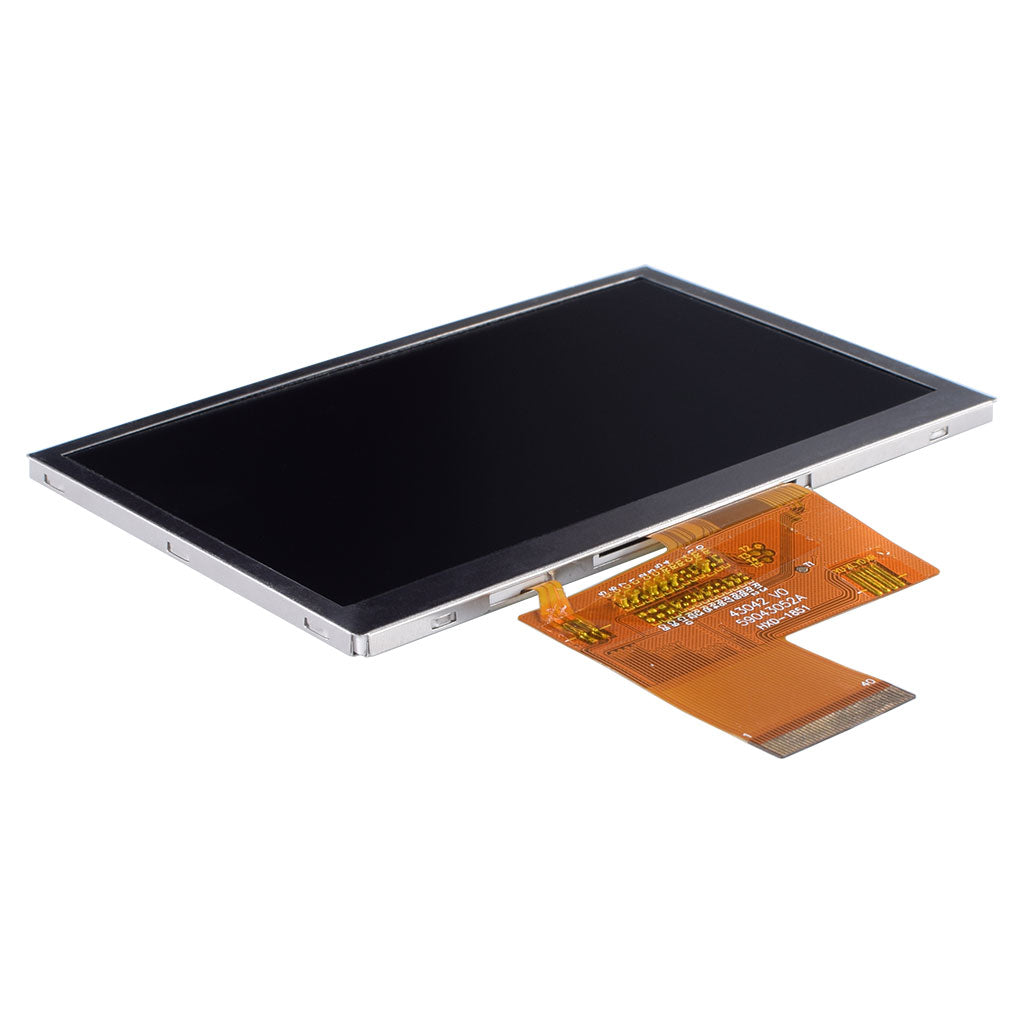

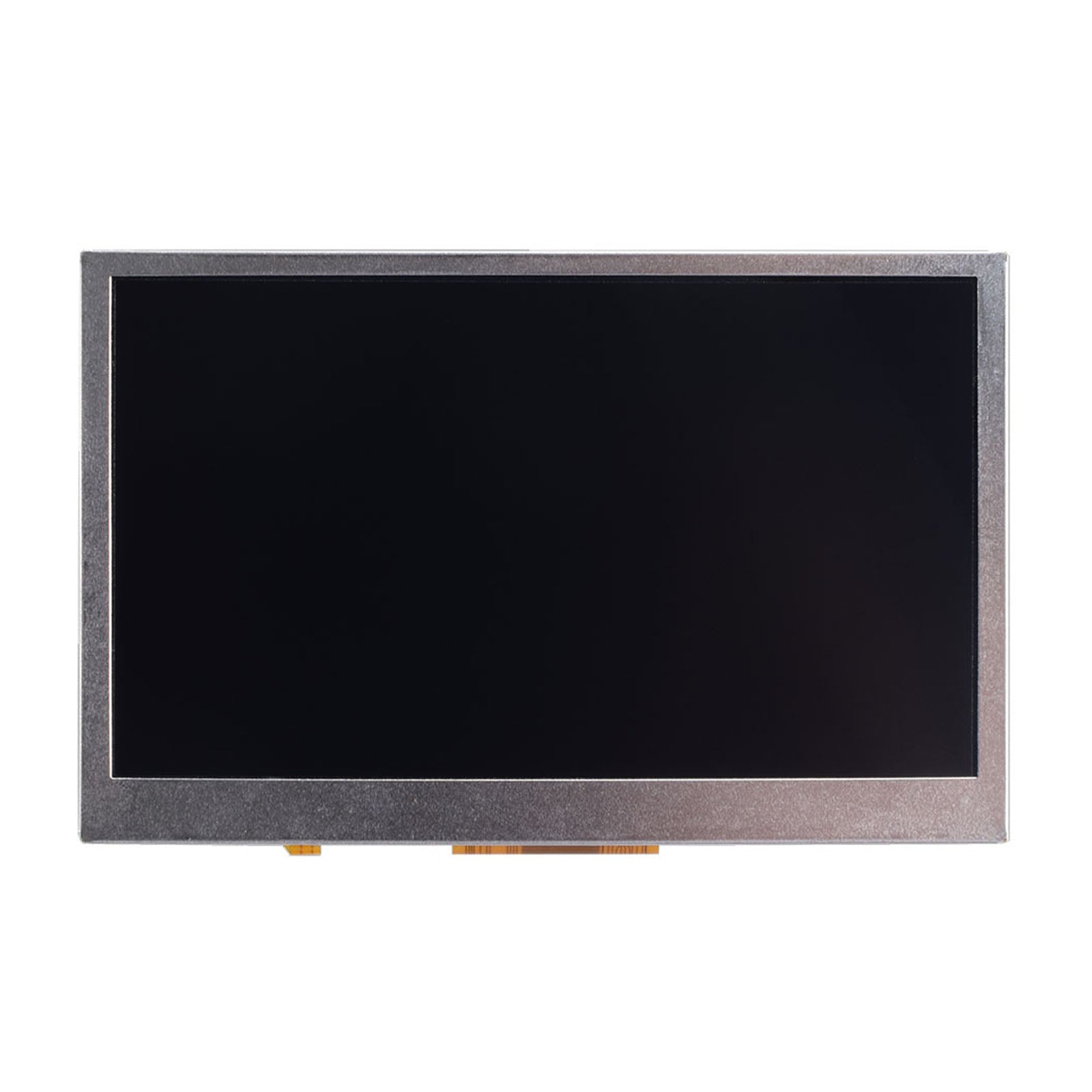

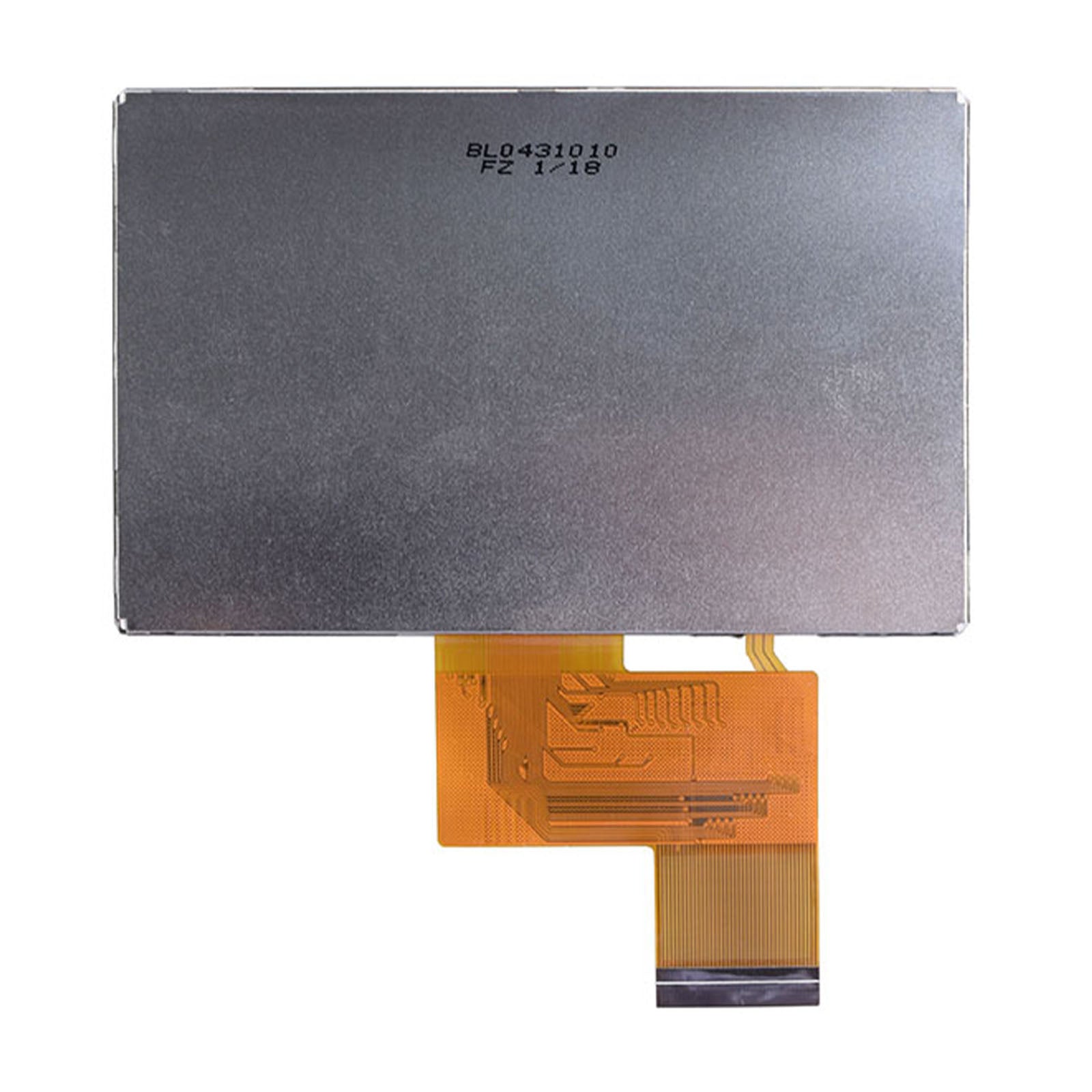

4.3" IPS High Brightness Display 480x272 - RGB
Professional-grade 4.3-inch IPS display delivering exceptional 900 cd/m² brightness with 480×272 resolution. Engineered for industrial applications with SC7283 controller supporting 8/24-bit RGB interface for superior image quality.
Featuring IPS technology with all-direction viewing angles, this display maintains consistent color accuracy from any perspective. The compact module dimensions of 105.40×67.15×2.85mm with 95.04×53.86mm active area make it ideal for space-constrained applications.
- Wide Temperature Range: Operational from -30℃ to 85℃, ensuring reliability in harsh industrial environments.
- High Contrast Ratio: Delivering crisp 800:1 contrast for superior image clarity and depth.
- Flexible Interface: Supports both 8-bit and 24-bit RGB input with SC7283 advanced display controller.
- Robust Construction: Designed for continuous operation in demanding industrial applications.
| Technical Parameter | Specification |
|---|---|
| Display Type | IPS (In-Plane Switching) |
| Diagonal Size | 4.3 inch |
| Resolution | 480 × 272 pixels |
| View Direction | All directions |
| Module Dimensions | 105.40 × 67.15 × 2.85 mm |
| Active Area | 95.04 × 53.86 mm |
| Pixel Pitch | 0.198 × 0.198 mm |
| Brightness | 900 cd/m² (typical) |
| Contrast Ratio | 800:1 (typical) |
| Interface | 8/24-bit RGB |
| Supply Voltage | 3.3V |
| Drive IC | SC7283 |
| Operating Temperature | -30℃ to 85℃ |
| Storage Temperature | -30℃ to 85℃ |
| Touch Function | None |
We provide comprehensive display solutions for industrial and commercial applications with customization options and volume pricing.
- Custom Configuration: Tailored solutions including specific bonding, connector types, and optical enhancements to meet unique application requirements.
- Volume Pricing: Competitive wholesale pricing for OEM and ODM partners with minimum order quantities.
- Technical Support: Dedicated engineering support for integration and customization projects.
- Quality Assurance: Rigorous testing and quality control processes ensuring reliable performance in critical applications.
Perfect for factory automation systems, PLC interfaces, and control panels where high brightness and wide temperature operation are essential.
Ideal for patient monitoring devices, diagnostic equipment, and medical instruments requiring reliable display performance.
Suitable for in-vehicle infotainment systems, navigation displays, and commercial vehicle instrumentation panels.
Excellent for oscilloscopes, multimeters, and analytical instruments requiring clear visual data representation.
Technical Notes: The display requires 3.3V power supply and supports both sync and DE mode operation. Compatible with various processors and controllers through standard RGB interface.
Resources: Download Product Datasheet | Download Controller Documentation
