320x240 Graphic LCD 4.72" Industrial Blue - MCU

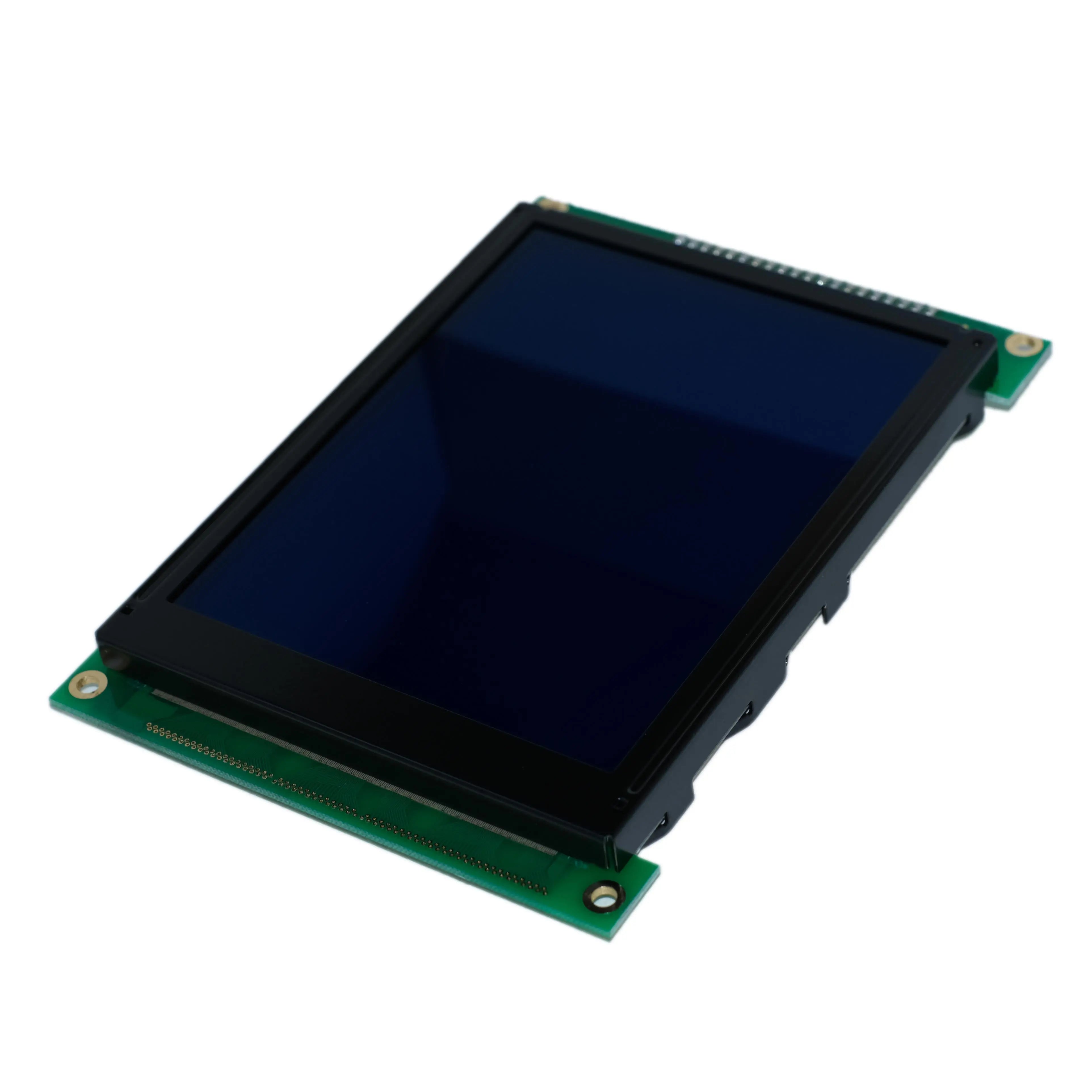

Engineered for industrial applications, this 4.72-inch graphic LCD module delivers crisp 320x240 resolution with STN negative blue transmissive display technology. The integrated RA8835 controller enables parallel MPU interface compatibility, supporting versatile embedded systems.
With an active area of 95.98 mm × 71.98 mm and pixel pitch of 0.30 mm × 0.30 mm, this module provides sharp imagery for data monitoring and user interfaces. The white LED backlight ensures consistent illumination with typical luminance of 560 cd/m² at 128 mA drive current.
- Industrial Durability: Operating temperature range of -20°C to +70°C and storage temperature from -30°C to +80°C for reliable performance in harsh environments.
- High Contrast Ratio: Typical contrast ratio of 3:1 with STN negative display mode for clear readability.
- Compact Design: Module dimensions of 139.0 mm × 100.0 mm × 13.1 mm (MAX) with lightweight construction.
- Parallel Interface: Supports both 8080 and 6800 series microprocessors through configurable pin connections (CON1 and CON2 options).
| Parameter | Specification |
|---|---|
| Resolution | 320 × 240 pixels |
| Display Mode | STN Negative, Blue, Transmissive |
| View Direction | 6:00 o'clock |
| Active Area | 95.98 mm × 71.98 mm |
| Pixel Pitch | 0.30 mm × 0.30 mm |
| Module Dimensions | 139.0 mm × 100.0 mm × 13.1 mm (MAX) |
| Power Supply | 5.0 V |
| Backlight | White LED |
| Interface | Parallel MPU Interface |
| Controller IC | RA8835 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Weight | TBD g |
We offer customized display solutions for OEM and bulk procurement needs. Our flexible approach supports integration into specialized industrial systems.
- Custom Configurations: Tailored interface options, backlight adjustments, and mechanical modifications to match specific application requirements.
- Volume Pricing: Competitive discounts for large-scale orders with dedicated technical support for seamless integration.
- Long-Term Supply Assurance: Stable manufacturing pipeline ensuring consistent availability for production cycles.
Monitoring and control interfaces for manufacturing equipment, PLC systems, and process automation with reliable visibility in factory environments.
Patient monitoring systems and diagnostic equipment where clear data display and consistent performance are critical.
Retail transaction systems requiring durable displays with wide viewing angles and long service life.
Compatibility Notes: The parallel interface supports both 8080 and 6800 microprocessor families through pin configuration. The RA8835 controller provides advanced features including layered display, smooth scrolling, and cursor control.
Application Scenarios: Ideal for embedded systems requiring graphic capabilities with minimal processor overhead. Suitable for both text and graphic display modes with configurable character sizes.
Resources: Download Complete Datasheet | RA8835 Controller Documentation
