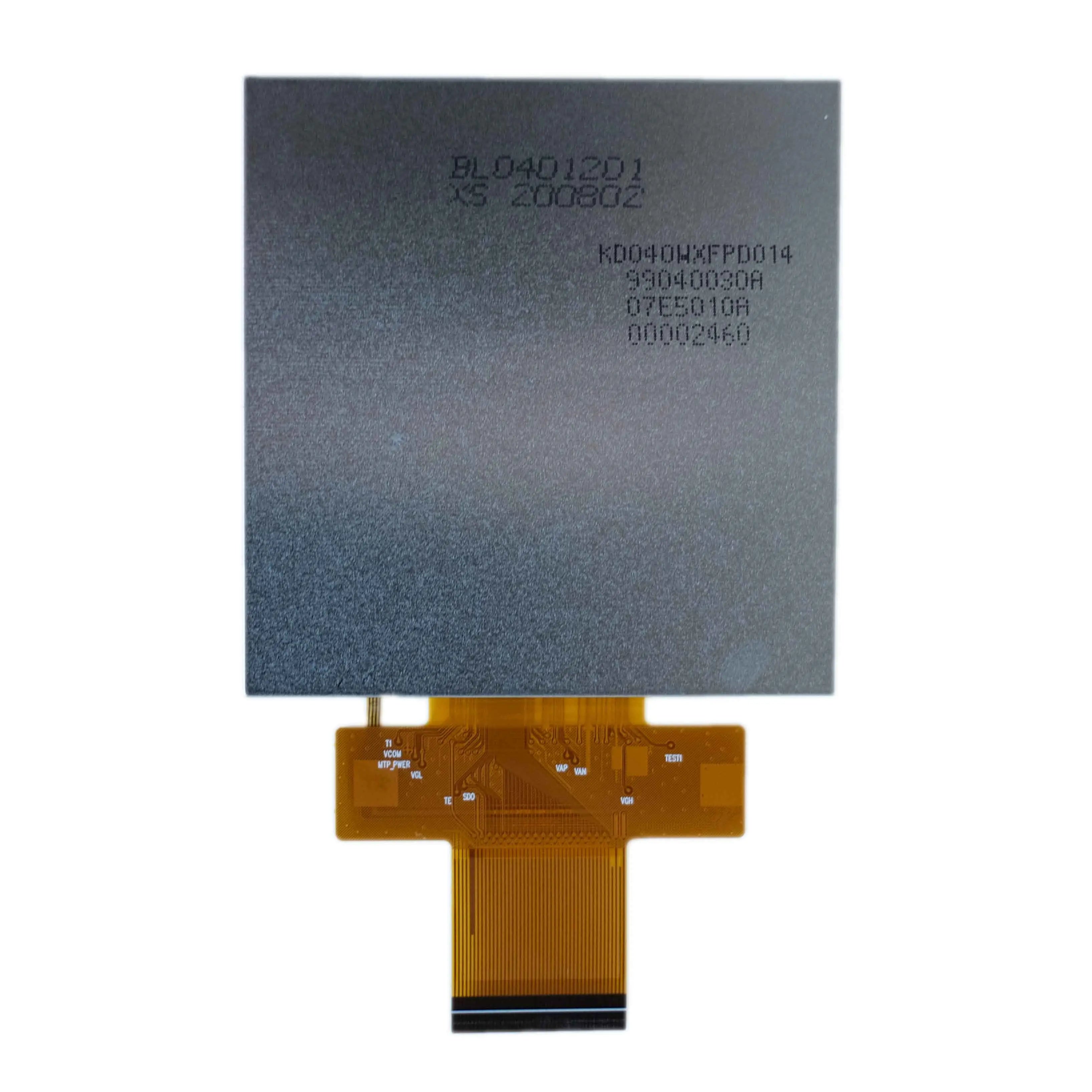

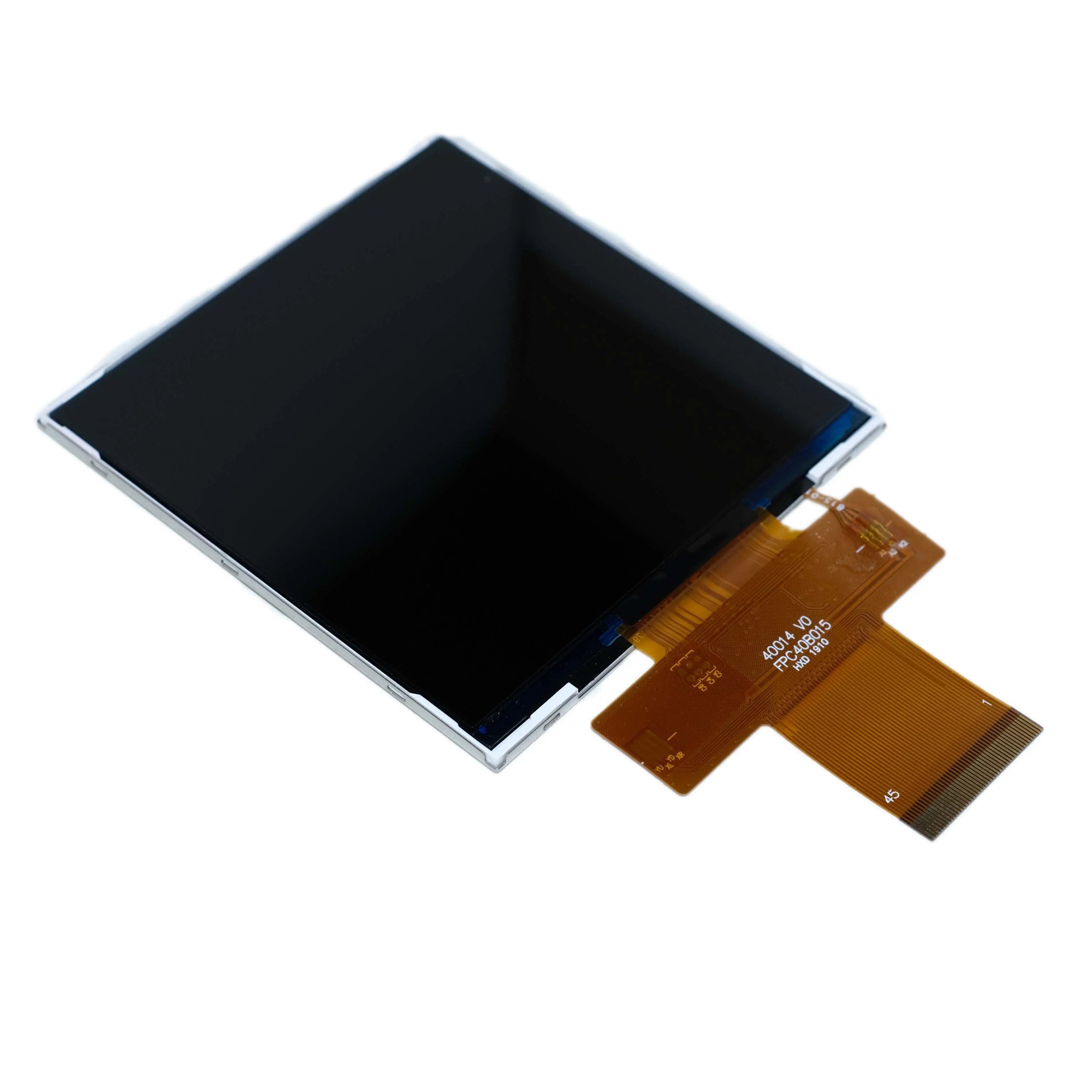

4.0" IPS High Brightness Display 480x480 1000nits - RGB
Engineered for demanding environments, this 4.0-inch IPS display delivers exceptional 1000 nits brightness with true 480×480 resolution. Featuring an industrial-grade ST7701S controller and wide viewing angles, it maintains visibility even under direct sunlight.
The IPS panel technology ensures consistent color reproduction and clarity from any viewing position. With its compact 77.0×80.0×2.3mm footprint and 71.86×70.18mm active area, it fits space-constrained designs while delivering industrial-grade reliability.
- High-Visibility Performance: Maintains 1000 nits brightness even in direct sunlight - equivalent to smartphone screens at maximum brightness.
- Industrial Temperature Range: Operates reliably from -30°C to +85°C, suitable for extreme environments.
- Advanced Controller: ST7701S driver supports multiple RGB configurations (16/18/24-bit) with DE/HV sync modes.
- Long-Lasting Backlight: LED system rated for 50,000 hours at 40mA current (18.6V typical).
| Parameter | Specification |
|---|---|
| Display Type | IPS TFT LCD |
| Screen Size | 4.0 inch (diagonal) |
| Resolution | 480 (RGB) × 480 pixels |
| Brightness | 1000 cd/m² (typical) |
| Viewing Angle | 80° (CR≥10) |
| Contrast Ratio | 800:1 (typical) |
| Module Dimensions | 77.0 × 80.0 × 2.3 mm |
| Active Area | 71.86 × 70.18 mm |
| Pixel Pitch | 0.1497 × 0.1462 mm |
| Interface | 16/18/24-bit RGB |
| Controller IC | ST7701S |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +90°C |
We provide customized display solutions for industrial and commercial applications requiring high-visibility performance.
- Volume Discounts: Special pricing for orders exceeding 100 units with flexible MOQ options.
- Custom Integration: Tailored solutions including connector modifications, bonding options, and custom firmware.
- Technical Support: Dedicated engineering assistance for display integration and validation testing.
High-brightness readability for control panels in manufacturing plants, oil rigs, and construction sites where sunlight visibility is critical.
Reliable performance in diagnostic equipment and patient monitors requiring consistent color accuracy and wide viewing angles.
Dashboard displays for fleet vehicles, marine navigation, and aviation equipment operating in extreme temperature conditions.
Technical Notes: For optimal performance, maintain logic voltage (IOVCC) at 1.8V±0.15V and system voltage (VCI) at 3.3V±0.3V. Reset pulse width must exceed 10μs with 5ms delay before command transmission.
Resources: Display Module Datasheet | ST7701S Controller Datasheet | Initialization Code Package
