4.0" 480x480 IPS High Brightness Resistive - RGB

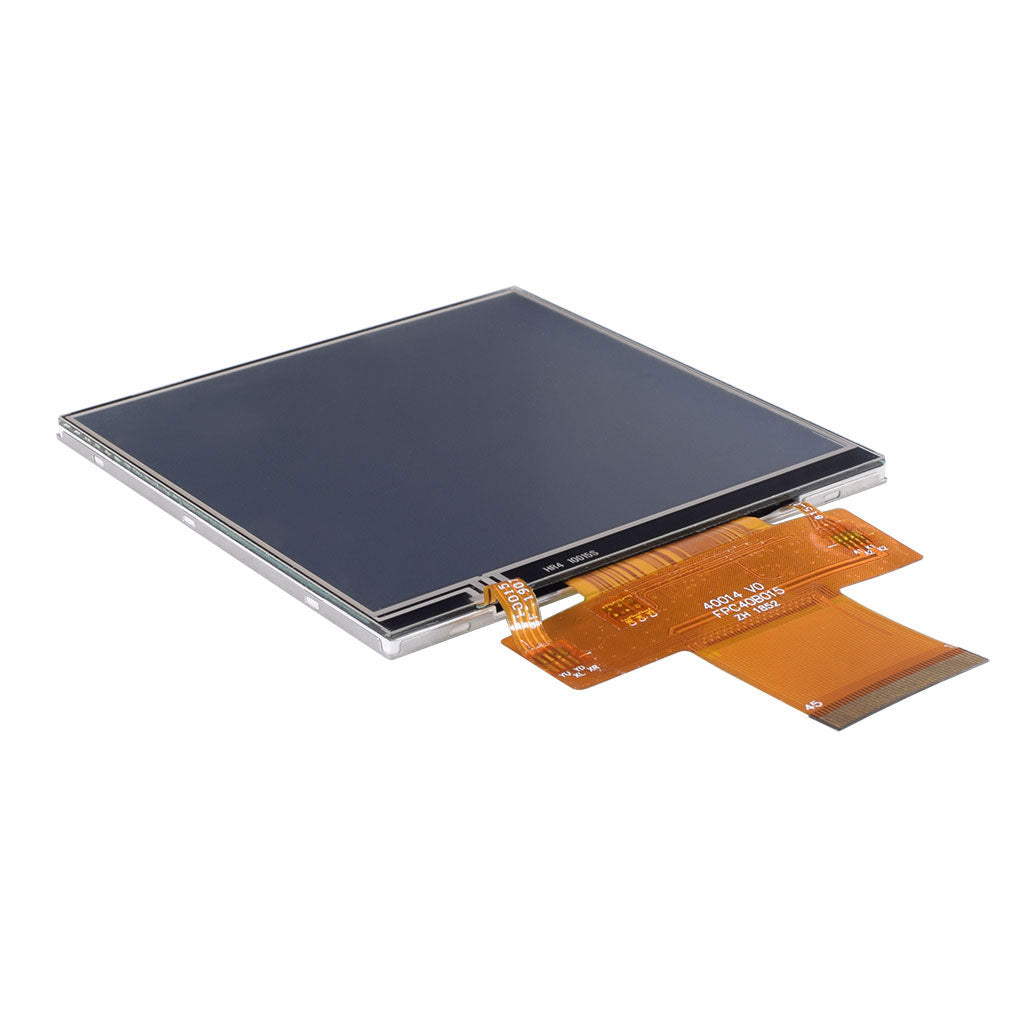

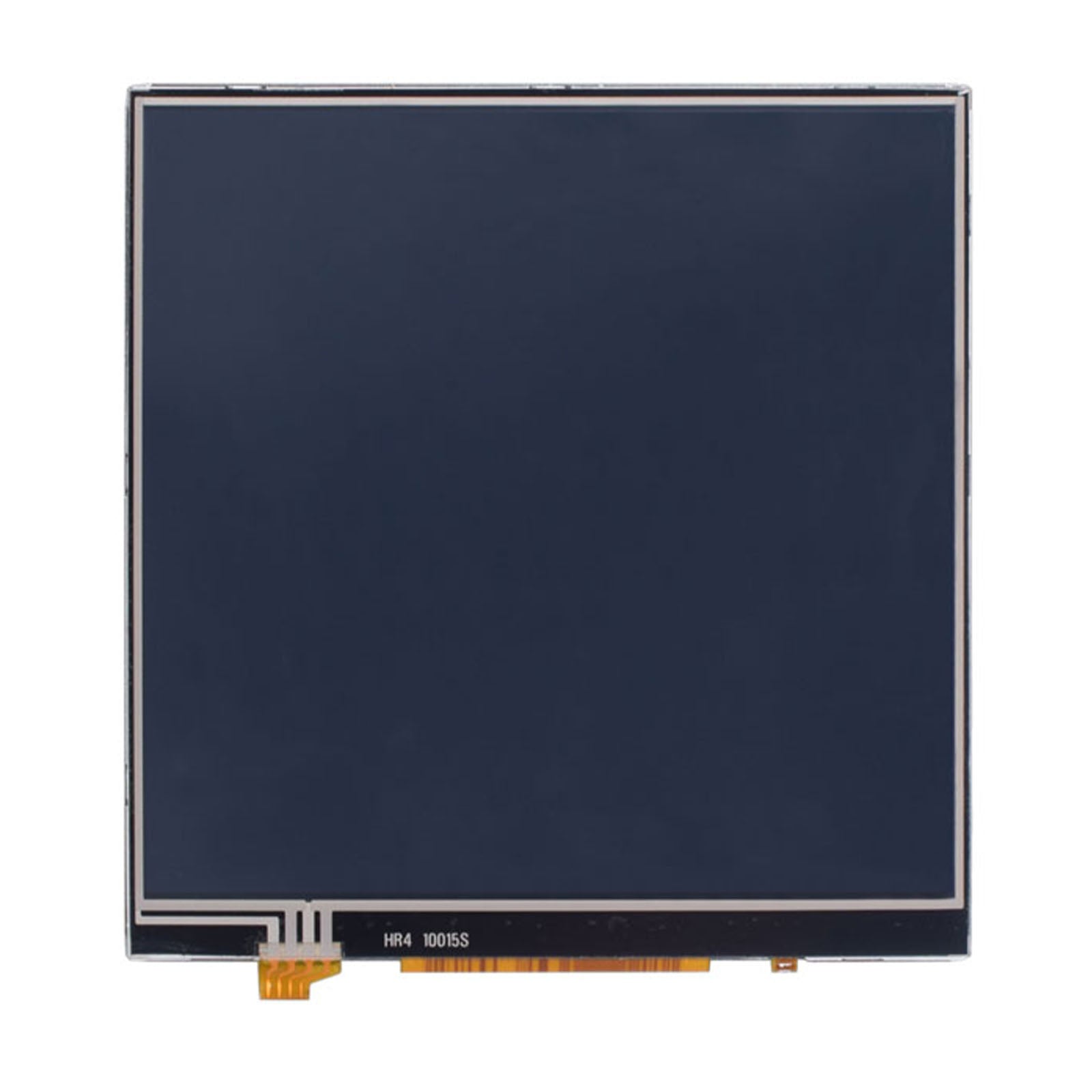

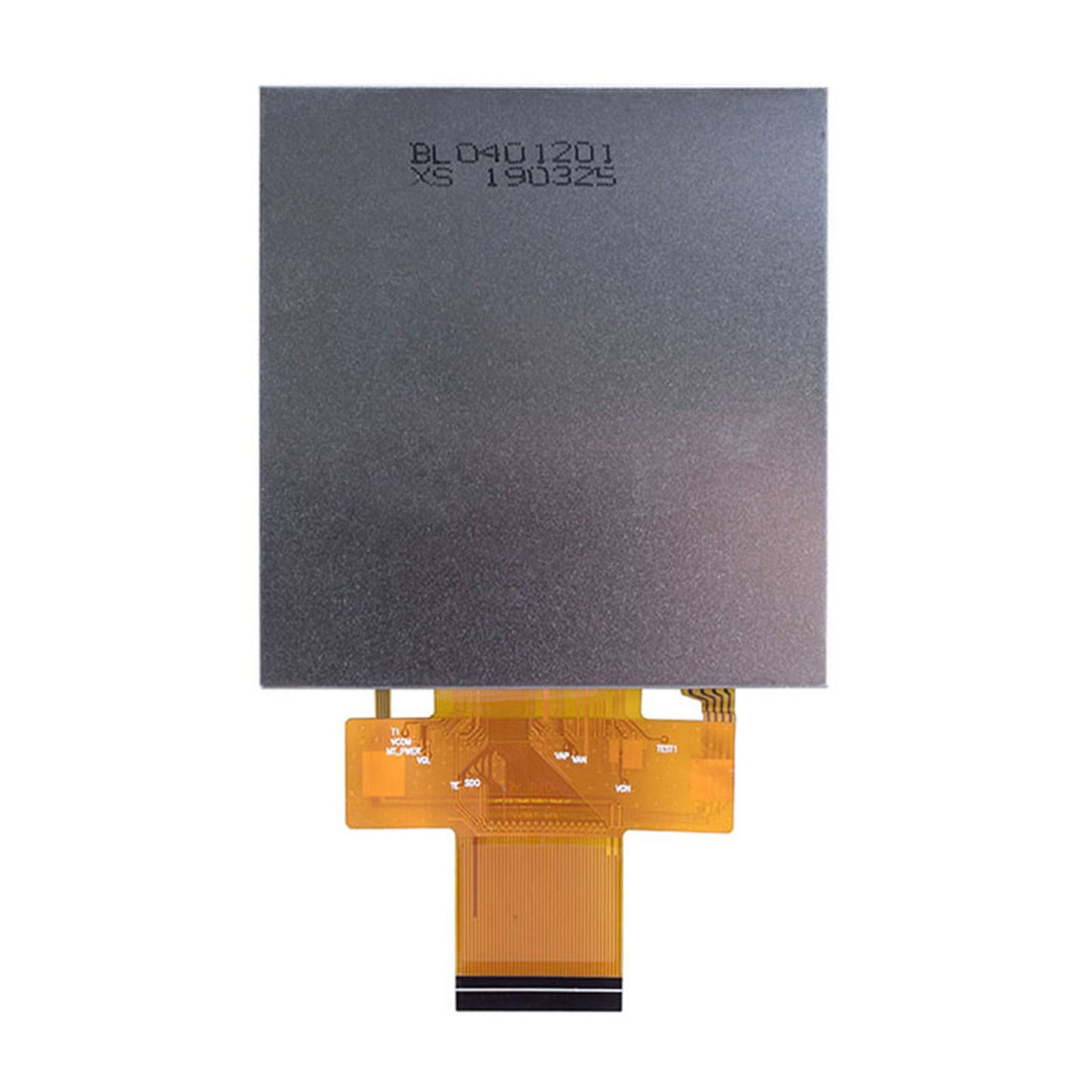

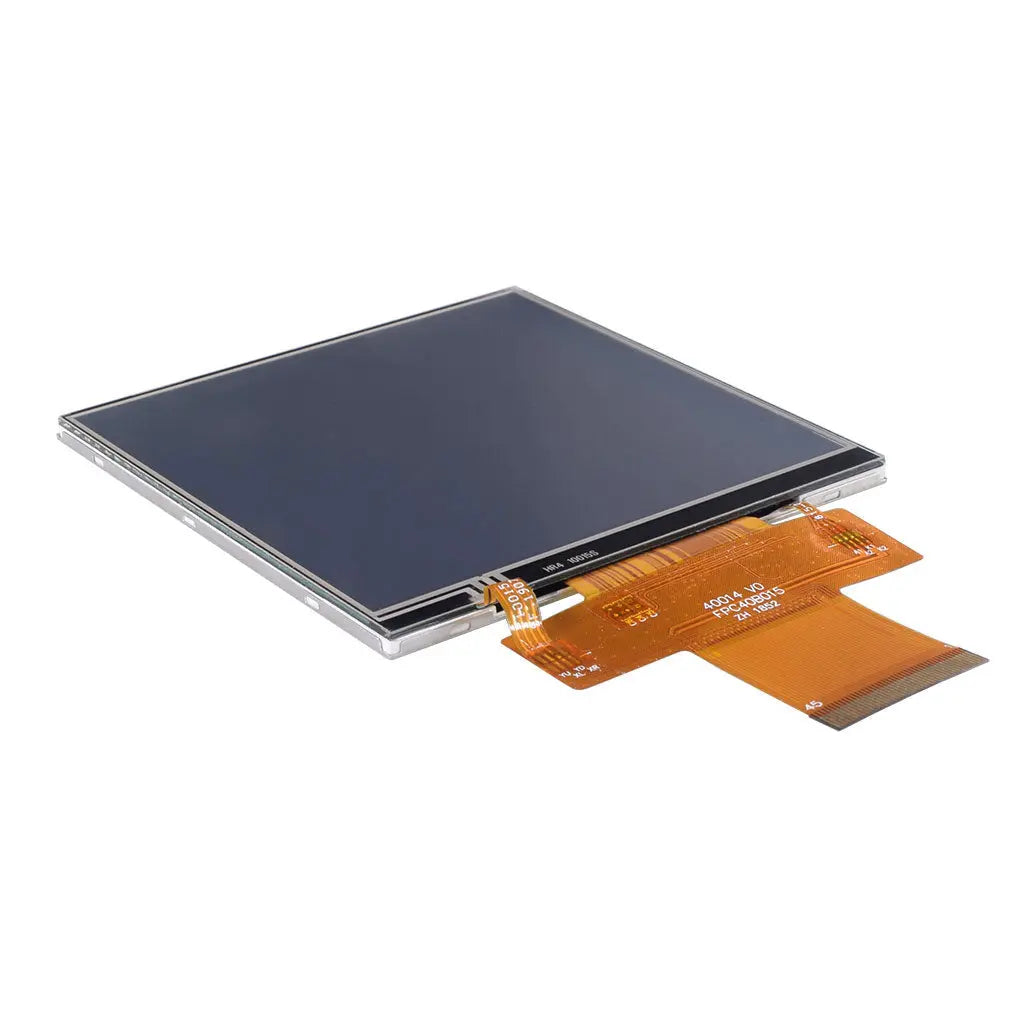

High-performance 4.0-inch IPS display module delivering 480×480 resolution with 800 cd/m² brightness for crisp visibility in various lighting conditions. Features resistive touch technology for reliable input in industrial and commercial applications.
Engineered with ST7701S drive IC for optimal performance, this display module supports wide viewing angles and operates reliably across -30°C to 85°C temperature range. The compact 77.0×80.0×3.5 mm form factor enables integration into space-constrained applications.
- IPS Technology: Delivers consistent color and clarity from all viewing directions with 178° viewing angle.
- Resistive Touch: Five-wire resistive touch supporting single-touch input with high durability for industrial use.
- Wide Temperature Range: Operational from -30°C to 85°C, suitable for harsh environments.
- Flexible Interface: Compatible with 16-bit, 18-bit, and 24-bit RGB parallel interfaces for system integration.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 4.0 inch |
| Resolution | 480 × 480 pixels |
| View Direction | All |
| Touch Mode | Resistive |
| Module Dimension | 77.0 × 80.0 × 3.5 mm |
| Viewing Area | 71.86 × 70.18 mm |
| Supply Voltage | 3.3 V |
| Interface | 16/18/24-bit RGB |
| Luminance | 800 cd/m² |
| Drive IC | ST7701S |
| Operation Temperature | -30°C to 85°C |
| Storage Temperature | -40°C to 90°C |
We offer customized display solutions for OEM and volume applications, including tailored configurations and wholesale pricing for business customers.
- Custom Configurations: Modify touch sensitivity, interface options, or mechanical dimensions to match specific application requirements.
- Volume Discounts: Competitive pricing for bulk orders with dedicated technical support for integration projects.
-
White-Label Options: Branding and packaging customization available for resellers and system integrators.
Human-machine interfaces for factory automation, process control systems, and test equipment requiring reliable touch input.
Patient monitoring systems, diagnostic equipment, and portable medical devices where clear display and touch interface are critical.
Home appliances, smart home controllers, and portable devices benefiting from high-brightness IPS display technology.
Compatibility Notes: This display module supports standard RGB parallel interface with 3.3V logic levels. Compatible with most embedded processors and microcontrollers through 16-bit, 18-bit, or 24-bit configuration.
Technical Documentation:
Dimensions
