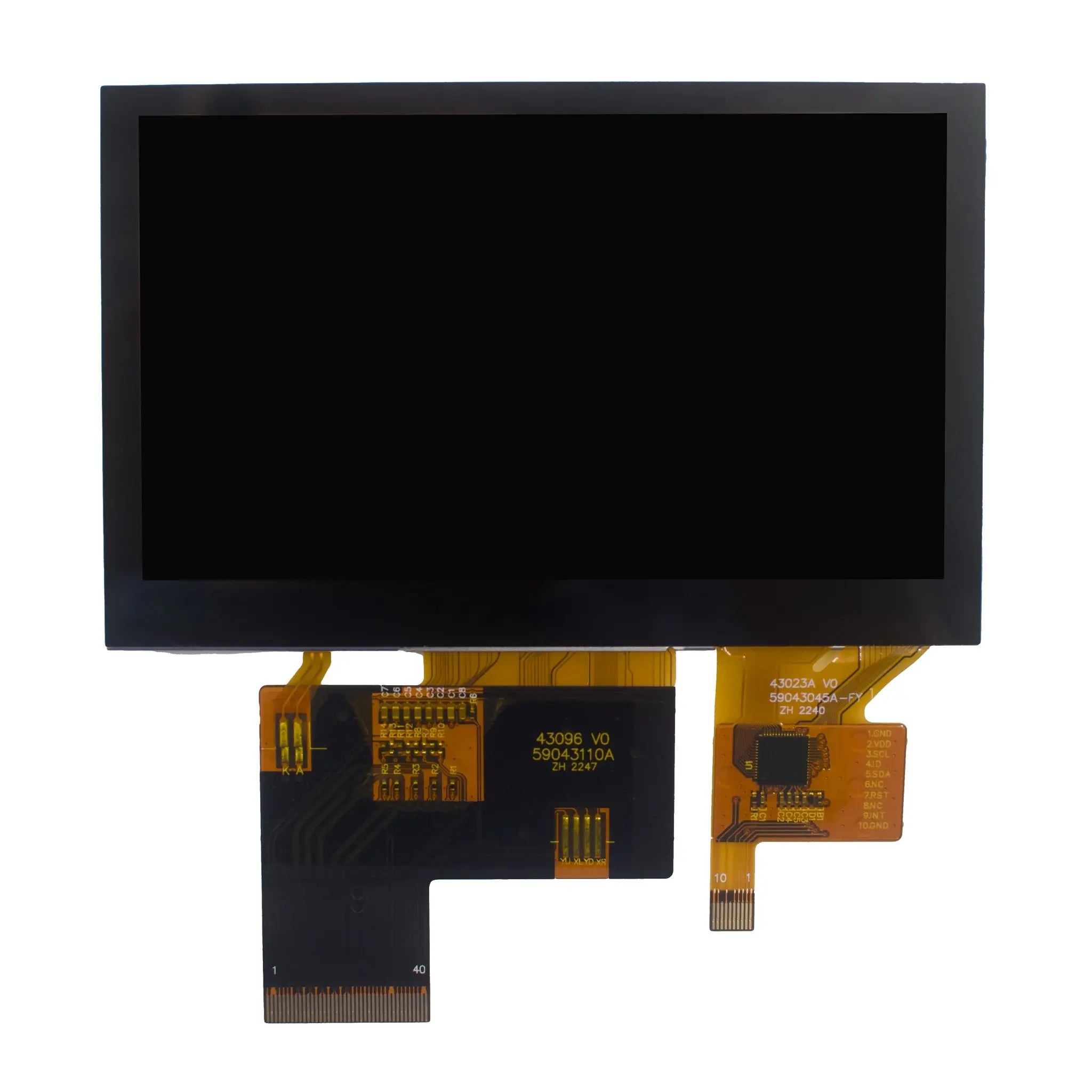

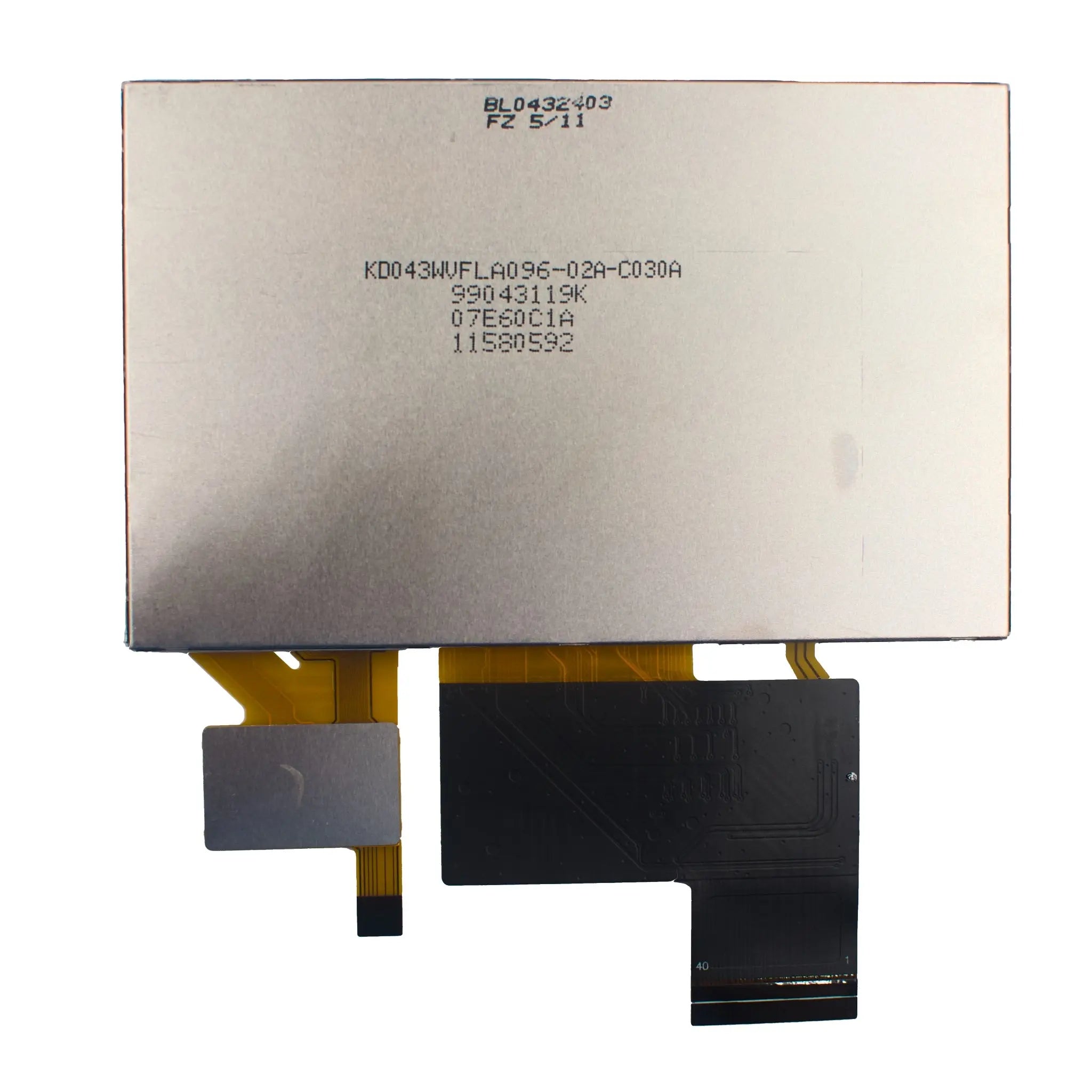

4.3" 800×480 TFT LCD Display – 8BIT LVDS Interface
This 4.3-inch TFT LCD module delivers high-resolution 800×480 pixel clarity with a transmissive, normally black display mode, supporting 16.7 million colors for vibrant imagery. Ideal for embedded systems and industrial applications requiring reliable visual output.
Engineered with amorphous silicon TFT technology, the display offers a pixel pitch of 0.1188mm (H) × 0.1122mm (V) and an RGB vertical stripe arrangement for sharp text and graphics. The LVDS interface ensures stable signal transmission up to 27MHz clock frequency.
- High Contrast Ratio: 1200:1 typical for clear viewing in various lighting conditions.
- Wide Viewing Angle: 80° horizontal and vertical angles for flexible installation.
- Robust Temperature Range: Operating from -30°C to +85°C, suitable for harsh environments.
- Long-Lasting Backlight: LED edge lighting with 50,000-hour lifespan at 60mA drive current.
| Parameter | Specification |
|---|---|
| Display Size | 4.3 inch |
| Active Area | 95.04 × 53.86 mm |
| Resolution | 800 × 480 pixels |
| Pixel Pitch | 0.1188 × 0.1122 mm |
| Display Mode | Transmissive / Normally Black |
| Interface | 8BIT LVDS |
| Controller IC | ST7262E43-G4 |
| Color Arrangement | RGB Vertical Stripe |
| Contrast Ratio | 1200:1 (typical) |
| Response Time | 40 ms (typical) |
| Viewing Angle | 80° (left/right/up/down, CR>10) |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -30°C to +85°C |
| Supply Voltage | 3.3V (3.0V min, 3.6V max) |
| Module Dimensions | 105.40 × 67.15 × 4.36 mm |
We offer customized display solutions for bulk orders and specialized applications, ensuring seamless integration with your products.
- Custom Configurations: Tailored interface options, bonding technologies, and mechanical adaptations for unique project requirements.
- Volume Discounts: Competitive pricing for large-scale deployments in industrial and commercial sectors.
- Technical Support: Dedicated engineering assistance for integration and troubleshooting.
Reliable touch displays for machine control panels and automation systems with wide temperature tolerance.
High-contrast screens for patient monitoring and diagnostic equipment requiring precise visual output.
Durable modules for in-vehicle infotainment and navigation systems with stable LVDS signal transmission.
Compatibility Notes: The 8BIT LVDS interface supports standard VESA timing with 60Hz refresh rate. Compatible with controllers supporting LVDS input up to 27MHz clock frequency. Ensure proper power sequencing: RESET high to DISP high delay ≥10ms, backlight power-on delay ≥250ms after signal output.
Resources: Download complete technical documentation
Mechanical Dimensions
