4.0" 480x480 IPS High Brightness Capacitive - MIPI
4.0" 480x480 IPS High Brightness Capacitive - MIPI
SKU:DM-TFT40-416
Regular price
$59.00 USD
Regular price
Sale price
$59.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

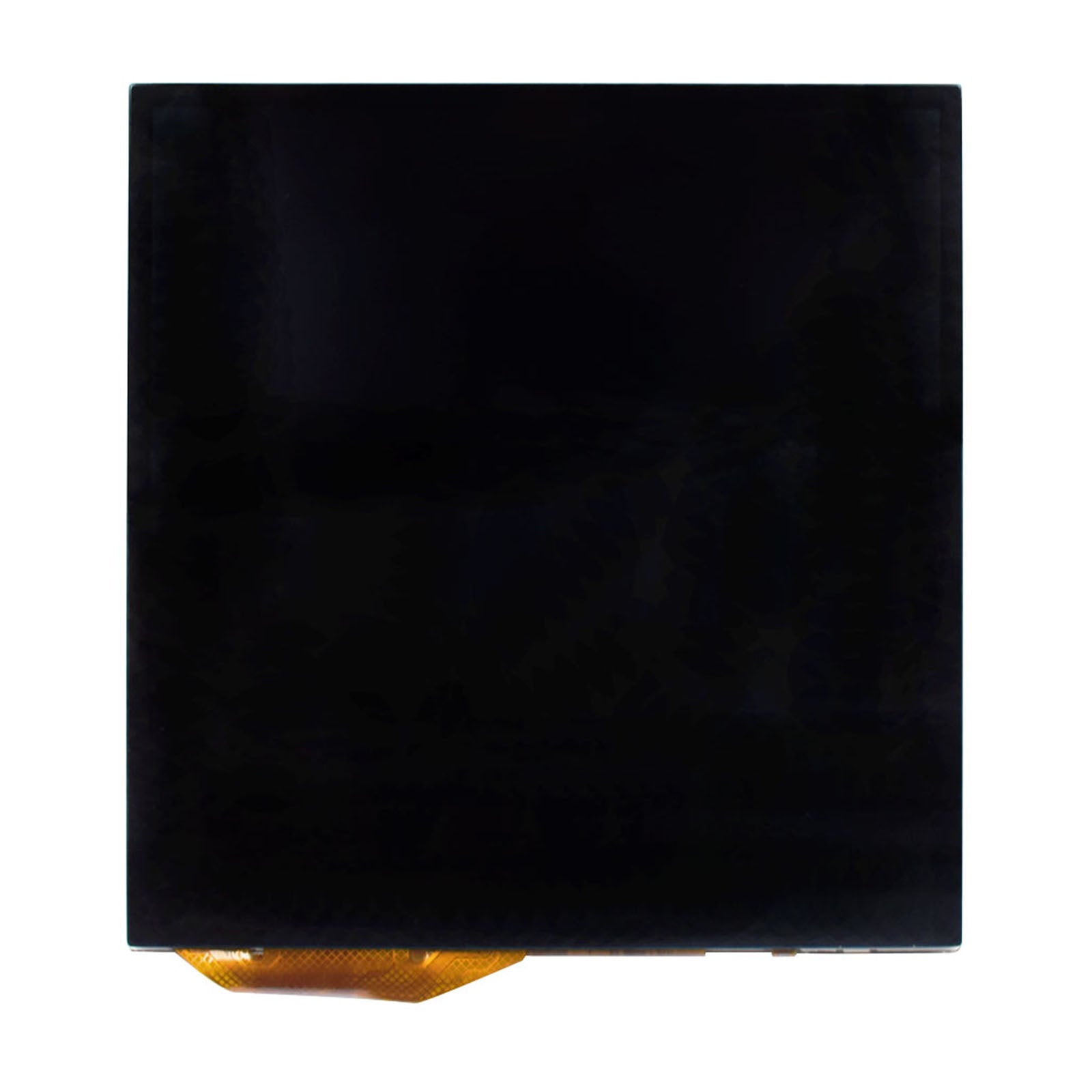

![4.0-inch IPS high brightness display panel with 480x480 resolution, capacitive touch, using MIPI interface](http://www.displaymodule.com/cdn/shop/products/DM-TFT40-416face.jpg?v=1659145332&width=1445)

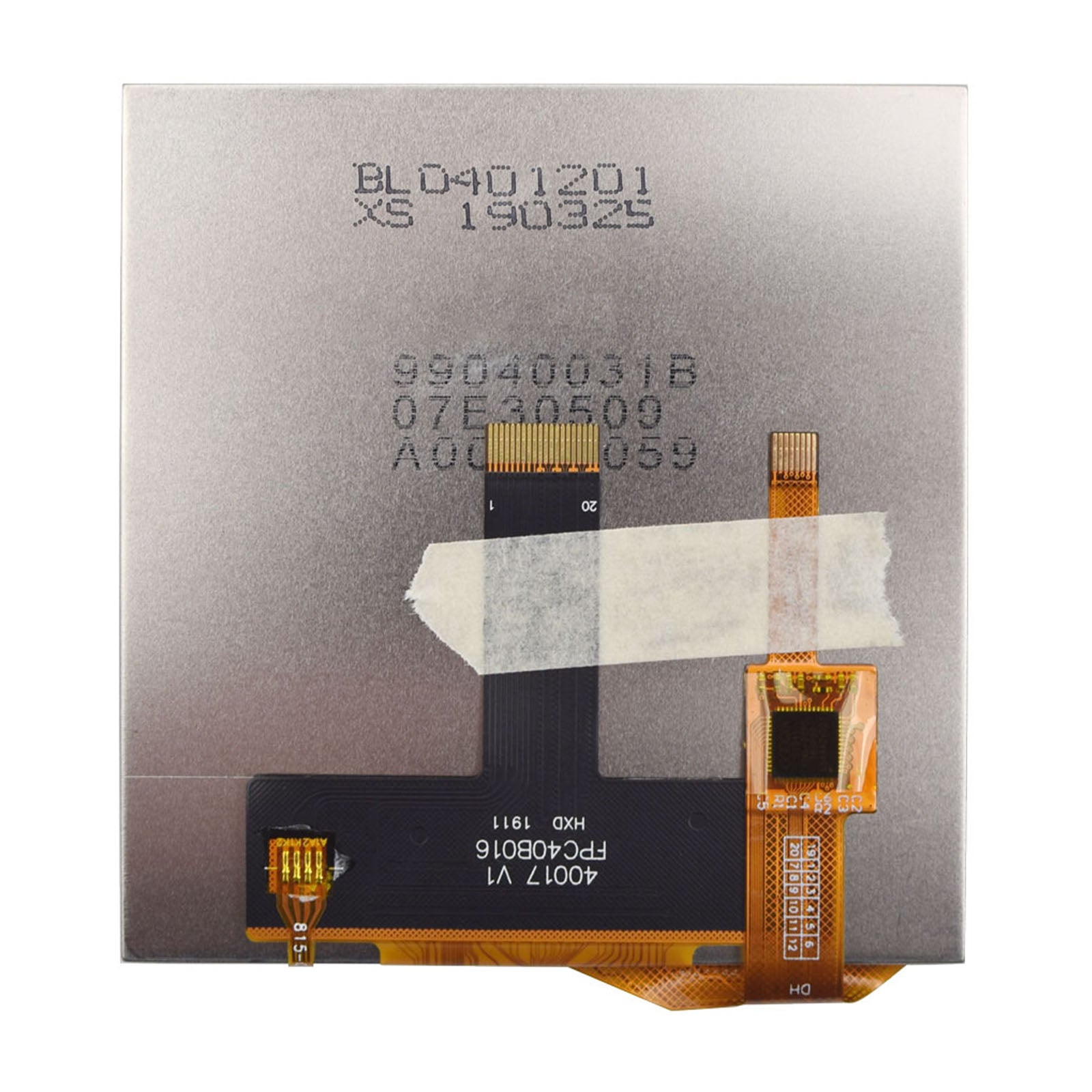

![back of 4.0-inch IPS high brightness display panel with 480x480 resolution](http://www.displaymodule.com/cdn/shop/products/DM-TFT40-416back.jpg?v=1659145332&width=1445)

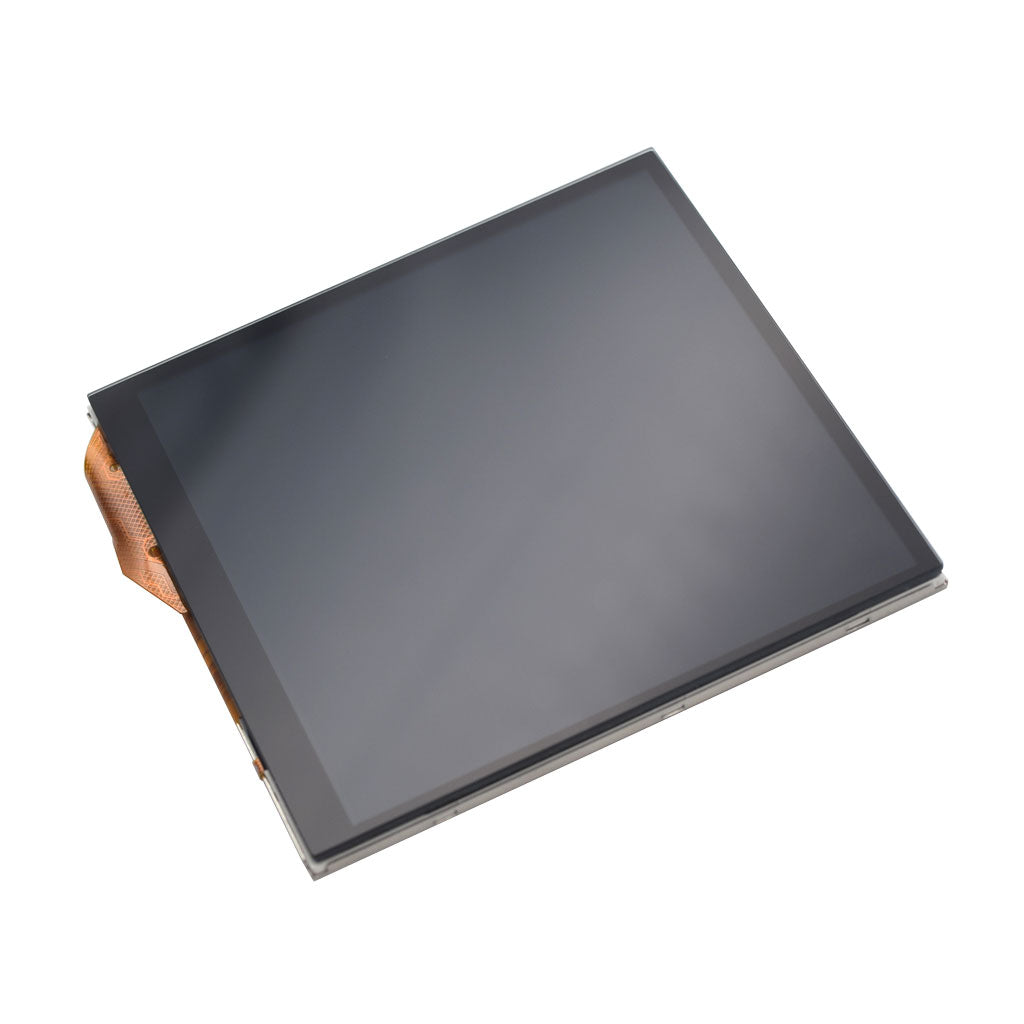

![top view of 4.0-inch IPS high brightness display panel with 480x480 resolution](http://www.displaymodule.com/cdn/shop/products/DM-TFT40-416-side.jpg?v=1659145332&width=1445)
Display Specifications
- Diagonal Dimension : 4.0 inch
- Resolution : 480x480 pixel
- View Direction : All
- Touch Mode : None
- Module Dimension : 77x80x4.35 mm
- Viewing Area : 71.86x70.18 mm
- Supply Voltage : 3.3 V
- Interface : 2-lane MIPI,I2C
- Luminance : 950 cd/m2
- Drive IC : ST7701S
- Operation Temperature : -40℃~70℃
- Storage Temperature : -40℃~85℃
Dimensions
![](http://cdn.shopify.com/s/files/1/0264/7629/files/d7b452becdb645ce1362f5d6b64651b5.jpg?v=1587971460)
Resources
- DM-TFT40-416
- Display Controller: ST7701S-V1.2
- CTP Controller: GT911-Rev0.9
