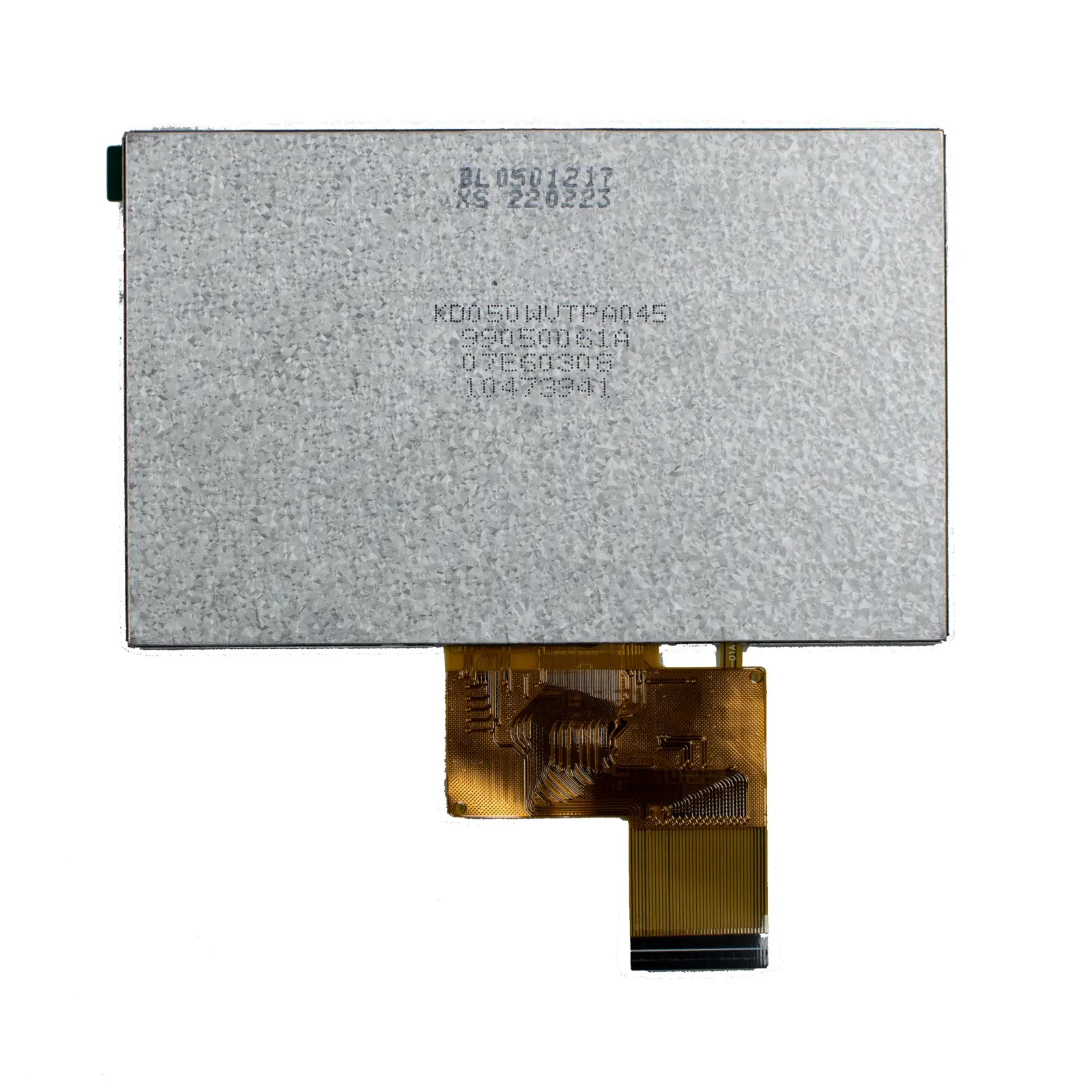

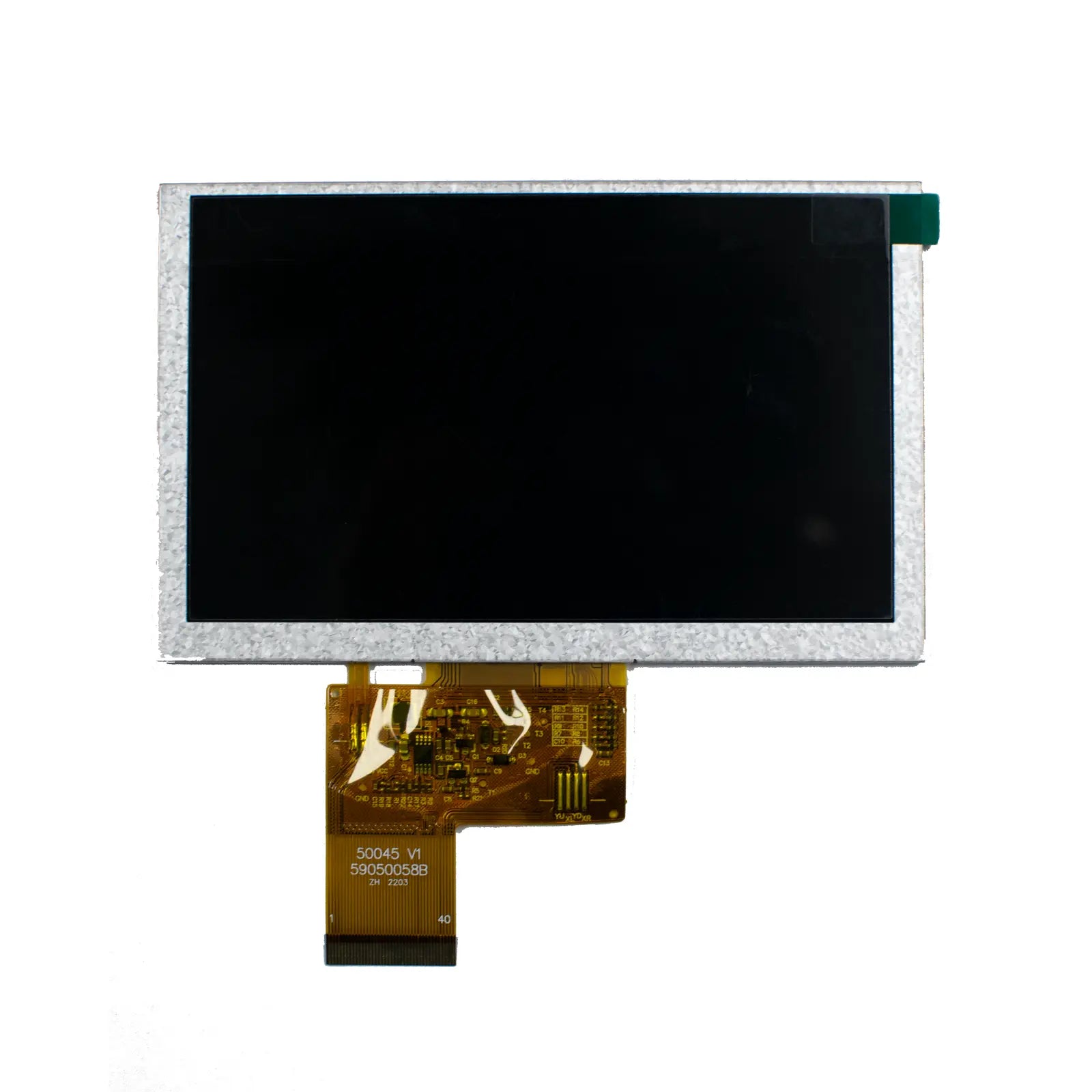

5.0" TFT Display 800x480 - RGB
The 5.0-inch TFT LCD display delivers sharp 800 × 480 resolution with 350 cd/m² brightness, supporting 16/18/24-bit RGB interface. Engineered with ILI5960 and ILI6122 driver ICs, it ensures reliable performance for embedded systems and industrial applications.
With a compact module size of 120.70 × 75.80 × 3.1 mm and active area of 108.00 × 64.80 mm, this display optimizes space while providing a clear viewing experience. The 3.3V power supply and wide operating temperature range (-20°C to 70°C) make it suitable for demanding environments.
- High Compatibility: Supports standard RGB interfaces, easily integrating with microcontrollers and FPGAs.
- Robust Design: No touch functionality simplifies integration for static display applications.
- Wide Temperature Range: Operates reliably from -20°C to 70°C, with storage up to -30°C to 80°C.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 5.0 inch |
| Resolution | 800 × 480 pixels |
| Viewing Direction | 12 o’clock |
| Touch Mode | None |
| Module Dimensions | 120.70 × 75.80 × 3.1 mm |
| Viewing Area | 108.00 × 64.80 mm |
| Supply Voltage | 3.3 V |
| Interface | 16/18/24-bit RGB |
| Luminance | 350 cd/m² |
| Driver IC | ILI5960 / ILI6122 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Detailed mechanical drawing for precise integration into your design:
We offer customized solutions for bulk orders and specialized applications. Our team can adapt the display to meet specific requirements.
- Custom Configurations: Modify interface options or mechanical dimensions for unique projects.
- Volume Discounts: Competitive pricing for large-scale deployments in industrial or commercial systems.
- Technical Support: Dedicated assistance for integration and troubleshooting.
Ideal for HMI panels in manufacturing equipment, providing clear visuals for monitoring and control interfaces.
Used in diagnostic equipment where reliable display performance is critical under varying temperatures.
Perfect for kiosks, ATMs, and information displays due to its standard RGB interface and compact size.
This display seamlessly integrates with a wide range of systems through its RGB interface. Key compatibility features:
- Interface Support: Compatible with 16, 18, and 24-bit RGB data formats, matching common controller outputs.
- Driver IC Flexibility: ILI5960 and ILI6122 drivers ensure stable performance with various timing controllers.
- Power Efficiency: 3.3V operation aligns with low-power embedded system requirements.
Documentation: Access detailed datasheets and driver IC specifications for development.
Note: All specifications are based on standard testing conditions. Performance may vary with environmental factors.
Mechanical Dimensions
