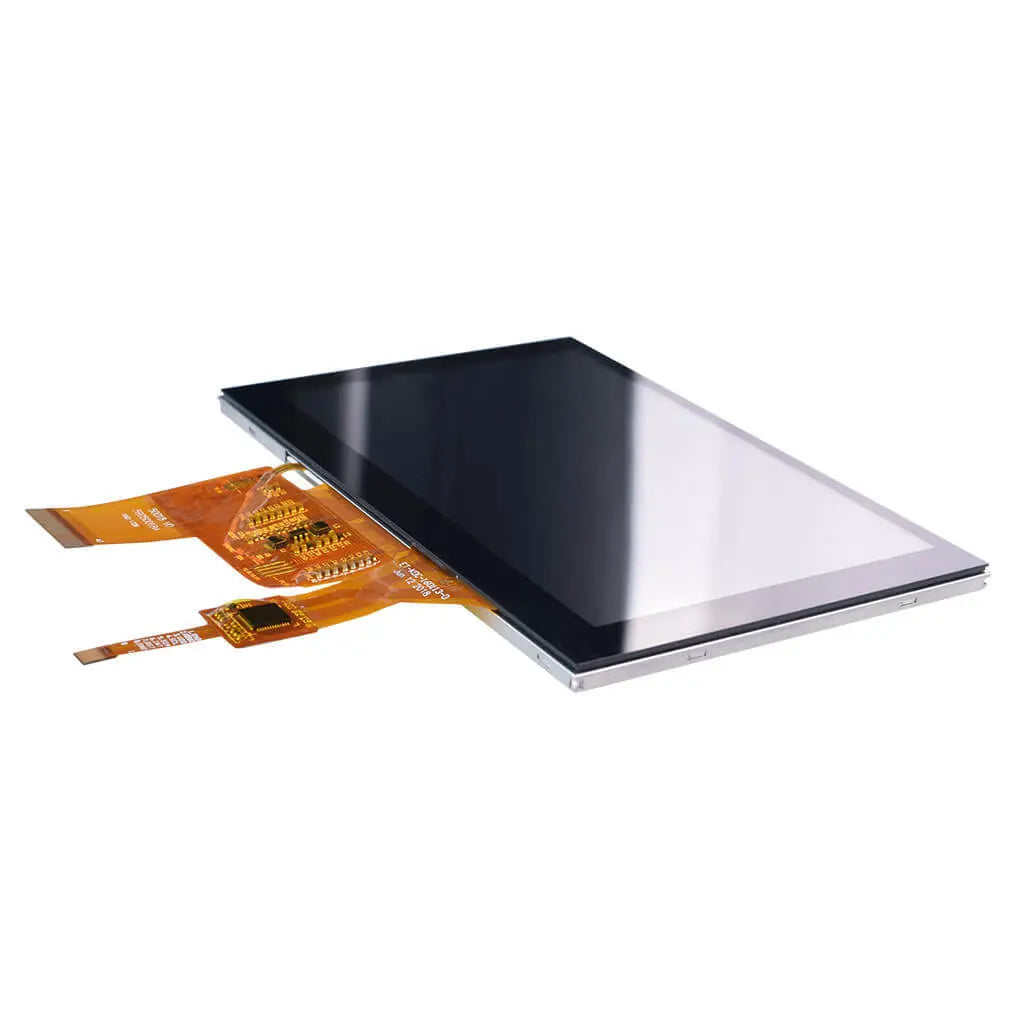

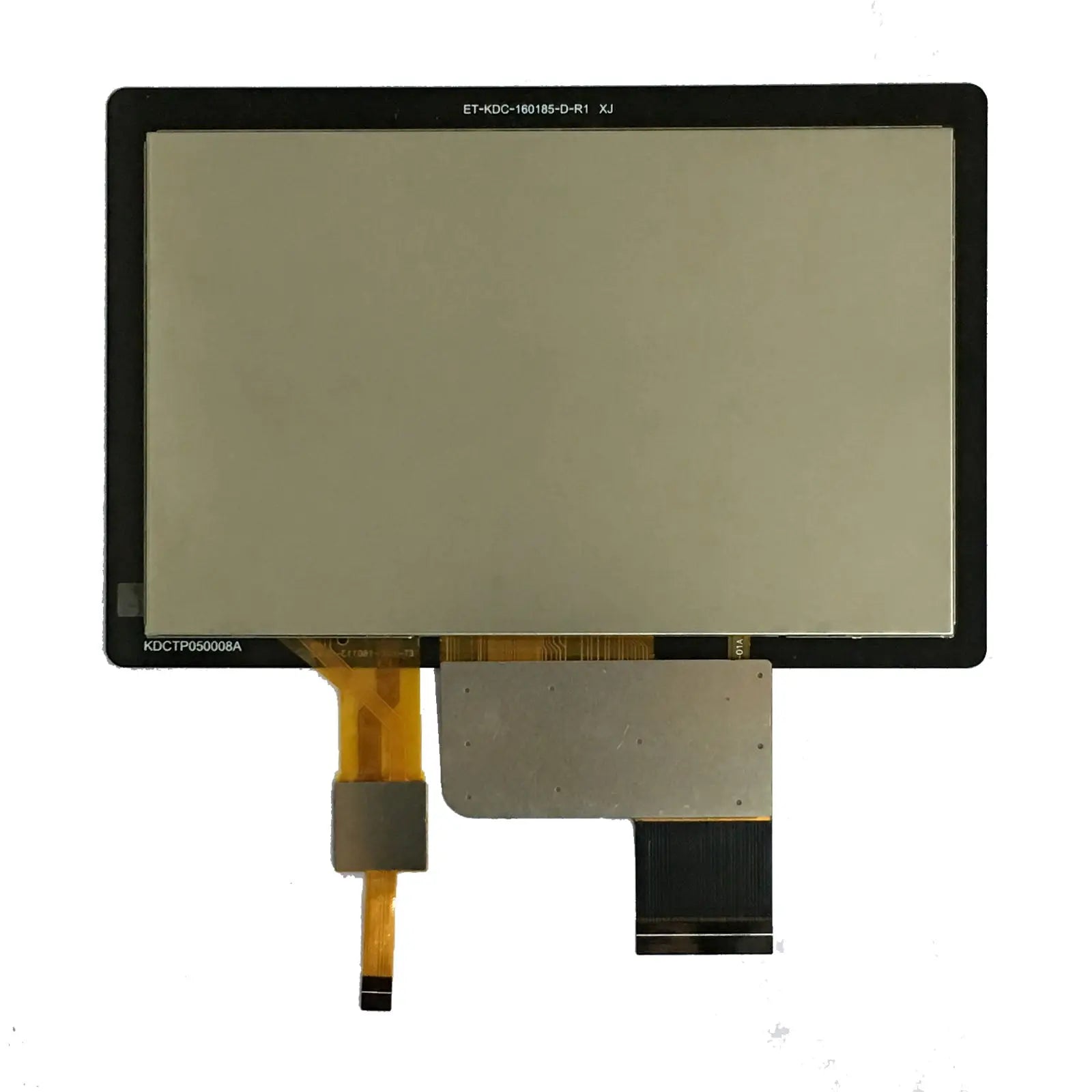

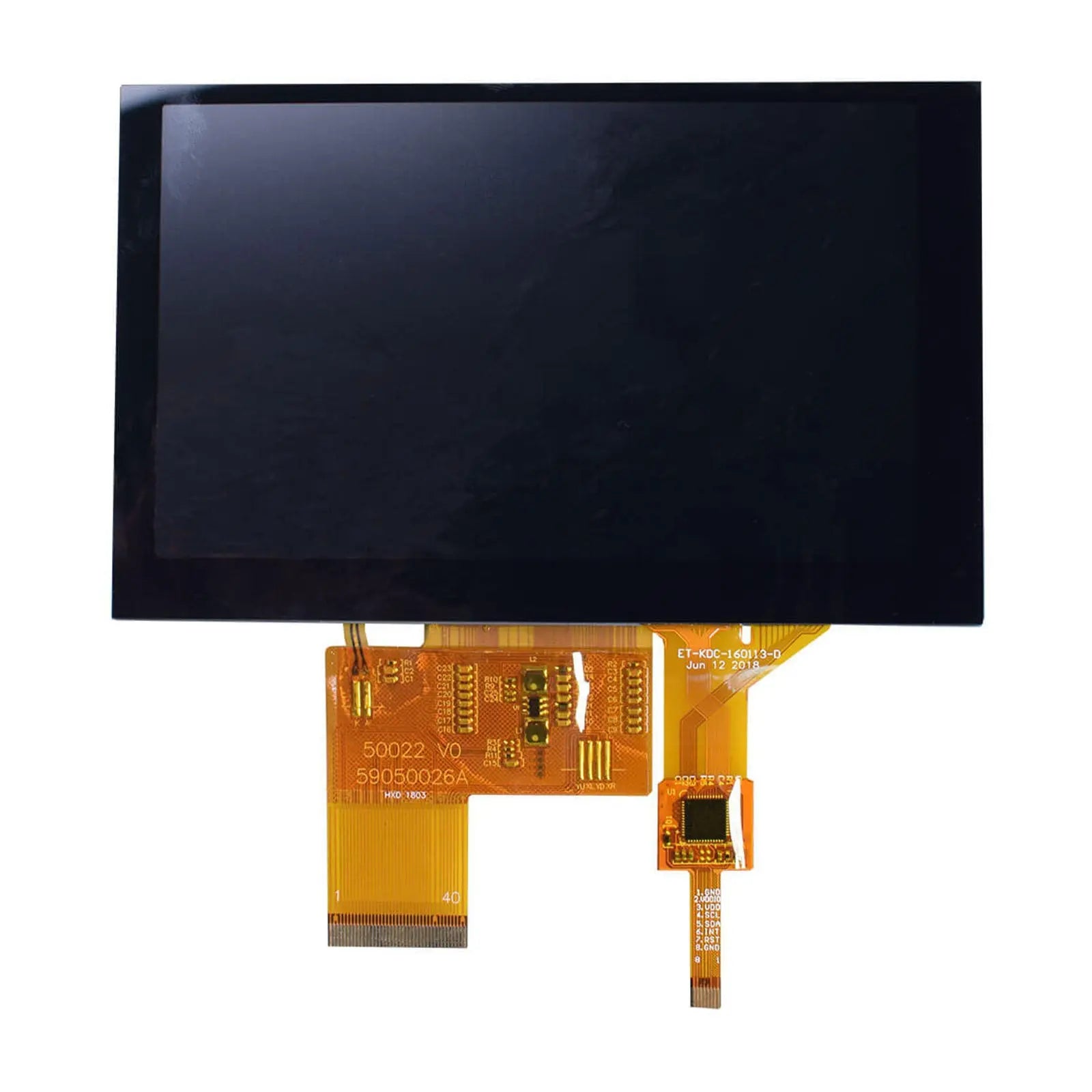

5.0" IPS Display 800x480 Capacitive - LVDS
A high-performance 5.0-inch IPS display module delivering 800×480 resolution with 5-point capacitive touch functionality. Engineered for industrial and commercial applications, this display combines excellent viewing angles with robust touch interaction.
Featuring IPS technology, this display maintains consistent color and clarity across 178° viewing angles. The capacitive touch screen supports multi-finger gestures and palm rejection, making it ideal for intuitive user interfaces.
- Advanced Touch Control: GT911 touch controller provides 100Hz report rate with automatic calibration for precise touch recognition.
- High-Speed Interface: 4-lane LVDS connection ensures stable video transmission up to 8-bit color depth.
- Wide Temperature Range: Operational from -20°C to 70°C, suitable for challenging environments.
- Compact Design: Module dimensions of 120.7mm × 75.9mm × 4.38mm with 108mm × 64.8mm active area.
| Parameter | Specification |
|---|---|
| Display Type | IPS TFT LCD |
| Diagonal Size | 5.0 inch |
| Resolution | 800 × 480 pixels |
| Viewing Direction | All directions |
| Touch Type | Capacitive (5-point + gestures) |
| Module Dimensions | 120.7mm (H) × 75.9mm (V) × 4.38mm (D) |
| Active Area | 108.00mm (H) × 64.8mm (V) |
| Supply Voltage | 3.3V |
| Interface | 4-Lane LVDS / 8BIT LVDS |
| Luminance | 650 cd/m² |
| Drive IC | ST7262 + GT911 |
| Operation Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
We provide customized display solutions for OEM and ODM clients with volume production capabilities and technical support.
- Custom Configuration: Modify touch sensitivity, interface protocols, and firmware to match specific application requirements.
- Bulk Pricing: Volume discounts available for orders above 100 units with flexible payment terms.
- Technical Support: Dedicated engineering support for integration and troubleshooting during development phase.
Rugged touch interface for factory automation systems, PLC controls, and monitoring equipment requiring reliable operation in harsh conditions.
Patient monitoring systems and diagnostic equipment where accurate touch response and clear visibility are critical.
Point-of-sale systems and self-service kiosks benefiting from responsive multi-touch capability and wide viewing angles.
This display module is compatible with most embedded systems and single-board computers supporting LVDS interface. The 3.3V operation makes it suitable for low-power applications.
- Interface Standard: Compatible with standard LVDS controllers and drivers
- Power Requirements: 3.3V ±5% power supply with typical consumption of 2.5W
- Touch Protocol: I2C interface for touch data communication
Technical Documentation: Complete datasheets and integration guides available for download:
- DM-TFT50-433 Technical Specifications
- DM-TFT50-434 Technical Specifications
- ST7262 Display Controller Datasheet
- GT911 Touch Driver IC Datasheet
Integration Note: No initialization code required for this display panel - ready for plug-and-play operation with compatible controllers.
