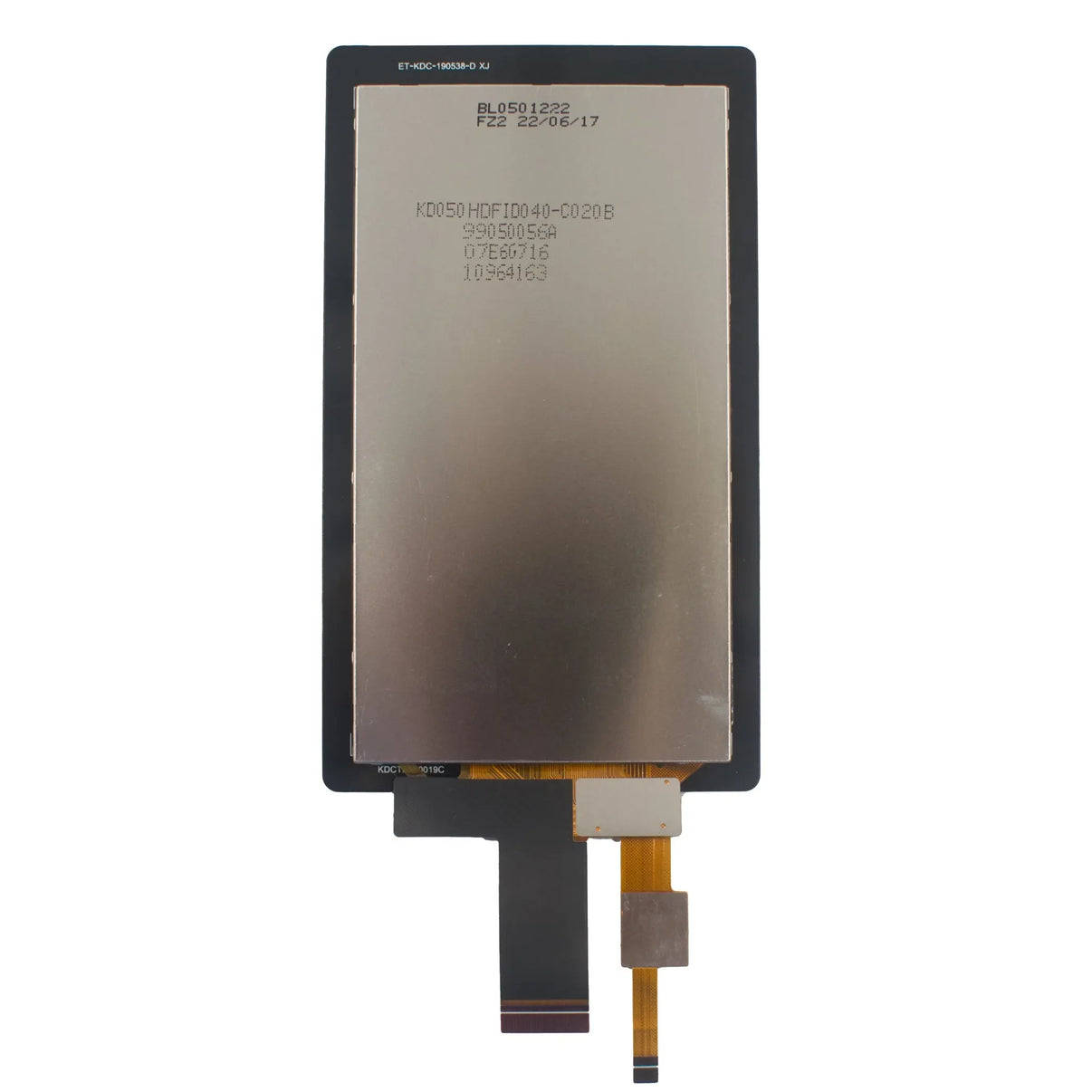

5.0" TFT LCD Display 720×1280 – MIPI Interface
This high-performance 5.0-inch TFT-LCD display module delivers 720×1280 resolution with a transmissive/normally black display mode. Featuring ILI9881C driver IC and 4-lane MIPI DSI interface, it provides vivid image quality with 16.7M colors, making it ideal for mobile, industrial, and embedded display applications.
The display offers a wide viewing angle of 80° typically and a high contrast ratio of 800:1. With RGB vertical stripe pixel arrangement and 0.08625mm pixel pitch, it ensures sharp and clear visuals. The module operates within -20°C to +70°C temperature range, suitable for various environments.
- Advanced Driver Technology: ILI9881C controller IC supports high-speed data transmission with low power consumption.
- Optimal Brightness: 440 cd/m² typical luminance with 80% uniformity across 9 measurement points.
- Robust Construction: Tape bonding technology between LCM and CTP ensures durability and reliability.
- Wide Compatibility: MIPI DSI interface compatible with most modern processors and embedded systems.
| Parameter | Specification |
|---|---|
| Display Size | 5.0 inch |
| Display Area | 62.10 × 110.40 mm |
| Resolution | 720 × 1280 pixels |
| Pixel Pitch | 0.08625 × 0.08625 mm |
| Color Depth | 16.7M colors |
| Viewing Angle | 80° typical (CR>10) |
| Contrast Ratio | 800:1 typical |
| Response Time | 40ms typical (Tr+Tf) |
| Interface | 4-Lane MIPI DSI |
| Driver IC | ILI9881C |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Module Dimensions | 78.56 × 135.65 × 4.13 mm |
| Power Supply (VDD) | 2.5V to 6.0V (3.3V typical) |
| Operating Current | 40mA typical |
The compact module design measures 78.56mm × 135.65mm × 4.13mm, making it easy to integrate into space-constrained applications. The slim profile of 4.13mm depth enables sleek product designs.
We offer customized display solutions for business and industrial customers, including bulk procurement programs and tailored configurations to meet specific project requirements.
- Bulk Purchase Programs: Volume discounts and customized packaging options for large-scale deployments.
- Custom Configuration: Tailored solutions including specific bonding techniques, interface modifications, and optical enhancements.
- Technical Support: Comprehensive engineering support for integration and optimization with your systems.
Perfect for HMI panels and control systems requiring high visibility in various lighting conditions with wide temperature tolerance.
Ideal for portable medical devices and diagnostic equipment where accurate color reproduction and reliability are critical.
Suited for smart home devices, portable entertainment systems, and IoT applications requiring compact, high-resolution displays.
The display features standard MIPI DSI interface compatibility with most modern processors including Qualcomm, MediaTek, and Rockchip platforms. The touch panel supports I2C communication with configurable slave addresses (0x5D or 0x14).
- Interface Standard: MIPI DSI 4-lane configuration supporting up to 550 Mbps per lane
- Touch Interface: I2C compatible with 400Kbps maximum transmission rate
- Voltage Compatibility: Works with 1.65V to 3.3V logic levels
- Protocol Support: Compatible with standard DSI video mode timing requirements
Technical Documentation: Complete datasheet including electrical characteristics, timing diagrams, and mechanical specifications available for download.
Resources: Download complete technical documentation
Mechanical Dimensions
