• 5.15-inch 240x128 Graphic LCD display module with MCU interface

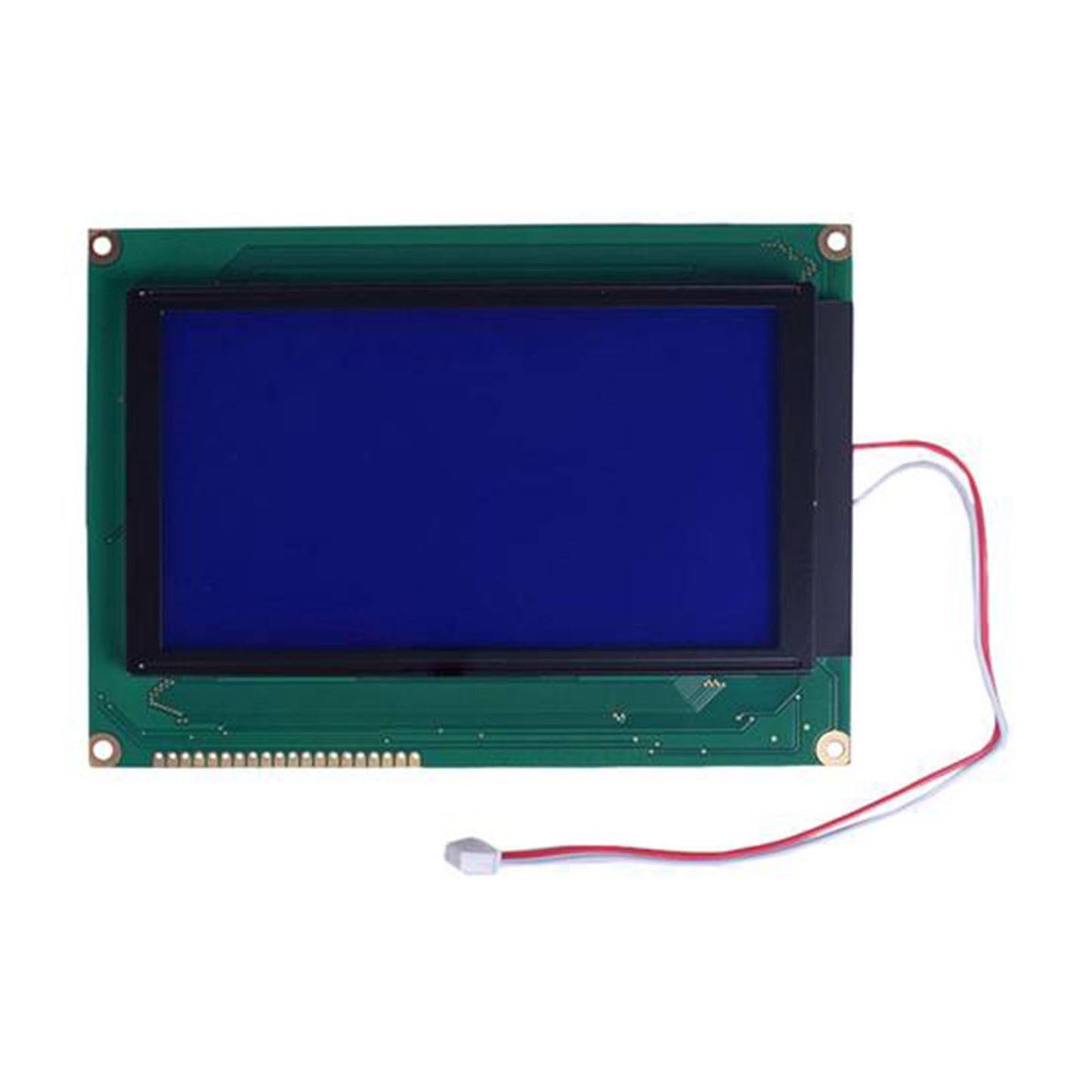

  • 5.15-inch 240x128 Graphic Blue LCD display module with MCU interface

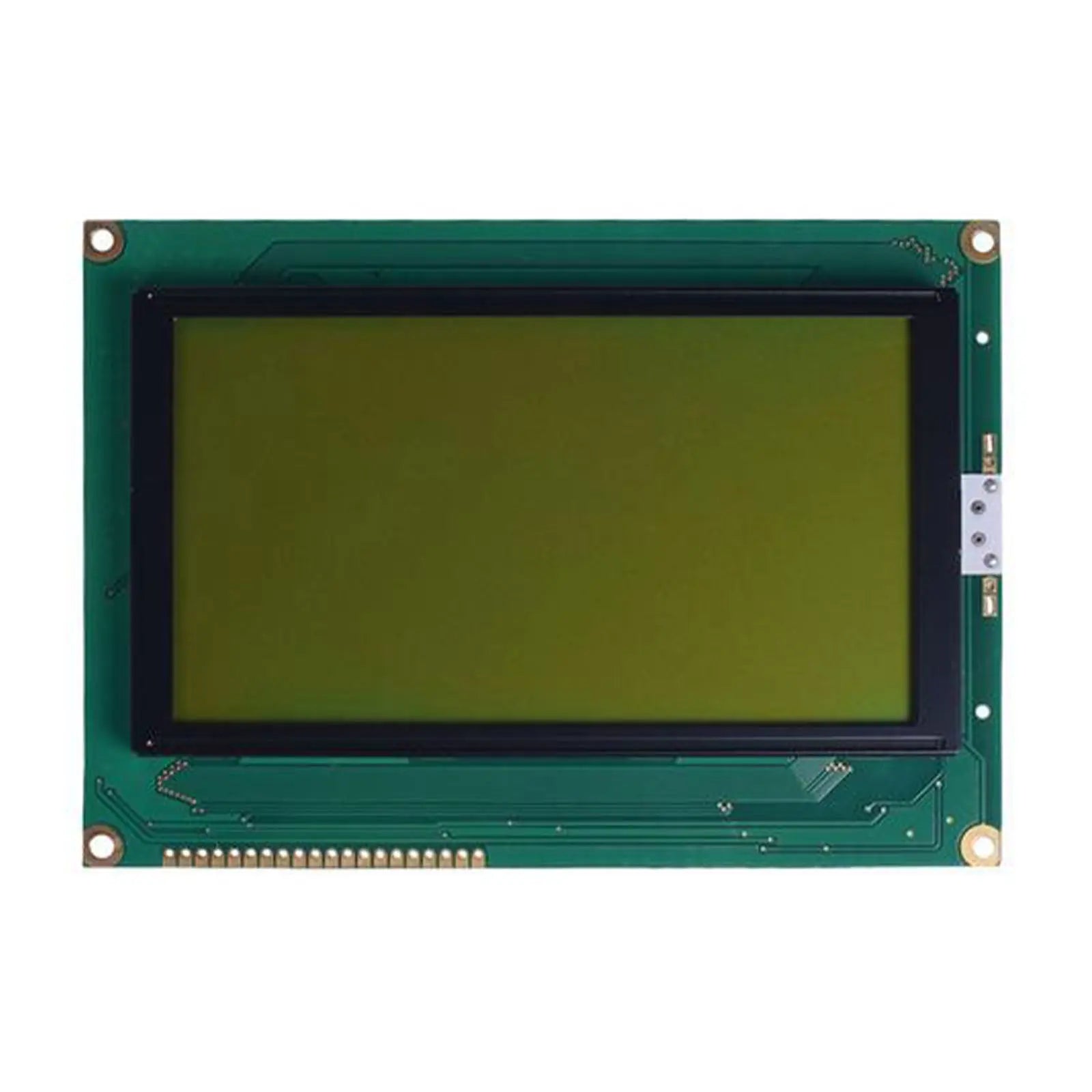

  • 5.15-inch 240x128 Graphic Yellow LCD display module with MCU interface

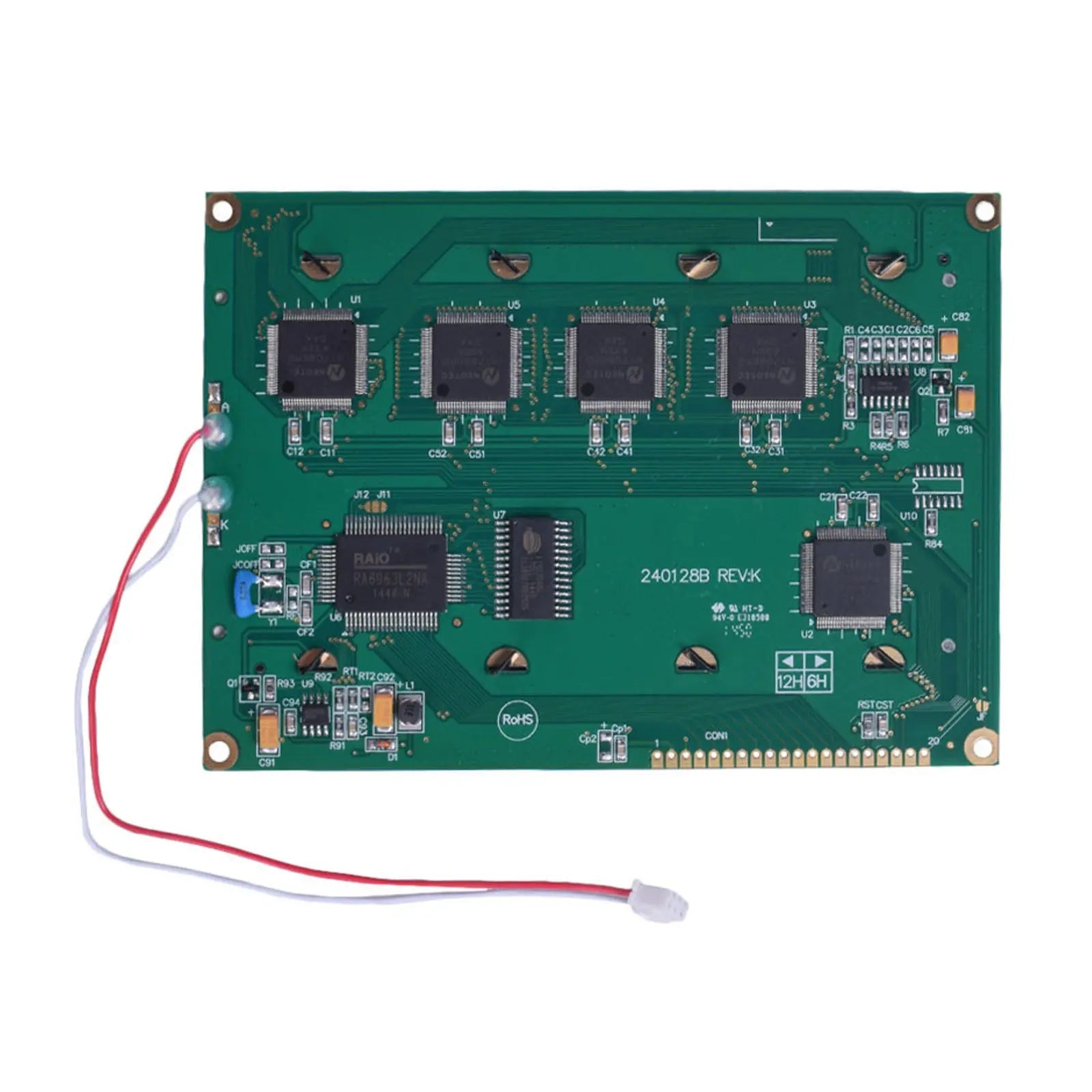

  • Back of 5.15-inch 240x128 Graphic LCD display module with MCU interface

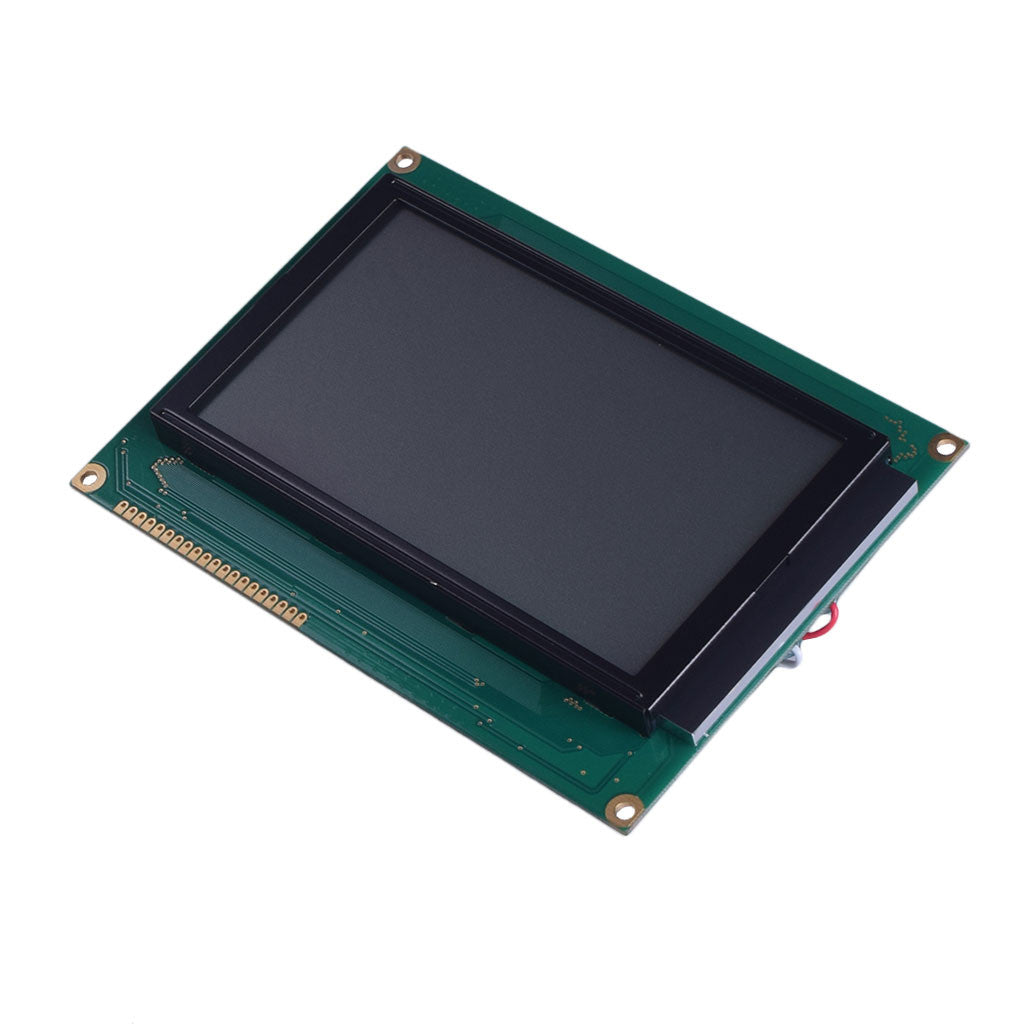

  • Top view of 5.15-inch 240x128 Graphic LCD display module with MCU interface
1 / 1

240x128 Graphic LCD 5.15" - MCU

$89.90
Shipping calculated at checkout.
SKU: DM-LCD240128-472
Color: Black White
5.15-inch 240x128 Graphic LCD display module with MCU interface
$89.90
Black White

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 240 x 128 pixels
  • Display Mode : FSTN Positive, Transflective
  • View Direction : 6:00
  • Module Dimension : 144.0 x 104.0 x 14.3(MAX) mm
  • Power Supply : 3.0 V
  • Backlight : White LED
  • Interface : Parallel MPU Interface
  • Controller IC : RA6963
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 188.2 g

Dimensions

Resources
  • 5.15-inch 240x128 Graphic LCD display module with MCU interface
  • 5.15-inch 240x128 Graphic Blue LCD display module with MCU interface
  • 5.15-inch 240x128 Graphic Yellow LCD display module with MCU interface
  • Back of 5.15-inch 240x128 Graphic LCD display module with MCU interface
  • Top view of 5.15-inch 240x128 Graphic LCD display module with MCU interface
1 / 1
