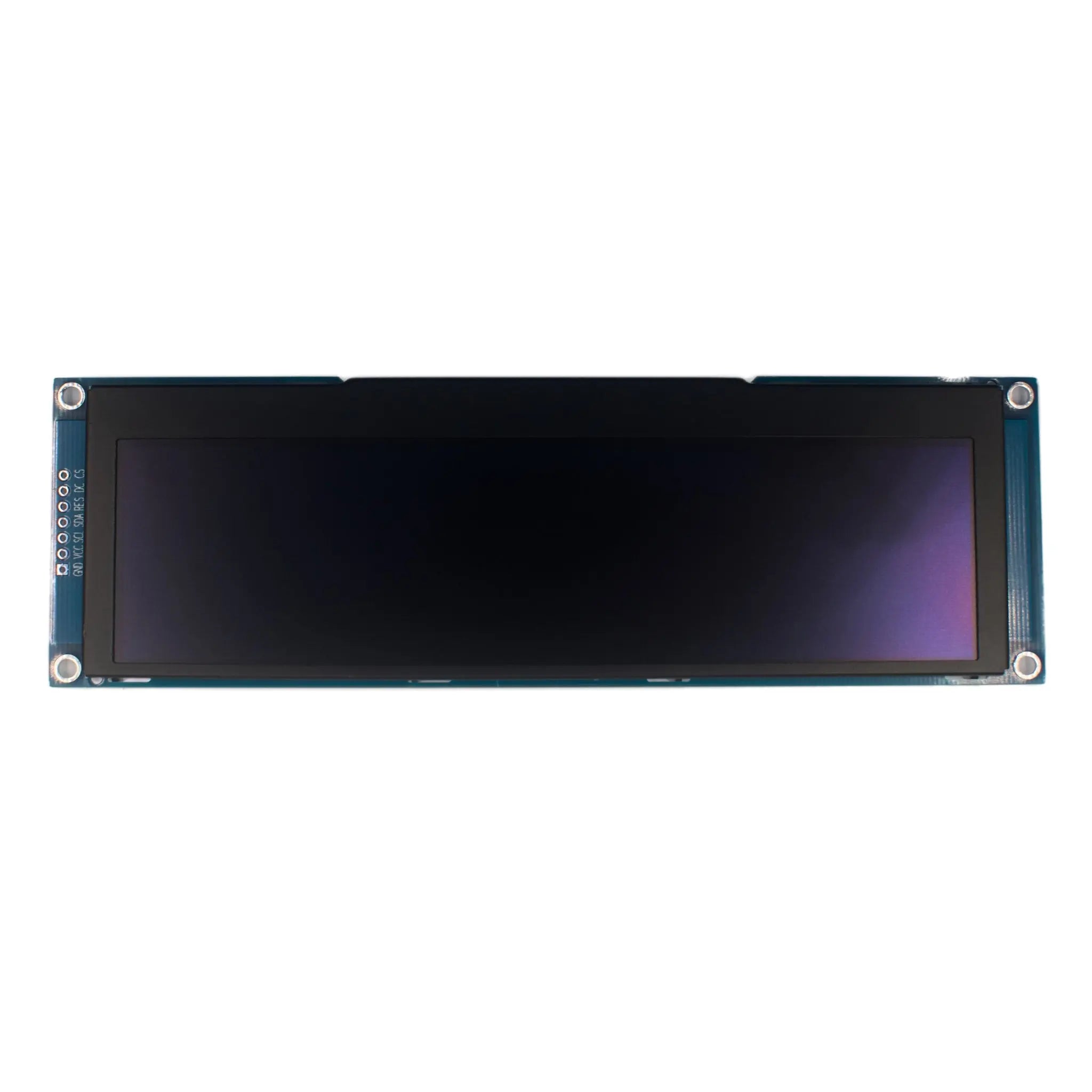

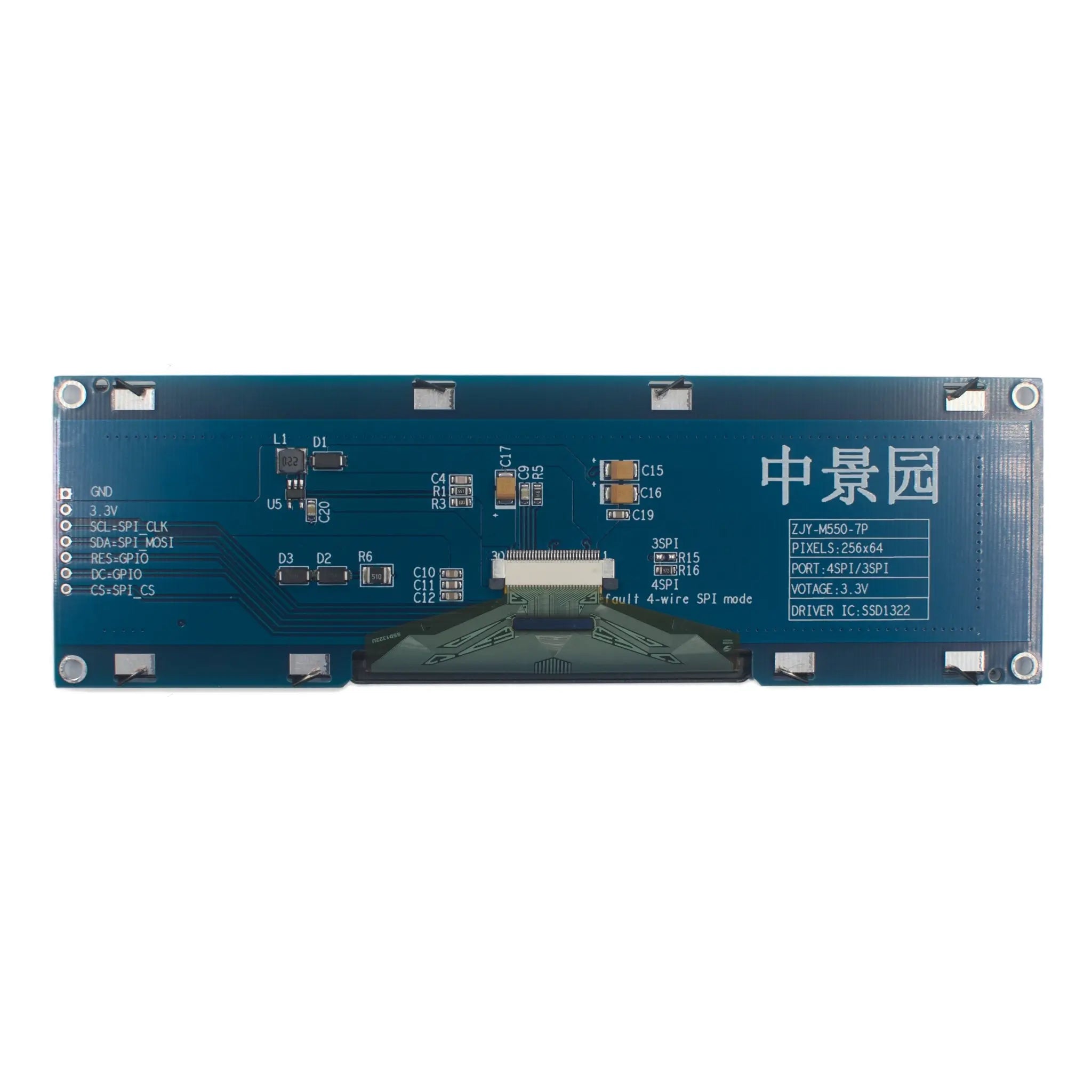

5.5" 256×64 Monochrome OLED Display | DMKDO0550W5NA
The DMKDO0550W5NA is a 5.5-inch Passive Matrix OLED display featuring 256×64 pixel resolution and a vivid green monochrome output. With a 1/64 drive duty and compact PCB design, it offers high contrast and low power consumption—ideal for industrial equipment, measurement instruments, and text-based user interfaces.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 5.5 | inch |
| Display Mode | Passive Matrix | - |
| Display Color | Monochrome (Green) | - |
| Resolution | 256 × 64 | pixels |
| Drive Duty | 1/64 | Duty |
| Pixel Pitch | 0.53 × 0.53 | mm |
| Pixel Size | 0.50 × 0.50 | mm |
| Active Area | 135.65 × 33.89 | mm |
| PCB Size | 160.0 × 50.0 × 6.6 | mm |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMKDO0550W5NA
