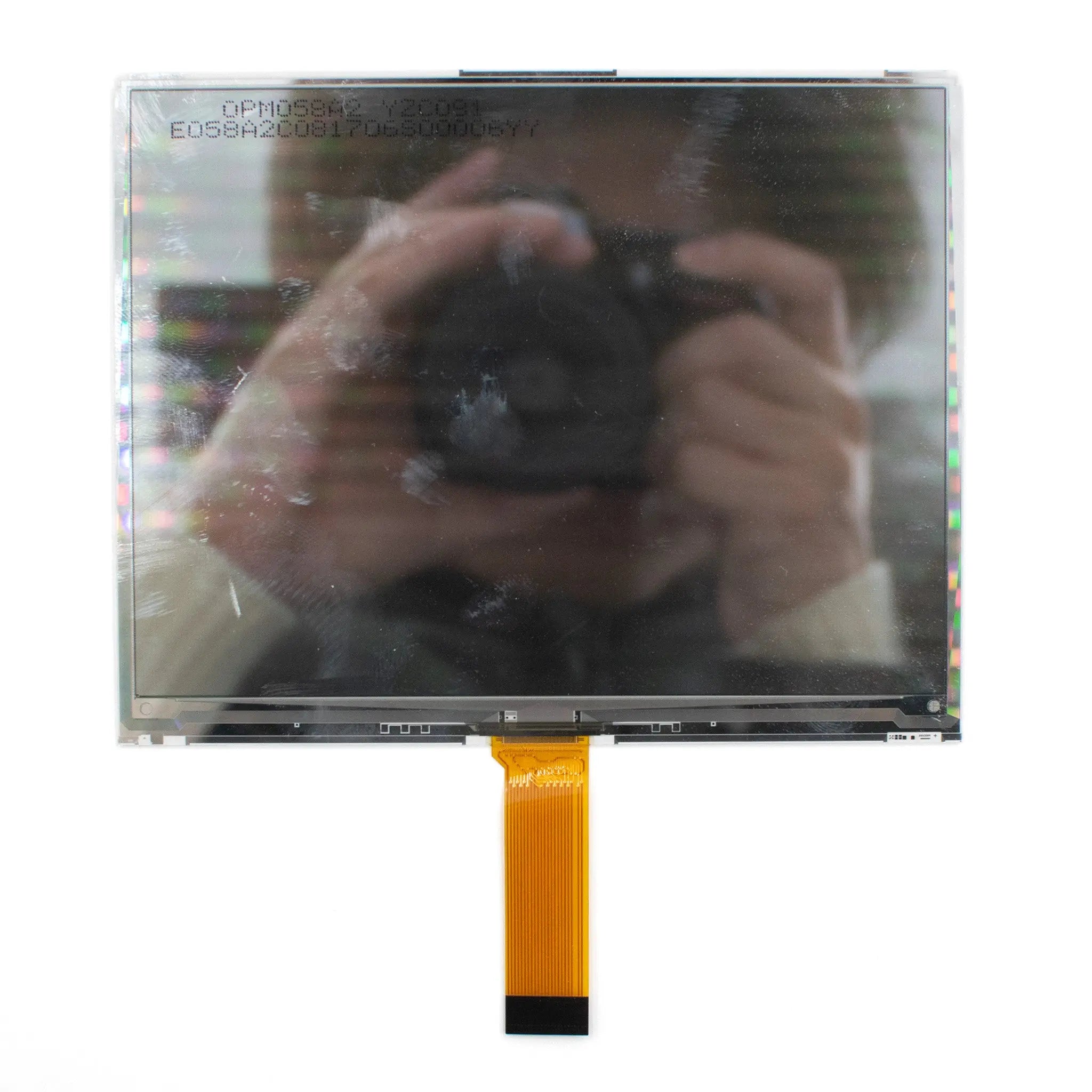

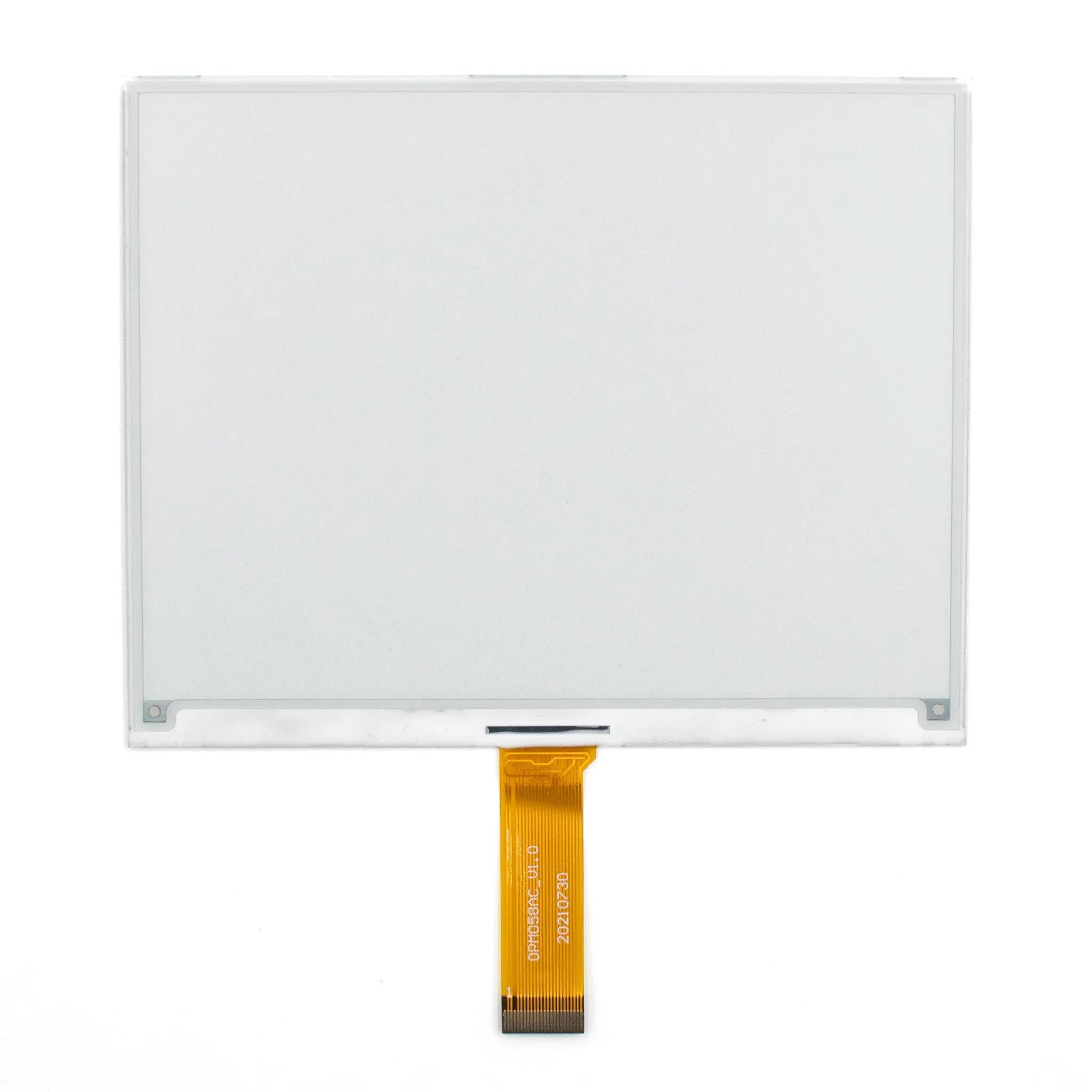

5.83" ePaper 648x480 - IIC/SPI
Professional-grade 5.83-inch Active Matrix Electrophoretic Display featuring 648×480 resolution with ultra-low power consumption. Designed for applications requiring bi-stable display technology that maintains image without power.
Engineered with advanced TFT-array driving technology, this ePaper module integrates gate buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC converter, SRAM, LUT, and VCOM circuitry in a compact 125.4×99.5×1.02mm package.
- Ultra-Low Power Operation: Typical consumption of 30mW during refresh, dropping to just 3μW in deep sleep mode with data retention.
- Dual Interface Support: Configurable 4-wire SPI (SCLK, SDIN, CSB, D/C) or 3-wire SPI (9-bit embedded D/C) via BS pin selection.
- Temperature Compensation: Integrated I2C master interface for external temperature sensor reading to optimize display performance.
- On-Chip Waveform Storage: Pre-programmed OTP contains display waveforms, eliminating external waveform controller requirements.
| Parameter | Specification |
|---|---|
| Display Type | Active Matrix Electrophoretic Display (AM EPD) |
| Screen Size | 5.83 inches |
| Resolution | 648(H) × 480(V) pixels |
| Pixel Pitch | 183.3μm(H) × 183.8μm(V) |
| Module Dimensions | 125.4mm × 99.5mm × 1.02mm |
| Weight | Approximately 26g |
| Operating Voltage | 2.4V - 3.6V (Typical 3.0V) |
| Operating Current | 10mA typical, 100mA maximum |
| Sleep Mode Current | 30μA (data retained) |
| Deep Sleep Current | 1μA (data not retained) |
For commercial and industrial applications, we offer customized ePaper display solutions with volume pricing and technical support.
- Bulk Procurement Programs: Volume discounts available for orders exceeding 1000 units with flexible payment terms.
- Custom Configuration Services: Tailored firmware, interface modifications, and mechanical integration support for OEM applications.
- Technical Support: Dedicated engineering support for integration challenges and performance optimization.
Ideal for retail pricing systems with bi-stable display maintaining prices without power, reducing maintenance costs by up to 80% compared to traditional LCD solutions.
Ultra-low power consumption enables extended battery life for portable diagnostic equipment and patient monitoring devices.
High visibility in various lighting conditions with wide viewing angles suitable for industrial control panels and measurement equipment.
Technical Notes: Display performance optimized for 25°C operation with full refresh time of 750ms and partial refresh of 250ms. Requires waveform provided by OED for optimal performance. Operating temperature range: 0°C to 50°C.
Resources: Download complete technical documentation
Dimensions
