5.0" 480x854 IPS Capacitive - RGB

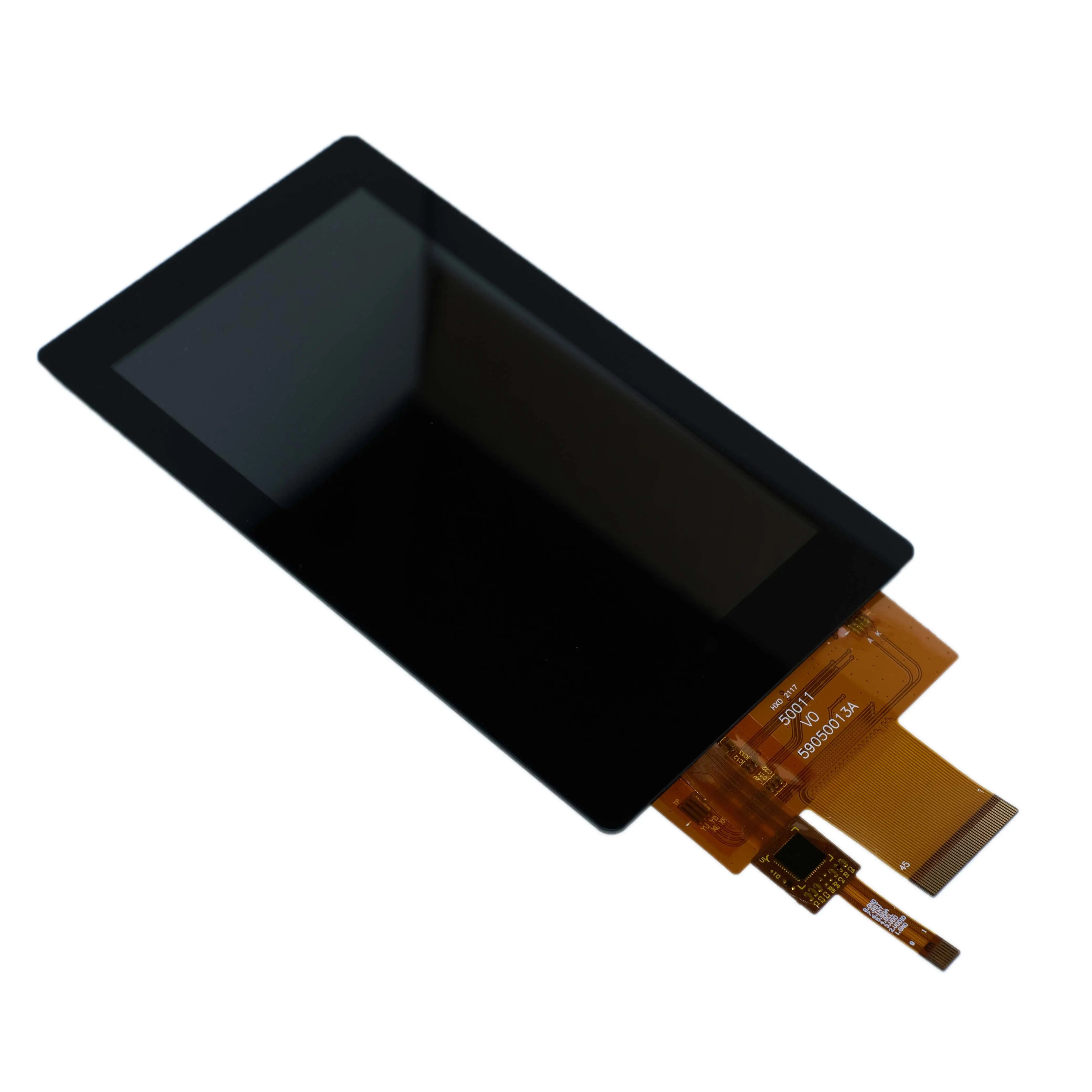

Advanced 5.0-inch IPS capacitive touch screen delivering sharp 480x854 resolution with 16.7M color depth. Features 5-point multi-touch support and gesture recognition for intuitive user interaction.
Engineered with IPS technology for consistent color reproduction and wide viewing angles from all directions. The compact module dimensions of 78.56×135.65×4.40mm make it ideal for space-constrained applications while providing a generous 61.63×109.65mm active display area.
- Wide Viewing Angle: IPS technology maintains color accuracy up to 178° viewing angle from all directions
- Multi-Interface Support: Compatible with 3-SPI and 16/18/24-bit RGB interfaces for flexible system integration
- Robust Operation: Designed for -20°C to 70°C operating temperature range with -30°C to 80°C storage capability
- Advanced Drive ICs: Integrated ILI9806E display controller and GT911 touch controller for optimal performance
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 5.0 inch |
| Resolution | 480 × 854 pixels |
| View Direction | All directions |
| Touch Mode | 5-point and Gestures |
| Module Dimension | 78.56 × 135.65 × 4.40 mm |
| Viewing Area | 61.63 × 109.65 mm |
| Supply Voltage | 3.3 V |
| Interface | 3-SPI + 16/18/24-bits RGB |
| Luminance | 430 cd/m² |
| Drive IC | ILI9806E + GT911 |
| Operation Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
We provide comprehensive B2B solutions for OEMs and system integrators requiring reliable display components for commercial applications.
- Custom Configuration Services: Tailored solutions including custom sizing, interface modifications, and specialized firmware programming
- Volume Pricing: Competitive wholesale pricing for bulk orders with flexible MOQ options
- Technical Support: Dedicated engineering support for integration challenges and application-specific requirements
- Quality Assurance: Rigorous testing protocols including 72-hour continuous operation testing and environmental stress screening
Rugged display solution for factory automation systems, process control panels, and equipment monitoring with reliable performance in harsh environments.
High-contrast display for patient monitoring equipment, diagnostic devices, and portable medical instruments requiring precise color representation.
Center console displays and rear-seat entertainment systems with wide temperature operation and sunlight-readable brightness.
Smart home controllers, portable gaming devices, and multimedia players benefiting from the responsive 5-point touch interface.
Compatibility Notes: This display module is compatible with most ARM-based processors and embedded systems supporting SPI or RGB interfaces. The 3.3V operation makes it suitable for low-power applications.
Technical Documentation: Download Complete Product Datasheet | ILI9806E Display Controller Datasheet | GT911 Touch Controller Datasheet
Dimensions
